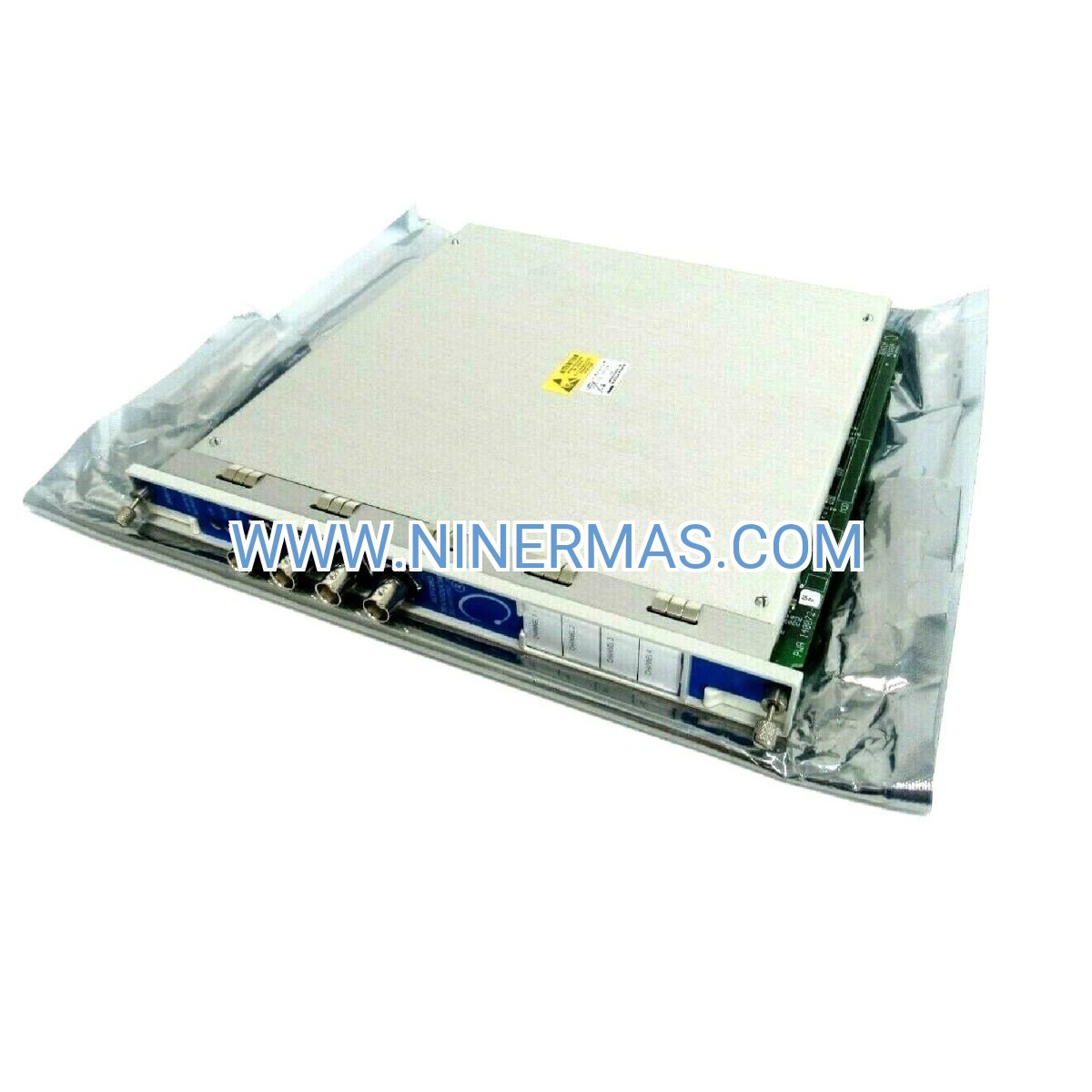

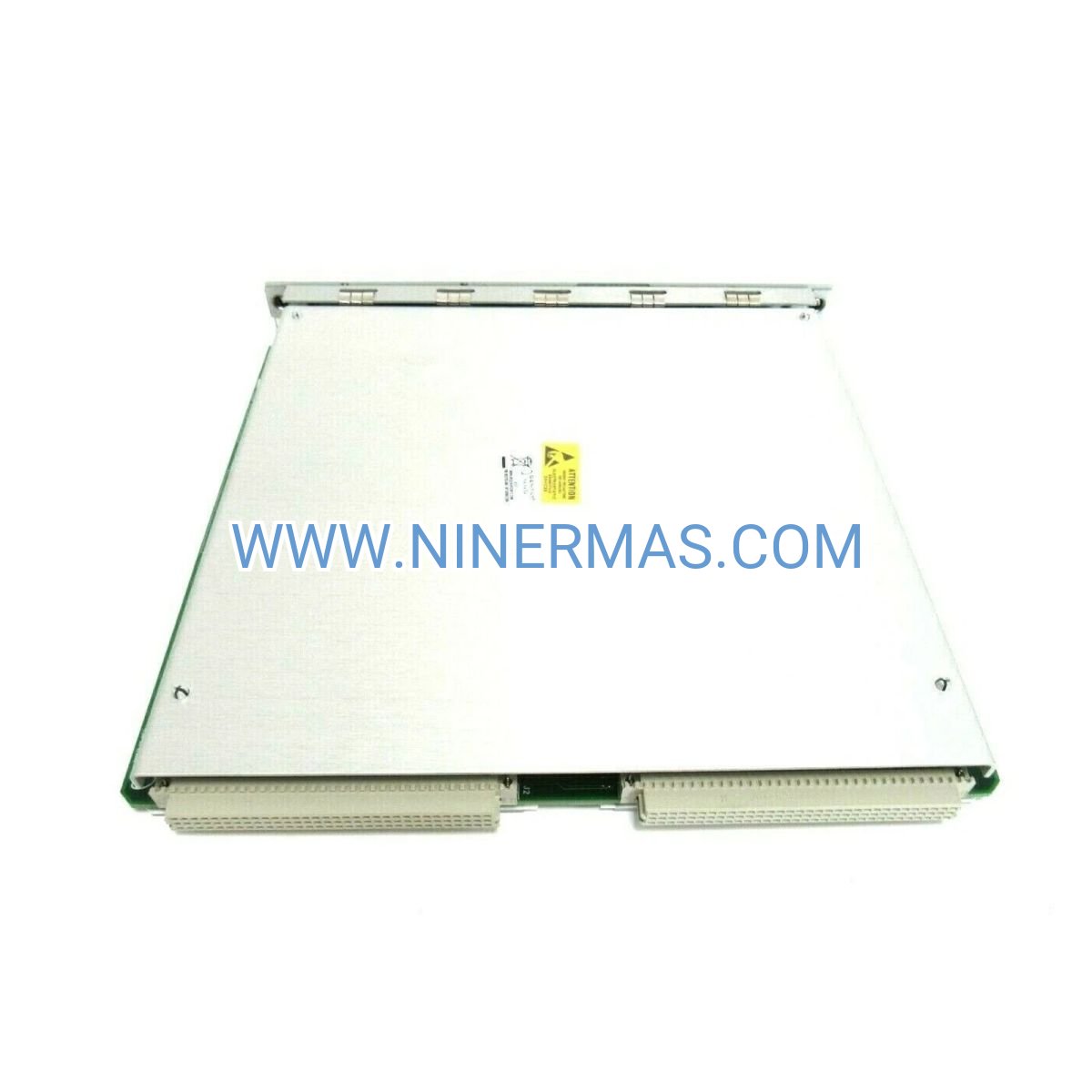

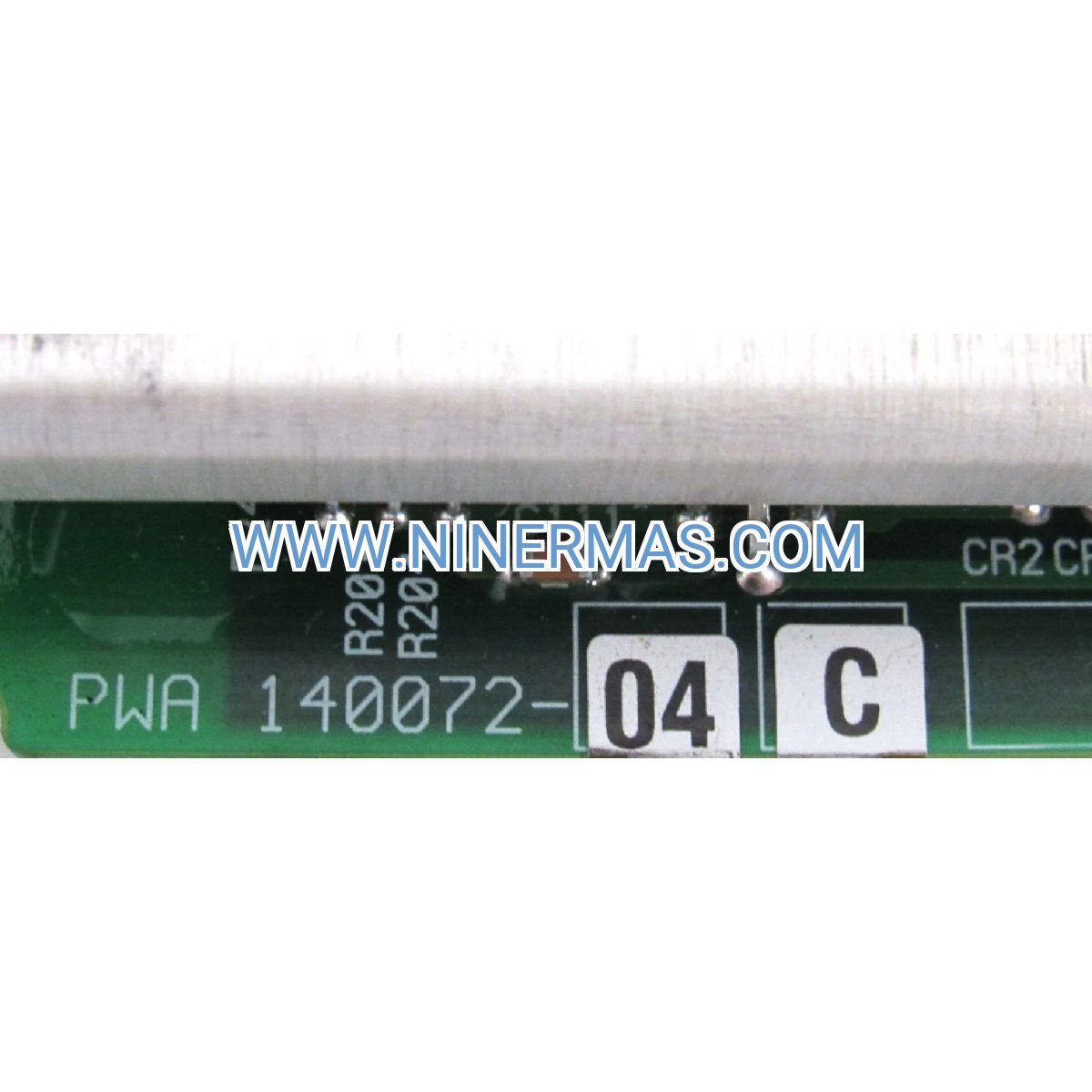

Bently Nevada 140072-04 Transient Data Interface Module (Industrial-Grade Machinery Monitoring Solution)

The Bently Nevada 140072-04 is a high-performance Transient Data Interface (TDI) module engineered for integration with 3500 Series Machinery Protection Systems. Through advanced waveform capture technology and real-time data streaming capabilities, this module delivers continuous monitoring of rotating equipment dynamics, enabling early fault detection and condition-based maintenance strategies in mission-critical industrial environments.

Designed for turbomachinery installations, compressor trains, generator sets, and critical pump systems across petrochemical, power generation, and oil & gas facilities. The 140072-04 addresses common challenges including undetected transient events, pressure fluctuations in rotating equipment, high energy consumption from reactive maintenance, manual data logging inefficiencies, and delayed fault alarm notifications that lead to unplanned downtime.

Leveraging factory-calibrated sensors and buffered data architecture, this TDI module provides measurement accuracy within ±1%, hot-swappable serviceability for minimal system disruption, API 670 and ISO 20816 compliance for regulatory adherence, and seamless System 1 software integration for advanced analytics. Ideal for design engineers, EPC contractors, system integrators, and plant maintenance teams. Contact our application engineers for customized configuration guidance and project quotations.

Core Features and Technical Advantages

Real-Time Transient Event Capture
High-speed waveform acquisition system captures vibration signatures at microsecond resolution, detecting bearing defects, shaft misalignment, and resonance conditions that conventional monitoring overlooks. Proprietary TDI protocol ensures data integrity during transmission to host systems.

Proven Energy Efficiency and Reliability
With only 8.5W typical power consumption, the module operates continuously in harsh environments (-30°C to +65°C) while maintaining measurement precision. Predictive maintenance enabled by this module can reduce unplanned downtime by up to 40% compared to time-based maintenance schedules.

Multi-Channel Scalability with Automatic Failover
Supports multiple TDI modules within a single 3500 rack configuration, enabling expanded monitoring capacity for complex machinery trains. Buffered data storage prevents event loss during network interruptions, with automatic recovery upon reconnection.

Comprehensive Protection and Diagnostics
Integrated self-diagnostics monitor module health, power supply integrity, communication status, and sensor connectivity. Ruggedized construction withstands industrial vibration levels and electromagnetic interference per API 670 specifications.

Intuitive Configuration and Integration
Configured via 3500 Rack Configuration Software with factory default settings suitable for 80% of standard applications. Ethernet connectivity enables integration with System 1, SCADA platforms, and third-party condition monitoring systems supporting TDI protocol.

Typical Application Scenarios

This module is engineered for installations demanding continuous machinery health visibility, vibration trend analysis, and transient event documentation, particularly in:

Turbomachinery and Rotating Equipment Monitoring
Provides critical vibration data for steam turbines, gas turbines, and centrifugal compressors in power plants and process industries. Captures startup/shutdown transients and operational anomalies that indicate developing mechanical issues before catastrophic failure.

Petrochemical and Refinery Process Units
Monitors pumps, blowers, and compressor trains handling volatile fluids where equipment failure poses safety and environmental risks. Supports API 670 compliance requirements for machinery protection systems in hazardous area classifications.

Power Generation and Cogeneration Facilities
Ensures generator set reliability through continuous bearing temperature correlation with vibration data. Integrates with plant DCS for automated shutdown sequences when vibration thresholds are exceeded, protecting multi-million dollar assets.

Manufacturing and Heavy Industry Operations
Applicable to paper mills, steel production, cement plants, and automotive manufacturing where large motor-driven equipment requires 24/7 uptime. Enables condition-based maintenance programs that optimize spare parts inventory and maintenance labor allocation.

Technical Specifications and Selection Guide

To facilitate system design and procurement, we provide standardized configuration parameters with custom engineering support for unique applications:

Selection Considerations:
When specifying the 140072-04 module, evaluate: total number of monitored machinery channels, existing 3500 rack power budget and available slots, network infrastructure (Ethernet backbone requirements), host software platform (System 1 version compatibility), and environmental conditions (temperature extremes, vibration exposure). For application-specific configuration assistance, provide machinery type, monitoring point count, and integration requirements to our engineering team.

Advanced Integration Capabilities

System 1 Software Ecosystem
Full compatibility with Bently Nevada System 1 condition monitoring platform enables advanced vibration analysis, historical trending, automated reporting, and predictive analytics using machine learning algorithms.

Third-Party SCADA and DCS Integration
Standard TDI protocol allows data exchange with Honeywell, Emerson, Siemens, and ABB control systems. OPC UA and Modbus TCP gateways available for legacy system connectivity.

Remote Monitoring and Diagnostics
Supports secure remote access for off-site engineering teams to perform diagnostics, configuration updates, and data retrieval without plant visits, reducing response time for critical events.

Delivery, Service, and Quality Assurance

Standard catalog modules ship within 5-7 business days from regional distribution centers; custom-configured solutions require 15-20 business days for factory programming and testing. Each 140072-04 module includes a comprehensive 12-month manufacturer warranty covering materials and workmanship defects, with extended warranty options available.

Technical support services include remote configuration assistance, on-site commissioning support (subject to geographic availability), and application engineering consultation for complex installations. Complete documentation package provided: electrical schematics, wiring diagrams, configuration software user manual, and API 670 compliance certificates.

Frequently Asked Questions (FAQ)

Q: How does the Bently Nevada 140072-04 TDI module interface with existing 3500 Series racks?
A: The module installs in any available slot within a 3500 rack using the standard card-edge connector. Configuration is performed via 3500 Rack Configuration Software over Ethernet. Verify rack power supply capacity can accommodate the additional 8.5W load before installation.

Q: What is the maximum number of TDI modules supported in a single rack configuration?
A: A standard 3500 rack can accommodate multiple TDI modules depending on total power budget (typically 4-6 modules). Each module provides independent data channels; consult rack power supply specifications and slot availability for your specific configuration.

Q: What level of vibration reduction or energy savings can be achieved with this monitoring system?
A: The TDI module itself is a diagnostic tool that enables predictive maintenance strategies. Facilities implementing condition-based maintenance using TDI data typically achieve 30-40% reduction in unplanned downtime and 20-25% decrease in maintenance costs through optimized intervention timing.

Q: What are the environmental installation requirements and protection ratings?
A: The module operates reliably in industrial environments from -30°C to +65°C with inherent EMI/RFI immunity. Install within a 3500 rack enclosure rated IP20 minimum; for harsh environments, specify IP54 or higher enclosure ratings. Ensure adequate ventilation to maintain rack internal temperature below 55°C.

Q: Does the 140072-04 support remote monitoring and cloud-based data analytics platforms?
A: Yes, when integrated with System 1 software version 2020 or later, data can be forwarded to Bently Nevada Orbit 60 cloud platform or third-party IIoT systems via standard protocols (OPC UA, MQTT). Secure VPN or dedicated network infrastructure recommended for remote access.

Q: Is the module compatible with legacy 3300 XL monitoring systems?
A: No, the 140072-04 is specifically designed for 3500 Series architecture and is not backward-compatible with 3300 XL systems. For 3300 XL installations, consider dedicated interface modules or system upgrade to 3500 Series for enhanced capabilities.

Request Technical Support and Custom Configuration

To receive detailed application engineering support, project-specific pricing, or technical consultation, please provide the following information: project name and location, application type (turbine, compressor, pump, etc.), number of monitoring points required, existing 3500 rack configuration (model and available slots), power supply specifications, host software platform (System 1 version or third-party SCADA), and environmental conditions (temperature range, hazardous area classification if applicable). Our engineering team will respond within 24 hours with tailored recommendations and quotations.
