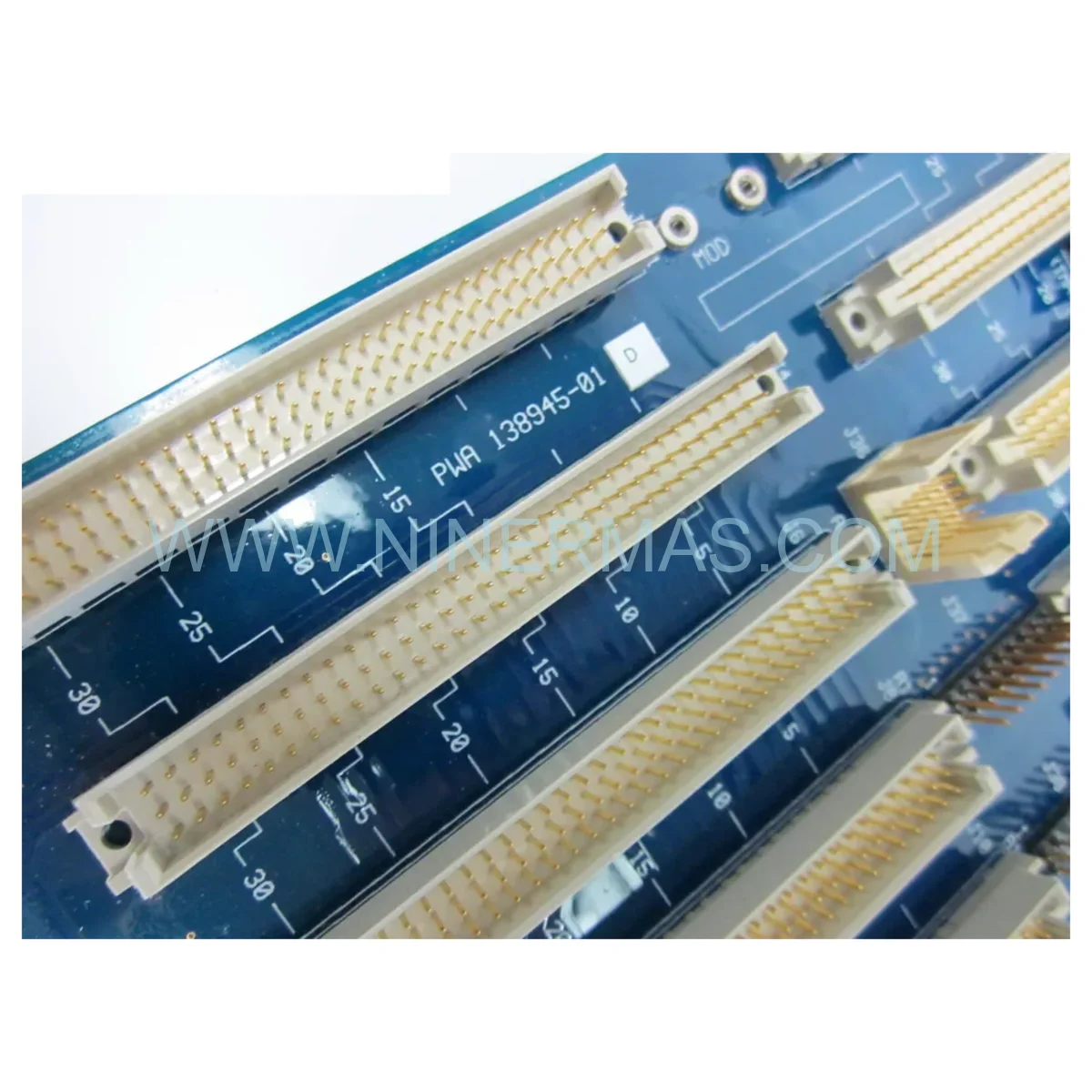

Industrial-Grade 14-Slot Monitoring Rack for Rotating Equipment Protection

The Bently Nevada 138945-01 represents a proven foundation for machinery health monitoring in mission-critical industrial environments. This 14-slot system rack combines modular flexibility with enterprise-grade reliability, enabling comprehensive vibration analysis, temperature tracking, and speed measurement across turbines, compressors, pumps, and motors. Built to 19-inch EIA standards, the 3500/05 chassis integrates seamlessly into existing control room infrastructure while supporting scalable expansion from basic monitoring to advanced predictive maintenance architectures.

Designed for facilities where unplanned downtime carries significant operational and financial consequences, this rack platform addresses the core challenge of protecting high-value rotating assets. Plant engineers, maintenance managers, and reliability teams gain a centralized monitoring hub that accommodates diverse sensor types and communication protocols. The dual power supply configuration ensures continuous protection even during electrical anomalies, while the wide operating temperature range (-30°C to +65°C) supports deployment in harsh industrial settings from Arctic facilities to tropical processing plants.

With proven compatibility across the entire 3500 series module ecosystem, the 138945-01 delivers investment protection through long-term scalability. Start with essential vibration monitoring, then expand capabilities by adding specialized modules for bearing temperature analysis, shaft position tracking, or integration with plant-wide SCADA systems—all without replacing the core infrastructure.

Core Features & Business Value

✓ 14-Slot Modular Architecture: Accommodates up to 14 monitoring modules in a single chassis, reducing cabinet space requirements by 40% compared to standalone monitor installations while simplifying wiring and maintenance access.

✓ Dual Redundant Power Design: Two independent power supply slots eliminate single points of failure, ensuring 99.9%+ uptime for continuous machinery protection even during electrical maintenance or supply fluctuations.

✓ Standard 19-Inch EIA Form Factor: Mounts directly into existing control room racks without custom fabrication, accelerating installation timelines and reducing integration costs by leveraging universal mounting hardware.

✓ Extended Temperature Range (-30°C to +65°C): Operates reliably in extreme environments from offshore platforms to desert refineries, eliminating the need for costly climate-controlled enclosures in many applications.

✓ Hot-Swappable Module Support: Add, remove, or replace monitoring modules without system shutdown, minimizing disruption to ongoing operations and enabling phased capacity expansion aligned with budget cycles.

✓ Universal 3500 Series Compatibility: Accepts all standard proximitor monitors, seismic sensors, tachometer modules, temperature monitors, and communication gateways in any slot configuration for maximum deployment flexibility.

Typical Application Scenarios

→ Power Generation Facilities: In combined-cycle power plants, the 138945-01 rack serves as the central monitoring hub for steam turbine-generator sets, gas turbines, and auxiliary equipment. By consolidating vibration, temperature, and speed monitoring in a single platform, plant operators reduce mean time to diagnosis by 60% during abnormal operating conditions. The system's ability to interface with plant DCS enables automated trip logic and early warning notifications before catastrophic failures occur.

→ Petrochemical Processing: Refineries and chemical plants deploy this rack to protect critical compressor trains, centrifugal pumps, and rotating dryers where equipment failure can trigger production shutdowns costing $500K+ per day. The modular design allows facilities to prioritize monitoring coverage based on asset criticality, starting with high-risk equipment and expanding protection as capital budgets permit.

→ Pulp & Paper Manufacturing: Continuous process industries utilize the 3500/05 platform to monitor paper machine drives, refiners, and stock pumps operating 24/7/365. The rack's robust construction withstands the high-humidity, high-vibration environment typical of mill floors, while the standardized mounting simplifies replacement during facility upgrades.

→ Marine Propulsion Systems: Shipboard installations benefit from the compact 14-slot configuration that maximizes monitoring density in space-constrained engine rooms. The wide temperature tolerance and vibration-resistant design ensure reliable operation during rough sea conditions, while the modular architecture supports vessel-specific monitoring requirements from main engines to auxiliary generators.

→ Mining & Mineral Processing: Crushing circuits, grinding mills, and conveyor systems in remote mining operations require monitoring solutions that operate reliably with minimal maintenance intervention. The 138945-01's proven field reliability and simple module replacement procedures reduce dependency on specialized technicians, lowering total cost of ownership in geographically isolated facilities.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 14-slot 138945-01 when monitoring 6-12 machines or when future expansion is anticipated. For smaller installations with 3-5 machines, consider the 7-slot mini rack variant to reduce initial investment. Facilities requiring more than 12 modules should evaluate the 27-slot extended rack or deploy multiple 14-slot units for geographic distribution. Always reserve 2 slots for redundant power supplies and 1 slot for rack interface module, leaving 11 slots available for monitoring modules.

Extended Functions & Integration Capabilities

SCADA/DCS Integration: The rack supports Modbus RTU/TCP communication protocols through dedicated interface modules, enabling seamless data exchange with plant-wide control systems. Real-time vibration trends, alarm status, and diagnostic data flow directly to operator HMI screens, eliminating manual data collection and enabling centralized asset health dashboards.

Predictive Maintenance Platforms: Export continuous monitoring data to cloud-based analytics platforms or on-premise condition monitoring software for advanced trend analysis, machine learning-based anomaly detection, and automated work order generation. The standardized data format ensures compatibility with leading CMMS and EAM systems.

Customization Options: Configure slot assignments to match specific monitoring requirements—dedicate slots for critical equipment with multiple sensors while sharing modules across less-critical assets. Custom alarm setpoints, data logging intervals, and communication parameters adapt the system to unique operational needs without hardware modifications.

Cybersecurity Features: When paired with modern communication modules, the platform supports secure data transmission via encrypted protocols, user authentication, and audit logging to meet industrial cybersecurity standards (IEC 62443) increasingly required in critical infrastructure sectors.

Delivery & Service Assurance

Lead Time: Standard configurations ship within 3-5 business days from our regional distribution centers. Custom module combinations or large quantity orders (5+ racks) typically require 7-10 business days for assembly and testing. Expedited shipping options available for emergency replacement scenarios.

Warranty Coverage: Each 138945-01 rack includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Warranty service includes free replacement of defective chassis and technical support for installation troubleshooting. Extended warranty programs available for facilities requiring multi-year coverage.

Technical Support: Our application engineering team provides pre-sale consultation for system sizing, module selection, and integration planning. Post-sale support includes installation guidance, configuration assistance, and troubleshooting via phone, email, or remote desktop sessions. Average response time: <2 hours during business hours.

Documentation Package: Every rack ships with installation manual, dimensional drawings, wiring diagrams, and module compatibility matrix. Digital resources include 3D CAD models (STEP format), configuration software, and integration guides for common DCS platforms (Honeywell, Emerson, Siemens).

Frequently Asked Questions

Q: What power supply modules are required for the 138945-01 monitoring rack?
A: The rack requires at least one 3500/15 or 3500/22M power supply module. For critical applications, we strongly recommend installing two power supplies in redundant configuration to ensure continuous operation during power supply failure or maintenance. Each power supply occupies one slot, leaving 12-13 slots for monitoring modules.

Q: Can I mix different types of monitoring modules in the same rack chassis?
A: Yes, the 3500/05 backplane supports simultaneous operation of proximitor monitors, seismic monitors, tachometer modules, temperature monitors, and communication gateways in any slot combination. This flexibility allows you to build customized monitoring solutions matching your specific machinery portfolio without purchasing separate racks for different sensor types.

Q: How does the 14-slot rack compare to the 7-slot mini rack for small installations?
A: The 7-slot mini rack offers identical functionality in a more compact form factor, ideal for monitoring 3-5 machines or space-constrained installations. Choose the 14-slot 138945-01 when monitoring 6+ machines, when future expansion is likely, or when standardizing on a single rack platform across multiple facilities simplifies spare parts inventory and technician training.

Q: What installation clearances are needed for proper rack ventilation and maintenance access?
A: Allow minimum 100mm clearance above and below the rack for natural convection cooling. Provide 150mm clearance in front for module insertion/removal and 200mm behind for cable routing and connector access. The rack can be mounted in enclosed cabinets provided adequate ventilation prevents internal temperatures from exceeding 65°C.

Q: Is the rack compatible with legacy 3300 series monitoring modules?
A: No, the 138945-01 is designed exclusively for 3500 series modules. The backplane pinout, power distribution, and communication protocols differ from 3300 series racks. Facilities upgrading from 3300 to 3500 systems will need to replace both racks and modules, though existing sensors and cabling can often be reused with appropriate interface modules.

Q: Can modules be added or replaced without shutting down the entire monitoring system?
A: Yes, the hot-swappable design allows individual modules to be installed or removed while the rack remains powered and other modules continue operating. This capability enables phased system expansion, module upgrades, and replacement of failed modules without disrupting monitoring of unaffected equipment—critical for 24/7 operations where complete system shutdowns are impractical.

Ready to Protect Your Critical Machinery?

Contact our application specialists to discuss your specific monitoring requirements, receive a customized module configuration recommendation, and obtain a detailed quotation. We'll help you design a monitoring solution that balances comprehensive protection with budget constraints, ensuring optimal return on investment for your machinery reliability program.
