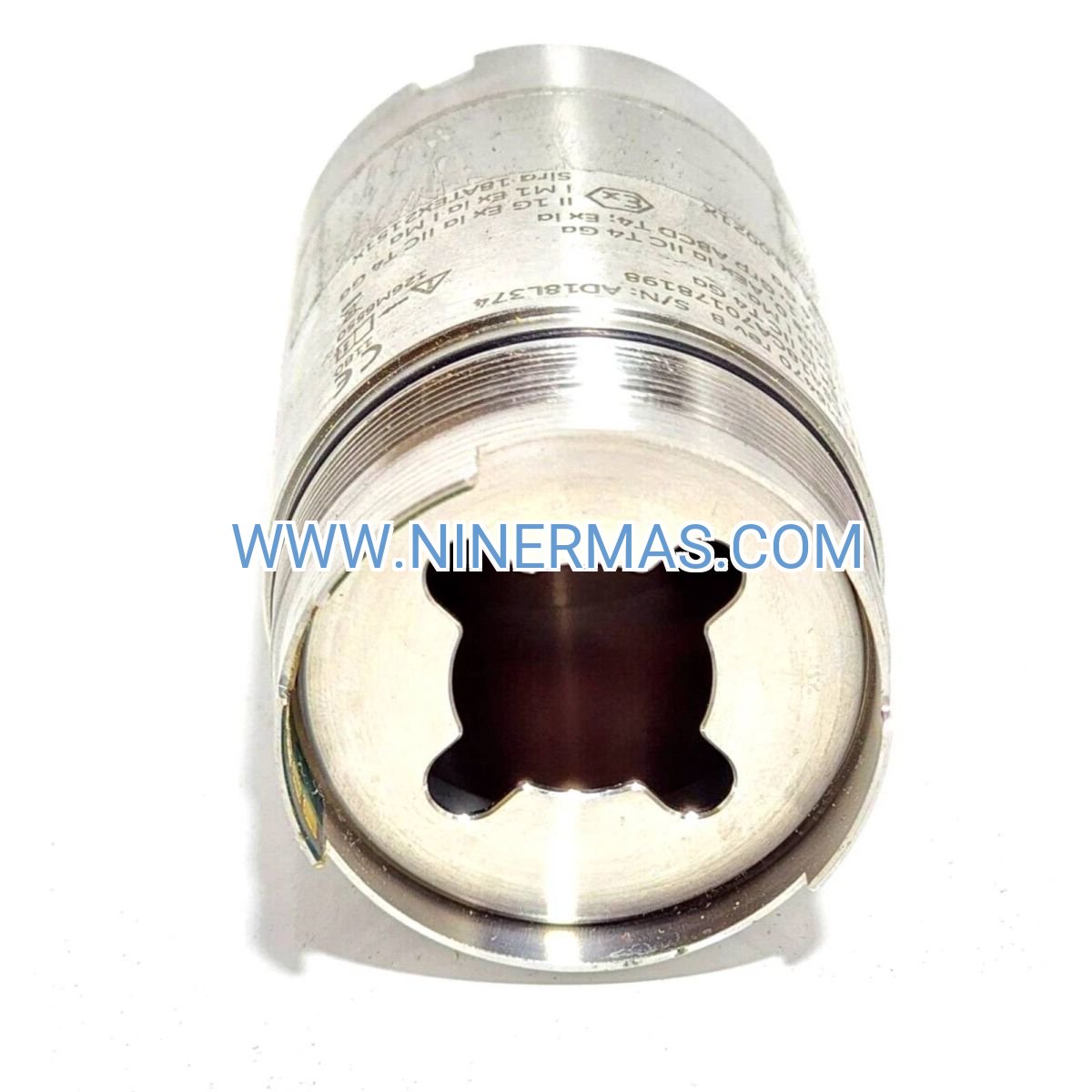

Bently Nevada 134M0389-04 8mm Proximitor Sensor (Industrial Vibration Monitoring System)

The Bently Nevada 134M0389-04 is an industrial-grade 8mm Proximitor sensor designed for non-contact displacement and vibration measurement in rotating machinery systems. Through eddy current sensing technology and precision signal conditioning, it delivers real-time shaft position tracking, radial vibration analysis, and axial displacement monitoring with exceptional accuracy and reliability.

Ideal for turbomachinery installations in power generation plants, petrochemical refineries, oil & gas compression stations, steel mills, and pulp & paper facilities, this sensor addresses critical challenges including bearing failure prediction, rotor imbalance detection, shaft misalignment identification, and thrust bearing wear monitoring—reducing unplanned downtime and catastrophic equipment failures.

Built on proven 3300 XL platform architecture with field-validated performance, the 134M0389-04 features wide frequency response (0-10 kHz), extended temperature range (-40°C to +85°C), stainless steel housing for corrosion resistance, and seamless integration with Bently Nevada 3500 monitoring racks. Suitable for design engineers, maintenance teams, instrumentation contractors, and OEM integrators requiring certified vibration sensing solutions. Contact our application engineers for site-specific configuration recommendations and technical datasheets.

Core Capabilities & Performance Advantages

• High-Precision Eddy Current Sensing
  Utilizes advanced electromagnetic field technology to measure gap distance between sensor tip and ferrous target with ±1% linearity, enabling micron-level detection of shaft displacement, eccentricity, and dynamic motion without physical contact or wear.
• Wide Frequency Response for Multi-Fault Detection
  Captures vibration signatures from 0 Hz (static position) to 10 kHz (-3 dB point), covering subsynchronous instabilities, synchronous imbalance, gear mesh frequencies, bearing defect harmonics, and blade pass phenomena in a single measurement channel.
• Extreme Environment Durability
  Operates reliably across -40°C to +85°C ambient temperatures with IP67-rated stainless steel construction, resisting moisture ingress, chemical exposure, electromagnetic interference (EMI), and mechanical shock—proven in offshore platforms and desert installations.
• Integrated System Compatibility
  Direct plug-and-play connection to Bently Nevada 3300 XL proximitor systems, 3500 rack monitors, and ADAPT software platforms; backward compatible with legacy 3300 infrastructure while supporting modern MODBUS and 4-20mA output protocols.
• Reduced Installation & Maintenance Burden
  Factory-calibrated for ferrous targets with traceable certification; integral armored cable options eliminate field termination errors; self-diagnostic capabilities flag sensor faults before measurement integrity is compromised, minimizing commissioning time and lifecycle costs.
• Comprehensive Protection Features
  Built-in transient voltage suppression, reverse polarity protection, and short-circuit immunity safeguard sensor electronics; hazardous area approvals (Class I Div 2, ATEX Zone 2 when paired with certified barriers) enable deployment in explosive atmospheres.

Typical Application Scenarios

This Proximitor sensor is engineered for installations demanding continuous reliability and measurement precision, particularly in:

• Steam & Gas Turbine Monitoring
  Measures differential expansion between rotor and casing in high-temperature turbines, preventing rub events and blade tip clearance loss. Tracks thrust position to avoid bearing damage during startup/shutdown transients and load changes in power generation units.
• Centrifugal & Reciprocating Compressor Protection
  Monitors radial shaft vibration at bearing housings and mid-span locations to detect surge conditions, aerodynamic instability, and mechanical looseness. Provides keyphasor once-per-revolution signals for phase analysis and torsional vibration studies in critical gas compression services.
• Large Motor & Generator Condition Monitoring
  Tracks rotor eccentricity and air gap variations in synchronous motors, induction motors above 500 HP, and hydro/thermal generators. Enables early detection of rotor bow, foundation settling, and coupling misalignment before insulation failure or catastrophic seizure occurs.
• Industrial Pump & Fan Reliability Programs
  Integrates into predictive maintenance systems for boiler feed pumps, cooling water pumps, induced draft fans, and forced draft fans—identifying cavitation, impeller imbalance, and bearing wear patterns through trend analysis and alarm threshold management.
• Process Equipment & Gearbox Diagnostics
  Supports condition-based monitoring of extruders, mixers, crushers, and multi-stage gearboxes in cement, mining, and chemical processing plants. Captures high-frequency gear mesh defects and low-frequency shaft misalignment simultaneously for comprehensive asset health assessment.

Technical Parameters & Selection Guide

To ensure optimal performance and compatibility, the 134M0389-04 sensor is specified with the following characteristics:

Selection Recommendations

When specifying the 134M0389-04 sensor for your application, consider the following factors: shaft diameter and material composition (ferrous targets required for standard calibration), expected vibration amplitude and frequency content (ensure sensing range covers peak-to-peak displacement), ambient temperature and environmental conditions (verify operating limits and IP rating sufficiency), mounting location and available clearance (8mm thread requires adequate radial space), cable routing distance and EMI exposure (select appropriate cable length and shielding), and monitoring system interface requirements (confirm compatibility with existing proximitor or rack infrastructure).

For complex installations involving multiple measurement points, non-standard target materials, extreme temperature cycling, or hazardous area classifications, please provide your machinery specifications, P&ID drawings, and site environmental data. Our instrumentation engineers will recommend sensor quantity, mounting hardware, extension cables, proximitor modules, and barrier configurations tailored to your project requirements.

Extended Functionality & Integration Options

• Keyphasor Event Detection: When installed at a shaft keyway or notch, the sensor generates precise once-per-revolution timing pulses for phase-locked vibration analysis, enabling differentiation between imbalance, misalignment, and looseness fault patterns.
• Dual-Channel Radial Monitoring: Pair two sensors in XY orthogonal configuration to construct full orbit plots, measuring shaft centerline motion, precession direction, and dynamic load distribution across bearing clearances.
• Axial Position Tracking: Mount sensor facing thrust collar or rotor shoulder to monitor axial float, detect thrust bearing wear progression, and trigger alarms before contact damage occurs in high-thrust machinery.
• Differential Expansion Measurement: Combine with case-mounted reference sensors to calculate relative thermal growth between rotor and stator assemblies in steam turbines, preventing rub events during startup and shutdown cycles.
• Remote Monitoring Integration: Connect sensor output to SCADA systems, DCS platforms, or cloud-based condition monitoring services via 3500 rack gateways supporting OPC-UA, MODBUS TCP, and proprietary protocols for centralized asset management.

Delivery, Service & Quality Assurance

Lead Time: Standard 134M0389-04 sensors with 5m or 9m integral cables ship from stock within 3-5 business days. Custom cable lengths, special certifications, or bulk orders (10+ units) typically require 2-3 weeks for factory preparation and quality verification.

Warranty Coverage: Each sensor is backed by a comprehensive 12-month manufacturer warranty covering material defects, workmanship issues, and calibration drift beyond published specifications. Warranty includes free replacement or repair, with expedited shipping for critical downtime situations.

Technical Support: Our application engineering team provides pre-sale consultation for sensor selection, mounting design review, and system integration planning. Post-delivery support includes installation guidance, calibration verification procedures, troubleshooting assistance, and firmware/software compatibility advisories (remote and on-site options available based on location).

Documentation Package: Every sensor shipment includes factory calibration certificate with traceability to NIST standards, dimensional outline drawings, electrical connection diagrams, installation torque specifications, and quick-start commissioning checklist—ensuring first-time-right deployment and regulatory compliance.

Certifications & Compliance: Manufactured under ISO 9001 quality management system; meets CE marking requirements for European markets; hazardous area approvals documented in IECEx and ATEX certificates (when applicable); RoHS and REACH compliant for environmental regulations.

Frequently Asked Questions (FAQ)

Q: How does the Bently Nevada 134M0389-04 Proximitor sensor integrate with existing 3300 monitoring systems?
A: The 134M0389-04 connects directly to 3300 XL proximitor modules or 3500 rack monitor channels via standard coaxial cable terminations. It maintains full backward compatibility with legacy 3300 infrastructure while offering enhanced temperature range and improved EMI immunity. Verify your proximitor module supports -2 to -18 Vdc input range and provides appropriate excitation voltage (typically -24 Vdc).

Q: What is the maximum number of sensors that can be monitored simultaneously in a single turbine or compressor train?
A: A typical turbomachinery installation uses 2-4 radial vibration sensors per bearing (XY pairs), 1-2 axial position sensors, 1 keyphasor sensor, and optional case vibration or differential expansion sensors—totaling 8-16 channels per machine. The 3500 rack system supports up to 20 monitor modules, each handling 1-4 sensor inputs depending on module type, allowing comprehensive coverage of multi-stage equipment.

Q: Can the 134M0389-04 sensor measure vibration on non-ferrous shafts such as stainless steel or aluminum?
A: The sensor is factory-calibrated for ferrous (carbon steel) targets with specific magnetic permeability. Non-ferrous materials like 400-series stainless steel may work with reduced sensitivity and require field recalibration. Austenitic stainless (300-series) and aluminum are not suitable; consider alternative sensor technologies (capacitance probes or laser displacement sensors) or install ferrous target sleeves on the shaft.

Q: What are the typical energy savings or reliability improvements achieved with Proximitor-based vibration monitoring?
A: Predictive maintenance programs using continuous Proximitor monitoring report 25-40% reduction in unplanned downtime, 15-30% decrease in maintenance costs through condition-based interventions, and 10-20% extension of bearing and seal service life by detecting degradation early. Actual results depend on equipment criticality, baseline maintenance practices, and alarm threshold optimization.

Q: What installation environment requirements must be met for reliable sensor operation?
A: Ensure mounting surface is rigid and vibration-isolated from measured shaft (use bearing housing or casing mount, not piping or flexible supports). Maintain sensor tip-to-target gap within linear range (typically 40 mils / 1.0 mm initial setting). Protect cable from sharp bends (minimum 6-inch radius), high-temperature zones above 85°C, and rotating equipment contact. Verify adequate clearance for sensor removal during maintenance without machinery disassembly.

Q: Does the sensor support remote monitoring and data acquisition for Industry 4.0 applications?
A: When connected to Bently Nevada 3500 rack monitors equipped with communication gateways (e.g., 3500/92 or 3500/95), sensor data streams to SCADA, DCS, or cloud platforms via MODBUS TCP, OPC-UA, or proprietary protocols. Integration with System 1 software enables centralized vibration trending, automated diagnostics, and mobile alert notifications—supporting digital twin models and AI-driven anomaly detection strategies.

Request Technical Consultation & Quotation

To receive a customized sensor configuration proposal, pricing quotation, or application engineering support, please provide the following project details:

• Equipment Type: Turbine, compressor, motor, pump, fan, gearbox, or other rotating machinery
• Shaft Diameter & Material: Dimensions and material composition of measurement target
• Operating Conditions: Speed range (RPM), temperature extremes, vibration levels, and environmental hazards
• Measurement Objectives: Radial vibration, axial position, differential expansion, keyphasor, or multi-point monitoring
• System Infrastructure: Existing proximitor modules, rack monitors, or greenfield installation
• Quantity & Timeline: Number of sensors required and project commissioning schedule
• Certifications Needed: Hazardous area approvals, seismic qualifications, or industry-specific standards

Our instrumentation specialists will respond within 24 hours with sensor recommendations, mounting hardware selections, cable routing guidance, and system integration architecture—ensuring your vibration monitoring deployment meets performance, budget, and schedule objectives.
