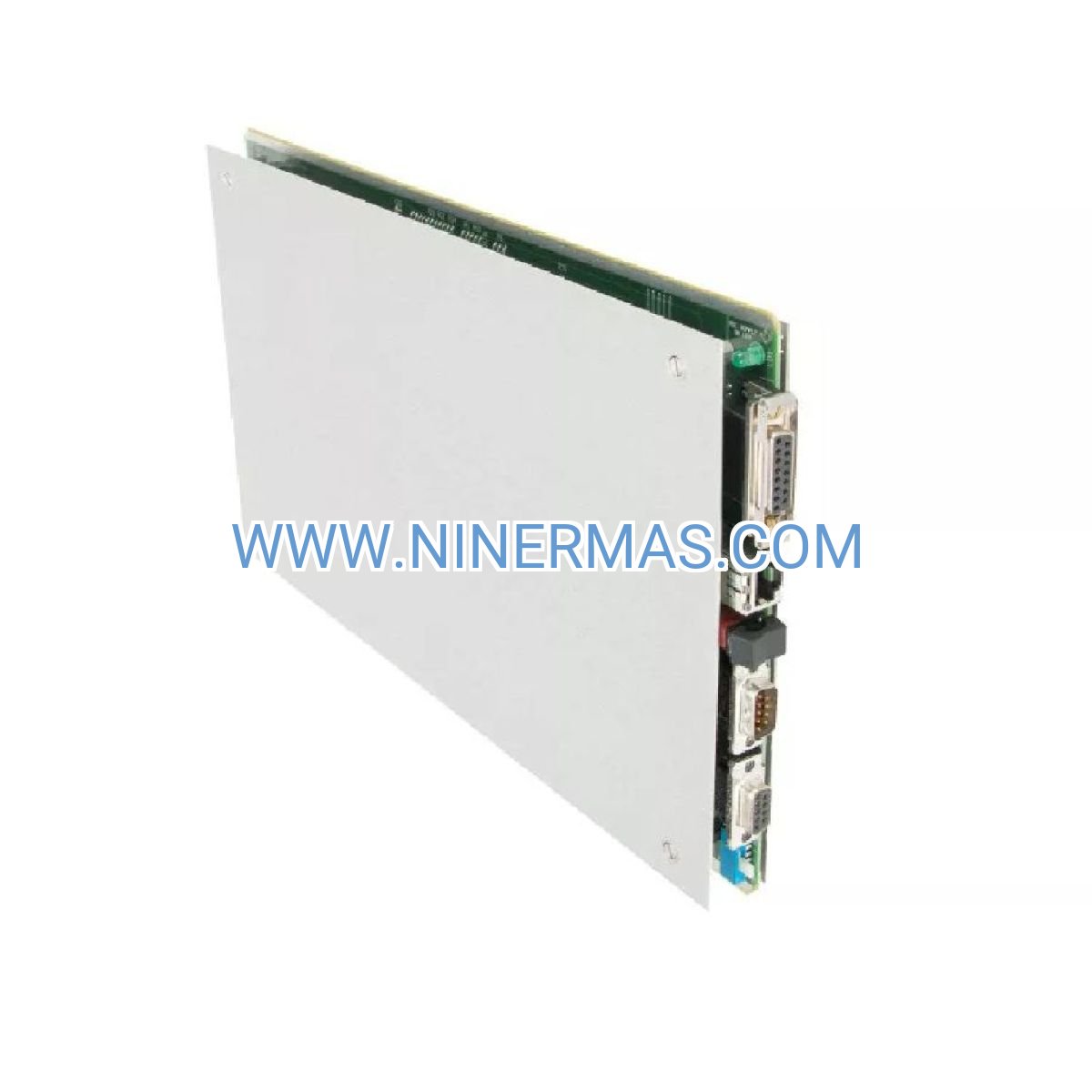

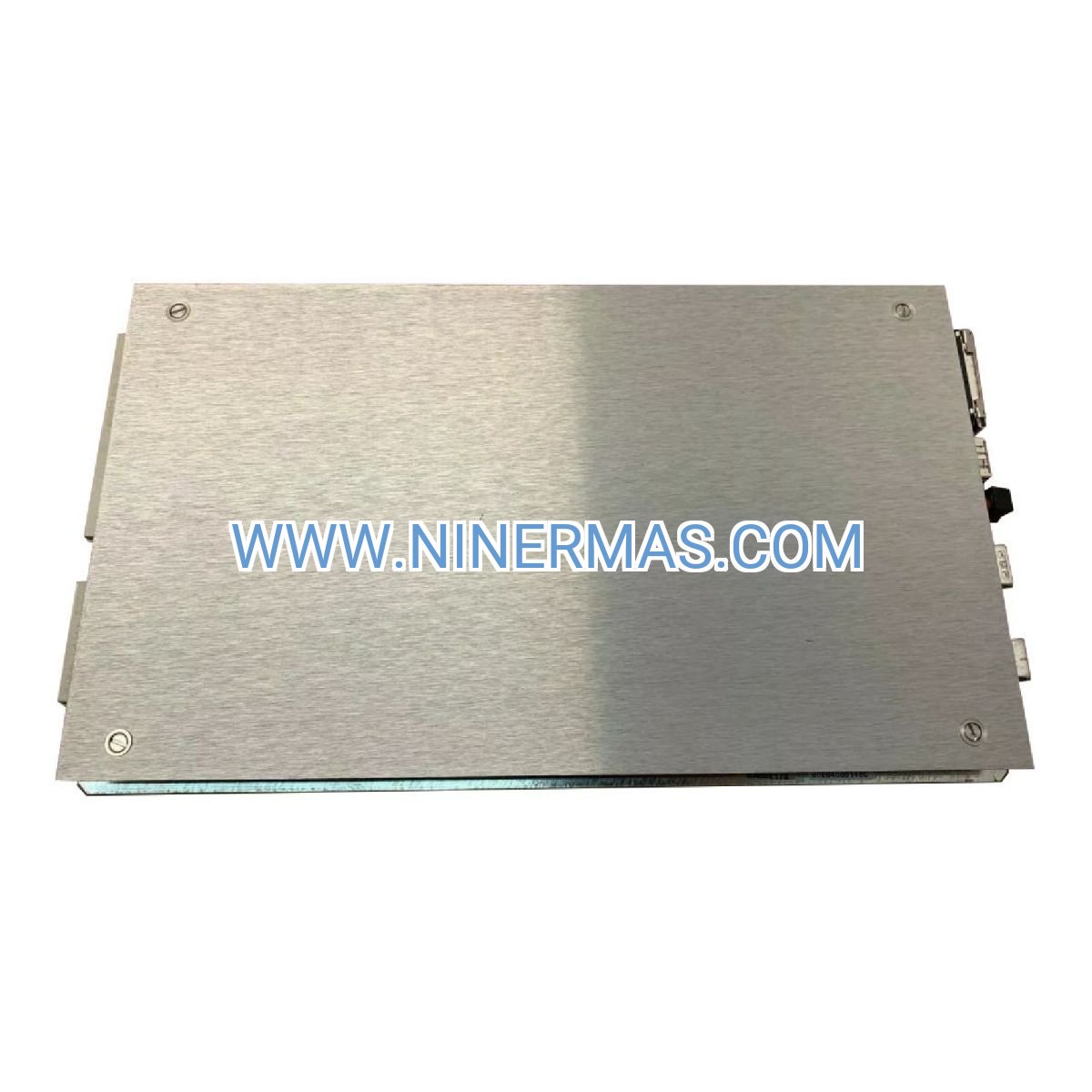

134652-01 TDXnet CPU Processor Board (Industrial-Grade Monitoring Solution)

The 134652-01 represents Bently Nevada's advanced approach to transient data processing in mission-critical industrial environments. Designed as the computational core of TDXnet monitoring architectures, this CPU processor board transforms high-frequency sensor signals into actionable intelligence for machinery health management. Organizations operating steam turbines, gas compressors, and rotating equipment rely on this board to capture millisecond-level events that traditional monitoring systems miss.

Built for power generation facilities, petrochemical plants, and heavy manufacturing operations, the 134652-01 addresses the fundamental challenge of transient event analysis—capturing fleeting mechanical anomalies during startup sequences, load transitions, and shutdown cycles. Its processing architecture synchronizes multi-channel data streams while maintaining microsecond-level timestamp accuracy, enabling engineers to correlate vibration signatures with operational parameters across complex machinery trains.

This processor board integrates directly into Bently Nevada 3500 series frameworks, serving as the central intelligence hub for distributed monitoring networks. Whether you're protecting critical turbine-generator sets or implementing predictive maintenance strategies across rotating equipment fleets, the 134652-01 delivers the computational performance and reliability demanded by continuous-process industries.

Core Capabilities & Technical Advantages

→ High-Speed Transient Capture: Processes burst data at rates exceeding 10,000 samples per second per channel, ensuring no critical event goes unrecorded during machinery state transitions.

→ Multi-Channel Synchronization: Coordinates simultaneous data acquisition across 16+ sensor inputs with phase-locked sampling, enabling precise cross-channel correlation analysis for complex vibration diagnostics.

→ TDXnet Protocol Integration: Native support for Bently Nevada's deterministic communication standard ensures sub-millisecond latency between sensor events and supervisory system alerts.

→ Industrial Temperature Resilience: Operates continuously across -30°C to +65°C ambient conditions without performance degradation, maintaining measurement integrity in extreme environments.

→ Embedded Signal Processing: Onboard FFT algorithms and waveform analysis engines reduce network bandwidth requirements by 70% while accelerating fault detection response times.

✓ Hot-Swap Redundancy Support: Enables online replacement without system shutdown, minimizing maintenance windows and maximizing uptime for 24/7 operations.

Industrial Application Scenarios

Steam Turbine Protection Systems
In combined-cycle power plants, the 134652-01 monitors bearing vibration, shaft position, and casing expansion during turbine startup sequences. By capturing transient events during the critical first 60 seconds of rotation, operators detect bearing misalignment or rotor imbalance before thermal expansion masks early-stage faults. This capability has prevented catastrophic failures in 500+ MW generating units where traditional monitoring systems lacked sufficient temporal resolution.

Centrifugal Compressor Monitoring
Petrochemical facilities deploy this processor board to analyze surge events and aerodynamic instabilities in multi-stage compressors handling volatile hydrocarbons. The board's ability to correlate pressure pulsations with shaft vibration patterns enables real-time surge detection, automatically triggering anti-surge valve responses within 50 milliseconds—fast enough to prevent mechanical damage and process upsets.

Reciprocating Machinery Diagnostics
Manufacturing plants use the 134652-01 to monitor reciprocating compressors and large diesel generators, where piston slap, valve impact, and crankshaft torsional vibration create complex waveform signatures. The processor's high-speed capture mode records individual compression cycles, allowing maintenance teams to identify worn crosshead bearings or valve timing issues weeks before conventional vibration limits are exceeded.

Hydroelectric Generator Monitoring
Hydropower facilities leverage this board to track wicket gate vibration and draft tube pressure oscillations during load-following operations. As grid operators demand faster ramping rates, the 134652-01 captures hydraulic transients that stress turbine runners, providing data for optimizing load-change profiles while extending equipment service life.

Critical Asset Commissioning
During new equipment installations, commissioning engineers use the 134652-01 to establish baseline vibration signatures under controlled operating conditions. The board's waveform storage capacity preserves reference data for future comparison, creating a permanent record of as-built mechanical condition that supports warranty claims and long-term trend analysis.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 134652-01 when your monitoring application requires transient event capture with sampling rates exceeding 5 kHz per channel. This board is essential for machinery operating above 3,600 RPM or applications where startup/shutdown transients contain critical diagnostic information. For steady-state monitoring of slower equipment (below 1,800 RPM), consider standard 3500 series monitor modules. Consult our application engineers if your system requires integration with non-Bently Nevada sensors or third-party SCADA platforms.

Extended Functionality & Integration Options

Industrial IoT Connectivity: The 134652-01 supports OPC UA and Modbus TCP protocols, enabling direct integration with cloud-based analytics platforms and enterprise asset management systems. Stream real-time vibration data to AWS IoT Core or Azure Industrial IoT for machine learning model training and fleet-wide condition monitoring.

Advanced Diagnostic Modes: Activate orbit plot generation, Bode diagram construction, and polar plot analysis directly on the processor board, reducing the computational load on supervisory workstations while accelerating root-cause analysis during machinery troubleshooting.

Custom Alarm Logic: Program multi-variable alarm conditions combining vibration amplitude, frequency content, and process parameters (temperature, pressure, flow) to create context-aware protection schemes that reduce false alarms by up to 85% compared to single-parameter thresholds.

Retrofit Compatibility: Designed for drop-in replacement of legacy TDXnet CPU boards in existing Bently Nevada installations, preserving your infrastructure investment while upgrading processing performance and memory capacity.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 24-48 hours via DHL Express or FedEx International Priority. Typical transit time to major industrial hubs: North America (3-5 days), Europe (4-6 days), Asia-Pacific (5-7 days).

Custom Configuration: Factory-programmed boards with pre-loaded alarm setpoints and communication parameters available with 7-10 business day lead time. Ideal for multi-site deployments requiring standardized configurations.

Warranty Coverage: Comprehensive 12-month warranty covering manufacturing defects, component failures, and performance deviations from published specifications. Warranty includes advance replacement service—receive your replacement board before returning the defective unit to minimize downtime.

Technical Support: Lifetime access to our application engineering team for installation guidance, troubleshooting assistance, and system optimization recommendations. Support available via email, phone, and remote desktop sessions during your local business hours.

Documentation Package: Every shipment includes installation manual, wiring diagrams, TDXnet configuration guide, and calibration certificates. Downloadable firmware updates and application notes available through our customer portal.

Frequently Asked Questions

How does the 134652-01 interface with existing 3500 series monitoring racks?
The processor board mounts in a standard 3500 rack slot and communicates via the backplane TDXnet bus. No additional interface cards required—simply insert the board, configure the IP address, and connect fiber-optic cables to your network switch. Full plug-and-play compatibility with 3500/42, 3500/50, and 3500/60 monitor modules.

What is the maximum cable distance between the CPU board and remote sensor modules?
Using standard multimode fiber-optic cable, TDXnet supports distances up to 2 kilometers between the 134652-01 and remote I/O modules. For installations exceeding this range, fiber repeaters extend the network to 10+ kilometers, enabling centralized monitoring of geographically distributed equipment.

Can this processor board reduce energy consumption in my monitoring system?
Yes—the 134652-01's embedded signal processing eliminates the need for dedicated workstations to perform FFT analysis and waveform processing. Customers report 40-60% reduction in monitoring system power consumption by consolidating computational tasks on the processor board rather than running multiple PCs continuously.

What installation qualifications are required for commissioning this board?
Basic electrical safety training and familiarity with industrial control systems are sufficient. The board uses keyed connectors to prevent incorrect wiring, and the configuration software includes step-by-step wizards for network setup. Most installations are completed in under 2 hours by plant instrumentation technicians.

Does the 134652-01 support remote monitoring and diagnostics?
Absolutely. The board's Ethernet interface enables secure VPN access for remote troubleshooting, firmware updates, and configuration changes. Set up email or SMS alerts triggered by specific vibration events, allowing your maintenance team to respond to machinery issues from anywhere with internet connectivity.

How do I verify the board is functioning correctly after installation?
The 134652-01 includes comprehensive self-diagnostics that run automatically at power-up and continuously during operation. Front-panel LEDs indicate processor status, communication health, and memory integrity. The configuration software provides real-time performance metrics including CPU utilization, network latency, and data buffer status.

Take the Next Step

Protect your critical rotating equipment with proven transient monitoring technology. Contact our technical sales team to discuss your specific application requirements, receive customized configuration recommendations, and obtain project pricing for multi-unit deployments. We're here to ensure your monitoring system delivers the reliability and performance your operations demand.
