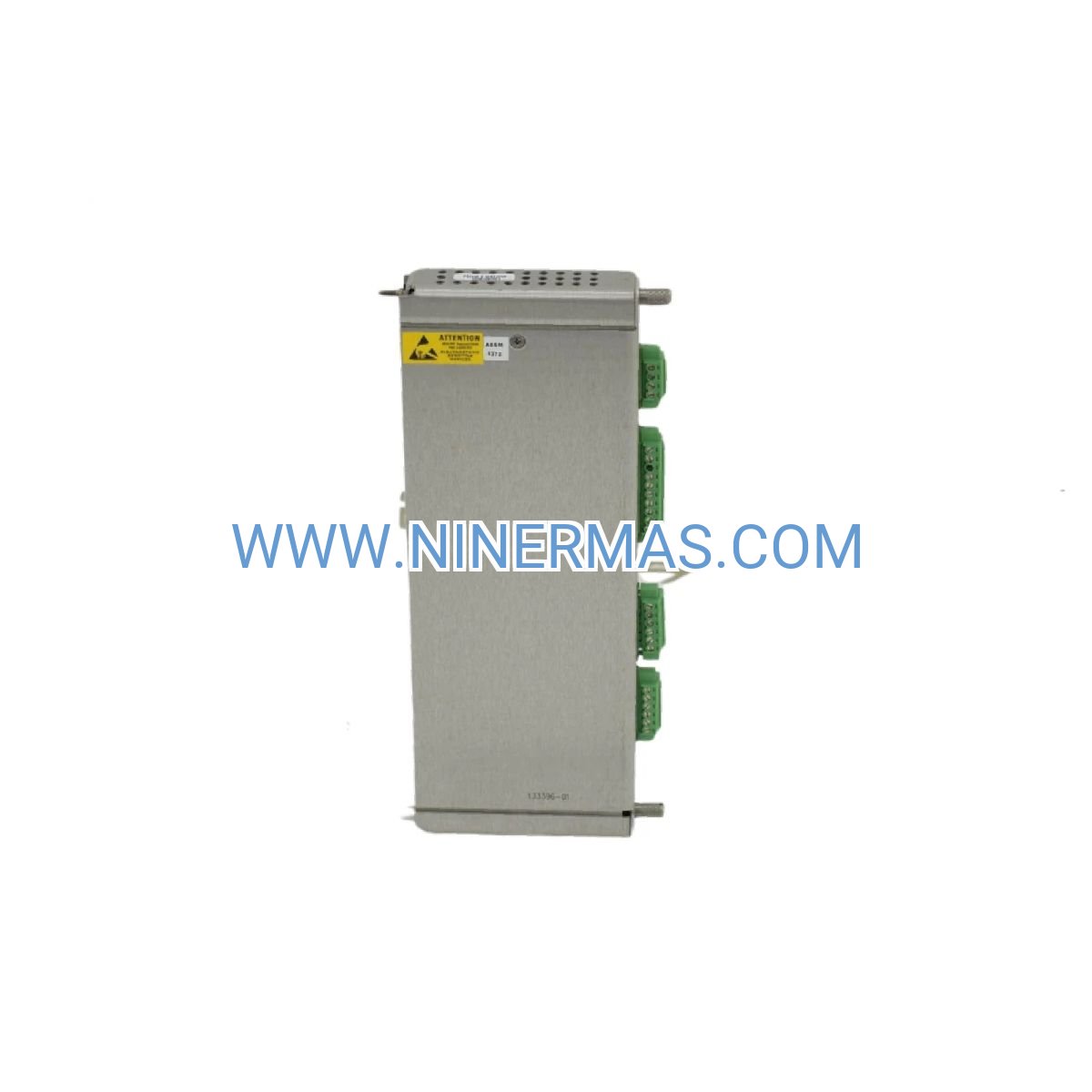

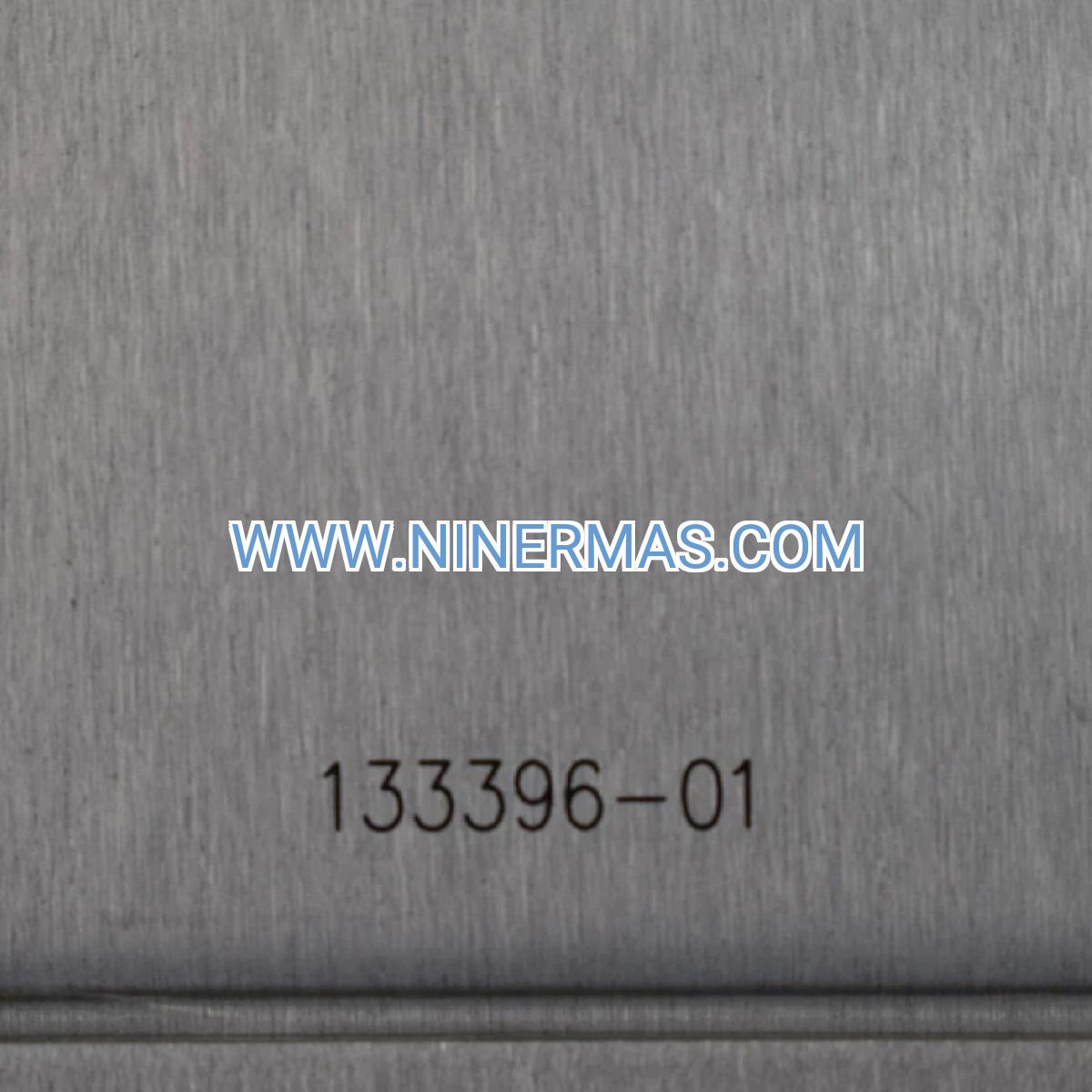

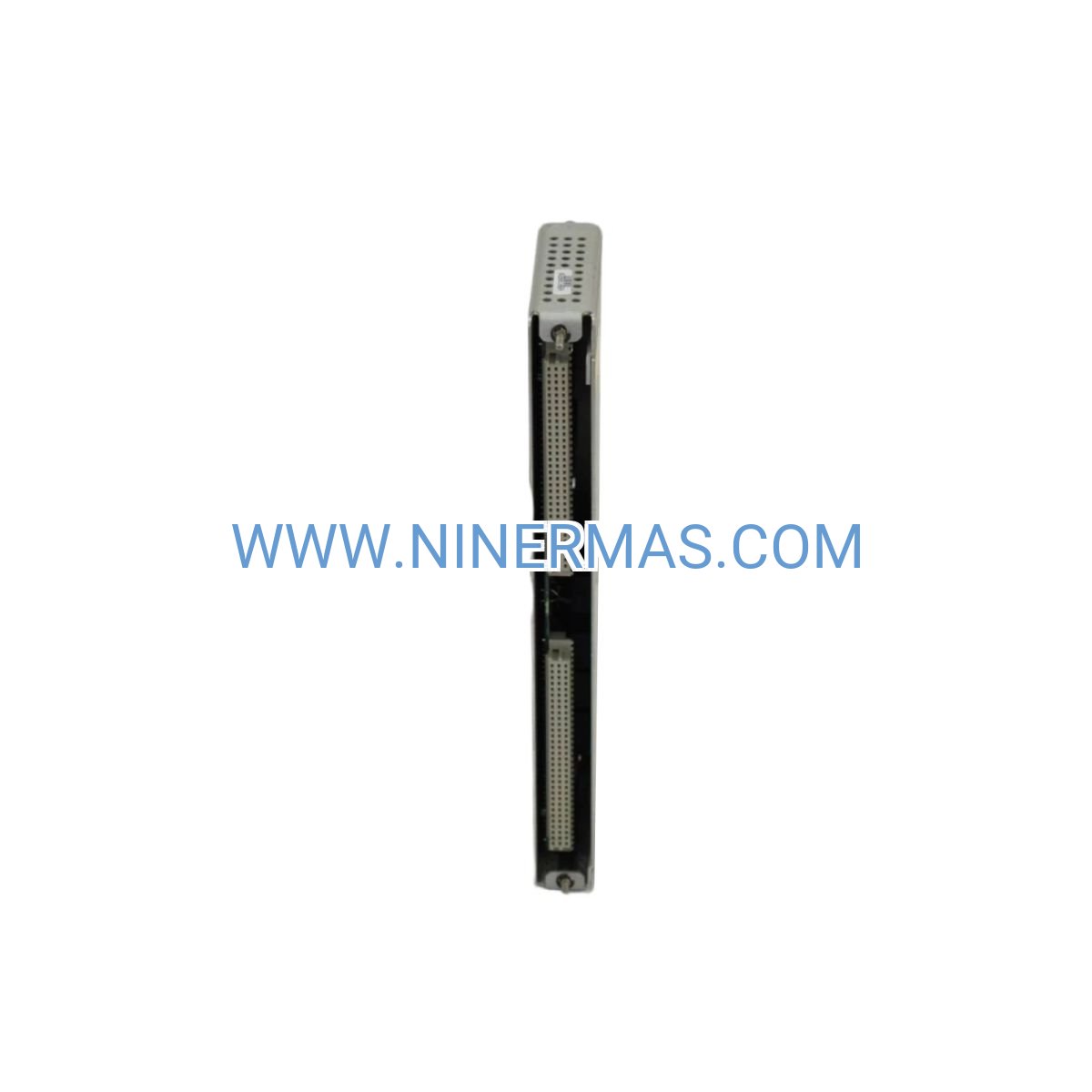

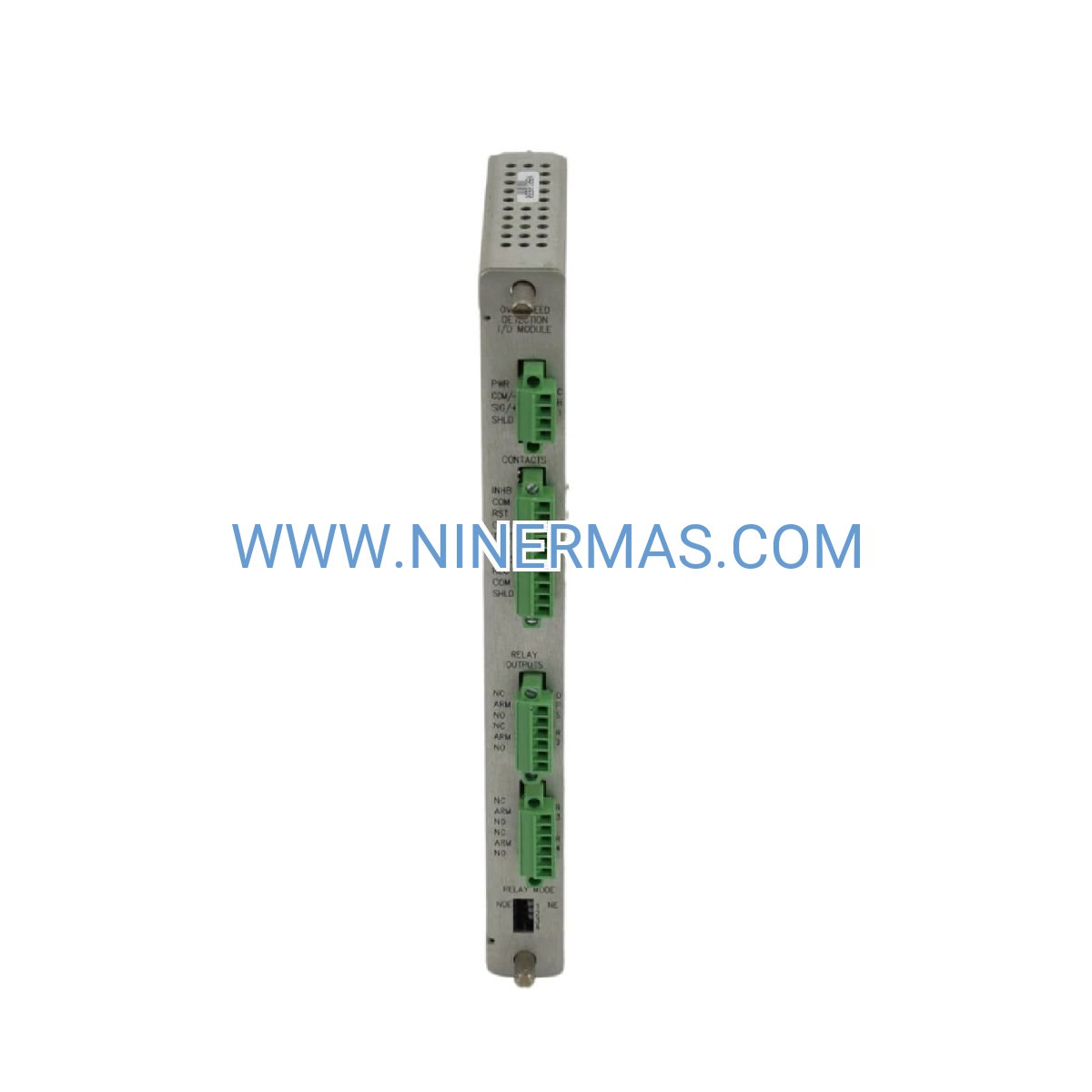

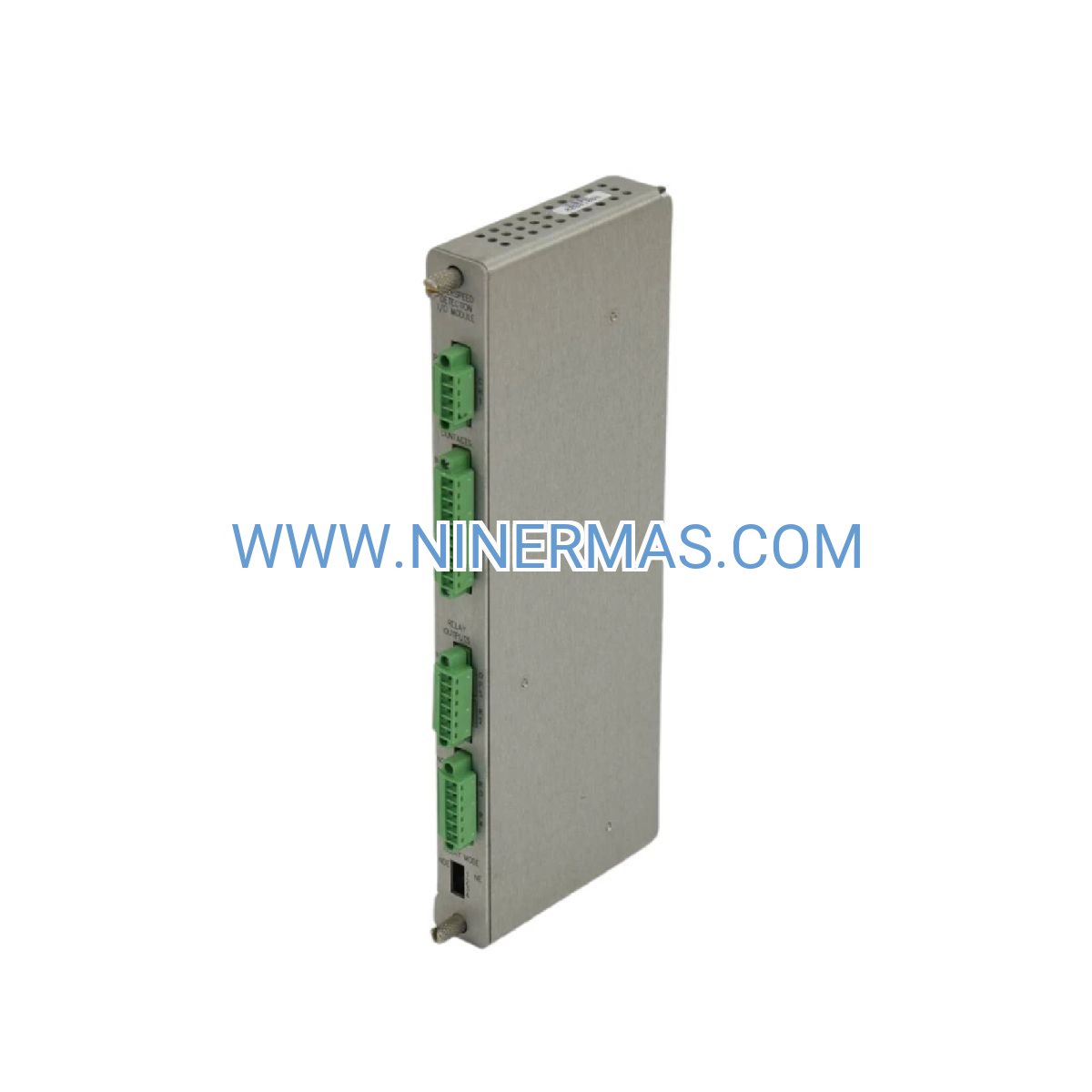

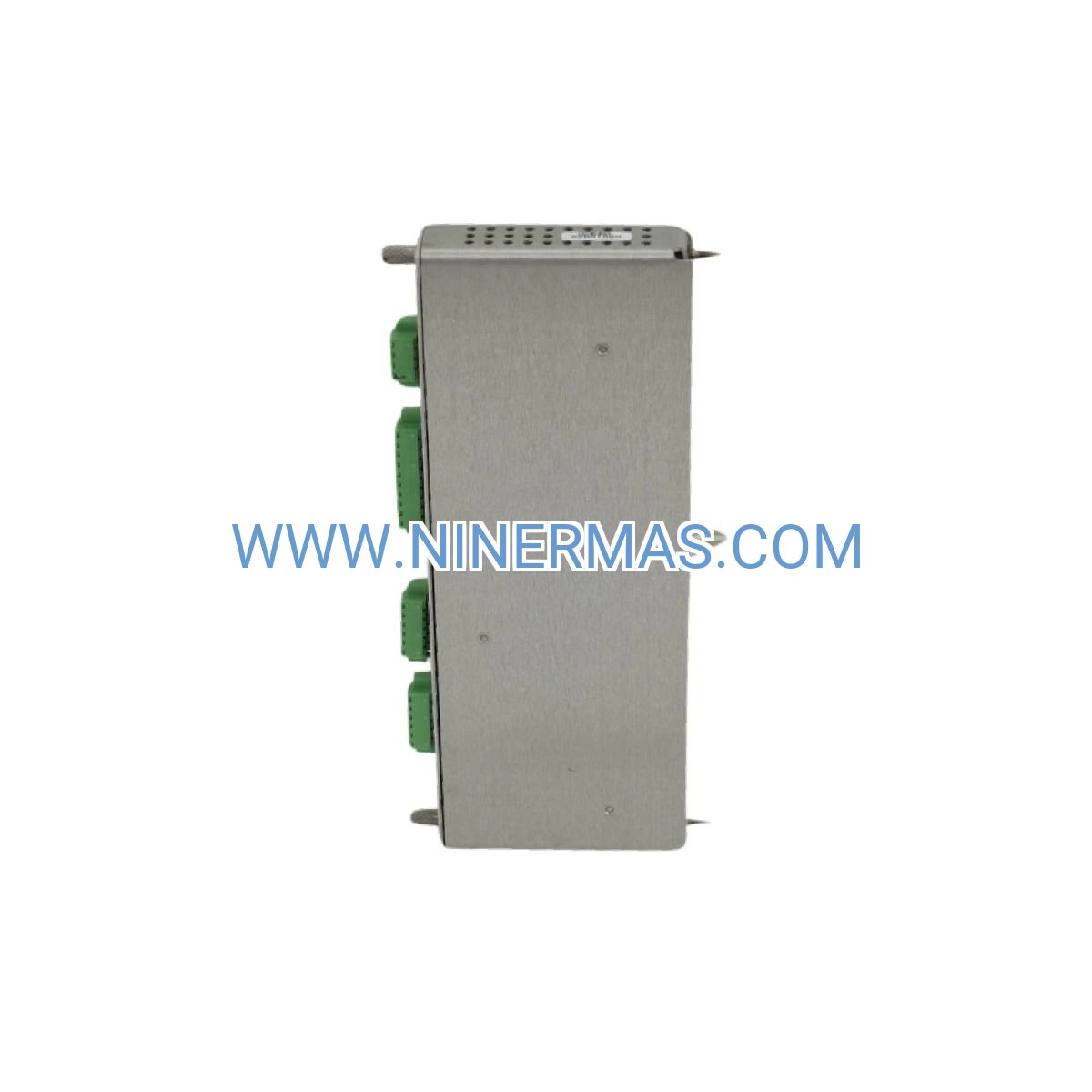

Bently Nevada 133396-01 Overspeed I/O Module (Industrial-Grade Turbine Protection System)

The Bently Nevada 133396-01 Overspeed Detection I/O Module is an industrial-grade safety control device designed for high-speed rotating machinery protection. Through dual-channel redundant logic and relay-based trip output, it delivers fail-safe overspeed detection and emergency shutdown capabilities for critical turbomachinery applications.

Suitable for steam turbines, gas turbines, centrifugal compressors, and generator sets in power generation, petrochemical, oil & gas, and heavy industrial facilities. It addresses challenges such as catastrophic overspeed events, inadequate trip response time, single-point failure risks, and lack of real-time diagnostic visibility.

Built on standardized 3500 rack architecture with field-customizable setpoints, this module offers SIL 2 safety integrity, sub-10ms trip latency, hot-swappable maintenance, and comprehensive environmental protection—ideal for design institutes, EPC contractors, system integrators, and end-user plant operators. Contact our application engineers for project-specific configuration and quotation assistance.

Core Features & Advantages

Dual-Channel Redundant Safety Architecture
Employs independent voting logic across two input channels with 2oo2 (two-out-of-two) trip configuration, eliminating single-point failures and meeting SIL 2 functional safety requirements per IEC 61508.

Ultra-Fast Trip Response Time
Achieves detection-to-output actuation in less than 10 milliseconds, providing critical time margin to prevent mechanical damage during runaway overspeed conditions in high-inertia rotating equipment.

Hot-Swappable Field Replacement
Supports online module extraction and insertion without rack power-down or system reconfiguration, minimizing planned maintenance downtime and enabling rapid fault recovery in 24/7 operations.

Comprehensive Diagnostic Indication
Integrated multi-color LED arrays provide real-time status for power supply, channel health, relay state, and fault conditions—accelerating troubleshooting and reducing mean time to repair (MTTR).

Wide Environmental Operating Range
Qualified for -30°C to +65°C ambient operation with conformal coating protection, suitable for outdoor substations, offshore platforms, desert facilities, and other harsh industrial environments.

Standards-Compliant Design
Fully compliant with API 670 machinery protection standards, ISO 20816 vibration criteria, and IEC 61511 safety instrumented systems—ensuring regulatory acceptance across global jurisdictions.

Typical Application Scenarios

This module is engineered for installations where overspeed events pose severe safety and asset integrity risks, particularly in:

Steam & Gas Turbine Emergency Shutdown Systems
Provides primary overspeed trip function for utility-scale and industrial turbines, integrating with governor control systems to execute emergency stop sequences during load rejection or control system failures.

Centrifugal Compressor Overspeed Protection
Monitors compressor shaft speed in pipeline boosters, refrigeration systems, and process gas applications—triggering isolation valves and brake systems before mechanical limits are exceeded.

Generator Set Safety Interlocks
Serves as independent overspeed backup protection for diesel, gas, and hydro generators, coordinating with automatic voltage regulators (AVR) and circuit breakers to prevent grid synchronization failures.

Petrochemical Rotating Equipment Safeguarding
Protects critical pumps, blowers, and expanders in refineries, chemical plants, and LNG facilities—reducing unplanned shutdowns and catastrophic equipment loss in hazardous area classifications.

Power Generation Turbine Trip Circuits
Implements hardwired trip logic for combined-cycle plants, cogeneration units, and waste heat recovery systems—meeting NERC reliability standards and insurance underwriting requirements.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide standard electrical and mechanical specifications. Custom configurations are available based on project-specific requirements.

Selection Recommendations:
When specifying this module, consider the following application parameters: maximum equipment speed range, required trip setpoint accuracy, relay contact rating for downstream trip devices, available DC power supply voltage, ambient temperature extremes, and rack slot availability. For assistance with system architecture design or integration with existing DCS/PLC platforms, please provide your machinery specifications and our application engineers will recommend the optimal configuration.

Extended Capabilities

Modbus/Ethernet Communication Integration
When paired with 3500/92 or 3500/95 communication gateway modules, overspeed status and diagnostic data can be transmitted to SCADA systems, historians, and plant-wide asset management platforms via Modbus TCP/IP or proprietary protocols.

Setpoint Adjustment & Calibration
Trip thresholds are software-configurable with 0.1% resolution across the full speed measurement range, allowing precise tuning for different operating modes (startup, normal operation, emergency conditions) without hardware modification.

Relay Output Supervision
Built-in relay coil monitoring detects contact welding, open circuits, and degraded actuation—providing advance warning of potential trip circuit failures before critical events occur.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days from regional distribution centers. Custom-configured modules or large project quantities require 2-3 weeks for factory programming and testing.

Warranty Coverage: All modules include a minimum 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs and spare parts kits are available for long-term service agreements.

Installation & Commissioning Support: Remote technical guidance is provided at no charge for standard installations. On-site startup assistance, loop testing, and FAT/SAT witness services are available on a quoted basis depending on project location and scope.

Technical Documentation Package: Each module ships with complete electrical schematics, terminal wiring diagrams, configuration software user manual, and dimensional drawings in PDF and CAD formats—facilitating seamless integration with project documentation and as-built records.

Frequently Asked Questions (FAQ)

Q: How does the Bently Nevada 133396-01 overspeed I/O module integrate with existing turbine control systems?
A: The module accepts speed signals from magnetic pickups, proximity probes, or tachometer generators. Relay outputs connect directly to turbine trip solenoids, circuit breakers, or PLC safety inputs. Configuration is performed via 3500 Rack Configuration Software over RS232/RS485 interface. Consult factory application notes for specific sensor compatibility and wiring practices.

Q: What is the maximum number of machines one module can monitor simultaneously?
A: Each 133396-01 module is designed for single-machine train monitoring with dual-channel redundancy. For multi-unit installations (e.g., twin turbine generators), deploy independent modules with separate relay trip circuits to maintain isolation and meet safety integrity requirements.

Q: What level of energy savings or efficiency improvement can be expected?
A: This is a safety protection device, not an efficiency optimization product. Its primary value is preventing catastrophic equipment damage (which can cost $500K-$5M+ in repairs and lost production). By enabling confident operation closer to design limits, some users report 1-3% throughput gains, but results vary by application.

Q: What are the installation environment requirements and ingress protection rating?
A: The module is designed for indoor control room or equipment shelter mounting within a 3500 series rack enclosure. Ambient conditions must remain within -30°C to +65°C with <95% RH non-condensing. For outdoor or hazardous area installations, the rack enclosure must provide appropriate NEMA/IP rating and purge/pressurization as needed.

Q: Does the module support remote monitoring and data acquisition protocols?
A: Direct protocol support requires a 3500/92 Communication Gateway or 3500/95 Ethernet module in the same rack. These gateways provide Modbus TCP, Modbus RTU, and proprietary protocols for integration with DCS, SCADA, OSIsoft PI, and other plant systems. The 133396-01 itself focuses on hardwired trip logic for maximum reliability.

Q: Is factory calibration required after field installation or firmware updates?
A: Modules ship factory-calibrated and tested. Field calibration is not required for routine installation. If internal components are replaced or firmware is updated per service bulletin, follow the calibration procedure in the technical manual using certified test equipment. Most users never perform field calibration during the module's service life.

Request Technical Support & Quotation

To obtain detailed application engineering support, project-specific configuration recommendations, or commercial quotation, please provide the following information: project name and location, machinery type and rated speed range, number of monitoring points required, trip setpoint requirements, power supply specifications, environmental conditions, and integration requirements with existing control systems. Our application engineers will respond within 24 hours with tailored selection guidance and pricing.
