127502-00 Radiation-Hardened Extension Cable (Industrial-Grade Nuclear Monitoring)

The Bently Nevada 127502-00 represents the pinnacle of radiation-resistant cable engineering for critical machinery monitoring in nuclear facilities. Designed exclusively for XL Proximitor sensor networks, this Tefzel-insulated coaxial cable delivers unwavering signal fidelity in environments where conventional cables deteriorate within months. Whether you're monitoring turbine vibration in reactor containment buildings or tracking rotating equipment near spent fuel pools, the 127502-00 ensures your condition monitoring system remains operational through decades of cumulative radiation exposure.

Nuclear plant operators and instrumentation engineers face a persistent challenge: standard cables fail catastrophically under sustained gamma and neutron bombardment, creating blind spots in critical safety systems. The 127502-00 solves this with aerospace-grade Tefzel (ETFE) insulation that resists radiation-induced chain scission, maintaining electrical properties even after absorbing doses exceeding one billion rads. This translates to reduced maintenance cycles, eliminated unplanned outages for cable replacement, and continuous protection of multi-million-dollar turbomachinery assets.

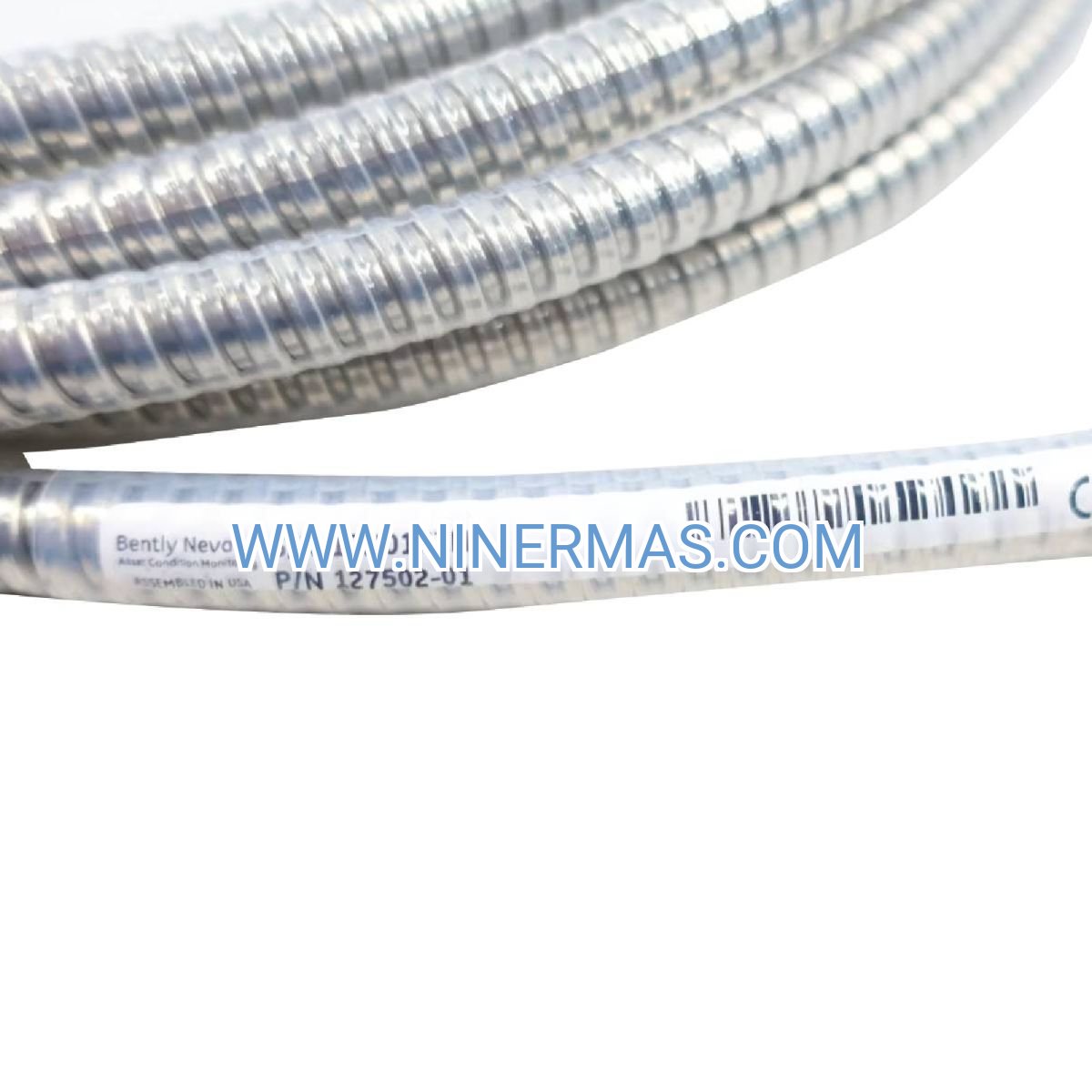

Engineered for seamless integration with Bently Nevada 3300 XL proximity transducer systems, this extension cable extends sensor reach into high-dose zones while preserving measurement accuracy to within factory specifications. Available with optional stainless steel braided armor for mechanical protection in congested cable trays, the 127502-00 combines nuclear-qualified materials with precision manufacturing to deliver the reliability demanded by API 670 and IEEE nuclear instrumentation standards.

Performance Advantages & Technical Capabilities

→ Extreme Radiation Tolerance: Tefzel dielectric withstands total ionizing doses up to 10^9 rads (10 MGy) without degradation—outlasting polyethylene cables by 100x in high-flux environments, eliminating premature failures that compromise safety system availability.

→ Signal Integrity Preservation: 50-ohm precision coaxial construction maintains capacitance stability within ±2% across the cable's service life, ensuring proximity sensor gap voltage accuracy remains within ±0.5% even after years of radiation exposure—critical for detecting sub-mil shaft displacement anomalies.

→ Wide Thermal Operating Range: Functional from -40°C to +150°C (-40°F to +302°F), accommodating both cryogenic containment penetrations and high-temperature turbine bearing housings without performance compromise, reducing inventory complexity for multi-zone installations.

→ Factory Calibration & Traceability: Each cable ships with serialized test certificates documenting impedance, capacitance, and insulation resistance measurements—providing the material traceability required for 10CFR50 Appendix B quality assurance programs and simplifying regulatory audits.

→ Flexible Deployment Options: Choose unarmored versions for protected conduit runs offering maximum bend radius flexibility, or specify stainless steel braided armor for exposed installations requiring EMI shielding and abrasion resistance—one cable platform adapts to diverse routing challenges.

✓ OEM Compatibility Assurance: Genuine Bently Nevada component engineered to exact system specifications, eliminating the calibration drift and impedance mismatches common with third-party substitutes that void transducer warranties and introduce measurement errors.

Industry Applications & Problem-Solving Scenarios

Nuclear Power Generation – Reactor Coolant Pump Monitoring: In pressurized water reactors, coolant pumps operate in 200+ R/hr gamma fields where standard cables fail within 18 months. The 127502-00 enables continuous vibration monitoring for 10+ years, detecting bearing degradation before catastrophic failure forces unplanned reactor shutdowns costing $1M+ per day in replacement power.

Spent Fuel Pool Equipment – Crane & Handling Systems: Fuel handling cranes traverse areas with dose rates exceeding 500 R/hr during cask loading operations. Radiation-resistant cabling ensures hoist motor vibration sensors remain functional throughout the equipment's 30-year design life, preventing dropped fuel assemblies that could breach containment.

Research Reactors – Beam Line Instrumentation: Particle accelerators and neutron sources subject nearby equipment to intense mixed-field radiation. The 127502-00's neutron-tolerant Tefzel insulation maintains sensor connectivity in experimental halls where annual doses reach 10^8 rads, supporting uninterrupted physics research programs.

Isotope Production Facilities – Hot Cell Process Equipment: Medical isotope manufacturing exposes production equipment to Ci-level source terms. Radiation-hardened extension cables enable remote vibration monitoring of centrifuges and separators without personnel entry into high-dose areas, reducing occupational exposure by 80% compared to manual inspection protocols.

Decommissioning & Waste Processing – Contaminated System Monitoring: During plant decommissioning, equipment operates in radiologically degraded environments. The 127502-00 allows instrumentation of cutting tools, pumps, and ventilation systems in contamination zones, providing the condition data needed to optimize work schedules and minimize worker dose uptake.

Technical Parameters & Selection Criteria

Selection Guidance: Specify armored versions when routing through congested cable trays with heavy conduit traffic or when EMI from variable frequency drives exceeds 10 V/m. For installations inside sealed conduit or where flexibility is paramount (tight radius bends around penetrations), unarmored construction reduces installation labor by 30%. Consult radiation dose mapping data to confirm cumulative exposure remains below 10^9 rads over the planned service interval—for higher-dose applications, consider cable replacement as a scheduled maintenance item every 15-20 years.

Advanced Integration & System Optimization

IoT & Remote Monitoring Compatibility: When paired with Bently Nevada 3500 rack-based monitoring systems featuring Ethernet connectivity, the 127502-00 enables integration with plant-wide asset performance management (APM) platforms. Vibration data from radiation zones feeds predictive analytics algorithms that forecast bearing failures 6-8 weeks in advance, allowing maintenance scheduling during planned outages rather than forced shutdowns.

Redundant Configuration Support: Nuclear safety systems often require 1oo2 or 2oo3 voting logic. The 127502-00's consistent electrical characteristics across production lots ensure matched impedance when deploying redundant sensor channels, preventing spurious trips caused by channel-to-channel calibration drift that plagues mixed-vendor installations.

Custom Length Options: While standard catalog lengths suit most applications, custom cable assemblies from 0.5m to 25m accommodate unique architectural constraints—contact our engineering team with your specific routing requirements for factory-terminated solutions that eliminate field splicing and associated failure modes.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock catalog configurations; ships from our ISO 9001-certified distribution center with full material test reports and certificates of conformance.

Custom Configurations: Factory-terminated assemblies with non-standard lengths or specialized connectors ship within 10-15 business days, including full dimensional inspection and electrical testing per your specifications.

Warranty Coverage: 18-month comprehensive warranty covering material defects, workmanship issues, and radiation performance degradation—the industry's most robust protection for nuclear-grade cabling.

Technical Support: Lifetime access to our vibration monitoring specialists for installation guidance, troubleshooting assistance, and system optimization recommendations. We provide cable routing best practices, grounding schematics, and interference mitigation strategies tailored to your facility's electrical environment.

Documentation Package: Each shipment includes installation instructions, torque specifications for connectors, material safety data sheets (MSDS), and serialized test certificates traceable to NIST standards—satisfying nuclear QA program requirements without additional paperwork requests.

Common Technical Questions

How does Tefzel insulation compare to polyethylene in radiation resistance?
Tefzel (ETFE) maintains 90% of its tensile strength after 10^9 rads exposure, while polyethylene becomes brittle and cracks at 10^7 rads—a 100-fold difference. This superior radiation tolerance stems from Tefzel's fluoropolymer backbone, which resists the free radical formation that degrades hydrocarbon polymers. In practical terms, a Tefzel-insulated cable lasts 40+ years in a 100 R/hr field versus 6 months for polyethylene equivalents.

Can I extend cable runs beyond 15 meters without signal degradation?
The 127502-00 supports runs up to 25 meters (82 feet) when used with high-input-impedance 3300 XL transducers, though runs exceeding 15m may require field verification of gap voltage at maximum sensor-to-target distance. For installations requiring 30m+ total cable length, consider intermediate junction boxes with impedance-matched splices or consult our engineers for buffered transducer solutions that compensate for capacitive loading.

What installation practices prevent electromagnetic interference issues?
Route the 127502-00 in dedicated instrument cable trays separated by ≥300mm from power cables carrying >10A. When crossing power conductors is unavoidable, maintain 90° crossing angles to minimize inductive coupling. Ground cable shields at the transducer end only (single-point grounding) to prevent ground loops that inject 60Hz noise. In facilities with multiple VFD-driven motors, specify armored cable versions for the additional 60dB EMI rejection.

Is this cable compatible with legacy 3300 (non-XL) proximity systems?
No—the 127502-00 is engineered specifically for 3300 XL systems with their higher-frequency response and tighter impedance tolerances. Using this cable with legacy 3300 systems may introduce measurement errors due to impedance mismatches. For non-XL systems in radiation environments, consult Bently Nevada's legacy product documentation or contact our team for appropriate radiation-resistant alternatives.

What regulatory standards does the 127502-00 satisfy?
The cable meets IEEE 323 (nuclear power plant electrical equipment qualification), IEEE 383 (cable fire resistance), and API 670 (machinery protection systems). Material certifications comply with 10CFR50 Appendix B quality assurance requirements, and manufacturing processes follow ISO 9001 quality management standards. Full compliance documentation is available upon request for regulatory submittals.

How do I verify cable integrity after years of radiation exposure?
Perform annual insulation resistance testing using a 500VDC megohmmeter—readings should exceed 1000 MΩ at 20°C. Measure cable capacitance with an LCR meter at 1kHz; values should remain within ±5% of the as-installed baseline. Significant deviations indicate insulation degradation requiring cable replacement. For critical safety systems, implement time-based replacement every 20 years regardless of test results to maintain defense-in-depth margins.

Take the Next Step

Protect your nuclear facility's critical machinery monitoring infrastructure with the industry's most proven radiation-resistant extension cable. Our technical team is ready to assist with cable selection, custom configuration specifications, and integration planning for your specific radiation environment.

Request a Quote: Contact us with your application details, required cable lengths, and radiation dose rates for a detailed proposal including pricing, lead times, and technical recommendations.

Technical Consultation: Schedule a call with our vibration monitoring specialists to discuss system architecture, redundancy strategies, and long-term maintenance planning for radiation-zone instrumentation.

Documentation Request: Download complete technical datasheets, installation guides, and material certifications to support your engineering evaluations and procurement specifications.
