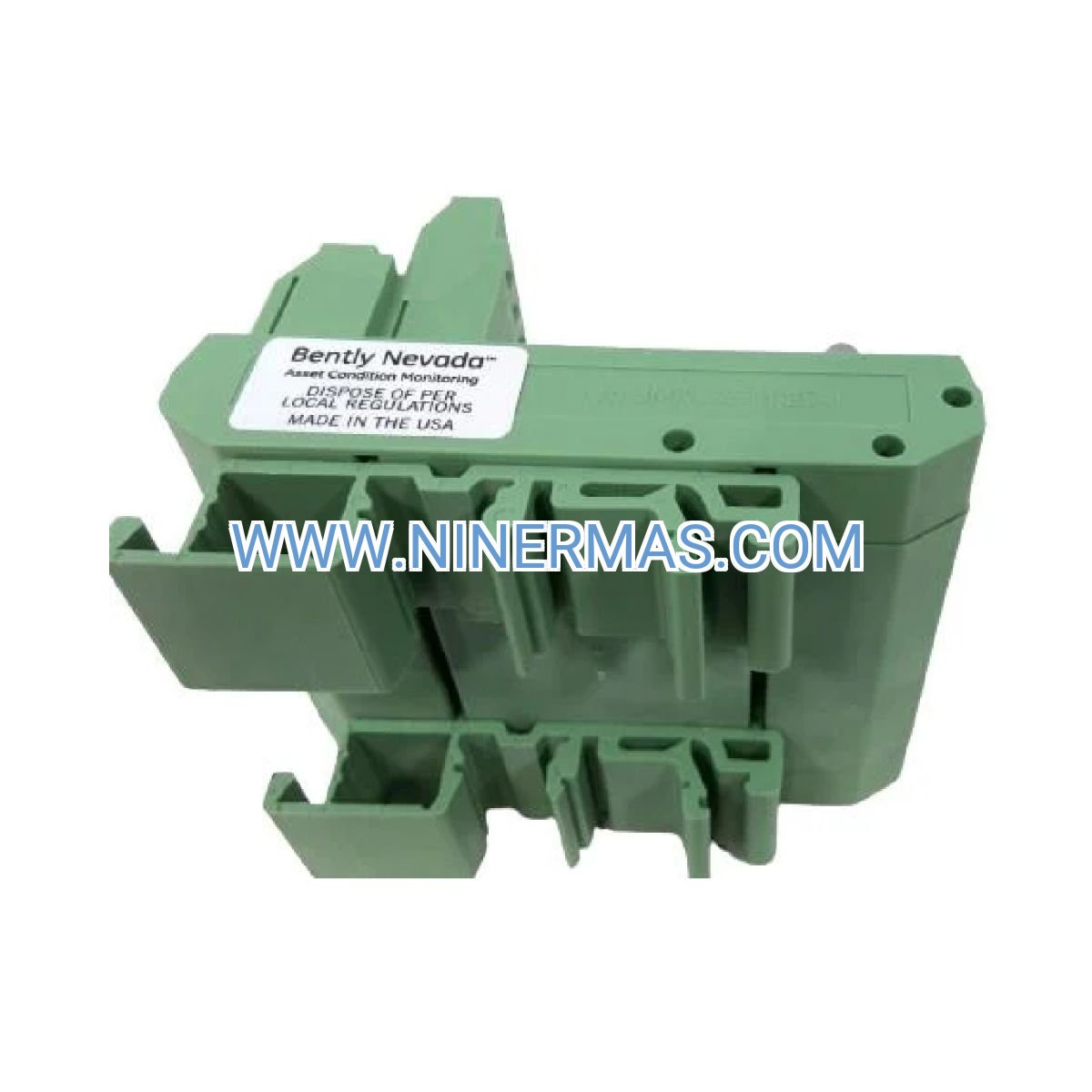

Bently Nevada 125808-01 Proximitor ET Block – Industrial Vibration Monitoring Interface Solution

The Bently Nevada 125808-01 Proximitor ET Block is a professional-grade 4-channel signal interface module engineered for seamless integration with the 3500/40M Proximitor Monitor. Through advanced buffered output technology and precision signal conditioning, this module enables real-time vibration data distribution to external monitoring systems, SCADA platforms, and DCS networks while maintaining full API 670 compliance for critical rotating machinery protection.

Designed for industrial environments where continuous equipment monitoring is non-negotiable, the 125808-01 serves as the essential bridge between proximity transducer signals and enterprise-level data acquisition infrastructure. Whether deployed in power generation facilities, petrochemical plants, or offshore platforms, this interface module delivers the reliability and accuracy demanded by mission-critical applications.

With factory calibration, plug-and-play installation, and proven compatibility across the 3500 Series ecosystem, the 125808-01 ET Block reduces commissioning time while ensuring long-term measurement integrity. Engineering teams, system integrators, and maintenance professionals rely on this module to expand monitoring capabilities without compromising primary protection functions. Contact our application engineers for custom configuration guidance and technical specifications tailored to your project requirements.

Core Functions & Technical Advantages

Buffered Multi-Channel Signal Distribution
Provides four independent buffered outputs that replicate proximity transducer signals without loading effects or signal degradation. Each channel maintains electrical isolation, allowing simultaneous connection to PLCs, data historians, portable analyzers, and control systems while preserving the integrity of primary monitoring circuits.

API 670 Machinery Protection Compliance
Fully certified to meet API Standard 670 requirements for vibration, axial position, and bearing temperature monitoring in rotating machinery. This certification ensures the module meets stringent performance criteria for alarm response time, signal accuracy, and environmental resilience in turbomachinery applications.

Factory-Calibrated Precision Engineering
Each unit undergoes rigorous factory calibration with full traceability documentation. Pre-configured voltage scaling and offset parameters eliminate field calibration requirements, reducing installation errors and accelerating system commissioning from weeks to days.

Industrial-Hardened Environmental Design
Operates reliably across -30°C to +65°C temperature ranges with resistance to electromagnetic interference, voltage transients, and vibration exposure. Conformal-coated circuit boards and industrial-grade connectors ensure 24/7 operational availability in harsh process environments.

Seamless 3500 Series Ecosystem Integration
Direct mechanical and electrical compatibility with 3500/40M monitors through standardized interface connections. Supports hot-swappable installation in existing racks without system shutdown, minimizing production interruptions during upgrades or maintenance activities.

Diagnostic-Ready Architecture
Built-in self-test capabilities and status indicators enable rapid troubleshooting and predictive maintenance. LED diagnostics provide instant visual confirmation of power status, signal integrity, and communication health without requiring external test equipment.

Typical Application Scenarios

The 125808-01 Proximitor ET Block addresses critical monitoring challenges across diverse industrial sectors where rotating equipment reliability directly impacts operational safety and profitability:

Steam & Gas Turbine Monitoring Systems
Enables parallel vibration data acquisition for turbine-generator sets in power plants and cogeneration facilities. Supports simultaneous protection monitoring through 3500/40M systems while feeding trend data to plant historians for performance optimization and predictive maintenance scheduling.

Compressor Train Protection & Analysis
Facilitates comprehensive monitoring of multi-stage centrifugal and reciprocating compressors in natural gas processing, LNG facilities, and petrochemical operations. Buffered outputs allow integration with advanced analytics platforms for surge detection, rotor dynamics analysis, and mechanical seal condition assessment.

Pump & Motor Vibration Surveillance
Provides cost-effective expansion of monitoring coverage for critical pumps, motors, and driven equipment in refineries, chemical plants, and water treatment facilities. Enables condition-based maintenance strategies by distributing vibration signals to CMMS systems and mobile monitoring devices.

Offshore Platform & Marine Applications
Supports redundant monitoring architectures for rotating equipment on FPSOs, drilling rigs, and marine propulsion systems. Salt-fog resistant construction and wide temperature tolerance ensure reliable operation in corrosive offshore environments.

Retrofit & Legacy System Upgrades
Allows modernization of existing Bently Nevada 3500 installations without replacing functional monitors. Adds contemporary connectivity to legacy systems, bridging decades-old protection hardware with modern IIoT platforms and cloud-based analytics services.

Technical Parameters & Selection Guide

To ensure optimal system performance and compatibility, the following specifications define the operational envelope and integration requirements for the 125808-01 ET Block:

Selection Considerations for System Design:

When specifying the 125808-01 ET Block for your monitoring architecture, evaluate the following project parameters to ensure optimal configuration: number of proximity sensor channels requiring buffered outputs (up to 4 per module), distance between ET Block and receiving equipment (buffered outputs support extended cable runs up to 300 meters), environmental conditions at installation location (temperature extremes, humidity, vibration exposure), existing 3500/40M monitor configuration and available rack space, and integration requirements with DCS, SCADA, or standalone data acquisition systems.

For applications requiring more than four buffered channels, multiple 125808-01 modules can be deployed in parallel. Our application engineering team provides complimentary system architecture review and can recommend optimal module quantities, wiring strategies, and integration approaches based on your specific monitoring objectives and budget constraints.

Extended Capabilities & System Integration

Multi-System Data Sharing Architecture
The buffered output design enables simultaneous connection to multiple downstream systems without signal splitting losses or impedance matching concerns. Common integration scenarios include parallel feeds to plant DCS for process control, standalone data acquisition systems for advanced vibration analysis, portable diagnostic equipment for troubleshooting campaigns, and cloud-connected IIoT gateways for remote monitoring.

Predictive Maintenance Program Enablement
By providing clean, isolated vibration signals to trending and analytics platforms, the 125808-01 supports condition-based maintenance strategies that reduce unplanned downtime. Historical data captured through buffered outputs enables bearing fault detection, rotor imbalance identification, misalignment diagnosis, and remaining useful life estimation using machine learning algorithms.

Alarm & Event Integration
Buffered outputs can be configured to trigger external alarm systems, emergency shutdown logic, or notification platforms independent of the primary 3500/40M protection functions. This redundancy enhances overall system safety integrity levels (SIL) and provides defense-in-depth for critical machinery protection applications.

Delivery, Service & Quality Assurance

Lead Time & Availability: Standard 125808-01 modules typically ship within 3-5 business days from stock. Custom-configured units or bulk orders may require 10-15 business days. Expedited shipping options available for urgent project requirements.

Warranty Coverage: Each module includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs and service contracts available for critical applications requiring guaranteed uptime.

Technical Support Services: Complimentary pre-sales application engineering consultation, installation guidance documentation including wiring diagrams and configuration procedures, remote troubleshooting assistance via phone and email, and on-site commissioning support available in select regions (quoted separately).

Documentation Package: Every shipment includes factory calibration certificates with traceability data, detailed installation and operation manual, electrical connection diagrams and terminal assignments, dimensional drawings for mechanical integration, and compliance declarations (CE, RoHS, API 670).

Quality Certifications: Manufactured under ISO 9001:2015 quality management systems with full material traceability. Each unit undergoes 100% functional testing and environmental stress screening prior to shipment, ensuring field-ready reliability.

Frequently Asked Questions

Q: Can the 125808-01 ET Block interface with monitors other than the 3500/40M?
A: The 125808-01 is specifically engineered for the 3500/40M Proximitor Monitor and uses proprietary interface protocols. For compatibility with 3500/42M, 3500/45, or other monitor models, consult our technical team for appropriate ET Block variants or alternative interface solutions.

Q: What is the maximum cable length supported between the ET Block and receiving equipment?
A: The low-impedance buffered outputs support cable runs up to 300 meters (1000 feet) using standard shielded instrumentation cable. For longer distances, signal repeaters or 4-20mA converters may be required depending on receiving equipment input specifications.

Q: Does the module require separate power supply or configuration software?
A: No external power supply is needed – the 125808-01 draws power directly from the 3500/40M monitor through the interface connection. Factory calibration eliminates the need for configuration software in standard applications, though advanced customization can be performed using Bently Nevada System 1 software if required.

Q: Is the 125808-01 compatible with seismic or accelerometer-based vibration sensors?
A: No, this module is optimized exclusively for proximity transducer (Eddy current) signals. For seismic or accelerometer applications, the 3500 Series offers dedicated interface modules such as the 3500/42M Proximitor/Seismic Monitor with appropriate ET Blocks.

Q: Can buffered outputs be used for safety-critical shutdown functions?
A: While buffered outputs provide high-quality signals suitable for monitoring and alarming, primary machinery protection and emergency shutdown functions should rely on the direct outputs of the 3500/40M monitor to maintain API 670 compliance and safety integrity levels. Buffered outputs are best utilized for secondary monitoring, trending, and diagnostic purposes.

Q: What maintenance or calibration is required during the module's operational life?
A: The 125808-01 is designed as a maintenance-free component with no user-serviceable parts. Periodic verification of output signal accuracy (recommended annually) can be performed using the monitor's built-in test functions. Recalibration is typically not required unless the module experiences electrical damage or environmental exposure beyond rated specifications.

Request Custom Configuration & Technical Consultation

To receive detailed application engineering support, pricing quotations, or custom configuration recommendations for your vibration monitoring project, please provide the following information to our technical team:

• Project name and application overview (industry, equipment type, monitoring objectives)
• Number of proximity sensor channels requiring buffered outputs
• Existing 3500 Series infrastructure (monitor models, rack configuration, available slots)
• Downstream equipment specifications (DCS model, PLC type, data acquisition system)
• Environmental conditions at installation site (temperature range, humidity, hazardous area classification if applicable)
• Project timeline and delivery requirements

Our application engineers will respond within 24 hours with tailored recommendations, system architecture guidance, and comprehensive quotations including all necessary accessories and documentation.
