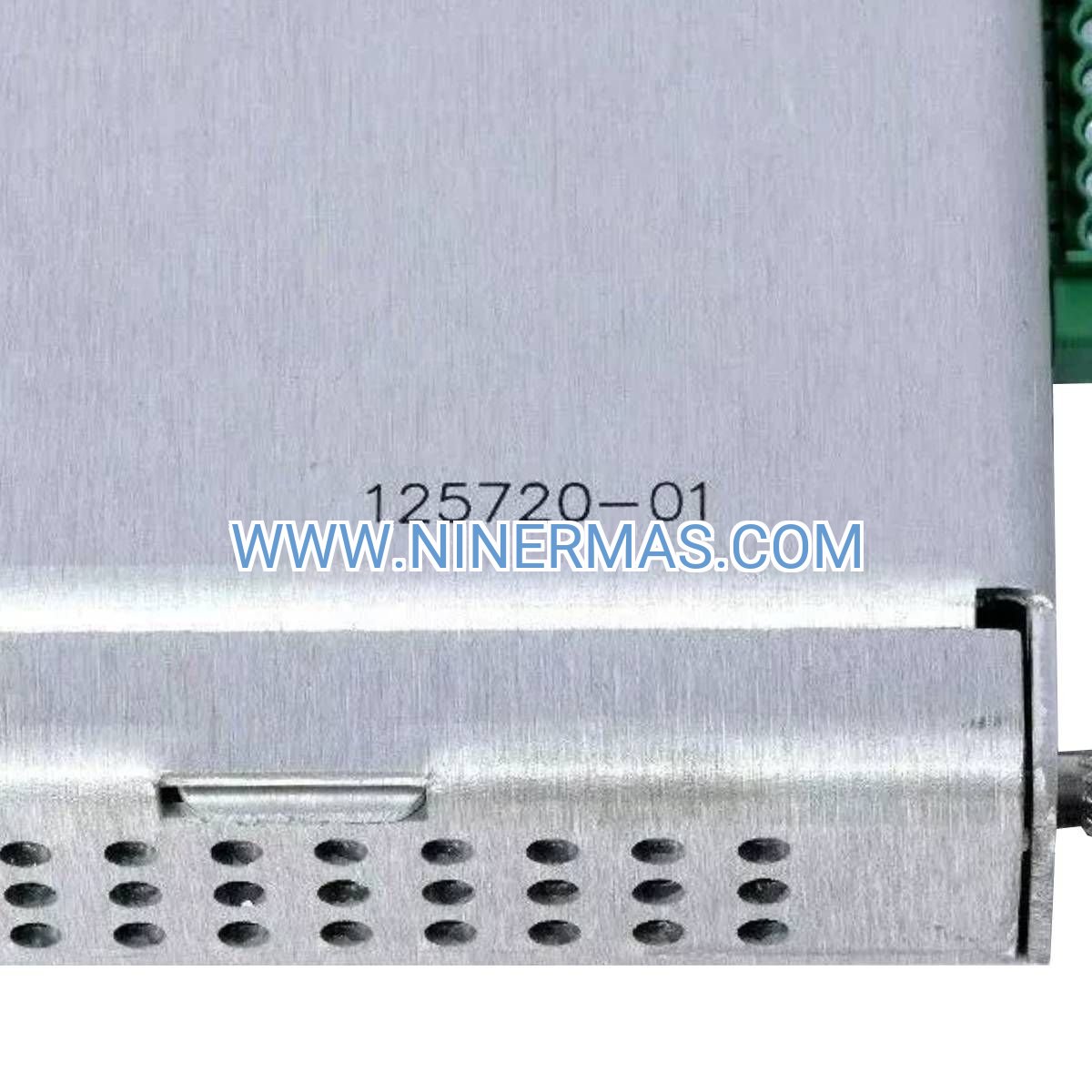

125720-01 Four-Channel Relay Module (Industrial-Grade Machinery Protection)

The 125720-01 represents a critical interface component within Bently Nevada's 3500 condition monitoring ecosystem, converting real-time sensor data into actionable relay outputs for equipment protection and process automation. Engineered with four independently configurable channels, this module serves as the decisive link between monitoring intelligence and physical control actions—enabling automated shutdown sequences, alarm escalation, and multi-tier protection strategies across rotating machinery installations.

Designed for power generation facilities, petrochemical plants, and heavy industrial environments, the 125720-01 addresses the fundamental challenge of translating vibration, temperature, and position anomalies into immediate protective responses. Each relay channel operates autonomously with programmable logic for OK/Alert/Danger thresholds, ensuring that critical equipment receives proportional protection without unnecessary nuisance trips.

With Form C contact architecture and 5-ampere switching capacity per channel, this module integrates seamlessly with distributed control systems, programmable logic controllers, and legacy hardwired safety circuits—delivering the reliability demanded by continuous-process industries where unplanned downtime carries six-figure hourly costs.

Core Capabilities & Technical Advantages

→ Quad-Channel Independent Operation: Four isolated relay outputs with individual programming eliminate single-point failure risks while enabling diverse protection schemes—one channel for emergency shutdown, another for pre-alarm notification, a third for auxiliary equipment control, and the fourth for remote annunciation.

→ Form C Contact Configuration: SPDT relay topology provides both normally-open and normally-closed contacts per channel, supporting fail-safe logic requirements and enabling direct integration with safety-instrumented systems requiring redundant contact verification.

→ High-Speed Response Architecture: Sub-10-millisecond actuation time ensures protective actions occur within critical time windows—particularly vital for high-speed turbomachinery where bearing failures can escalate from detectable vibration to catastrophic damage in under 200 milliseconds.

✓ Hot-Swap Serviceability: Field-replaceable design with keyed connectors allows maintenance personnel to exchange modules during operation without system shutdown—reducing mean-time-to-repair from hours to minutes and preserving production continuity during component upgrades.

✓ Environmental Hardening: Conformal coating protects circuitry against humidity, salt spray, and chemical vapors common in offshore platforms and process plants, while -30°C to +65°C operational range accommodates Arctic installations and desert climates without derating.

✓ Visual Diagnostics Integration: Front-panel LED indicators display real-time relay status and fault conditions, enabling technicians to verify protection logic during commissioning and troubleshoot alarm sequences without oscilloscope measurements or software interrogation.

Industrial Application Scenarios

Steam Turbine Protection Systems: In combined-cycle power plants, the 125720-01 monitors thrust bearing position and casing vibration across 50-150 MW turbines. Channel 1 triggers pre-alarm at 4.5 mils displacement, Channel 2 initiates load reduction at 6 mils, Channel 3 executes emergency trip at 8 mils, while Channel 4 activates auxiliary lube oil pumps—preventing bearing wipeout that would require $2M+ repairs and 6-week outages.

Centrifugal Compressor Monitoring: Petrochemical facilities deploy this module to safeguard multi-stage compressors handling explosive gases. Relay outputs interface with ESD logic solvers to isolate compressor sections upon detecting surge conditions, seal gas pressure loss, or abnormal radial vibration—averting process upsets that could cascade into plant-wide shutdowns affecting 200+ downstream units.

Critical Pump Installations: Water treatment plants utilize the 125720-01 to protect high-service pumps supplying municipal distribution networks. Relay channels monitor bearing temperature, motor current, and discharge pressure—automatically starting standby pumps when primary units exhibit degradation, ensuring uninterrupted service to 500,000+ residents while scheduling maintenance during off-peak demand periods.

Gas Turbine Generator Sets: Offshore oil platforms rely on this module for generator protection in unmanned installations. Relay outputs connect to fuel valve actuators, excitation systems, and fire suppression controls—coordinating multi-system responses to overspeed, loss-of-flame, or excessive vibration events that could compromise platform safety in remote locations 200+ miles from shore support.

Industrial Fan Arrays: Cement kilns and steel mills employ the module to manage induced-draft fan protection across high-temperature processes. Relay logic coordinates fan sequencing during process upsets, prevents reverse rotation during shutdowns, and activates backup units when primary fans exhibit bearing wear—maintaining kiln temperature stability critical to product quality and energy efficiency.

Technical Parameters & Selection Criteria

Selection Guidance: When specifying the 125720-01, evaluate total relay channel requirements across all monitored parameters—vibration, temperature, position, speed, and pressure. For installations requiring more than four outputs, consider the 3500/33 16-channel module or deploy multiple 125720-01 units in adjacent rack slots. Confirm that downstream control systems can accept Form C contact inputs; systems requiring solid-state signals may need interface modules. For SIL-rated applications, verify that relay contact redundancy and diagnostic coverage meet safety integrity level requirements per IEC 61508 standards.

Extended Integration Capabilities

DCS/SCADA Connectivity: Relay outputs integrate with Honeywell, Emerson, Siemens, and ABB distributed control platforms through digital input modules, enabling plant-wide alarm management and historical event logging. Contact closures can trigger HMI pop-up alarms, SMS notifications to maintenance personnel, and automated work order generation in CMMS systems.

PLC Safety Logic: Direct interface with Allen-Bradley GuardLogix, Siemens S7 F-systems, and Schneider Electric Modicon safety controllers supports implementation of IEC 61511-compliant safety instrumented functions. Dual-channel voting logic can be implemented using redundant relay contacts for SIL 2 applications.

Legacy System Retrofits: The module's Form C contacts enable seamless integration with existing hardwired relay panels and annunciator systems in facilities undergoing phased modernization—preserving capital investment in proven protection infrastructure while adding advanced condition monitoring capabilities.

Modbus/OPC Integration: When paired with 3500 rack communication modules, relay status becomes accessible via Modbus TCP or OPC UA protocols, enabling integration with enterprise asset management systems, predictive maintenance platforms, and cloud-based analytics services for fleet-wide equipment health trending.

Delivery Timeline & Service Commitments

Standard Delivery: 3-5 business days for in-stock units via expedited carrier with full tracking and signature confirmation. All modules ship with factory calibration certificates and test reports documenting relay contact resistance, actuation voltage, and response time measurements.

Custom Configuration: 7-10 business days for units requiring pre-programmed relay logic, custom terminal labeling, or integration with specific 3500 rack configurations. Engineering support included for logic verification and commissioning documentation.

Warranty Coverage: 24-month comprehensive warranty covering materials, workmanship, and relay contact degradation. Advance replacement program available for critical installations requiring <4-hour response times.

Technical Support: Lifetime access to application engineering team for troubleshooting, logic programming assistance, and system integration guidance. Remote diagnostic support available via secure VPN connection to customer 3500 systems.

Documentation Package: Complete installation manual, wiring diagrams, relay logic programming guide, and dimensional drawings provided in PDF format. AutoCAD DWG files available upon request for panel layout design.

Frequently Asked Questions

Q: How does the 125720-01 interface with existing 3500 rack monitor modules?
A: The module occupies a single rack slot and receives alarm status signals via the 3500 backplane from any monitor module in the same rack—including vibration monitors (3500/42M), temperature monitors (3500/60), and position monitors (3500/45). Each relay channel can be programmed to respond to specific monitor channels and alarm setpoints through 3500 Rack Configuration Software.

Q: What relay contact capacity is available for driving solenoid valves and motor contactors?
A: Each channel provides 5-ampere resistive load capacity at 30 VDC or 250 VAC, sufficient for most industrial solenoid valves, pilot relays, and PLC input modules. For inductive loads such as contactor coils, apply 50% derating (2.5A) and install RC snubber networks across contacts to suppress voltage transients that could reduce relay life.

Q: Can relay logic be modified without shutting down the monitoring system?
A: Yes—relay programming changes can be downloaded to the module via the 3500 rack communication interface while the system remains operational. However, best practice recommends verifying logic changes during planned maintenance windows to avoid inadvertent trips during commissioning of new alarm setpoints.

Q: What environmental protection does the module provide for harsh industrial locations?
A: The 125720-01 features conformal coating on all circuit boards to resist moisture, salt spray, and chemical vapors. The module meets IP20 ingress protection when installed in standard 3500 racks; for higher IP ratings, mount the rack in NEMA 4X or IP65-rated enclosures with appropriate environmental sealing.

Q: How quickly do relay contacts actuate when alarm conditions occur?
A: Typical response time from alarm detection to contact closure is under 10 milliseconds, meeting the requirements for high-speed turbomachinery protection where bearing failures can escalate rapidly. For applications requiring sub-5ms response, consult factory engineering for relay contact specifications and backplane propagation delays.

Q: Is the module compatible with SIL-rated safety instrumented systems?
A: The 125720-01 can be incorporated into SIL 1 and SIL 2 safety functions when used with appropriate redundancy and diagnostic coverage. For SIL 3 applications, implement 2oo3 voting logic using multiple modules or specify dedicated safety-certified relay modules. Consult IEC 61511 compliance documentation for detailed failure rate data and proof test intervals.

Request Technical Consultation

Our application engineering team provides complimentary system design reviews for 3500 monitoring installations. Contact us to discuss relay logic architecture, integration with existing control systems, and optimization of protection strategies for your specific machinery portfolio. Expedited quotations available for urgent replacement requirements and plant expansion projects.
