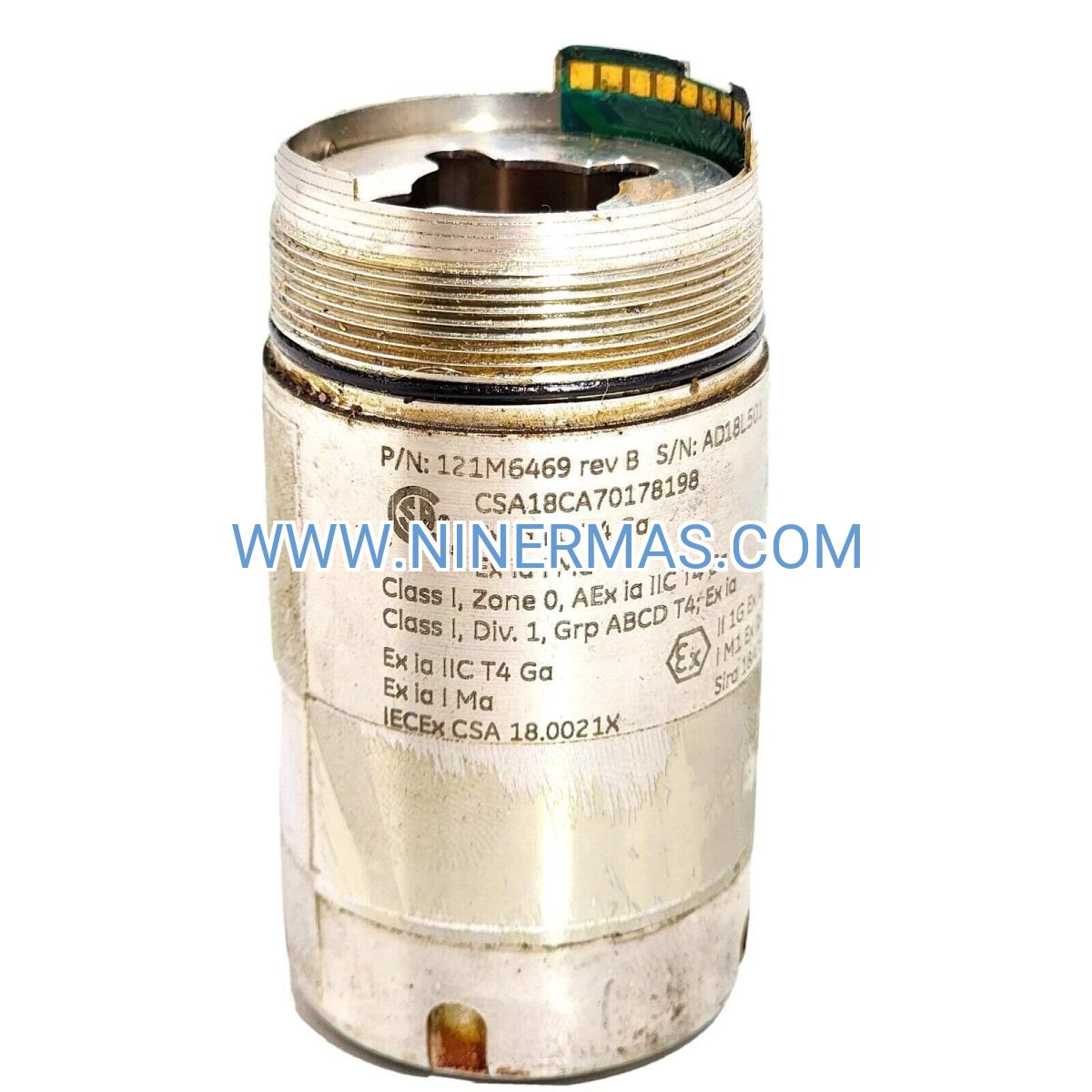

Wireless Triaxial Vibration Sensor for Industrial Predictive Maintenance

The Bently Nevada 121M6469-02 Ranger Pro is an industrial-grade wireless vibration monitoring sensor designed for critical rotating machinery health assessment. Through ISA100.11a wireless protocol and triaxial MEMS accelerometer technology, it enables real-time vibration data acquisition, intelligent fault diagnosis, and predictive maintenance strategies across petrochemical plants, power generation facilities, and heavy industrial operations.

Suitable for high-value rotating assets including centrifugal pumps, electric motors, gas turbines, reciprocating compressors, and industrial fans, this sensor addresses common challenges such as unplanned downtime, catastrophic bearing failures, excessive maintenance costs, and delayed fault detection in remote or hazardous locations.

With standardized ISA100.11a architecture and flexible deployment options, the 121M6469-02 delivers extended battery life (up to 5 years), harsh environment durability (IP67), mesh network scalability (50 sensors per gateway), and ATEX/IECEx hazardous area certification. Ideal for reliability engineers, maintenance managers, plant automation teams, and condition monitoring specialists seeking to transition from reactive to predictive maintenance workflows. Contact our application engineers for site-specific deployment planning and integration support.

Core Features & Advantages

ISA100.11a Wireless Infrastructure
Deploys enterprise-grade wireless mesh networking compliant with ISA100.11a industrial standard, eliminating cable installation costs while maintaining deterministic communication and 128-bit AES encryption security. Typical range: 100-200m line-of-sight with multi-hop mesh extension capability.

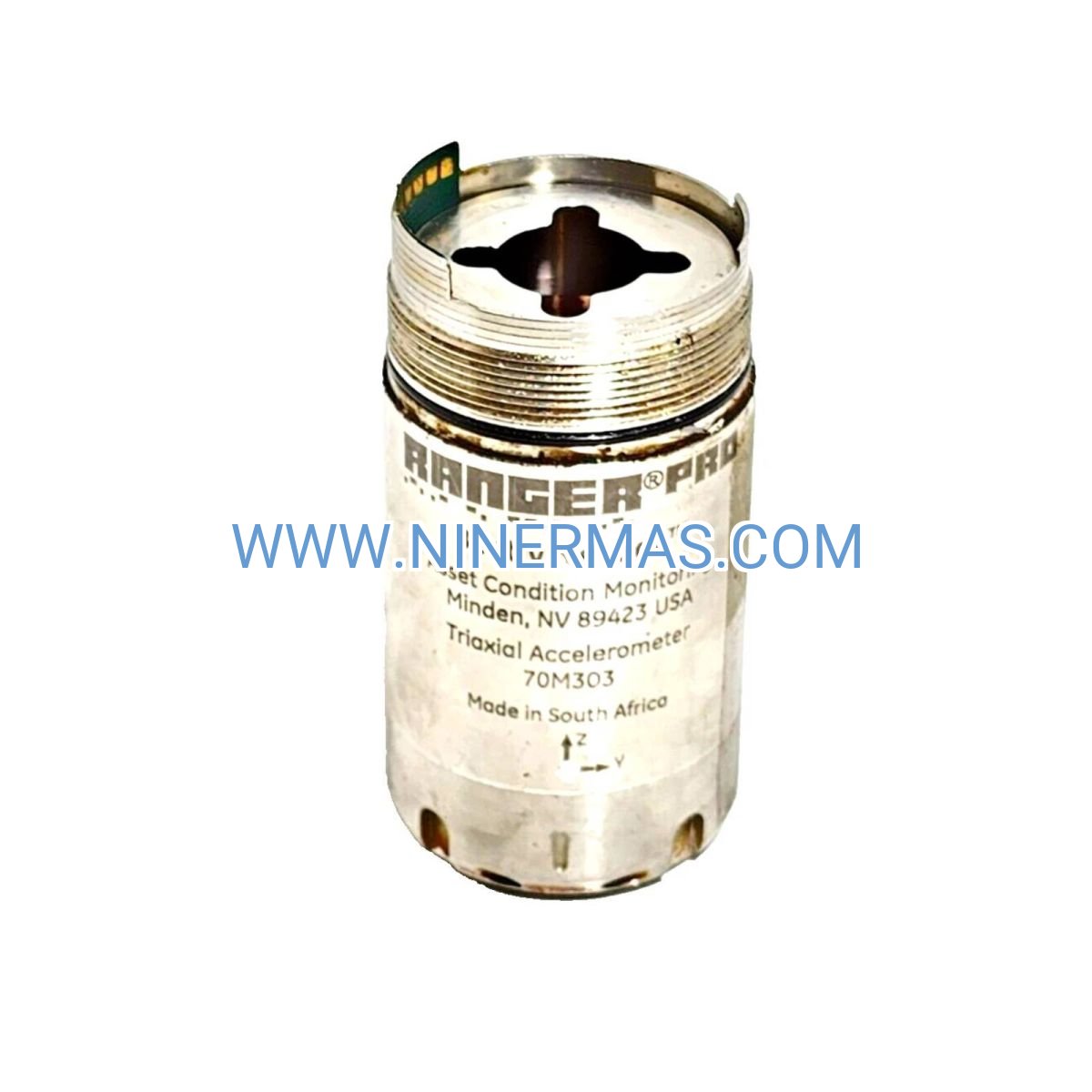

Triaxial Vibration Measurement
Simultaneous X-Y-Z axis acceleration monitoring captures comprehensive vibration signatures including radial, axial, and tangential components. Frequency response: 0.5 Hz to 10 kHz with 80 dB dynamic range, enabling detection of low-frequency unbalance, mid-frequency misalignment, and high-frequency bearing defects.

Extended Autonomous Operation
Field-replaceable lithium-thionyl chloride battery provides up to 5 years continuous operation (at 15-minute sample intervals), significantly reducing maintenance interventions and total cost of ownership compared to wired systems requiring external power infrastructure.

Industrial Environmental Resilience
IP67 ingress protection rating ensures reliable performance in demanding conditions: dust-tight enclosure, temporary water immersion protection, operating temperature range -40°C to +80°C (-40°F to +176°F), suitable for outdoor installations and wash-down environments.

Scalable Multi-Sensor Architecture
Single ISA100.11a gateway supports up to 50 wireless sensors with automatic mesh routing and self-healing network topology, enabling cost-effective facility-wide deployment from pilot projects to enterprise-scale condition monitoring programs.

Integrated Temperature Monitoring
Built-in RTD temperature sensor provides simultaneous thermal monitoring for bearing temperature trending, lubrication degradation detection, and thermal growth analysis, complementing vibration diagnostics for comprehensive asset health assessment.

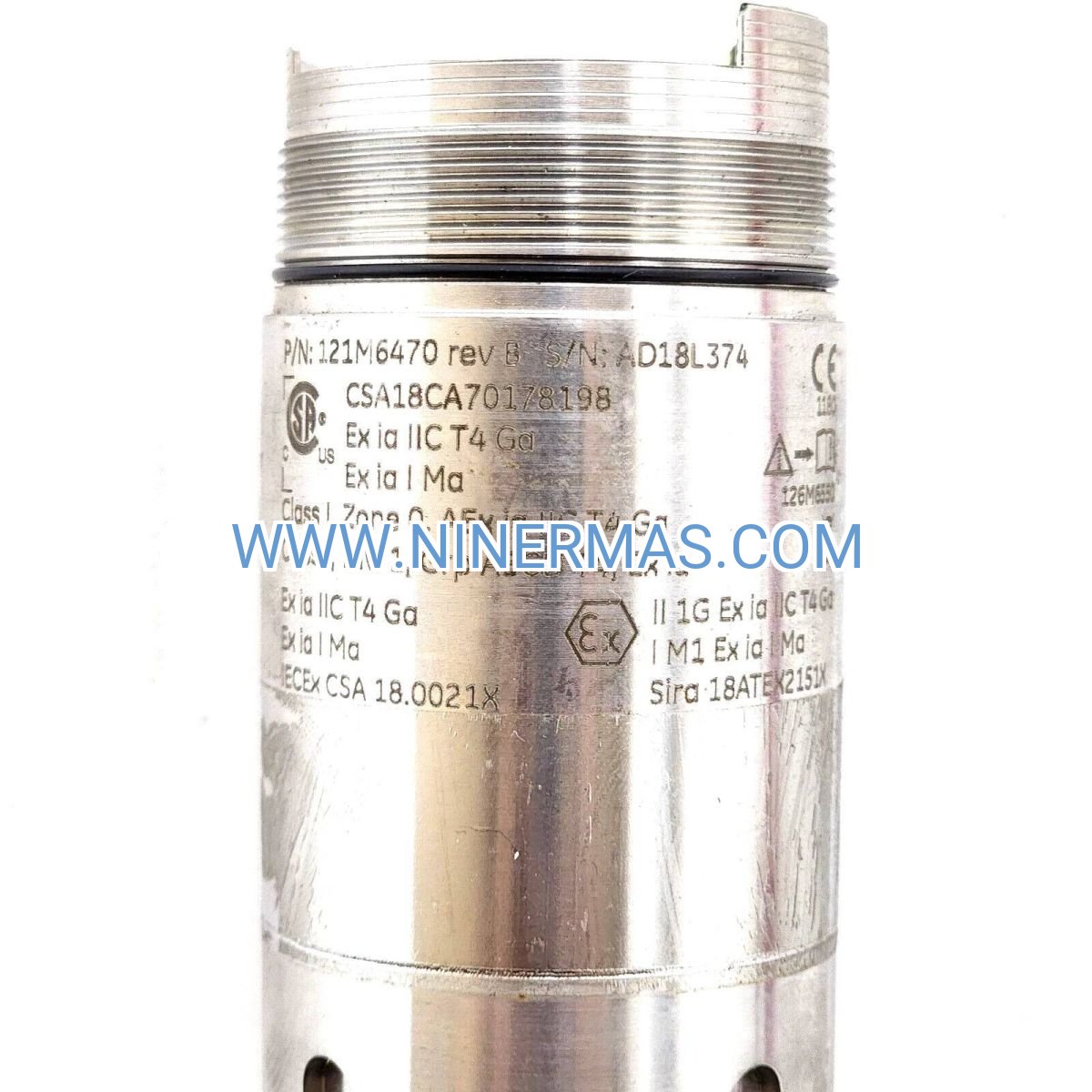

Hazardous Area Certification
ATEX Zone 2 and IECEx Class I Division 2 certifications permit safe installation in potentially explosive atmospheres common in oil & gas, chemical processing, and pharmaceutical manufacturing facilities, with intrinsically safe design principles.

Typical Application Scenarios

This wireless vibration sensor is engineered for applications demanding continuous condition monitoring, early fault detection, and minimal installation disruption:

Rotating Equipment Condition Monitoring
Continuous health assessment of centrifugal pumps, electric motors (induction and synchronous), steam and gas turbines, centrifugal and reciprocating compressors, industrial fans and blowers, gearboxes and speed reducers. Detects bearing wear, rotor unbalance, shaft misalignment, mechanical looseness, and resonance conditions before catastrophic failure.

Predictive Maintenance Programs
Enables transition from time-based preventive maintenance to condition-based predictive strategies. Vibration trend analysis, spectral signature comparison, and alarm threshold management allow maintenance scheduling based on actual equipment condition rather than arbitrary calendar intervals, optimizing spare parts inventory and labor allocation.

Remote and Inaccessible Asset Monitoring
Ideal for equipment in hazardous areas (explosive atmospheres), elevated platforms, confined spaces, or geographically dispersed locations where traditional wired sensor installation is cost-prohibitive or safety-restricted. Wireless architecture eliminates cable routing through cable trays, conduit systems, and penetration seals.

Brownfield Retrofit and Expansion Projects
Rapid deployment on existing equipment without civil works, cable trenching, or process shutdown. Magnetic mounting bases enable temporary monitoring during commissioning or troubleshooting campaigns. Particularly valuable for aging assets lacking original vibration monitoring provisions.

Multi-Site Enterprise Standardization
ISA100.11a protocol compatibility ensures vendor-neutral integration across multiple facilities, enabling corporate-wide condition monitoring standards, centralized data analytics platforms, and knowledge transfer between sites using common hardware and software infrastructure.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide standardized specifications and application-specific configuration options. Custom solutions available for unique operating conditions.

Selection Considerations
When specifying the 121M6469-02 for your application, consider the following factors: maximum equipment vibration levels and frequency content, required measurement sensitivity and resolution, ambient temperature extremes and thermal cycling, presence of corrosive atmospheres or wash-down requirements, wireless coverage distance and physical obstructions, desired data update frequency versus battery life tradeoff, integration with existing DCS/SCADA/CMMS platforms, and hazardous area classification requirements. Our application engineering team can review your equipment specifications, operating conditions, and monitoring objectives to recommend optimal sensor placement, mounting methods, gateway configuration, and software integration architecture.

System Integration & Compatibility

Gateway Hardware Compatibility
The 121M6469-02 operates with ISA100.11a compliant wireless gateways including Bently Nevada 70M320 Wireless Gateway, Yokogawa YFGW410/510 Field Wireless Management Gateways, Honeywell WDM Wireless Device Manager, and Emerson Smart Wireless Gateway. Gateway selection depends on required sensor capacity, communication protocols (Modbus TCP, OPC UA, HART-IP), network security requirements, and integration with existing plant automation infrastructure.

Software Platform Integration
Vibration data streams directly into Bently Nevada System 1 Condition Monitoring Software for advanced spectral analysis, trend visualization, alarm management, and diagnostic reporting. Alternative integration paths include direct Modbus TCP/OPC UA connectivity to third-party CMMS platforms (SAP PM, Maximo, eMaint), SCADA systems (Wonderware, iFIX, WinCC), and cloud-based analytics services (Azure IoT, AWS IoT Core, GE Predix).

Data Output Formats
Configurable output includes overall vibration RMS velocity (mm/s or in/s), peak acceleration (g), frequency spectrum (FFT), time waveform snapshots, temperature readings, and diagnostic alerts. Data accessible via standard industrial protocols ensures seamless integration regardless of existing plant automation vendor ecosystem.

Advanced Diagnostic Capabilities

Bearing Fault Detection
High-frequency measurement capability (up to 10 kHz) captures characteristic bearing defect frequencies including BPFO (ball pass frequency outer race), BPFI (ball pass frequency inner race), BSF (ball spin frequency), and FTF (fundamental train frequency). Envelope analysis and spectral kurtosis algorithms identify early-stage bearing degradation weeks or months before audible noise or temperature rise.

Rotor Unbalance & Misalignment Analysis
Triaxial measurement enables differentiation between static unbalance (1× running speed radial vibration), couple unbalance (1× with 180° phase shift), parallel misalignment (high axial 1× and 2× harmonics), and angular misalignment (high axial 1× vibration). Phase analysis across multiple measurement points supports precision balancing and alignment procedures.

Mechanical Looseness & Structural Resonance
Detection of non-linear vibration signatures including sub-harmonic components (0.5×, 0.33×), multiple harmonics (2×, 3×, 4×), and broadband noise patterns characteristic of loose mounting bolts, worn couplings, cracked structures, or resonant operating conditions. Natural frequency identification supports structural modification recommendations.

Thermal Condition Monitoring
Integrated temperature sensor tracks bearing housing temperature trends, identifies lubrication breakdown (viscosity loss), detects inadequate cooling flow, and monitors thermal expansion effects. Combined vibration-temperature analysis improves diagnostic accuracy and reduces false alarm rates.

Frequently Asked Questions (FAQ)

Q: What is the effective wireless communication range for the 121M6469-02 in industrial environments?
A: Typical line-of-sight range is 100-200 meters in open industrial settings. However, metal structures, concrete walls, and electrical interference can reduce effective range. The ISA100.11a mesh networking capability allows sensors to relay data through intermediate nodes, extending total network coverage to 500+ meters. Site surveys and RF propagation modeling are recommended for large facilities or complex layouts.

Q: How many sensors can be deployed on a single wireless gateway?
A: Each ISA100.11a gateway supports up to 50 wireless sensors. For larger installations, multiple gateways can be deployed with centralized data aggregation at the host system level. Gateway placement should consider sensor density, communication range, and network redundancy requirements.

Q: Can I replace the battery myself, or does it require factory service?
A: The battery pack is field-replaceable using standard tools. Replacement procedures are documented in the user manual. However, battery replacement in hazardous classified areas (ATEX/IECEx zones) must follow proper hot work permit procedures, area de-energization protocols, and intrinsic safety verification. Non-hazardous area replacements can be performed by trained maintenance personnel.

Q: How does wireless sensor performance compare to traditional wired accelerometers?
A: Wired sensors provide continuous real-time data streaming, while wireless sensors operate on configurable sample intervals (typically 1-60 minutes). For predictive maintenance applications monitoring slow-developing faults (bearing wear, unbalance, misalignment), periodic sampling is sufficient and offers 90% cost reduction compared to wired infrastructure. For transient event capture or high-speed machinery protection, wired sensors remain preferred.

Q: What mounting methods are supported, and how critical is mounting quality?
A: The sensor supports permanent stud mounting (M8 or 1/4-28 UNF threaded stud welded or drilled into equipment), magnetic mounting bases (for temporary installations or non-critical monitoring), and adhesive mounting pads (for non-ferrous surfaces). Mounting quality directly affects measurement accuracy—stud mounting provides best high-frequency response, while magnetic bases are suitable for frequencies below 2 kHz. Mounting surface preparation (flatness, cleanliness, torque specification) is critical for reliable data.

Q: Is the 121M6469-02 compatible with non-Bently Nevada monitoring systems?
A: Yes. As an ISA100.11a standards-compliant device, it integrates with any ISA100.11a gateway and host system supporting the protocol. Data can be accessed via Modbus TCP, OPC UA, or HART-IP for integration with third-party CMMS, SCADA, or analytics platforms. Proprietary features (advanced diagnostics, automated reporting) may require Bently Nevada System 1 software.

Q: What factors affect battery life, and how is battery status monitored?
A: Battery life depends on sample interval (more frequent sampling = shorter life), wireless transmission power (range/obstacles), ambient temperature (cold reduces capacity), and enabled features (waveform capture vs. RMS-only). The sensor reports battery voltage status to the gateway, triggering low-battery alarms typically 3-6 months before depletion, allowing planned replacement during scheduled maintenance windows.

Delivery, Service & Quality Assurance

Lead Time & Availability
Standard catalog items typically ship within 5-10 business days from regional distribution centers. Custom configurations (special mounting, extended temperature ratings, customer-specific firmware) require 3-4 weeks manufacturing lead time. Expedited shipping available for critical equipment outages or emergency replacements.

Warranty Coverage
All 121M6469-02 sensors include a comprehensive 12-month manufacturer warranty covering defects in materials, workmanship, and conformance to published specifications. Extended warranty programs (24-month, 36-month) and advance replacement service agreements are available for mission-critical applications requiring guaranteed uptime.

Technical Support Services
Complimentary pre-sales application engineering support includes sensor selection guidance, mounting location recommendations, wireless network design, and integration architecture planning. Post-sales support includes remote configuration assistance, firmware updates, troubleshooting diagnostics, and on-site commissioning services (regional availability varies).

Documentation & Training
Each sensor ships with complete technical documentation including installation manual, quick start guide, electrical connection diagrams, mounting specifications, and safety certifications. Comprehensive user manuals, application notes, and video tutorials available through online technical library. On-site or virtual training programs available for maintenance teams and reliability engineers.

Quality Certifications
Manufactured under ISO 9001:2015 quality management system with full traceability and calibration certification. Each unit undergoes factory acceptance testing including frequency response verification, wireless communication validation, environmental stress screening, and hazardous area compliance verification prior to shipment.

Request Technical Consultation

To obtain detailed application-specific recommendations, pricing quotations, or technical support, please provide the following information to our engineering team:

• Project Overview: Facility name, industry sector, monitoring objectives
• Equipment Details: Machine type, manufacturer, model, rated speed (RPM), power rating
• Operating Conditions: Ambient temperature range, presence of moisture/dust/chemicals, hazardous area classification
• Monitoring Requirements: Number of measurement points, desired sample frequency, alarm/trending needs
• Infrastructure: Existing wireless networks, DCS/SCADA platforms, preferred communication protocols
• Timeline: Project schedule, commissioning date, budget constraints

Our application engineers will provide customized sensor placement drawings, wireless network coverage analysis, gateway configuration recommendations, and integration specifications tailored to your facility requirements.
