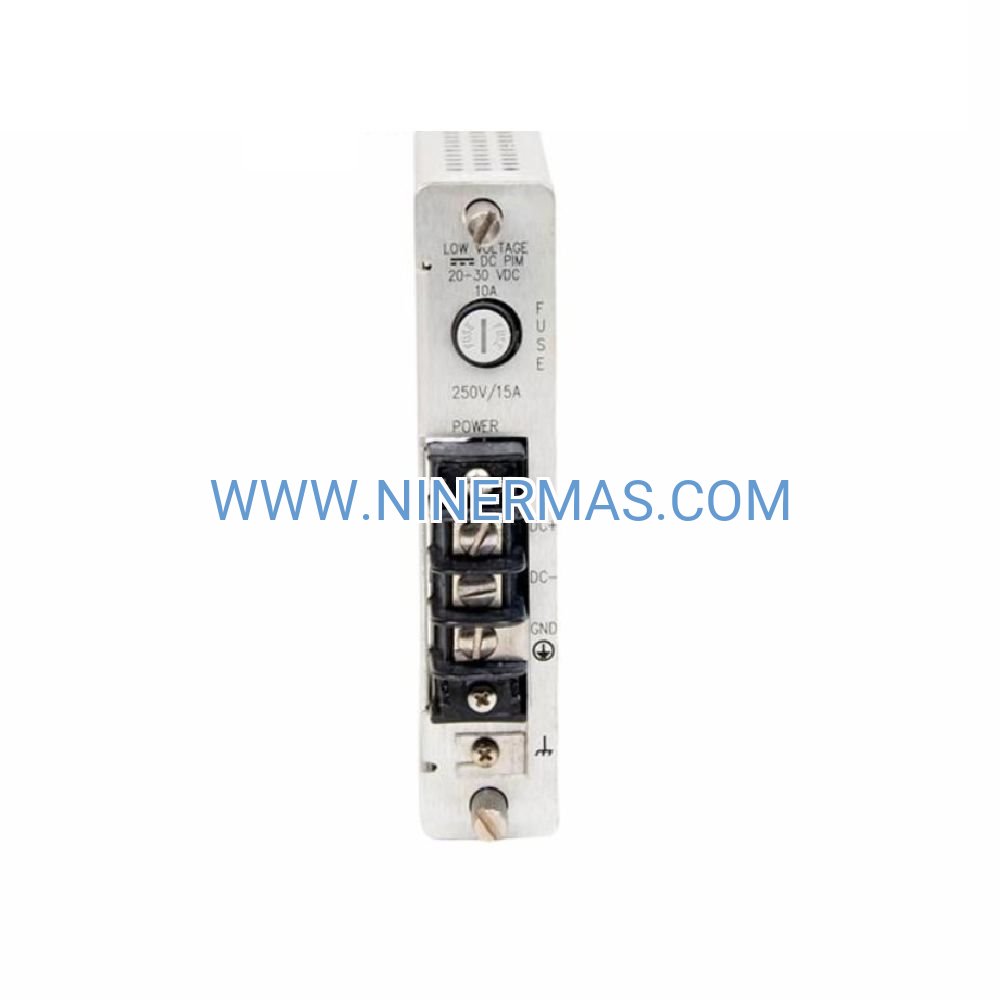

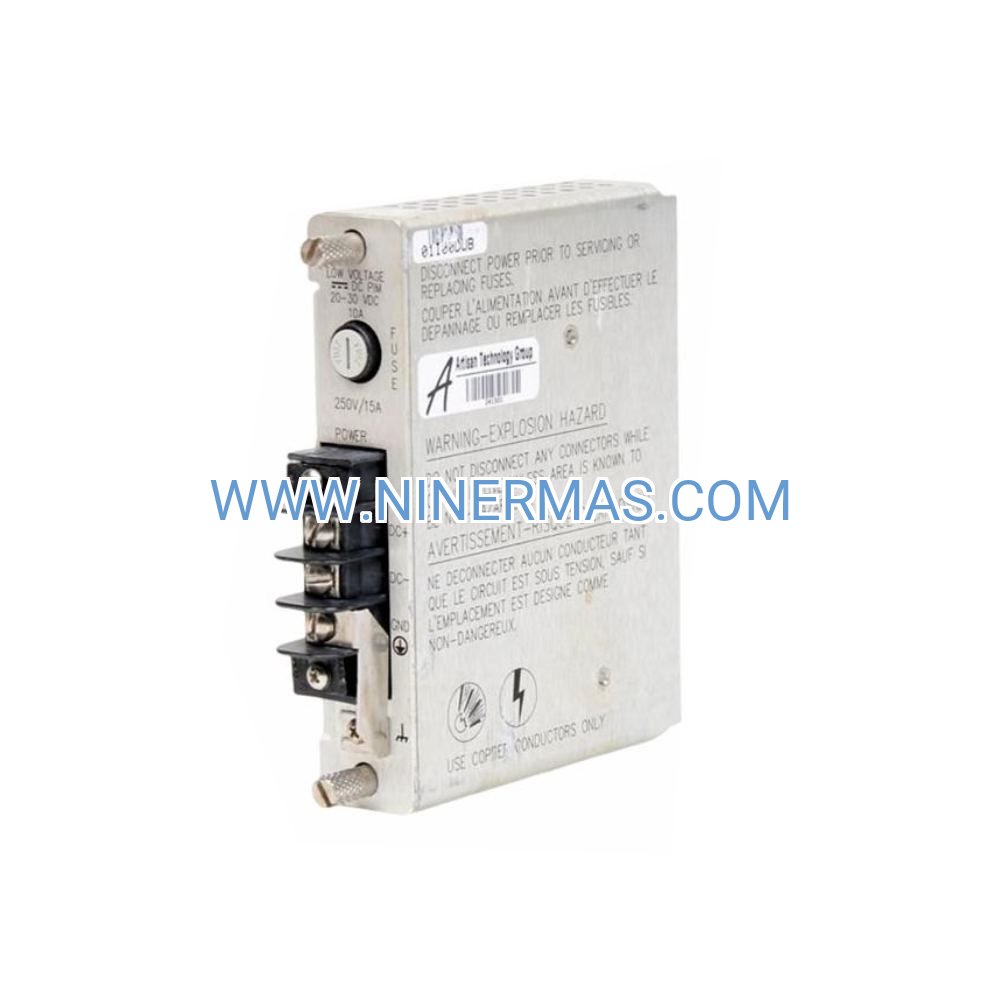

115M7750-01 Industrial DC Power Module (3500/15 Rack Compatible)

Engineered for mission-critical machinery protection systems, the 115M7750-01 delivers uninterrupted high-voltage DC power to Bently Nevada 3500/15 monitoring platforms. This industrial-grade power input module (PIM) ensures continuous operation of vibration analysis, condition monitoring, and predictive maintenance systems across turbomachinery installations in oil & gas, power generation, and heavy industrial environments.

Designed for facilities operating DC power distribution networks—including offshore platforms, remote compressor stations, and battery-backed installations—this module accepts 88-132 VDC input and provides dual-channel redundancy to eliminate single-point failures. With API 670 certification and extended temperature ratings, it meets the rigorous demands of harsh industrial conditions while maintaining 24/7 uptime for asset protection systems.

Whether you're upgrading legacy 3500 systems, building new monitoring infrastructure, or implementing N+1 power redundancy, the 115M7750-01 integrates seamlessly with existing rack configurations and requires zero software reconfiguration.

Core Features & Performance Advantages

→ Dual-Channel Redundant Architecture
Two independent power paths ensure automatic failover if one channel experiences issues, maintaining continuous system operation without manual intervention or monitoring interruption.

→ Wide Input Voltage Tolerance (88-132 VDC)
Accommodates voltage fluctuations common in industrial DC networks, solar installations, and battery systems—reducing nuisance shutdowns and improving system availability.

→ Extended Environmental Rating
Operates reliably from -30°C to +65°C (-22°F to +149°F) with conformal coating protection against moisture, dust, and corrosive atmospheres typical in offshore and process environments.

✓ API 670 Machinery Protection Compliance
Meets international standards for vibration monitoring systems, ensuring regulatory acceptance in oil & gas, petrochemical, and power generation applications.

✓ Tool-Free Installation & Hot-Swap Capability
Keyed connectors prevent incorrect insertion while enabling rapid field replacement without powering down the entire monitoring rack—minimizing maintenance windows.

✓ Real-Time Diagnostic Indicators
Front-panel LEDs provide instant visual confirmation of power status, fault conditions, and redundancy health for quick troubleshooting during commissioning and operation.

Industrial Application Scenarios

Offshore Oil & Gas Platforms
FPSOs, drilling rigs, and production platforms utilize DC power distribution for safety and reliability. The 115M7750-01 powers vibration monitoring on critical rotating equipment (gas turbines, compressors, pumps) where AC power may be unavailable or less reliable. Its salt-fog resistance and extended temperature range handle harsh marine conditions.

Remote Pipeline Compressor Stations
Unmanned facilities powered by solar arrays and battery banks require DC-compatible instrumentation. This module enables 3500 system deployment in locations where AC infrastructure is impractical, supporting predictive maintenance programs that reduce emergency callouts and extend equipment life.

Power Generation Turbine Monitoring
Steam turbines, gas turbines, and combined-cycle plants often maintain DC auxiliary power systems for critical controls and protection. The module integrates with existing DC infrastructure while providing the redundancy required for high-availability generation assets.

Petrochemical Process Equipment
Refineries and chemical plants with DC instrumentation power can standardize on 3500 monitoring platforms across both AC and DC zones. The wide input range handles voltage variations during plant startups, load changes, and battery discharge cycles.

Hybrid Redundant Power Architectures
Combine with AC power modules (106M1079-01) in the same rack to create dual-source redundancy—automatically switching between utility AC and backup DC during power events without system interruption.

Technical Specifications & Selection Guide

Selection Criteria: Choose the 115M7750-01 when your facility operates DC power distribution (88-132V range), requires API 670 compliance, or needs to integrate 3500 monitoring with solar/battery backup systems. For AC-powered installations (100-240 VAC), consider the 106M1079-01 AC power module instead. For maximum reliability, deploy two modules per rack for full N+1 redundancy.

Advanced Integration Capabilities

The module supports parallel operation with other 115M7750-01 units or mixed deployment alongside AC power modules, enabling flexible power architecture design. Front-accessible terminal blocks simplify field wiring in tight rack spaces, while the module's low electromagnetic interference (EMI) profile prevents signal corruption in adjacent monitoring channels.

Compatible with all 3500 rack configurations (mini-racks, full 14-slot chassis, and extended 18-slot systems), the module automatically load-shares when multiple units are installed. Built-in current limiting protects against downstream faults, and the module's thermal management system operates silently without forced-air cooling requirements.

For remote installations, the module's diagnostic outputs can interface with SCADA systems or building management platforms to provide centralized power health monitoring and predictive maintenance alerts before failures occur.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units; 2-3 weeks for factory-direct orders
Express Shipping: Next-day and 2-day delivery options available for urgent replacements
Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship
Technical Support: 24/7 global support hotline for installation assistance, troubleshooting, and system integration guidance
Documentation Included: Installation manual, wiring diagrams, compliance certificates, and dimensional drawings

All modules undergo factory testing and calibration before shipment, with test reports available upon request. We maintain strategic inventory across North America, Europe, and Asia-Pacific to support rapid deployment and emergency replacement requirements.

Frequently Asked Questions

What is the minimum DC voltage required for reliable module operation?
The module requires a minimum of 88 VDC to maintain output regulation. Below this threshold, under-voltage lockout protection activates, safely shutting down the module and triggering alarm indicators. In redundant configurations, the backup module automatically assumes full load during under-voltage events.

Can I mix this DC module with AC power modules in the same 3500/15 rack?
Yes—the 115M7750-01 can operate alongside AC modules (such as 106M1079-01) to create hybrid redundant power systems. This configuration is ideal for facilities transitioning between power sources or requiring dual-source backup during utility outages.

Is this module suitable for solar-powered monitoring installations?
Absolutely. The wide 88-132 VDC input range accommodates voltage variations inherent in battery-backed solar systems, where voltage fluctuates with charge state, temperature, and load conditions. Many remote pipeline and wellhead monitoring systems successfully deploy this module with solar/battery infrastructure.

How do I verify the module is functioning correctly after installation?
Front-panel LED indicators provide real-time status: solid green confirms normal operation, amber indicates reduced redundancy (if dual modules installed), and red signals fault conditions. Additionally, the 3500 rack's system monitor will display power supply health in the configuration software.

Does the module require periodic calibration or preventive maintenance?
No routine calibration is necessary—the module is factory-calibrated and maintenance-free. We recommend annual visual inspection of connector tightness, LED status verification, and cleaning of ventilation areas to ensure optimal thermal performance over the module's 10+ year service life.

What happens during a power module failure in a redundant configuration?
If one module fails, the redundant unit automatically assumes 100% of the load without interruption to monitoring functions. The failed module's red LED illuminates, and the system generates an alarm to notify maintenance personnel. Hot-swap capability allows replacement without powering down the rack.

Ready to Secure Your Monitoring Infrastructure?

Ensure uninterrupted machinery protection with the 115M7750-01 DC power module. Contact our technical sales team for application-specific guidance, volume pricing, or to request a detailed integration proposal for your facility. Our engineers can assist with power architecture design, redundancy planning, and compatibility verification with your existing 3500 system configuration.

Request a quote today or speak with a Bently Nevada specialist to discuss your DC power requirements and delivery timeline.
