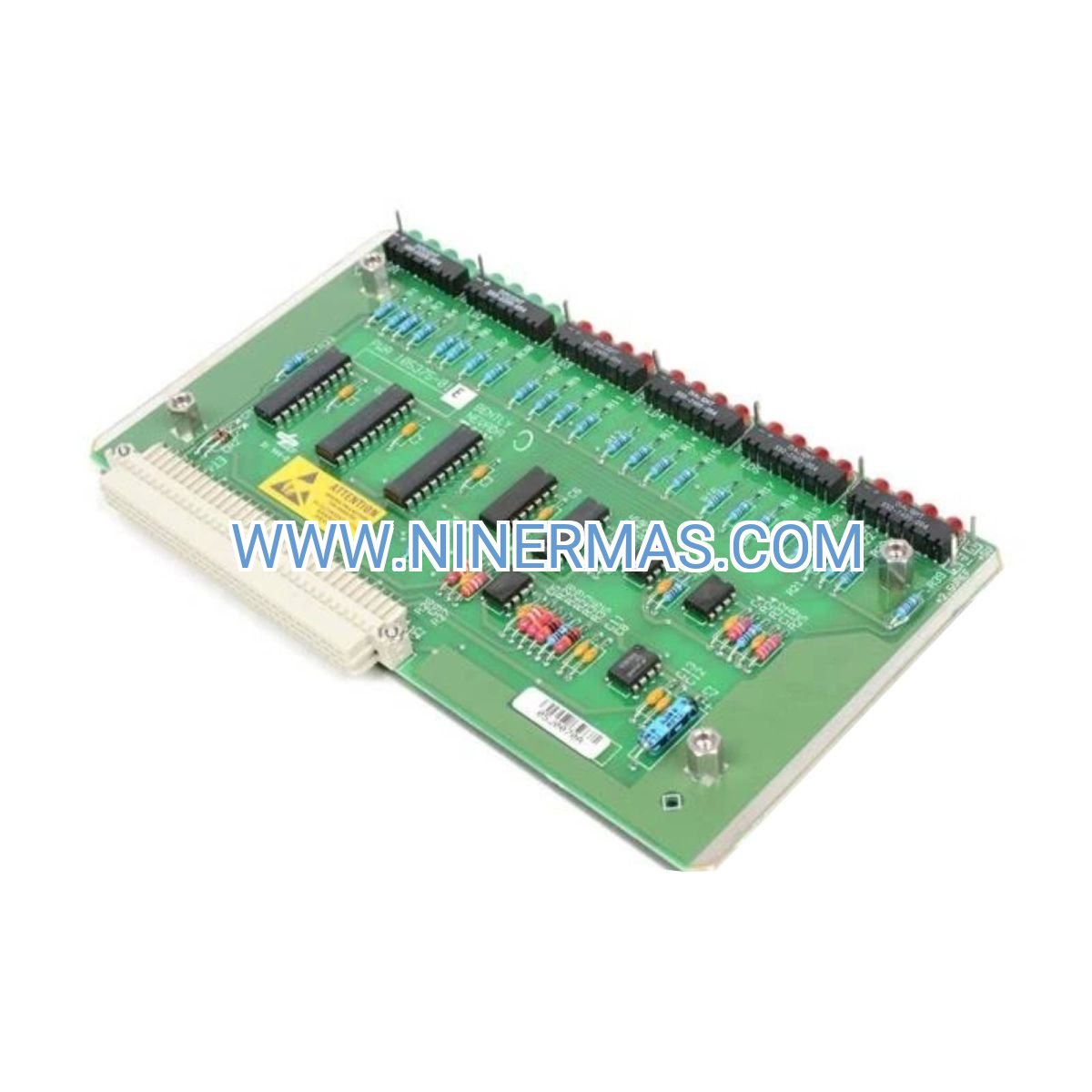

Bently Nevada 105375-01 Relay Output Module (Industrial-Grade Control Solution for 3500 Monitoring Systems)

The Bently Nevada 105375-01 is a high-reliability relay output module engineered for critical machinery protection and monitoring applications within the 3500 series platform. Through precision relay switching and API 670-compliant design, this module delivers dependable alarm signaling, emergency shutdown control, and real-time status indication for turbomachinery, compressors, pumps, and rotating equipment across power generation, oil & gas, petrochemical, and heavy industrial sectors.

Designed for integration into distributed control systems (DCS), programmable logic controllers (PLC), and SCADA networks, the 105375-01 addresses challenges such as delayed fault response, unreliable contact switching, and incompatible legacy relay interfaces. Its hot-swappable architecture minimizes downtime during maintenance, while robust SPDT contact ratings ensure compatibility with diverse control voltages and load requirements.

Featuring standardized mounting, field-proven durability, and comprehensive diagnostic capabilities, this relay output module is ideal for design engineers, instrumentation technicians, plant maintenance teams, and system integrators seeking to enhance safety integrity levels (SIL), reduce mean time to repair (MTTR), and maintain continuous uptime in mission-critical environments. Contact our application engineers for customized configuration guidance, technical datasheets, and project-specific quotations.

Core Functions & Advantages

High-Reliability Relay Switching
Utilizes industrial-grade SPDT (Single Pole Double Throw) relay contacts rated for 5A continuous current, ensuring dependable switching for alarm annunciation, valve control, and emergency shutdown sequences with minimal contact bounce and extended mechanical life.

API 670 Compliance & Safety Certification
Fully compliant with API Standard 670 for machinery protection systems, meeting stringent requirements for vibration monitoring, temperature sensing, and critical alarm relay outputs in hazardous and safety-instrumented applications.

Hot-Swappable Modular Design
Supports online module replacement without system shutdown or power interruption, reducing maintenance windows by up to 80% and enabling rapid fault isolation through front-accessible connectors and LED status indicators.

Universal Control Voltage Compatibility
Accepts a wide range of control voltages (24 VDC, 48 VDC, 120 VAC, 240 VAC) and load types, facilitating seamless integration with existing relay logic, motor starters, solenoid valves, and third-party control panels across global electrical standards.

Comprehensive Diagnostic & Status Feedback

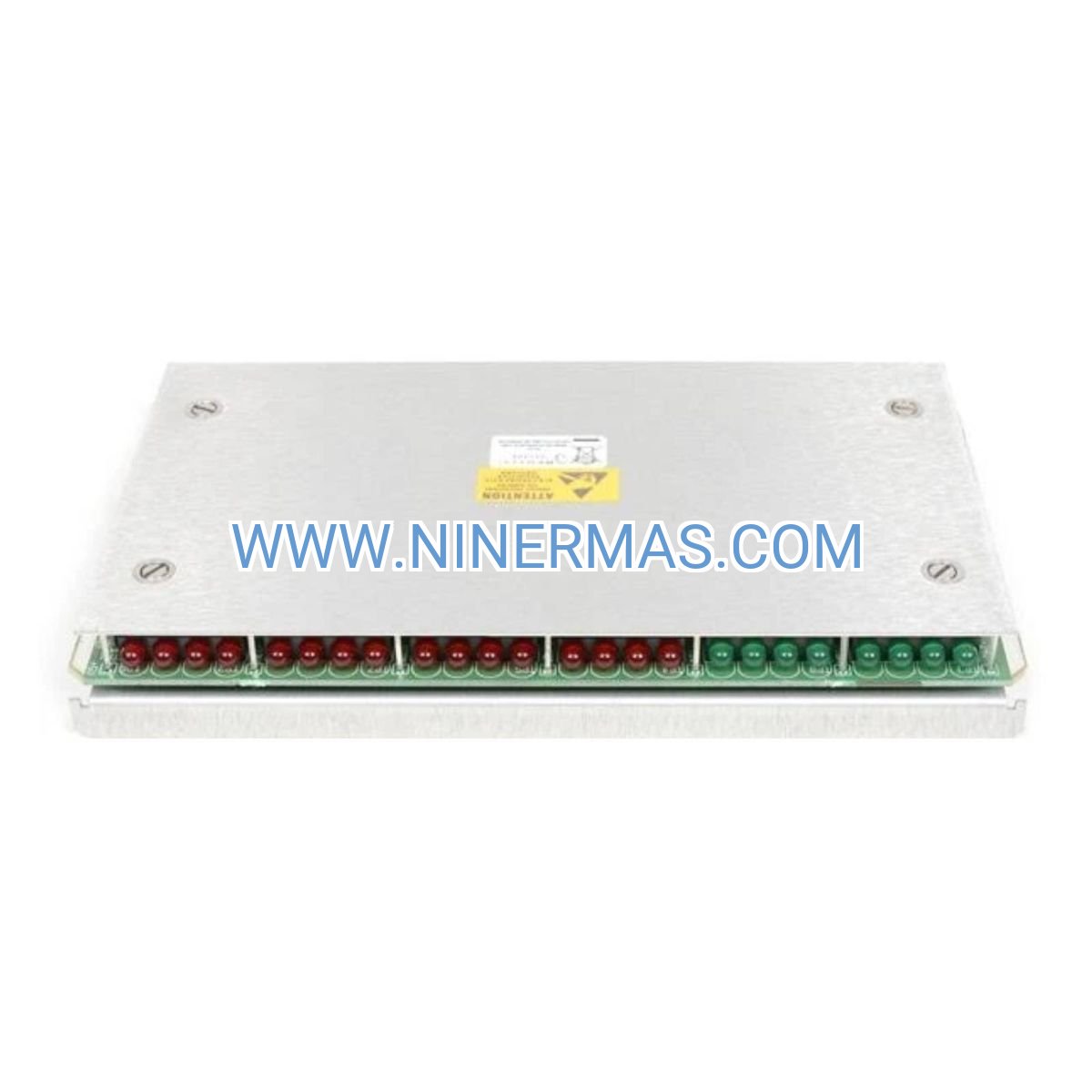

Equipped with multi-color LED indicators for relay state, module health, and communication status, plus built-in self-test routines that detect coil faults, contact degradation, and wiring errors before they impact process safety.

Rugged Construction for Harsh Environments
Engineered with conformal-coated PCBs, vibration-resistant terminal blocks, and extended temperature range (-30°C to +65°C), ensuring reliable operation in high-vibration, high-humidity, and electrically noisy industrial settings.

Typical Application Scenarios

The Bently Nevada 105375-01 relay output module is optimized for applications demanding high availability, rapid fault response, and regulatory compliance, particularly in:

Turbomachinery & Rotating Equipment Protection
Provides critical alarm relay outputs for steam turbines, gas turbines, centrifugal compressors, and turbo-generators, triggering emergency shutdowns upon detection of excessive vibration, bearing temperature rise, or shaft displacement beyond safe operating limits.

Oil & Gas Upstream & Midstream Facilities
Integrates with wellhead monitoring, pipeline compressor stations, and offshore platform safety systems to activate blowdown valves, fire suppression systems, and remote alarm panels in response to process deviations or equipment malfunctions.

Power Generation & Cogeneration Plants
Supports boiler feed pumps, cooling tower fans, and auxiliary drive systems by interfacing 3500 monitoring racks with plant-wide DCS and emergency shutdown (ESD) logic, ensuring compliance with NERC, NFPA, and ISO standards.

Petrochemical & Refining Process Units
Enables real-time interlocking for reactor agitators, distillation column pumps, and compressor trains, coordinating relay outputs with process analyzers, flow transmitters, and pressure safety valves to prevent runaway reactions and equipment damage.

Heavy Industry & Manufacturing Automation
Facilitates integration of vibration monitoring into steel mills, pulp & paper machines, mining conveyors, and cement kilns, where relay-based alarm escalation and automated equipment isolation are essential for worker safety and asset protection.

Technical Parameters & Selection Guide

To ensure optimal performance and compatibility, the Bently Nevada 105375-01 relay output module offers the following standardized specifications, with customization available for specialized applications:

Selection Recommendations:
When specifying the 105375-01 module, consider the following factors: maximum alarm relay count per monitoring rack, control voltage availability at installation site, load type (resistive, inductive, lamp), environmental conditions (temperature extremes, corrosive atmospheres), and required safety integrity level (SIL 1/2/3). For applications requiring redundant relay outputs, failsafe de-energize-to-trip logic, or intrinsically safe (IS) barriers, consult with our application engineering team to validate configuration and obtain certified drawings.

Extended Capabilities & Integration Options

Modbus RTU & Ethernet/IP Connectivity
Optional communication modules enable remote relay status monitoring and control via Modbus RTU (RS-485), Ethernet/IP, or Profibus DP, supporting centralized SCADA visualization, historian logging, and predictive maintenance analytics.

Redundant Relay Configuration
Supports dual-relay voting logic (1oo2, 2oo2) for SIL-rated applications, where two independent relay outputs must agree before initiating shutdown, reducing spurious trip rates while maintaining safety integrity.

Custom Relay Timing & Delay Functions
Field-programmable time delays (0.1s to 60s) prevent nuisance trips caused by transient vibration spikes, electrical noise, or sensor glitches, while maintaining rapid response to genuine fault conditions.

Intrinsically Safe (IS) Barrier Integration
Compatible with Zener barrier and galvanic isolator modules for deployment in Class I Division 1 / Zone 0 hazardous areas, meeting ATEX, IECEx, and NEC 500/505 requirements for explosive atmospheres.

Delivery, Service & Quality Assurance

Lead Time & Availability:
Standard 105375-01 modules ship from regional distribution centers within 3-5 business days. Custom-configured units (non-standard coil voltages, extended temperature ratings, or special certifications) typically require 10-15 business days for factory programming and testing.

Warranty & Support:
All Bently Nevada relay output modules include a 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty plans (24/36 months) and advance replacement services are available for critical installations. Technical support includes remote diagnostics, firmware updates, and on-site commissioning assistance (subject to geographic availability).

Documentation & Compliance:
Each module ships with a comprehensive technical manual, wiring diagrams, terminal block layouts, and relay contact ratings. Certified test reports, material traceability certificates (MTC), and calibration data are provided upon request for projects requiring ISO 9001, API Q1, or nuclear quality assurance (10 CFR 50 Appendix B) compliance.

Frequently Asked Questions (FAQ)

Q: How does the Bently Nevada 105375-01 relay output module integrate with existing 3500 monitoring racks?
A: The 105375-01 is a plug-and-play module designed for direct insertion into any available slot within a 3500 rack chassis. It communicates via the rack's proprietary backplane, receiving alarm trip signals from vibration monitors, temperature monitors, or proximity probes. Wiring is accomplished through front-accessible screw terminals, and configuration is performed using the 3500 Rack Configuration Software or via the rack's local display interface.

Q: What is the maximum number of relay output modules supported per 3500 rack?
A: A standard 3500 rack can accommodate up to 14 modules total, with the specific number of relay output modules limited only by available slot count and power budget. For applications requiring more than 14 relay outputs, multiple racks can be networked via Modbus or Ethernet, with centralized alarm management through a supervisory DCS or SCADA system.

Q: What energy savings or efficiency improvements can be expected from using the 105375-01 module?
A: While the relay module itself does not directly reduce energy consumption, it enables rapid fault detection and automated equipment shutdown, preventing catastrophic failures that lead to extended downtime, emergency repairs, and production losses. By minimizing unplanned outages and optimizing maintenance intervals through predictive diagnostics, facilities typically achieve 15-25% reduction in maintenance costs and 10-20% improvement in overall equipment effectiveness (OEE).

Q: Are there any special environmental or installation requirements for the 105375-01 relay module?
A: The module is rated for industrial environments with operating temperatures from -30°C to +65°C and humidity up to 95% RH (non-condensing). It should be installed in a climate-controlled equipment room or weatherproof enclosure (NEMA 4X / IP66) if exposed to outdoor conditions. Adequate ventilation is required to maintain rack internal temperature below 55°C, and the module should be protected from direct water spray, corrosive gases, and excessive dust accumulation.

Q: Can the 105375-01 module be monitored and controlled remotely via SCADA or cloud-based platforms?
A: Yes, when equipped with optional Ethernet or Modbus communication modules, the 3500 rack (and all installed relay output modules) can be integrated into plant-wide SCADA systems, cloud-based condition monitoring platforms (e.g., Bently Nevada System 1, GE Predix), or third-party IoT gateways. This enables remote relay status visualization, alarm acknowledgment, and historical trend analysis for predictive maintenance and asset performance management (APM).

Request a Custom Solution & Technical Consultation

To obtain a detailed selection guide, project-specific pricing, or technical support for integrating the Bently Nevada 105375-01 relay output module into your machinery protection system, please provide the following information: project name and location, application type (turbomachinery, compressor, pump, etc.), number of relay outputs required, control voltage and load specifications, environmental conditions, and any special certifications (SIL, ATEX, FM, CSA). Our application engineers will respond within 24 hours with a tailored recommendation, wiring diagrams, and budget quotation.
