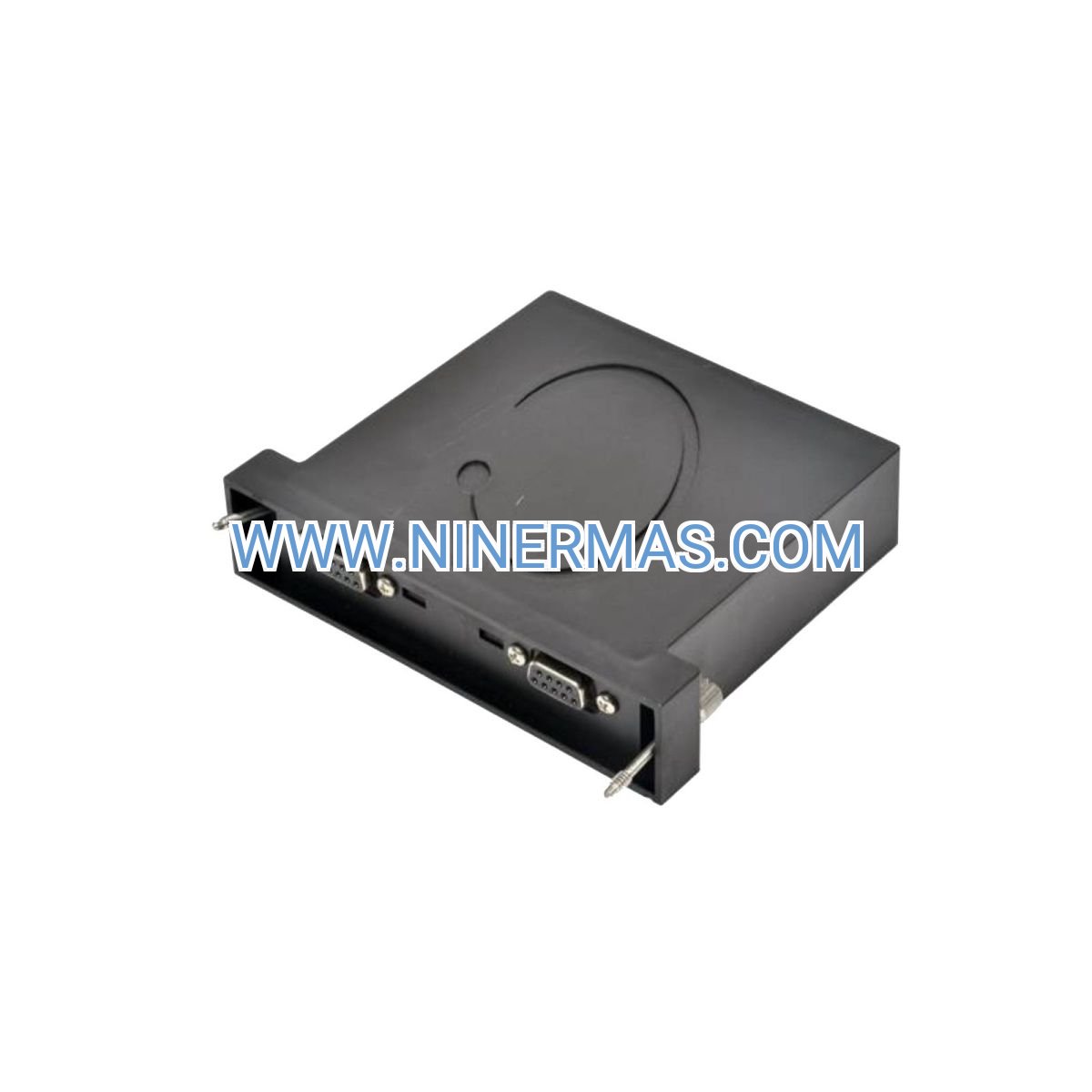

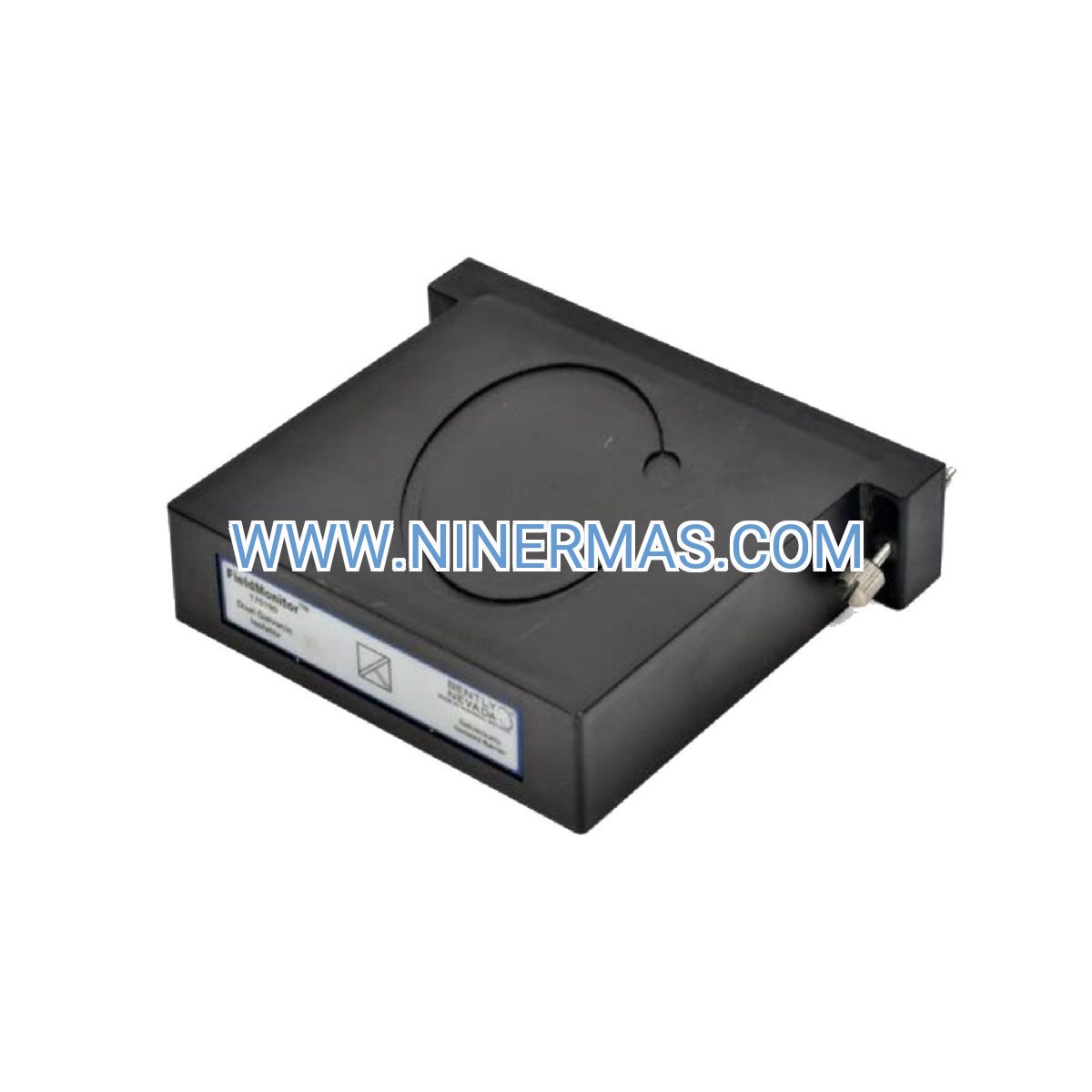

Dual Galvanic Isolator for Intrinsically Safe Vibration Monitoring (Hazardous Zone Applications)

The Bently Nevada 1034549-40 is a precision-engineered dual-channel galvanic isolator designed for vibration monitoring systems operating in classified hazardous environments. By employing transformer-based electrical isolation technology, this device enables safe signal transmission between field-mounted proximity sensors and control room instrumentation, ensuring compliance with IECEx and ATEX intrinsic safety standards while preserving measurement accuracy critical for machinery protection.

Engineered for petrochemical plants, offshore platforms, gas processing facilities, and mining operations, the 1034549-40 addresses the fundamental challenge of monitoring rotating equipment in explosive atmospheres—delivering reliable vibration data without introducing ignition risks. Its dual independent channels support simultaneous monitoring of multiple measurement points, reducing hardware costs and panel space requirements.

Through factory-calibrated isolation circuits and proven compatibility with Bently Nevada 3300 XL and 3500 series platforms, this isolator streamlines installation workflows for design engineers, system integrators, and maintenance teams. Contact our application engineers for customized selection guidance, technical documentation, and competitive quotations tailored to your project specifications.

Core Capabilities & Engineering Advantages

Intrinsic Safety Certification
Fully certified to IECEx and ATEX standards for Zone 1/Division 1 hazardous locations, the isolator limits energy transfer to field devices below ignition thresholds. This eliminates the need for explosion-proof enclosures in many applications, reducing installation costs and simplifying maintenance access while meeting regulatory requirements for oil & gas, chemical processing, and pharmaceutical manufacturing environments.

High-Fidelity Signal Preservation
Transformer-based galvanic isolation maintains signal integrity across the 0.5 Hz to 10 kHz bandwidth, preserving both amplitude and phase characteristics essential for accurate vibration analysis. With minimum 10 kΩ input impedance and optimized output drive capability, the isolator supports displacement, velocity, and acceleration measurements without introducing distortion or noise that could compromise fault detection sensitivity.

Dual Independent Isolation Channels
Two electrically isolated circuits within a single compact housing enable monitoring of radial/axial vibration pairs or multiple bearing positions simultaneously. This architecture reduces panel footprint by 50% compared to single-channel solutions while maintaining complete electrical separation between measurement points—critical for eliminating ground loop interference in large distributed control systems.

Plug-and-Play System Integration
Factory calibration with documented scale factors ensures immediate compatibility with existing Bently Nevada proximitor sensors and monitoring racks. The isolator requires no external power supplies, deriving operating energy directly from connected -24 VDC proximitor circuits. This self-powered design simplifies wiring, reduces commissioning time, and enhances reliability in remote or space-constrained installations.

Industrial-Grade Environmental Resilience
Operating temperature range of -30°C to +65°C (-22°F to +149°F) accommodates extreme climates from Arctic offshore platforms to desert refineries. DIN rail and panel mount options provide installation flexibility, while robust construction withstands vibration, humidity, and electromagnetic interference typical of heavy industrial environments.

Target Application Environments

This dual galvanic isolator delivers proven performance in industries where machinery reliability and personnel safety intersect with explosive atmosphere regulations:

Petrochemical & Refining Operations
Monitor critical turbomachinery—compressors, pumps, and turbines—in process units classified as Zone 1 or Division 1 hazardous areas. The isolator enables continuous vibration surveillance of equipment handling flammable hydrocarbons, supporting predictive maintenance programs that prevent catastrophic failures while maintaining intrinsic safety compliance throughout the measurement chain.

Offshore Oil & Gas Platforms
Provide reliable condition monitoring for rotating equipment in marine hazardous locations where space constraints and harsh environmental conditions demand compact, maintenance-free solutions. The isolator's corrosion-resistant construction and wide temperature tolerance ensure uninterrupted operation in saltwater spray environments and temperature extremes characteristic of offshore installations.

Natural Gas Processing & LNG Facilities
Enable real-time vibration analysis of compressor trains, refrigeration systems, and pipeline pumps operating in explosive gas atmospheres. By maintaining signal fidelity across isolation barriers, the 1034549-40 supports advanced diagnostic techniques—orbit analysis, spectral trending, and transient event capture—essential for optimizing equipment performance and extending maintenance intervals in continuous-operation facilities.

Chemical Manufacturing & Pharmaceutical Production
Monitor agitators, centrifuges, and process pumps in clean rooms and solvent-handling areas where both product purity and explosion protection are mandatory. The isolator's intrinsic safety certification eliminates contamination risks associated with conventional explosion-proof enclosures while providing the measurement accuracy required for GMP-compliant equipment qualification protocols.

Underground Mining & Mineral Processing
Support condition-based maintenance of conveyors, crushers, and ventilation fans in underground coal mines and surface facilities handling combustible dust. The isolator's rugged design withstands shock, vibration, and particulate contamination while meeting stringent safety standards for equipment operating in methane-rich or dust-explosive atmospheres.

Technical Specifications & Selection Parameters

To facilitate accurate system design and procurement, the following specifications define the 1034549-40's operational characteristics and compatibility requirements:

Selection Guidance for Project Engineers
When specifying the 1034549-40 for your application, consider these critical factors: (1) Hazardous area classification (Zone/Division and gas group), (2) Number of vibration measurement points requiring isolation, (3) Proximitor sensor model and supply voltage, (4) Environmental conditions (temperature extremes, humidity, vibration exposure), (5) Mounting space availability and preferred installation method. Our application engineering team can review your P&IDs, loop diagrams, and equipment specifications to confirm compatibility and recommend optimal system architecture. Submit project details including area classification drawings, sensor types, and monitoring system model for personalized selection assistance.

Advanced Integration Features

Backward Compatibility with Legacy Systems
The 1034549-40 maintains full interoperability with earlier-generation Bently Nevada monitoring platforms, enabling safety upgrades to existing installations without requiring complete system replacement. This compatibility protects capital investments while bringing older facilities into compliance with current intrinsic safety regulations.

Multi-Vendor Transducer Support
While optimized for Bently Nevada 3300 series proximity probes, the isolator accepts signals from any eddy current transducer system operating within specified frequency and impedance ranges. This flexibility accommodates mixed-vendor installations and simplifies spare parts management in facilities with diverse equipment populations.

Ground Loop Elimination
Galvanic isolation breaks ground paths between field instruments and control room equipment, eliminating measurement errors caused by circulating currents in large distributed systems. This feature is particularly valuable in facilities with extensive cable runs, multiple grounding points, or high electrical noise environments.

Delivery, Documentation & Technical Support

Lead Times & Availability
Standard 1034549-40 units typically ship within 5-10 business days from confirmed order. Custom configurations or large-quantity orders may require 2-4 weeks depending on current production schedules. Contact our sales team for real-time inventory status and expedited delivery options for urgent project requirements.

Warranty Coverage
Every isolator includes a comprehensive 12-month manufacturer's warranty covering defects in materials and workmanship under normal operating conditions. Extended warranty programs and service agreements are available for critical applications requiring guaranteed uptime and priority technical support.

Technical Documentation Package
Each unit ships with complete installation and operation manuals, electrical connection diagrams, calibration certificates, and hazardous area certification documents. CAD drawings, 3D STEP models, and integration guides for specific monitoring platforms are available upon request to support detailed engineering and panel design activities.

Application Engineering Assistance
Our technical support team provides pre-sales consultation, system design review, installation guidance, and troubleshooting support throughout the product lifecycle. Services include loop diagram verification, cable specification recommendations, grounding scheme analysis, and on-site commissioning assistance (subject to geographic availability and project scope).

Frequently Asked Questions

Q: Can the 1034549-40 galvanic isolator interface with non-Bently Nevada vibration monitoring systems?
A: Yes, the isolator is compatible with any eddy current proximity probe system that operates within the 0.5 Hz to 10 kHz frequency range and meets the minimum 10 kΩ input impedance requirement. While optimal performance is achieved with Bently Nevada 3300 XL series probes and proximitors, the device has been successfully integrated with Emerson CSI, SKF, and other major vibration monitoring platforms. Consult our application engineers with your specific system details for compatibility confirmation and integration recommendations.

Q: What is the maximum permissible cable distance between the isolator and field-mounted proximity sensors?
A: Field wiring up to 300 meters (1000 feet) is supported when using manufacturer-recommended shielded twisted-pair cable with appropriate conductor gauge. Longer cable runs may be feasible depending on cable capacitance, electromagnetic interference levels, and signal-to-noise ratio requirements for your specific application. For installations exceeding 300 meters or operating in high-EMI environments, contact our technical team for cable specification guidance and potential signal conditioning solutions.

Q: Does the 1034549-40 require external power supplies or auxiliary equipment for operation?
A: No external power source is required. The isolator derives all operating energy from the connected proximitor sensor's standard -24 VDC supply circuit, eliminating the need for additional power wiring, panel space, or failure points. This self-powered design simplifies installation in remote locations, reduces commissioning complexity, and enhances overall system reliability by minimizing component count.

Q: Is field recalibration necessary after installation or during routine maintenance?
A: Factory calibration remains valid throughout the product's operational lifetime under normal service conditions. No field recalibration is required for typical installations. However, verification testing is recommended during scheduled plant turnarounds or as part of your facility's quality management system protocols—typically every 2-5 years depending on industry regulations and internal standards. Calibration verification procedures and acceptance criteria are documented in the supplied technical manual.

Q: How does galvanic isolation differ from other intrinsic safety barrier technologies?
A: Galvanic (transformer-based) isolation provides complete electrical separation between hazardous and safe areas without the signal attenuation or frequency limitations common in resistive Zener barrier designs. This technology preserves dynamic range and phase accuracy essential for advanced vibration diagnostics while meeting intrinsic safety energy limitation requirements. Unlike optical isolators, galvanic isolation maintains analog signal characteristics without analog-to-digital conversion artifacts, making it ideal for high-fidelity machinery protection applications.

Q: Can both isolation channels monitor the same machine bearing, or must they be used on separate equipment?
A: The dual channels offer complete application flexibility. Common configurations include: (1) Radial X-Y vibration pairs on a single bearing, (2) Axial position plus radial vibration on thrust bearings, (3) Inboard and outboard bearings on the same machine, or (4) Completely independent machines. Each channel maintains electrical isolation from the other, preventing cross-talk or ground loop interference regardless of configuration. Consult API 670 guidelines for recommended sensor placement and channel assignment for your specific machinery type.

Request Technical Consultation & Quotation

To receive detailed selection assistance, application-specific recommendations, and competitive pricing for the Bently Nevada 1034549-40 dual galvanic isolator, please provide our engineering team with the following project information:

• Project name and facility location
• Hazardous area classification (Zone/Division, gas group, temperature class)
• Number of vibration measurement points requiring isolation
• Proximity probe model numbers and cable lengths
• Monitoring system platform (e.g., 3500 rack, 3300 XL, DCS integration)
• Environmental conditions (temperature range, humidity, vibration exposure)
• Required delivery timeline and shipping destination
• Applicable industry standards or client specifications

Our application engineers will respond within one business day with customized recommendations, technical documentation, certified drawings, and formal quotations. For urgent inquiries or complex multi-point monitoring systems, direct phone consultation is available to expedite project planning and procurement processes.
