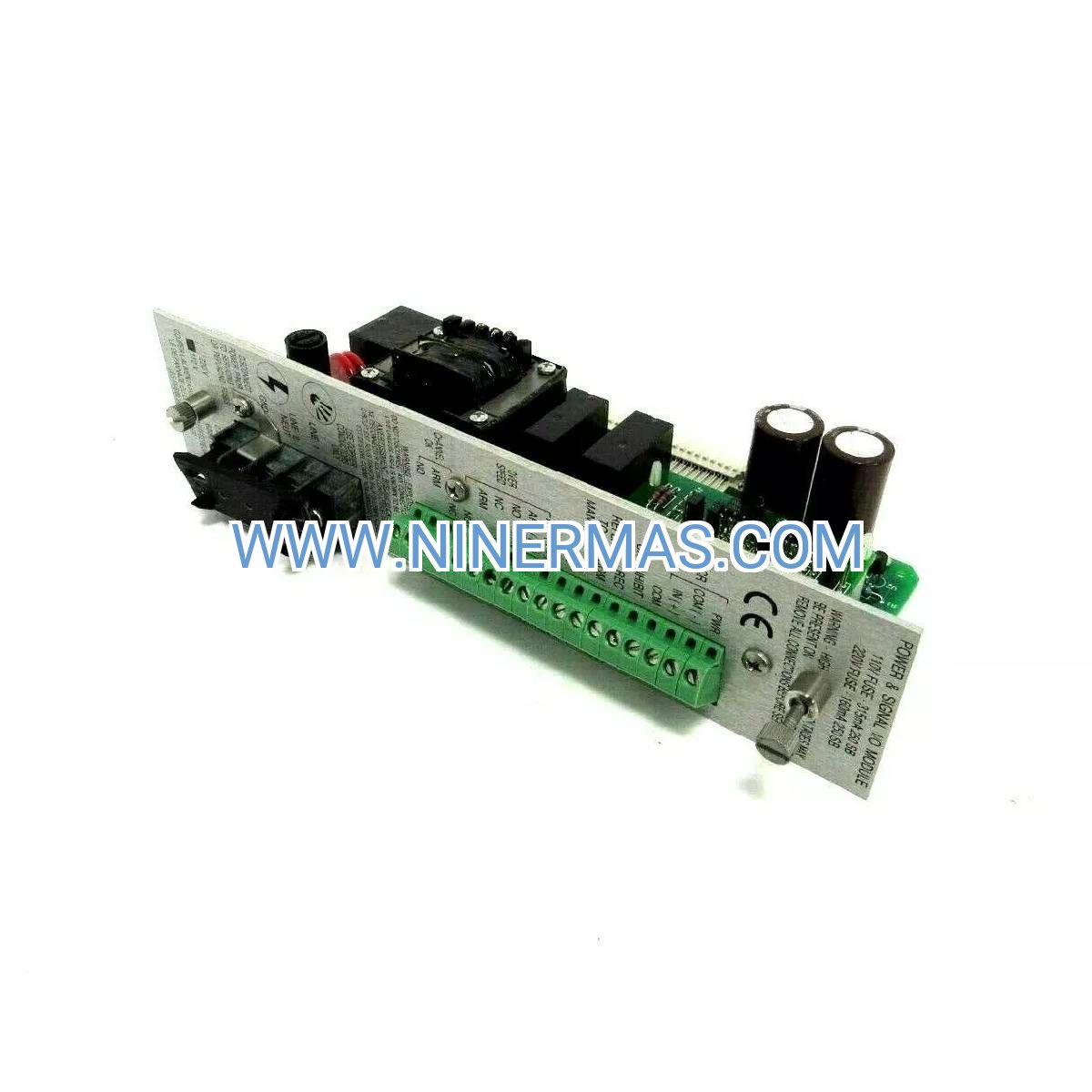

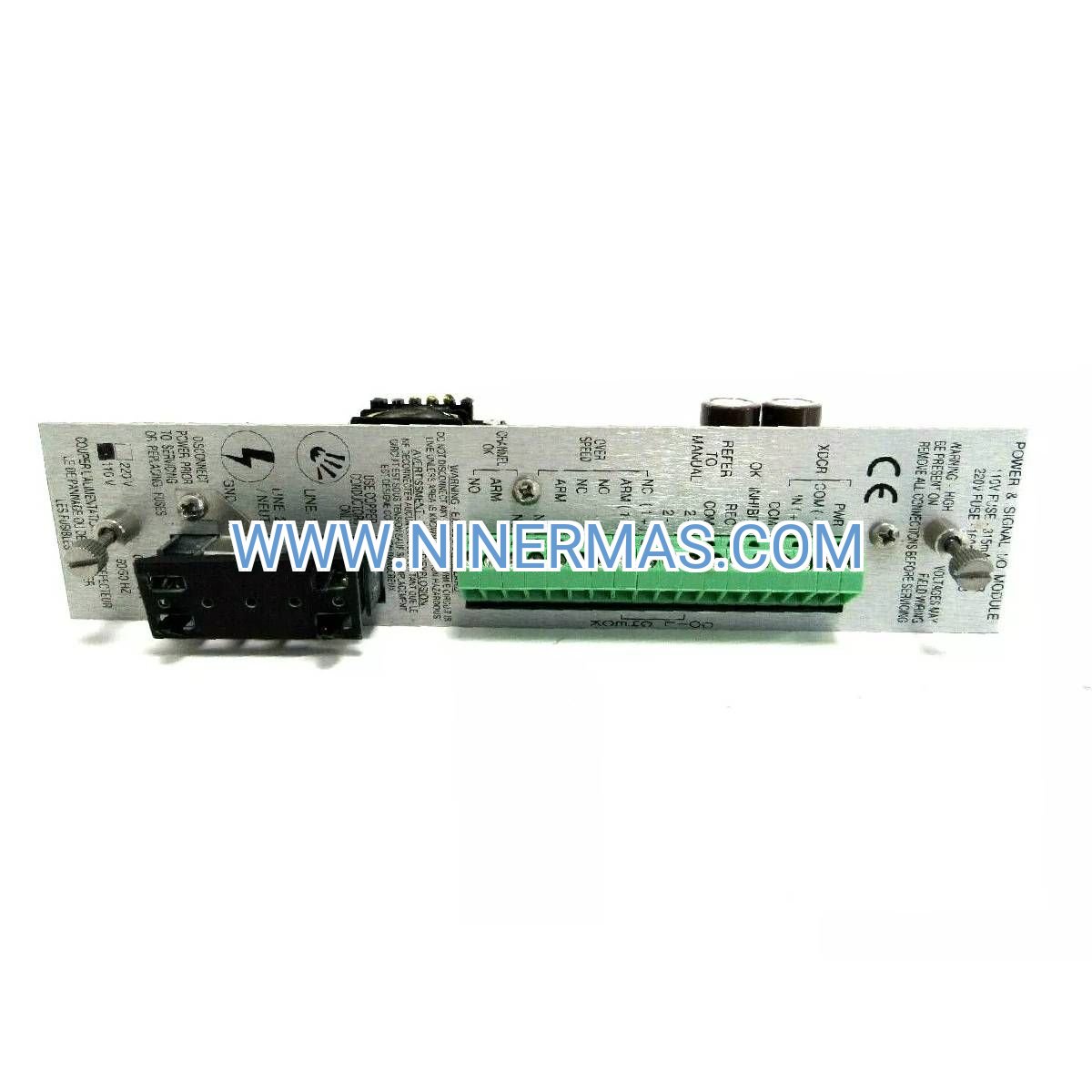

102618-01 Interface Card (Industrial-Grade Signal Processor)

The 102618-01 represents a critical connectivity solution within Bently Nevada's 2300 Series ecosystem, engineered to bridge sensor networks with centralized monitoring infrastructure. This interface card transforms raw transducer signals into actionable intelligence for rotating equipment protection systems across power generation, petrochemical, and heavy manufacturing sectors.

Designed for environments where machinery downtime translates to six-figure losses per hour, the 102618-01 delivers fail-safe signal integrity through dual-path power distribution and electromagnetic interference shielding. Plant engineers deploy this module to safeguard turbines, centrifugal compressors, and motor-driven pumps operating in temperatures ranging from Arctic offshore platforms to desert refineries.

With over 60 years of Baker Hughes heritage backing its design, this card integrates seamlessly into existing DCS architectures while maintaining backward compatibility with legacy 2300 monitors—eliminating costly system-wide upgrades during phased modernization projects.

Core Capabilities & Business Impact

→ Multi-Signal Processing Architecture
Simultaneously handles analog vibration data, digital speed inputs, and temperature readings through independent conditioning channels. Reduces wiring complexity by 40% compared to discrete signal converters while maintaining <0.1% crosstalk between channels.

✓ Hot-Swappable Design for Zero-Downtime Maintenance
Field-replaceable without system shutdown or recalibration procedures. Maintenance teams complete card swaps in under 3 minutes, preserving continuous monitoring during turbine inspections or sensor upgrades.

✓ Intrinsically Safe Power Distribution
24 VDC input with galvanic isolation protects downstream electronics from voltage spikes and ground loops. Certified for Zone 2 hazardous locations, enabling deployment in explosive atmospheres without additional barriers.

→ Diagnostic LED Array
Real-time visual indicators for power status, signal validity, and fault conditions. Reduces troubleshooting time by 60% through instant identification of open circuits, sensor failures, or configuration errors.

✓ Extended Temperature Resilience
Operates reliably from -20°C to +70°C without derating, supporting installations in uninsulated control rooms, outdoor enclosures, and high-ambient industrial zones.

Application Scenarios Across Industries

Steam Turbine Protection in Combined-Cycle Plants
Monitors bearing vibration and shaft eccentricity on 50+ MW generators. The 102618-01's low-latency signal path (≤5 ms) enables emergency shutdown systems to react within 200 milliseconds of detecting critical vibration thresholds, preventing catastrophic blade failures.

Compressor Train Monitoring in LNG Facilities
Interfaces with proximity probes and accelerometers on multi-stage centrifugal compressors handling cryogenic gases. Dual-channel redundancy ensures continuous protection even during sensor maintenance, critical for 24/7 liquefaction operations.

Pump Condition Monitoring in Water Treatment
Tracks cavitation signatures and bearing wear in high-pressure booster pumps. Integration with SCADA systems via the 2300 monitor enables predictive maintenance scheduling, reducing unplanned outages by 35% annually.

Paper Mill Dryer Section Surveillance
Monitors steam-heated cylinder vibration in high-speed paper machines. The card's noise rejection capabilities filter out electromagnetic interference from nearby AC drives, maintaining signal accuracy in electrically harsh environments.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 102618-01 when interfacing 2-4 sensors per monitoring point. For larger machine trains requiring 8+ channels, consider the 2300 Series expansion chassis. Confirm your existing monitor firmware supports Rev. 01 cards (all units manufactured post-2015 are compatible).

Advanced Integration Features

Modbus RTU Compatibility: Exposes sensor data to third-party PLCs and historians via the 2300 monitor's serial interface. Enables unified dashboards combining vibration trends with process variables like flow rates and pressures.

4-20 mA Loop-Powered Output: Retransmits conditioned signals to legacy chart recorders or backup monitoring systems. Maintains analog redundancy in critical safety instrumented systems (SIS) applications.

Field-Configurable Scaling: Adjust input ranges via DIP switches without software tools. Technicians can adapt the card to different sensor sensitivities (e.g., 100 mV/g vs. 500 mV/g accelerometers) during commissioning.

Delivery Timeline & Support Infrastructure

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory-fresh orders with custom calibration certificates.

Warranty Coverage: 12-month manufacturer's warranty covering material defects and workmanship. Extended 36-month plans available for mission-critical installations.

Technical Resources: Includes installation manual (P/N 102618-01-IM), wiring diagrams, and access to Baker Hughes' 24/7 technical hotline. On-site commissioning support available in 40+ countries.

Calibration Services: Factory-traceable calibration to NIST standards upon request. Recalibration services offered at 3-year intervals to maintain measurement accuracy.

Frequently Asked Questions

Can the 102618-01 interface with non-Bently Nevada sensors?
Yes, the card accepts industry-standard 4-20 mA and voltage outputs from any manufacturer. However, Bently Nevada proximity probes and accelerometers are recommended for optimal performance due to pre-validated scaling factors.

What's the maximum cable length between sensors and the 102618-01?
Up to 300 meters (1000 feet) for shielded twisted-pair cables with proper grounding. Longer runs may require signal repeaters or 4-20 mA transmitters to prevent voltage drop.

Does this card support redundant power inputs for high-availability systems?
The 102618-01 features a single 24 VDC input. For N+1 redundancy, connect the power supply to a dual-channel UPS or use the 2300 monitor's optional redundant power module (sold separately).

How does the card handle sensor open-circuit faults?
Built-in diagnostics detect open or shorted inputs within 500 milliseconds, triggering alarm relays in the 2300 monitor. The fault condition is logged with timestamps for maintenance analysis.

Is firmware updating required after installation?
No, the 102618-01 is a passive analog interface with no user-upgradable firmware. All intelligence resides in the 2300 monitor, which receives periodic updates via USB or Ethernet.

What environmental sealing rating does the card have?
IP20 (finger-safe) when installed in the 2300 chassis. The complete monitor assembly achieves IP54 (dust/splash-proof) when mounted in an appropriate NEMA 4X enclosure.
