Allen-Bradley 80190-480-01-R Service-Ready Spare Part

Allen-Bradley 80190-480-01-R Service-Ready Spare Part for Industrial Maintenance

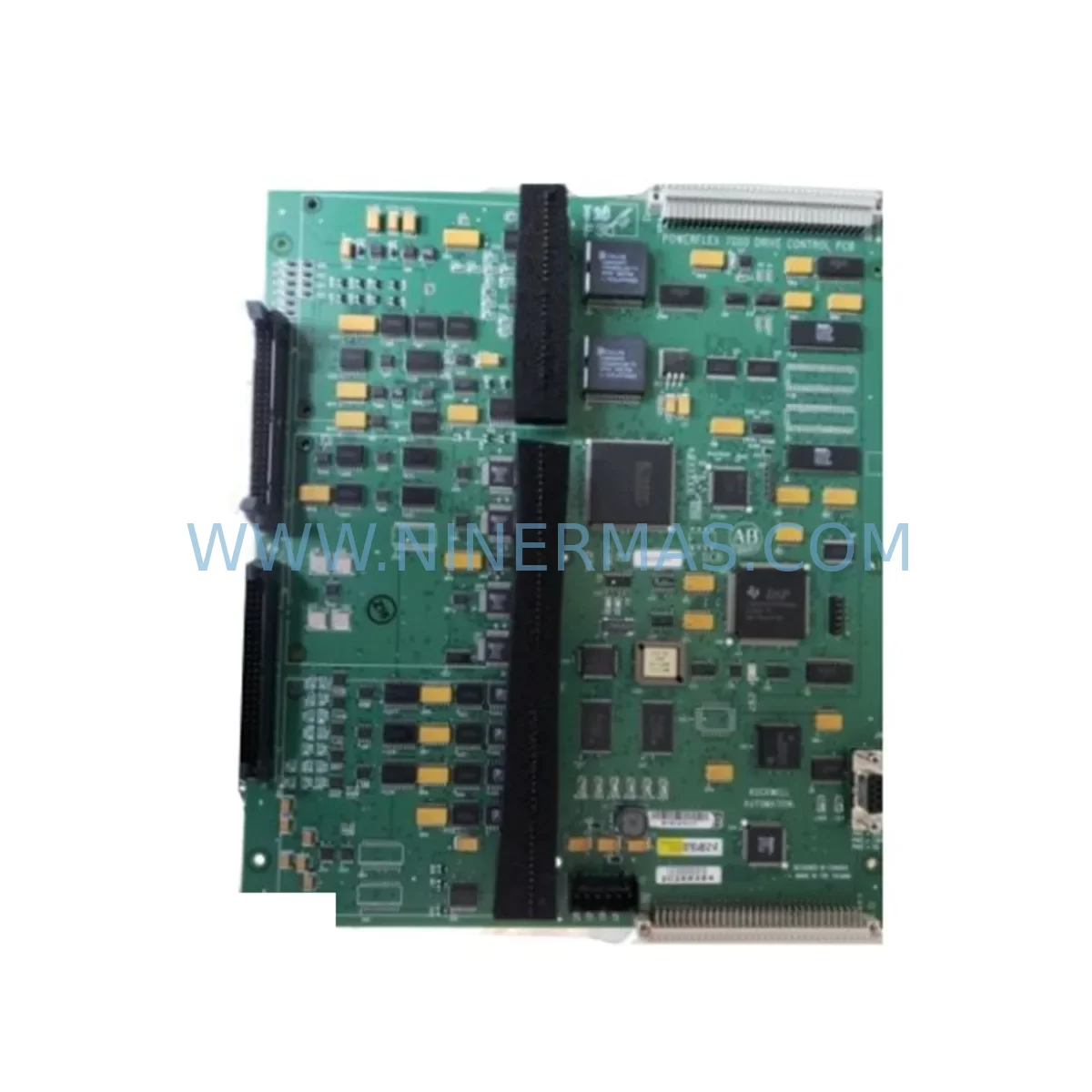

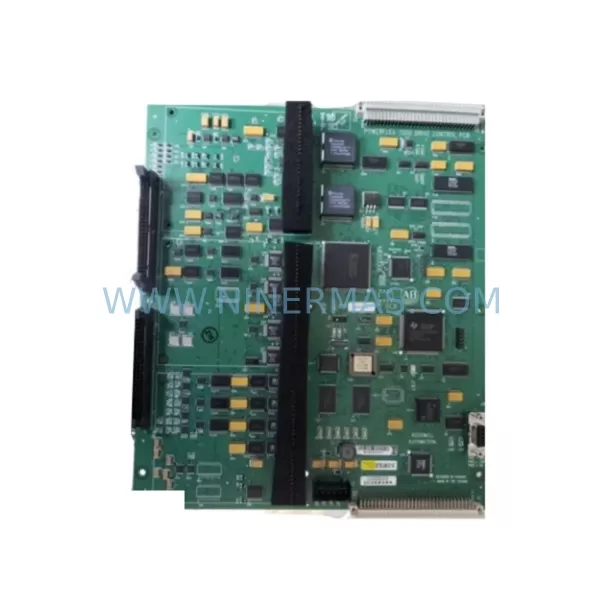

The Allen-Bradley 80190-480-01-R is a factory-original drive control board engineered for the PowerFlex series of AC variable frequency drives. For maintenance engineers managing aging automation infrastructure, unplanned drive failures represent one of the most disruptive and costly downtime events on the production floor. Sourcing a verified, service-ready replacement for the 80190-480-01-R is a critical step in any proactive spare parts strategy — whether you are responding to an emergency shutdown or building a resilient inventory buffer ahead of scheduled annual maintenance.

This control board governs the core logic, gate drive signals, and feedback processing within the PowerFlex drive chassis. When the board fails, the drive loses the ability to regulate motor speed, torque, and protection functions, bringing the connected process to an immediate halt. A pre-tested, original 80190-480-01-R on the shelf means your team can execute a board swap in under two hours rather than waiting days or weeks for procurement to source a replacement under pressure.

At NINERMAS, every 80190-480-01-R unit is inspected, function-tested, and shipped with full documentation. We support maintenance teams and procurement engineers across manufacturing, oil and gas, water treatment, mining, and material handling industries with long-term supply continuity and a 12-month warranty on all spare parts.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 80190-480-01-R control board is rarely an isolated task. Experienced maintenance engineers know that a drive fault often signals stress across multiple components in the same electrical circuit. When performing a board replacement, a thorough site inspection should cover the following associated components to prevent repeat failures and ensure full system restoration.

Begin with the drive power supply board, which provides the regulated 24 VDC logic supply to the control board. A degraded power supply can cause erratic control board behavior and premature failure of a newly installed 80190-480-01-R. Verify output voltage stability before commissioning the replacement board. Next, inspect the gate driver board (also known as the firing board or IGBT driver board), which interfaces directly with the control board to switch the power transistors. Damaged gate driver circuitry is a common root cause of control board failures in high-cycle applications.

Check the I/O terminal block and wiring harness for signs of heat damage, loose terminations, or corrosion. Faulty signal wiring can introduce noise into the analog input channels on the control board, causing speed reference instability or nuisance trips. If the drive is connected to a DeviceNet or EtherNet/IP communication adapter — such as the 20-COMM-D or 20-COMM-E modules — verify that the adapter firmware is compatible with the replacement control board revision and that the network node address is correctly configured.

For drives installed in a shared MCC (Motor Control Center) or control cabinet, also inspect the 24 VDC auxiliary power supply feeding the PLC I/O rack and any associated safety relay modules or contactor control circuits. A shared power rail fault can cascade into the drive control board. Review the HMI panel (such as a PanelView terminal) for any latched fault history that may indicate recurring upstream issues.

If the drive is part of a larger Logix-based control system — for example, a ControlLogix or CompactLogix PLC rack — confirm that the drive’s Add-On Profile (AOP) in Studio 5000 matches the replacement board’s firmware version. Mismatched firmware can prevent the drive from going online after a board swap. Also verify the encoder feedback module or speed feedback card if the application uses closed-loop vector control, as these interface directly with the control board’s feedback processing circuits.

Finally, check the input line reactor and output dV/dt filter for signs of overheating or insulation breakdown. These passive components protect the drive from line transients and motor cable reflections — conditions that accelerate control board wear in long-cable installations. Replacing the 80190-480-01-R without addressing upstream power quality issues will shorten the service life of the new board.

Site Replacement Workflow

Step 1 — Isolation and Lockout/Tagout: De-energize the drive and apply LOTO procedures. Wait a minimum of 5 minutes for the DC bus capacitors to discharge before opening the drive enclosure. Verify bus voltage with a calibrated meter before touching internal components.

Step 2 — Fault Code Documentation: Before removing the old board, record all active and historical fault codes from the drive keypad or HMI. Fault codes F005 (overcurrent), F012 (hardware overcurrent), and F048 (params defaulted) are commonly associated with control board failures and will help confirm the diagnosis.

Step 3 — Board Removal: Disconnect all ribbon cables, DPI connectors, and I/O wiring harnesses from the existing 80190-480-01-R. Label each connector before removal. Remove the board mounting screws and carefully extract the board from the chassis, avoiding contact with PCB traces and components.

Step 4 — Parameter Backup and Restoration: If a drive keypad with parameter storage (such as the 20-HIM-A6) is available, restore the saved parameter set to the replacement board after installation. If no backup exists, manually re-enter all drive parameters from the commissioning record before running the motor.

Step 5 — Installation and Verification: Install the replacement 80190-480-01-R, reconnect all cables, and restore power. Perform a no-load test run to verify speed reference tracking, I/O response, and communication link status before reconnecting the mechanical load. Document the replacement in the site maintenance log with the board serial number and installation date.

This structured workflow minimizes re-work risk, reduces total downtime, and ensures the replacement board is commissioned correctly the first time — a critical outcome when production pressure is high and maintenance windows are short.

Spare Parts Support FAQ

Q1: Is the 80190-480-01-R still available as a new original part, or is it obsolete?
The 80190-480-01-R is a mature Allen-Bradley spare part. NINERMAS maintains stock of original, service-ready units sourced through authorized industrial channels. All units are function-tested prior to shipment. For long-term projects requiring guaranteed supply continuity, we recommend discussing a blanket order arrangement with our sales team to lock in availability and pricing.

Q2: How do I verify compatibility before ordering?
Compatibility is confirmed by matching the drive model number, voltage rating, and frame size on the existing drive nameplate against the board’s application range. The 80190-480-01-R is designed for specific PowerFlex drive chassis configurations. Please provide your full drive model number and existing board revision when contacting NINERMAS — our technical team will confirm compatibility before shipment to eliminate the risk of receiving an incompatible part.

Q3: What does the 12-month warranty cover, and what is the claims process?
The NINERMAS 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, contact sale@ninermas.com with the order number, fault description, and site photos. Our team will arrange a replacement or repair within the agreed service timeline, minimizing your downtime exposure.

Q4: Can NINERMAS support ongoing spare parts procurement for a multi-site maintenance program?
Yes. NINERMAS specializes in long-term spare parts supply for industrial automation maintenance programs. We support procurement engineers managing multi-site inventories with consolidated ordering, consistent lead times, and technical documentation. Whether you need a single emergency replacement or a scheduled annual replenishment of drive control boards, power supply boards, communication adapters, and I/O modules, our team can build a supply plan aligned with your maintenance calendar.

—
