VACON 60VB00459 Service-Ready Spare Part for Industrial Maintenance

VACON 60VB00459 Service-Ready Spare Part for Industrial Maintenance

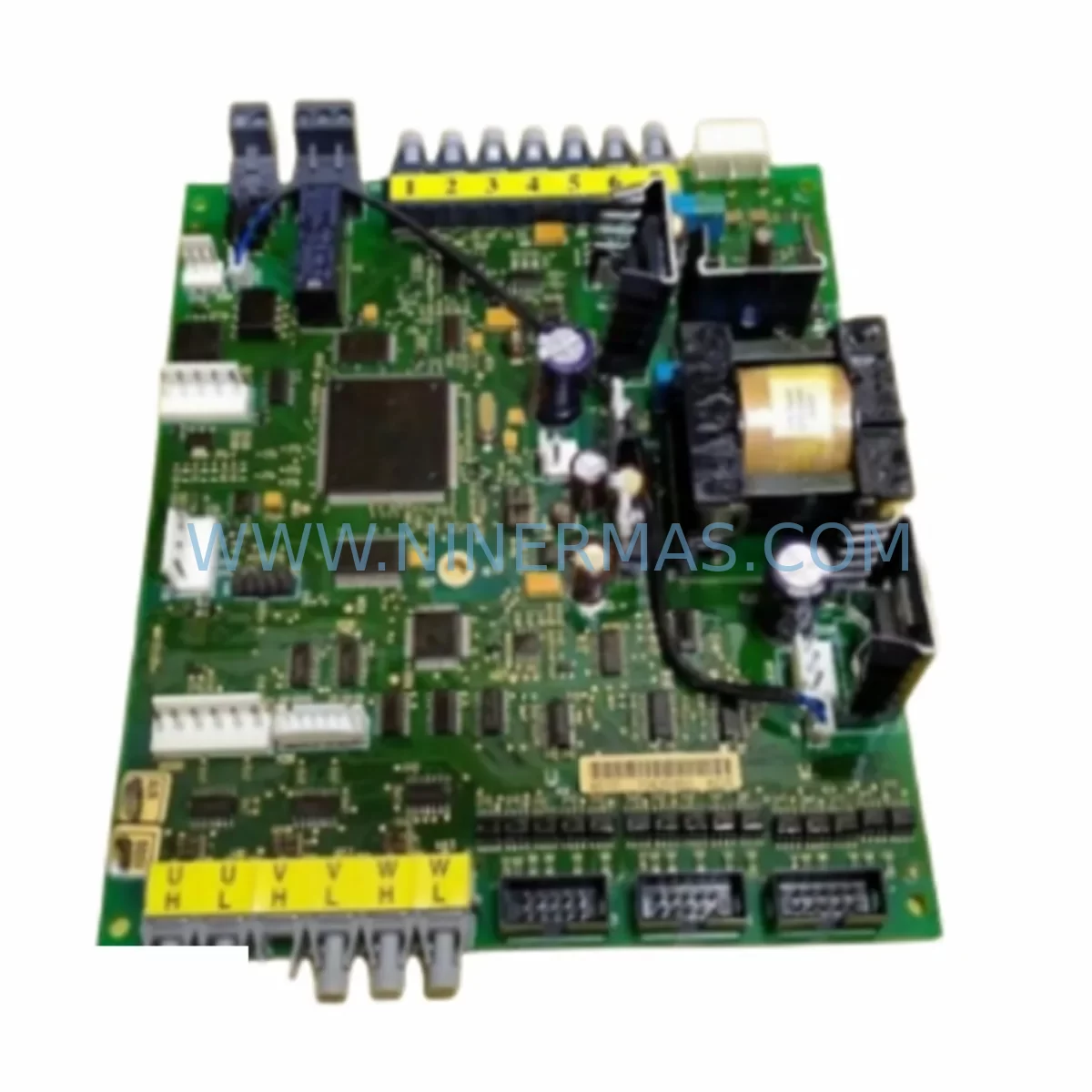

The VACON 60VB00459 is an original drive control board engineered for demanding industrial environments. Designed for use in VACON NX and VACON 100 series AC variable frequency drives, this control board serves as a critical spare part for maintenance engineers managing continuous production lines, process automation systems, and utility-grade motor control applications. Whether you are responding to an unplanned drive fault, executing a scheduled annual overhaul, or building a strategic spare parts inventory, the 60VB00459 provides a direct, field-proven replacement that restores drive functionality with minimal downtime.

Industrial facilities operating VACON drives in harsh environments — including high-humidity pump stations, dusty conveyor systems, compressor rooms, and outdoor enclosures — depend on ruggedized control electronics to maintain uptime. The 60VB00459 is specifically rated for these conditions, offering robust signal processing, stable gate drive outputs, and reliable communication with the drive’s power stage. Its design supports rapid board-level swap procedures, allowing maintenance teams to restore a faulted drive to service within a single shift rather than waiting for full drive replacement lead times.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the VACON 60VB00459 control board, a thorough site inspection of the surrounding drive system is essential to prevent repeat failures and ensure full restoration of drive performance. Maintenance engineers should treat a control board fault as a trigger for a broader cabinet health check.

Begin by inspecting the VACON NX power supply board (e.g., VACON NXP power unit) for signs of capacitor aging, DC bus voltage irregularities, or thermal stress marks. A degraded power supply can impose voltage transients on the control board, accelerating future failures. Simultaneously, verify the integrity of the gate driver board and IGBT module connections — a shorted output stage is a common root cause of control board damage in VFD systems.

Check all I/O terminal blocks and signal wiring connected to the drive’s control terminals. Loose or corroded terminals on analog input channels (4–20 mA, 0–10 V) or digital input circuits can introduce noise that disrupts the new control board’s signal processing. Replace any damaged shielded control cables and verify proper grounding of cable shields at the drive end only.

If the drive communicates over a fieldbus network, inspect the installed VACON option board — such as a PROFIBUS-DP board, PROFINET adapter, or Modbus RTU module — for firmware compatibility with the replacement 60VB00459. Fieldbus option boards are mounted directly to the control board and must be reseated carefully during the swap procedure.

For drives installed in multi-drive panels, also inspect the common DC bus fuses, input line reactors, and EMC filter capacitors. These upstream components protect the drive from supply-side disturbances and their condition directly affects control board longevity. Additionally, check the brake resistor connection and brake chopper circuit if the drive operates with dynamic braking — a failed brake chopper can generate destructive overvoltage events on the DC bus.

Panel-level components to inspect alongside the 60VB00459 replacement include: 24 VDC auxiliary power supplies feeding the control circuit, safety relay modules on the STO (Safe Torque Off) circuit, signal isolators on analog feedback loops, terminal strip fuse holders for control voltage protection, and the HMI keypad or remote panel (VACON NX keypad) for parameter backup before board removal. Ensuring these components are in good condition before commissioning the replacement board reduces the risk of immediate re-fault and protects your maintenance investment.

Site Replacement Workflow

Replacing the VACON 60VB00459 control board follows a structured procedure to minimize downtime and maintain system compatibility:

1. Parameter Backup: Before powering down, use the VACON NX keypad or VACON Live PC tool to upload and save all drive parameters to an external device. This ensures full parameter restore after board replacement without manual re-entry.
2. Safe Isolation: Isolate the drive from the main supply and engage the local lockout/tagout procedure. Wait for the DC bus to fully discharge (minimum 5 minutes after power-off) before opening the drive enclosure.
3. Board Removal: Disconnect all ribbon cables, option board connectors, and control terminal wiring from the existing control board. Note connector positions and cable routing before removal. Remove the board from the chassis mounting points.
4. Inspection & Cleaning: Inspect the drive interior for contamination, moisture ingress, or heat damage. Clean the enclosure before installing the replacement board.
5. 60VB00459 Installation: Mount the new control board, reconnect all cables and option boards in the correct sequence, and verify secure seating of all connectors.
6. Parameter Restore & Commissioning: Power up the drive, restore saved parameters, and perform a no-load test run to verify correct operation before reconnecting the motor load.
7. System Verification: Confirm fieldbus communication, I/O signal integrity, and fault history clearance. Log the replacement in the site maintenance record.

This workflow supports a target of same-shift drive restoration, reducing unplanned downtime from hours to under two hours for prepared maintenance teams holding the 60VB00459 as an on-site spare.

Spare Parts Support FAQ

Q1: Is the VACON 60VB00459 compatible with all VACON NX drive frame sizes?
The 60VB00459 is a control board used across multiple VACON NX and VACON 100 series frame sizes. Compatibility depends on the specific drive firmware version and hardware revision. NINERMAS recommends providing your full drive nameplate data (model code, serial number, and software version) at the time of inquiry to confirm exact compatibility before shipment.

Q2: What pre-shipment testing is performed on the 60VB00459?
All VACON 60VB00459 units supplied by NINERMAS undergo functional verification prior to dispatch, including power-on self-test, I/O signal integrity check, and visual inspection for component damage or corrosion. A test report is available upon request. Units are shipped in anti-static packaging with protective foam inserts to prevent transit damage.

Q3: What does the 12-month warranty cover?
NINERMAS provides a 12-month warranty from the date of shipment covering manufacturing defects and functional failures under normal operating conditions. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or environmental exposure beyond the component’s rated specifications. Warranty claims are supported by our technical team with replacement or repair options.

Q4: Can NINERMAS support long-term or bulk procurement of the 60VB00459?
Yes. NINERMAS operates a Long-Term Spare Parts Supply Program for industrial customers requiring guaranteed availability of critical drive components over multi-year maintenance cycles. Volume pricing, reserved stock agreements, and fixed lead-time commitments are available for the VACON 60VB00459 and related VACON NX series spare parts. Contact our procurement team to discuss your site’s annual maintenance requirements and establish a supply framework.
