Siemens C98043-A1681-L1 Safety-Reliable Drive Board for Critical Control Sites

Siemens C98043-A1681-L1 Safety-Reliable Drive Control Board for Critical Industrial Control Sites

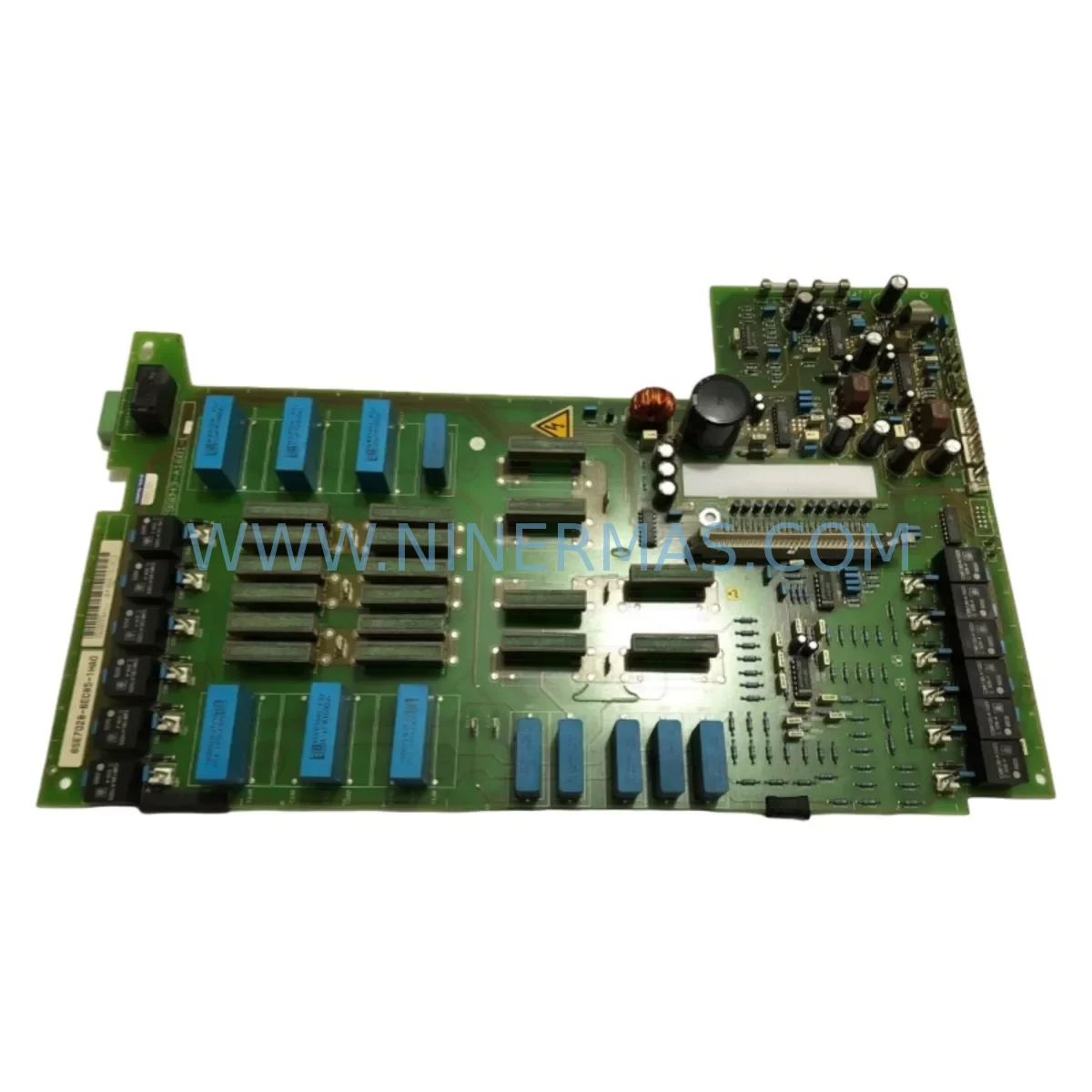

The Siemens C98043-A1681-L1, designed for use with the SIMOVERT 6SE7028-6EC85-1HA0 variable frequency drive series, is a precision-engineered drive control board built to sustain safe, uninterrupted operation in the most demanding industrial environments. Whether deployed in continuous process manufacturing, critical interlock circuits, or high-load control cabinets, this board delivers the signal integrity, thermal resilience, and electromagnetic immunity that modern industrial safety standards demand.

At NINERMAS, every unit of the C98043-A1681-L1 undergoes rigorous pre-shipment functional testing to verify gate drive output, feedback signal accuracy, and protection circuit response before dispatch. This ensures that replacement installations proceed without commissioning delays — a critical requirement when unplanned downtime carries significant operational and safety consequences.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In critical control cabinet architectures — particularly those managing high-power motor drives in petrochemical, metallurgical, or power generation facilities — a single failed control board can cascade into a full process shutdown. The C98043-A1681-L1 is engineered to eliminate this risk by providing stable gate trigger signals, reliable feedback loops, and robust protection against the most common failure modes found in aging SIMOVERT drive systems.

When integrating this board into a safety-critical cabinet, it is best practice to pair it with a Siemens SIMOVERT CU (Control Unit) such as the 6SE7090-0XX84-0AB0 to ensure coordinated drive control logic. The power supply integrity of the cabinet should be maintained using a Siemens SITOP PSU100S 24V DC power supply, which provides regulated, surge-protected DC power to all control-level boards including the C98043-A1681-L1. Voltage transients and surge events — common in heavy industrial environments — are best mitigated upstream using a Siemens 3RV surge protection module or equivalent DIN-rail surge arrester rated for the cabinet’s supply voltage.

For facilities operating under IEC 61511 or IEC 62061 functional safety frameworks, the drive system should be integrated with a Siemens SIRIUS 3SK safety relay to manage emergency stop and interlock logic independently of the drive’s internal protection. Communication between the drive and the plant DCS or PLC — typically a Siemens S7-300 or S7-400 series controller — should be routed through a PROFIBUS DP communication board (such as the CBP2 6SE7090-0XX84-0FF5) to maintain deterministic signal exchange even under high electromagnetic load.

In environments with elevated dust, moisture, or corrosive atmosphere, the control cabinet housing the C98043-A1681-L1 should be rated to at least IP54, and the internal climate should be regulated using a Siemens cabinet cooling unit or anti-condensation heater to prevent thermal cycling damage to the board’s solder joints and capacitor banks. For applications involving frequent motor starts and stops — such as compressor drives or conveyor systems — pairing the SIMOVERT drive with a Siemens MICROMASTER 4 series braking resistor module reduces DC bus overvoltage events that can stress the control board’s protection circuits.

Maintaining a documented spare parts inventory that includes the C98043-A1681-L1 alongside companion boards such as the C98043-A1680-L2 pulse encoder interface board and the C98043-A1682 power interface board ensures that maintenance teams can execute rapid board-swap replacements without waiting for extended lead times — a strategy that directly supports mean-time-to-repair (MTTR) targets in continuous production facilities.

Critical Industrial Safety Applications

The Siemens C98043-A1681-L1 is deployed across a wide range of safety-critical industrial sectors where drive reliability is non-negotiable:

Petrochemical & Refinery Plants: In continuous distillation, compressor, and pump drive systems, the C98043-A1681-L1 maintains precise motor speed control under fluctuating load conditions. Its resistance to signal drift ensures that process variable setpoints are maintained within safe operating limits, reducing the risk of pressure excursions or flow imbalances that could trigger emergency shutdowns.

Electric Power Generation & Transmission: Auxiliary drive systems in thermal and hydroelectric power stations — including cooling water pumps, induced draft fans, and boiler feed pumps — rely on SIMOVERT drives for variable speed control. The C98043-A1681-L1 sustains gate trigger accuracy under the high electromagnetic interference generated by large generator sets and transformer switching events.

Mining & Mineral Processing: Conveyor belt drives, crusher motors, and slurry pump systems in underground and open-pit mining operations subject drive control boards to extreme vibration, dust ingress, and wide ambient temperature swings. The C98043-A1681-L1’s robust construction supports reliable operation in these conditions, reducing unplanned stoppages that carry both safety and productivity consequences.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities depend on variable frequency drives for pump and blower control. The C98043-A1681-L1 supports stable, low-maintenance operation in facilities where 24/7 uptime is a regulatory requirement and where maintenance windows are tightly constrained.

Metallurgy & Steel Production: Rolling mill drives, ladle transfer cars, and furnace exhaust fan systems in steel plants operate under extreme thermal and electrical stress. The C98043-A1681-L1’s thermal tolerance and EMI immunity make it a reliable choice for these high-consequence applications where drive failure can result in both equipment damage and personnel safety risks.

Port & Marine Applications: Ship-to-shore crane drives, bulk material handling conveyors, and vessel propulsion auxiliary systems increasingly rely on SIMOVERT-class drives. The C98043-A1681-L1 supports reliable operation in salt-air, high-humidity environments when housed in appropriately rated enclosures.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the C98043-A1681-L1?
All C98043-A1681-L1 units supplied by NINERMAS carry a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides post-sale support to assist with installation verification and fault diagnosis throughout the warranty period.

Q2: Is the C98043-A1681-L1 tested before shipment?
Yes. Every unit undergoes a 100% pre-shipment functional test that verifies gate drive output signals, feedback circuit response, and protection function activation. Test records are available upon request for quality-critical procurement processes.

Q3: Is this board compatible with all SIMOVERT 6SE7028-6EC85-1HA0 drive variants?
The C98043-A1681-L1 is specifically designed for the Siemens SIMOVERT Master Drives 6SE7028-6EC85-1HA0 series. For cross-compatibility with adjacent drive models in the 6SE70 family, our technical team can verify compatibility based on your drive’s nameplate data and firmware revision. Contact us before ordering if you are unsure of your exact drive variant.

Q4: Can NINERMAS support long-term spare parts supply for this board?
Yes. NINERMAS maintains ongoing stock of the C98043-A1681-L1 and related SIMOVERT spare boards to support planned maintenance programs and emergency replacement needs. We can assist with multi-unit procurement planning, scheduled delivery arrangements, and documentation support for maintenance management systems. Long-term supply agreements are available for facilities with recurring spare parts requirements.
