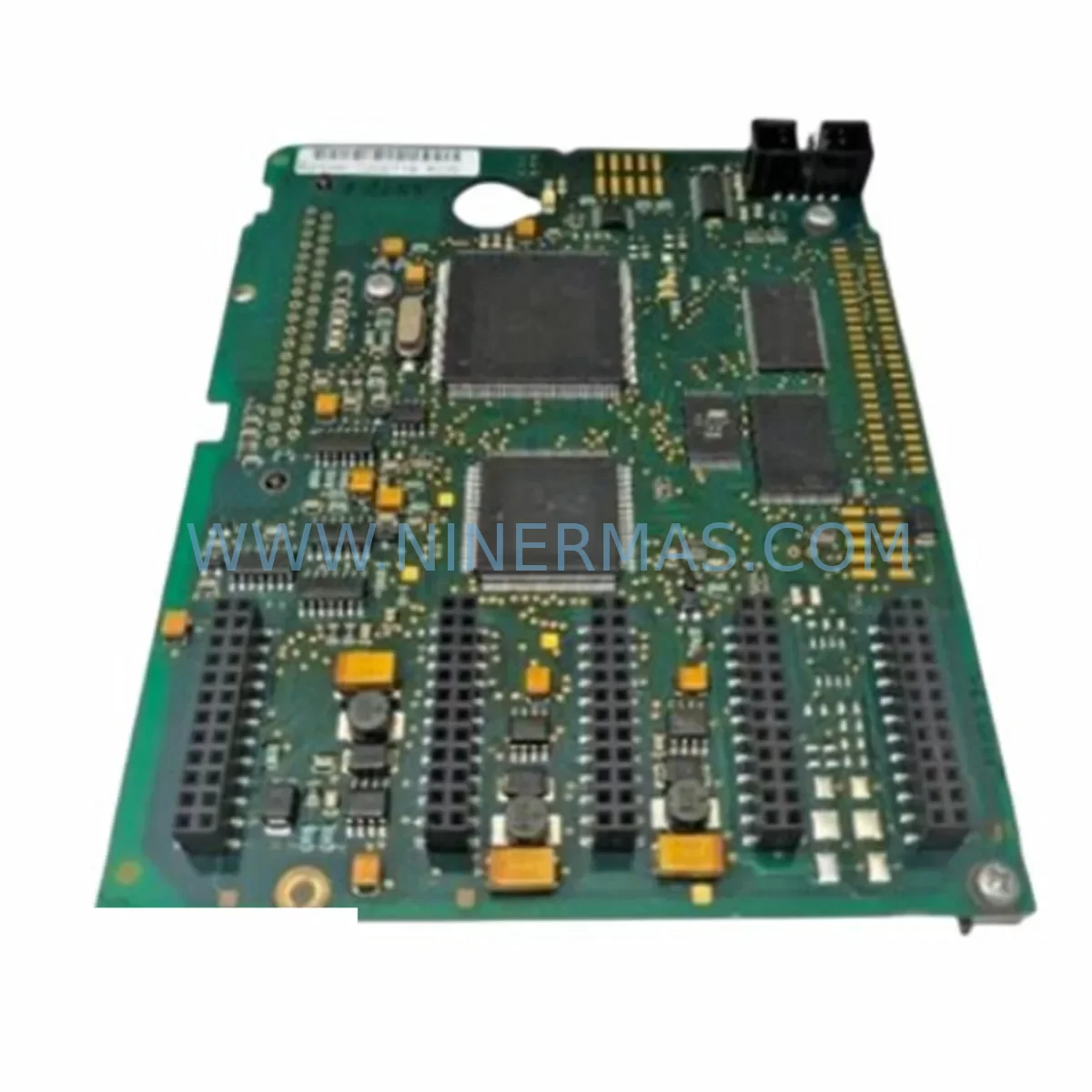

The VACON PC00252 is a ruggedized inverter control board engineered for continuous-duty operation in demanding industrial environments. Designed as a direct replacement for aging or failed control boards within the VACON NX and NXP series AC drive platforms, this spare part enables maintenance engineers to restore drive functionality rapidly — minimising unplanned downtime and protecting production continuity. Every unit supplied by NINERMAS undergoes pre-shipment functional verification and is backed by a 12-month warranty, giving procurement teams confidence in long-term spare parts planning.

Whether you are managing a scheduled annual overhaul, responding to an emergency drive fault, or building a strategic spare parts inventory for a critical process line, the PC00252 delivers the compatibility, reliability, and traceability that industrial maintenance programmes demand.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A failed or degraded VACON PC00252 control board rarely fails in isolation. During any drive shutdown for board replacement, experienced maintenance engineers treat the event as an opportunity for a broader cabinet inspection. The control board interfaces directly with the VACON NX power supply board (which provides regulated 24 VDC logic power) — a marginal power supply is a common root cause of premature control board failure and should be tested or replaced concurrently.

The VACON NX OPTC3 or OPTC4 fieldbus communication option boards share the same backplane slot architecture and should be inspected for corrosion or connector wear during the same maintenance window. If the drive is integrated into a PROFIBUS DP or Modbus RTU network, verify the communication cable termination resistors and cable shielding integrity before recommissioning — a degraded network can cause the replacement board to log spurious faults immediately after startup.

On the I/O side, check the VACON NX OPTA1 or OPTA2 I/O option boards for signal integrity. Analogue reference signals (4–20 mA speed references from DCS or PLC outputs) should be verified at the terminal strip using a loop calibrator. Digital input wiring from safety relays, motor thermistor inputs, and run/stop command circuits should be continuity-tested before energising the replacement board.

For drives installed in harsh or humid environments, inspect the EMC input filter and DC bus capacitor bank condition. Capacitor degradation is a leading cause of drive instability that can be misdiagnosed as a control board fault. If the drive has been in service for more than five years, a capacitor reformation or replacement programme should be considered alongside the PC00252 board swap.

Fuse integrity across the input rectifier fuse set and any 24 VDC auxiliary fuses on the control circuit should be confirmed with a multimeter before re-energisation. Terminal blocks on the control wiring loom — particularly those carrying thermistor, encoder, or PTC signals — should be re-torqued to manufacturer specification to prevent intermittent faults post-commissioning.

Where the drive is connected to an HMI panel (such as a VACON keypad or a third-party operator panel via RS-485), verify the panel cable and connector for damage. A corrupted parameter set can sometimes be traced to a faulty HMI connection rather than the control board itself — always back up drive parameters to the keypad or a PC tool (VACON Live) before removing the old board.

Finally, for sites running redundant drive configurations or bypass contactors, confirm that the bypass logic and interlock wiring is intact and that the replacement board’s parameter set matches the site-specific configuration file. Maintaining a documented spare parts list that includes the PC00252 alongside associated power, I/O, and communication modules is best practice for any facility operating VACON NX drives in critical service.

Site Replacement Workflow

Step 1 — Isolation & Lockout/Tagout: Isolate the drive from mains supply and apply LOTO procedure. Allow a minimum of 5 minutes for DC bus capacitors to discharge. Verify bus voltage is below 50 VDC with a calibrated meter before opening the drive enclosure.

Step 2 — Parameter Backup: If the existing control board is still partially functional, connect VACON Live software via the RS-232/USB service port and export the full parameter set. Store the backup file with the equipment maintenance record.

Step 3 — Board Removal: Disconnect all ribbon cables, option board connectors, and the control wiring loom from the existing PC00252. Note connector positions with a photograph before removal. Remove the board mounting screws and extract the board carefully to avoid damaging adjacent components.

Step 4 — Inspection & Cleaning: Inspect the drive interior for signs of moisture ingress, carbonisation, or rodent damage. Clean the enclosure interior with dry compressed air. Inspect the backplane connector for bent pins.

Step 5 — Replacement Board Installation: Install the new VACON PC00252 in reverse order. Ensure all connectors are fully seated. Re-torque control wiring terminals. Restore the parameter backup via VACON Live or manual keypad entry.

Step 6 — Commissioning & Verification: Re-energise the drive and verify no fault codes are active. Run the motor at low speed under no-load conditions to confirm correct rotation direction and speed reference response. Verify fieldbus communication status if applicable. Document the replacement in the site maintenance log.

This structured workflow reduces mean time to repair (MTTR) and ensures the replacement board is commissioned correctly the first time, avoiding repeat callouts.

Spare Parts Support FAQ

Q1: Is the VACON PC00252 compatible with all VACON NX drive frame sizes?
The PC00252 is designed for specific frame sizes within the VACON NX and NXP series. Compatibility depends on the drive’s hardware revision and software version. Please provide your drive’s full nameplate data (frame size, software version, and serial number) when enquiring so we can confirm exact compatibility before shipment.

Q2: What pre-shipment testing is performed on each PC00252 unit?
Every unit supplied by NINERMAS undergoes functional power-on verification and visual inspection for component integrity prior to dispatch. A test report is available upon request. Units are packed in anti-static ESD-safe packaging with desiccant to protect against moisture during transit.

Q3: Can NINERMAS support long-term or scheduled spare parts supply for the PC00252?
Yes. We offer long-term supply agreements for maintenance teams managing fleets of VACON NX drives. Scheduled delivery programmes, consignment stock arrangements, and multi-unit pricing are available. Contact our team at sale@ninermas.com to discuss your site’s annual maintenance requirements.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage caused by incorrect installation, overvoltage events, or environmental conditions outside the specified ratings. To initiate a warranty claim, contact sale@ninermas.com with your order reference, a description of the fault, and photographic evidence. Replacement or repair will be arranged promptly.
