GE DS200TCQCG1RJD Retrofit-Compatible Drive Control Board

GE DS200TCQCG1RJD Retrofit-Compatible Drive Control Board for Legacy System Modernization

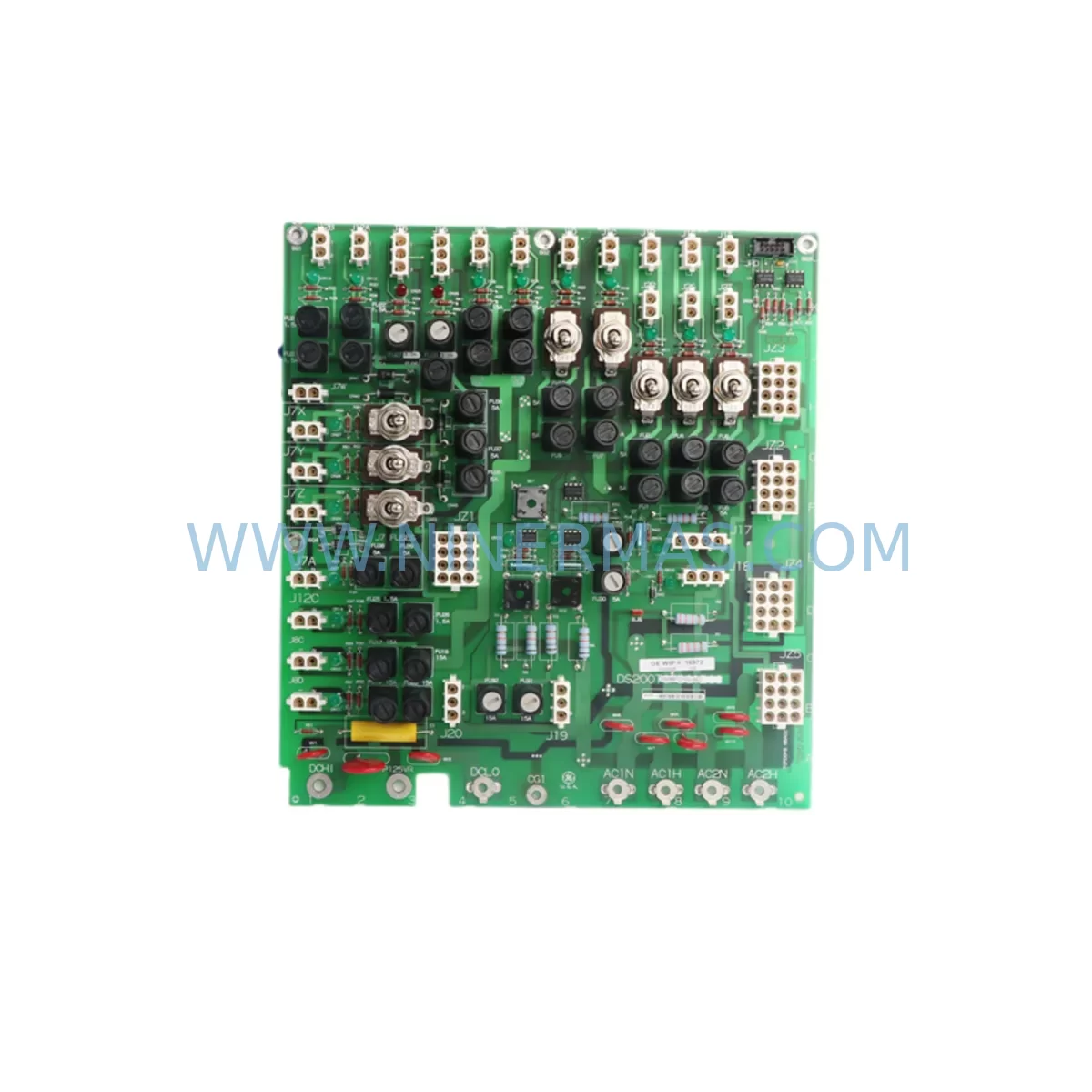

The GE DS200TCQCG1RJD is a drive control board originally designed for use within GE’s Mark V Speedtronic turbine control platform and associated drive control architectures. As aging industrial facilities face increasing pressure to extend the operational life of their existing automation infrastructure, the DS200TCQCG1RJD has become a critical spare part for engineers managing legacy drive systems in power generation, oil and gas processing, and heavy manufacturing environments. NINERMAS supplies retrofit-compatible DS200TCQCG1RJD boards that have been sourced, inspected, and pre-shipment tested to meet the functional requirements of the original GE specification, enabling facilities to restore drive control capability without committing to a full platform migration.

When a DS200TCQCG1RJD fails in service, the immediate concern for maintenance teams is minimizing unplanned downtime while preserving the integrity of the existing control logic. Because the Mark V platform and its associated drive control subsystems were designed as tightly integrated architectures, replacing a drive control board requires careful attention to backplane interface compatibility, terminal wiring assignments, module addressing, and communication link continuity. Engineers should verify that the replacement board’s firmware revision is compatible with the existing Mark V controller — particularly the DS200TCQAG1B and DS200TCQBG1B variants that may be installed in adjacent slots — before powering up the replacement unit.

In retrofit scenarios where the original GE Mark V turbine control cabinet is being partially modernized, the DS200TCQCG1RJD is frequently replaced alongside related I/O and signal conditioning modules. Facilities undertaking a phased upgrade often retain the existing DS200SDCIG2A DC power supply board and the DS200TCRAG1A terminal board to avoid rewiring the field termination panels, while replacing only the failed drive control board. This approach significantly reduces installation time and eliminates the need to re-engineer the existing cable harness. Maintenance planners should confirm available rack space within the Mark V DS200PANEL1D enclosure and verify that the backplane connector on the replacement DS200TCQCG1RJD aligns with the existing slot configuration before scheduling the replacement window.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of a replacement DS200TCQCG1RJD into an existing Mark V control system begins well before the physical installation. Maintenance engineers should conduct a pre-replacement audit that documents the current module slot layout, the DIP switch and jumper configuration of the failed board, the power supply rail voltages measured at the backplane, and the communication link status between the drive control subsystem and the main Mark V controller. This documentation becomes the baseline for verifying that the replacement board has been correctly configured before the system is returned to service.

In facilities where the Mark V cabinet also houses a DS200TCDAG1A diagnostic board or a DS200EXPSG1A expansion board, engineers should confirm that the replacement DS200TCQCG1RJD does not conflict with the I/O address map assigned to these adjacent modules. Address conflicts are a common source of post-replacement faults that can be mistaken for a defective replacement board. Similarly, if the control cabinet includes a DS200DSPCH1A digital signal processor board handling speed and position feedback, the drive control board replacement should be coordinated with a review of the feedback signal routing to ensure continuity of the closed-loop control chain.

For facilities that are simultaneously upgrading their operator interface from a legacy Mark V HMI workstation to a modern SCADA or DCS front-end, the DS200TCQCG1RJD replacement provides an opportunity to verify that the communication gateway — often a DS200SIOBH1A serial I/O board or an equivalent Modbus/ARCNET bridge — is correctly configured to pass drive status data to the new supervisory layer. This verification step is frequently overlooked during phased upgrades and can result in loss of drive status visibility at the operator station even when the drive itself is functioning correctly.

Where the existing installation includes a DS200TCQEG1B or DS200TCQFG1A variant in a parallel drive control application, engineers should treat the DS200TCQCG1RJD replacement as an opportunity to standardize the spare parts inventory across both drives, reducing the number of unique board variants that must be stocked for future maintenance events. NINERMAS maintains inventory of multiple DS200TCQ-series variants to support this standardization strategy.

Downtime Control During System Migration

Unplanned downtime caused by a failed DS200TCQCG1RJD can be significantly reduced through advance preparation. Facilities that maintain a pre-configured spare board — with DIP switches and jumpers set to match the installed configuration — can complete a like-for-like replacement in under two hours, including the functional verification steps required before returning the turbine or drive system to automatic control. NINERMAS recommends that customers request a configuration record sheet at the time of purchase so that the replacement board can be pre-set to the correct address and communication parameters before it arrives on site.

During the replacement window, the existing control program stored in the Mark V controller — typically resident in the DS200TCQCG1R-series memory architecture — does not need to be modified for a like-for-like board replacement. The program logic, setpoints, and alarm thresholds remain intact in the controller memory and are not affected by the removal and replacement of the drive control board. This is a critical distinction from a full platform migration, where program re-engineering and HMI screen rebuilding would be required. Engineers should nonetheless perform a cold-start sequence after board replacement and monitor the first several minutes of operation to confirm that all drive status signals — including speed feedback, current limit, and fault relay outputs — are reporting correctly at both the local panel and the supervisory HMI.

For facilities operating in continuous-process environments where even a brief shutdown carries significant production cost, NINERMAS offers expedited dispatch for in-stock DS200TCQCG1RJD units. Pre-shipment functional testing is performed on every unit before dispatch, and a test report is available upon request. The 12-month warranty covers functional failure under normal operating conditions and provides a clear remediation path in the event that a replacement unit does not perform as expected after installation.

Retrofit Support FAQ

Q1: Is the DS200TCQCG1RJD a direct drop-in replacement for all DS200TCQ-series variants?
The DS200TCQCG1RJD is directly interchangeable with other DS200TCQ-series boards that share the same backplane connector layout and firmware revision level. Variants such as the DS200TCQAG1B and DS200TCQBG1B are functionally similar but may have minor differences in jumper configuration or firmware. NINERMAS technical support can assist in confirming interchangeability based on your specific Mark V cabinet configuration and serial number.

Q2: What commissioning steps are required after installing the replacement board?
After physical installation, engineers should perform a power-on self-test and verify that the board’s status LEDs indicate normal operation. The Mark V controller should be placed in manual control mode during the initial power-up sequence. Communication link continuity between the DS200TCQCG1RJD and the main controller should be confirmed via the diagnostic display before transferring control back to automatic mode. Speed feedback signals and current limit parameters should be verified against the pre-replacement baseline values.

Q3: Does NINERMAS provide pre-shipment testing for the DS200TCQCG1RJD?
Yes. Every DS200TCQCG1RJD unit dispatched by NINERMAS undergoes functional testing prior to shipment. A test report documenting the key performance parameters verified during testing is available upon request. Units are packaged in anti-static protective packaging suitable for international air freight to minimize transit risk.

Q4: What warranty coverage applies to the DS200TCQCG1RJD?
NINERMAS provides a 12-month warranty on all DS200TCQCG1RJD units from the date of dispatch. The warranty covers manufacturing defects and functional failure under normal operating conditions. In the event of a warranty claim, NINERMAS will arrange for a replacement unit to be dispatched after the failed unit has been returned for inspection. Customers are encouraged to contact sale@ninermas.com to initiate a warranty claim.
