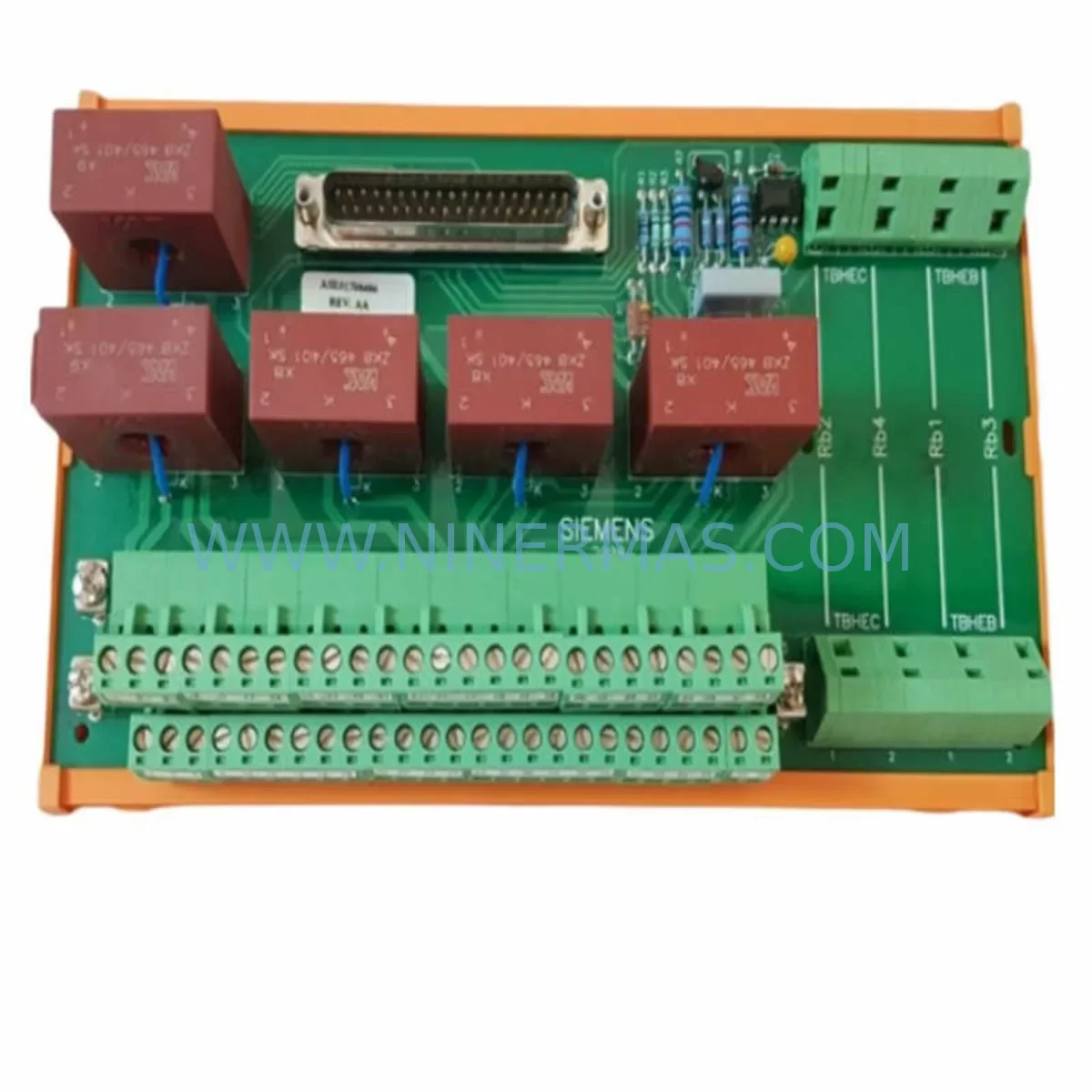

The ROBICON A5E01708486 is a signal control board engineered for the SIMOVERT MASTERDRIVES series of AC variable frequency drives, widely deployed across heavy industrial environments including steel mills, cement plants, petrochemical facilities, water treatment stations, and large-scale HVAC systems. As a critical interface between the drive’s power electronics and its supervisory control logic, the A5E01708486 governs signal conditioning, feedback processing, and command routing — making it one of the highest-priority spare parts in any SIMOVERT MASTERDRIVES maintenance program.

At NINERMAS, every A5E01708486 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and dispatched with a 12-month warranty. Whether you are executing an emergency breakdown recovery, building a preventive spare parts inventory, or planning a scheduled annual overhaul, the A5E01708486 is available for rapid deployment with full compatibility confirmation prior to shipment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a SIMOVERT MASTERDRIVES unit develops a fault traceable to the signal control board — whether manifesting as erratic speed reference tracking, loss of encoder feedback, unexplained F-fault codes, or complete drive lockout — the A5E01708486 replacement is rarely an isolated action. Experienced maintenance engineers understand that a failed signal board often indicates stress across adjacent components sharing the same electrical environment.

During the same maintenance window, it is strongly recommended to inspect and, where appropriate, stock spares for the following associated components:

• SIMOVERT MASTERDRIVES Power Interface Board (6SE7090-0XX84-0AB0 series) — the power section interface that works in tandem with the signal board; connector degradation on either side can cause intermittent faults.
• CUVC / CUMC Control Unit (6SE7090-0XX84-2DA0) — the central control module governing parameter storage, communication, and closed-loop regulation. A corrupted or failing CUVC can mimic signal board faults.
• Pulse Encoder Interface Module (SBP / 6SX7010-0FF00) — if the drive operates in vector control mode with encoder feedback, the SBP module should be verified alongside the A5E01708486 during any signal path fault investigation.
• PROFIBUS Communication Board (CBP2 / 6SE7090-0XX84-2FC0) — in networked installations, the CBP2 sits on the same control backplane. A board swap is an opportunity to verify CBP2 seating and connector integrity.
• 24 VDC Control Power Supply — unstable or under-voltage 24 VDC supply is a leading cause of premature signal board failure. Verify the internal SMPS or external 24 V rail before commissioning the replacement board.
• Drive Input Fuses and Semiconductor Fuse Links — upstream protection components should be inspected after any drive fault event to confirm no latent damage from fault current transients.
• Terminal Block and Signal Wiring Harness — corroded or loose signal terminals on the X100/X101/X102 connector rows are a common root cause of signal board stress; replace or re-terminate as needed.
• Fan and Cooling Assembly (6SE7090-0XX87-6CA0 series) — thermal stress accelerates PCB degradation. Confirm cooling fan operation and heatsink cleanliness during the board replacement procedure.
• Operator Panel (OP1S / 6SE7090-0XX84-2FF0) — if the OP1S displays corrupted parameters or fails to communicate post-replacement, the panel itself may require attention or parameter re-upload.
• Brake Chopper Module and Braking Resistor — in regenerative or high-inertia load applications, verify the brake chopper circuit is intact to prevent overvoltage conditions that stress the replacement board.

Building a structured spare parts kit around the A5E01708486 — covering control boards, communication modules, power supply components, and protection devices — is the most effective strategy for minimizing mean time to repair (MTTR) on SIMOVERT MASTERDRIVES installations. NINERMAS can assist procurement engineers in assembling a site-specific spare parts list aligned with your installed drive population and maintenance intervals.

Site Replacement Workflow

Step 1 — Fault Isolation: Confirm the A5E01708486 as the faulty component using drive diagnostic codes, visual inspection for burn marks or damaged connectors, and swap-test methodology if a reference unit is available on site.

Step 2 — Drive De-energisation: Isolate the SIMOVERT MASTERDRIVES unit from mains supply and allow the DC bus to fully discharge (minimum 5 minutes, verify with a calibrated meter) before opening the drive cabinet.

Step 3 — Board Removal: Photograph the existing wiring and connector positions on the A5E01708486 before disconnection. Label all signal cables. Release the PCB retaining clips and extract the board from its backplane slot.

Step 4 — Compatibility Verification: Cross-reference the replacement A5E01708486 hardware revision against the drive’s nameplate and existing board revision. Contact NINERMAS with your drive serial number for pre-shipment compatibility confirmation if not already completed.

Step 5 — Installation and Parameter Restore: Seat the replacement board firmly into the backplane connector. Reconnect all signal cables per the reference photographs. Restore drive parameters from backup (OP1S upload or DriveMonitor/STARTER software) before energising.

Step 6 — Commissioning Check: Power up in local control mode first. Verify all I/O signals, encoder feedback (if applicable), and communication bus status before returning the drive to automatic/remote control. Document the replacement in the site maintenance log.

This structured workflow reduces unplanned downtime, prevents secondary damage from incorrect installation, and ensures the replacement A5E01708486 operates within its rated parameters from first energisation.
