Siemens A5E02822120 Safety-Reliable Drive Control for Critical Sites

Siemens A5E02822120 Safety-Reliable Drive Control for Critical Industrial Sites

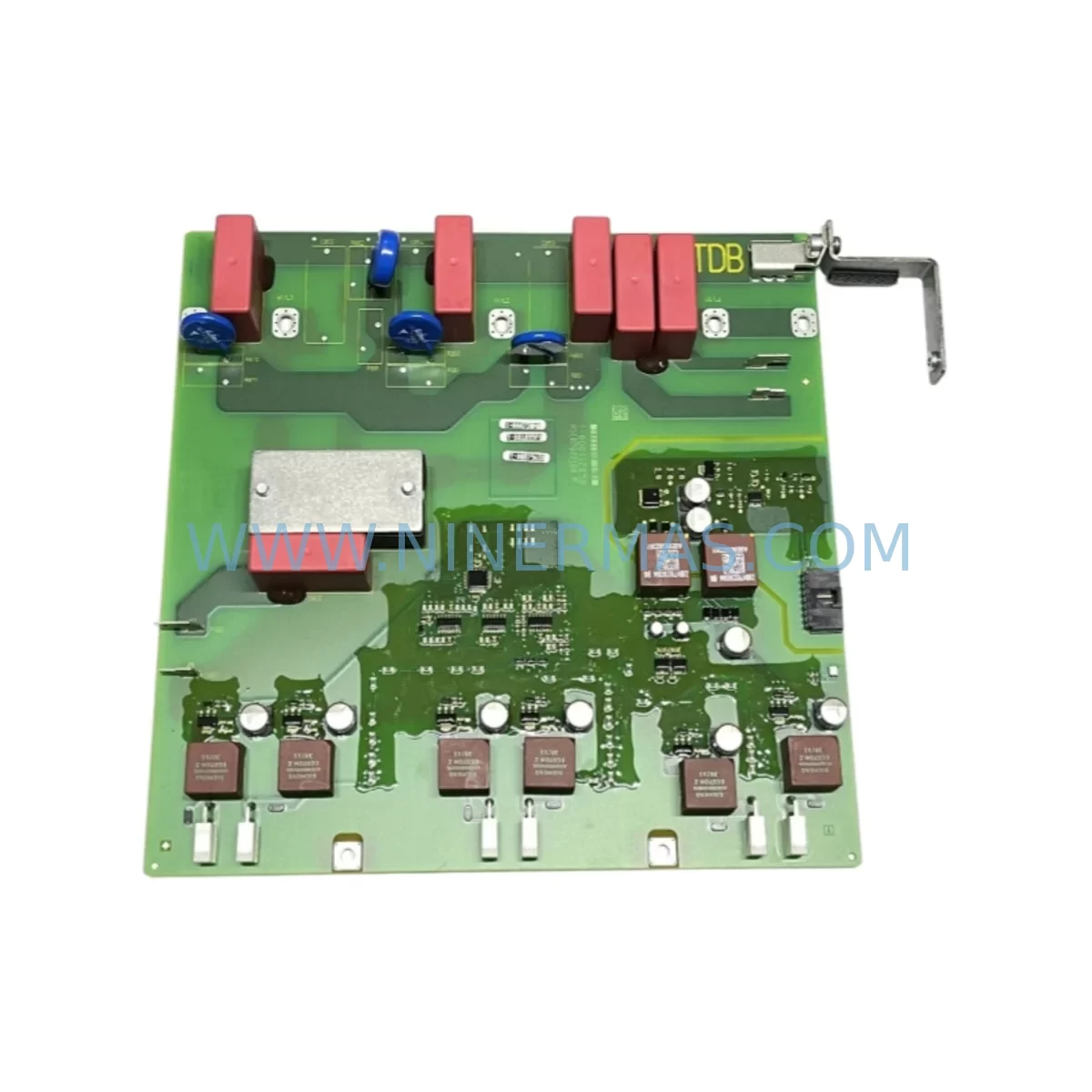

The Siemens A5E02822120 is a high-reliability drive control board engineered for the SINAMICS and SIMOREG series of industrial variable frequency drives and DC converters. Designed to meet the demanding requirements of continuous production environments, this component delivers consistent, fault-tolerant performance in critical control loops where unplanned downtime is not an option. At NINERMAS, every A5E02822120 unit is sourced, inspected, and dispatched with a full 12-month warranty, ensuring your operation stays protected from the moment of installation.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In heavy industrial control cabinets — whether managing a rolling mill drive system, a mine hoist converter, or a petrochemical pump station — the Siemens A5E02822120 serves as the nerve center of the drive’s control architecture. Its role is to maintain signal integrity and command fidelity between the PLC layer and the power electronics, even under conditions of high electromagnetic interference, ground potential fluctuations, and supply voltage instability.

When integrated into a SINAMICS S120 multi-axis drive system, the A5E02822120 works in close coordination with the Siemens CU320-2 Control Unit, which manages axis synchronization and safety telegram processing. The DRIVE-CLiQ communication backbone linking these components ensures deterministic, low-latency data exchange — critical for preventing torque ripple and positional drift in precision motion applications. Alongside the CU320-2, the Siemens SMC30 Sensor Module Cabinet-Mounted provides encoder feedback integration, and any degradation in the A5E02822120’s signal processing capability would directly compromise closed-loop accuracy.

Power quality is equally critical. The A5E02822120 operates within a drive system that depends on stable DC bus voltage, typically maintained by a Siemens Active Line Module (ALM) or a Basic Line Module (BLM). Voltage sags, harmonic distortion, or capacitor bank failures upstream can stress the control board’s internal regulators. Pairing the drive system with a Siemens SITOP PSU8600 power supply module on the 24 VDC logic rail provides the buffering and redundancy needed to ride through brief mains interruptions without triggering a fault trip or safety relay activation.

In environments with significant conducted and radiated EMI — such as those found near large transformer banks, arc furnaces, or variable-speed pump arrays — the Siemens SINAMICS G120 Power Module PM240-2 with integrated EMC filter provides a complementary layer of protection. The A5E02822120, when operating within a properly shielded and grounded cabinet alongside a Siemens ET 200SP distributed I/O station, maintains reliable digital and analog signal transmission even when adjacent high-current switching events would otherwise induce noise on control wiring.

For safety interlock circuits, the A5E02822120 is frequently deployed in architectures that include a Siemens SIRIUS 3SK1 Safety Relay or a Siemens SIRIUS 3RK3 Modular Safety System. These devices monitor the STO (Safe Torque Off) channel and emergency stop loops, ensuring that any control board fault or communication dropout triggers a safe state rather than an uncontrolled drive coast-down. In high-inertia applications such as centrifuges or large fans, this distinction between a controlled stop and an uncontrolled coast is the difference between a safe shutdown and a mechanical failure event.

Replacement planning is also a key risk mitigation strategy. Maintaining a spare A5E02822120 alongside compatible spare parts — such as the Siemens CU240E-2 Control Unit for standalone G120 drives or the Siemens CBE20 Communication Board Ethernet for PROFINET-integrated systems — reduces mean time to repair (MTTR) from days to hours. NINERMAS maintains ready stock of these components with full outgoing inspection, supporting your critical spare parts program with verified, warranty-backed inventory.

Critical Industrial Safety Applications

The Siemens A5E02822120 is deployed across a wide spectrum of safety-critical and continuous-process industries where drive reliability directly impacts operational safety and production continuity.

In petrochemical and refinery environments, this control board supports variable-speed drives on compressor trains, boiler feed pumps, and cooling tower fans. These applications demand zero-tolerance for spurious trips — an unexpected drive shutdown can trigger pressure relief events or process upsets with significant safety consequences. The A5E02822120’s robust signal processing and compatibility with STO safety functions make it a trusted component in SIL-rated control loops.

In electric power generation and transmission facilities, the board is used in excitation control systems, auxiliary drive systems for cooling and lubrication, and grid-connected converter stations. The ability to maintain stable operation through voltage transients and harmonic-rich environments — common near large generators and transformer banks — is essential for grid stability and equipment protection.

In mining and mineral processing, the A5E02822120 supports hoist drives, conveyor systems, and crusher drives where continuous operation is critical and maintenance access is limited. The board’s tolerance for vibration, dust ingress (within a properly rated enclosure), and wide temperature swings makes it suitable for surface and underground installations alike.

In water and wastewater treatment plants, variable-speed pump drives controlled by SINAMICS systems with the A5E02822120 enable precise flow control, energy savings, and protection against water hammer. Reliable drive operation in these facilities is directly linked to public health infrastructure.

In metallurgical and steel production facilities, the board is found in rolling mill main drives, ladle crane drives, and continuous casting line drives — all applications where drive faults can result in product loss, equipment damage, or personnel safety incidents. The SIMOREG DC-MASTER compatibility of the A5E02822120 makes it particularly valuable in legacy DC drive retrofit and upgrade projects in these environments.

In port and marine applications, including ship propulsion control systems and harbor crane drives, the A5E02822120 provides the control reliability needed for heavy-load positioning and dynamic braking in salt-air, high-humidity environments.

Safety and Quality FAQ

Q1: What warranty coverage does NINERMAS provide for the Siemens A5E02822120?
Every A5E02822120 unit supplied by NINERMAS carries a 12-month warranty from the date of shipment. This covers functional failures under normal operating conditions. Our technical team provides replacement support and failure analysis documentation to assist with your maintenance records and insurance requirements.

Q2: What outgoing inspection and testing is performed before shipment?
Each unit undergoes a full functional inspection prior to dispatch, including visual examination for physical damage, verification of component integrity, and where applicable, powered functional testing. Units that do not pass inspection are quarantined and not shipped. A test report is available upon request for critical spare parts orders.

Q3: How do I confirm compatibility between the A5E02822120 and my existing SINAMICS or SIMOREG drive system?
Compatibility is determined by the drive model, firmware version, and hardware revision of your existing system. Please provide your drive’s nameplate data and order number when contacting NINERMAS. Our technical team will cross-reference the A5E02822120 against Siemens compatibility matrices and advise on any firmware or hardware revision considerations before shipment.

Q4: Can NINERMAS support long-term supply and emergency replacement for the A5E02822120?
Yes. NINERMAS maintains ongoing stock of the A5E02822120 and related Siemens SINAMICS and SIMOREG spare parts to support both planned maintenance programs and emergency breakdown situations. We offer expedited shipping for critical breakdown orders and can work with your procurement team to establish a consignment or scheduled supply arrangement for high-priority spare parts.
