Siemens 6RY1243-0EA00 C98043-A1603-L11 Service-Ready Spare Part

Siemens 6RY1243-0EA00 C98043-A1603-L11 Service-Ready Spare Part: Spare Replacement and Downtime Risk Control

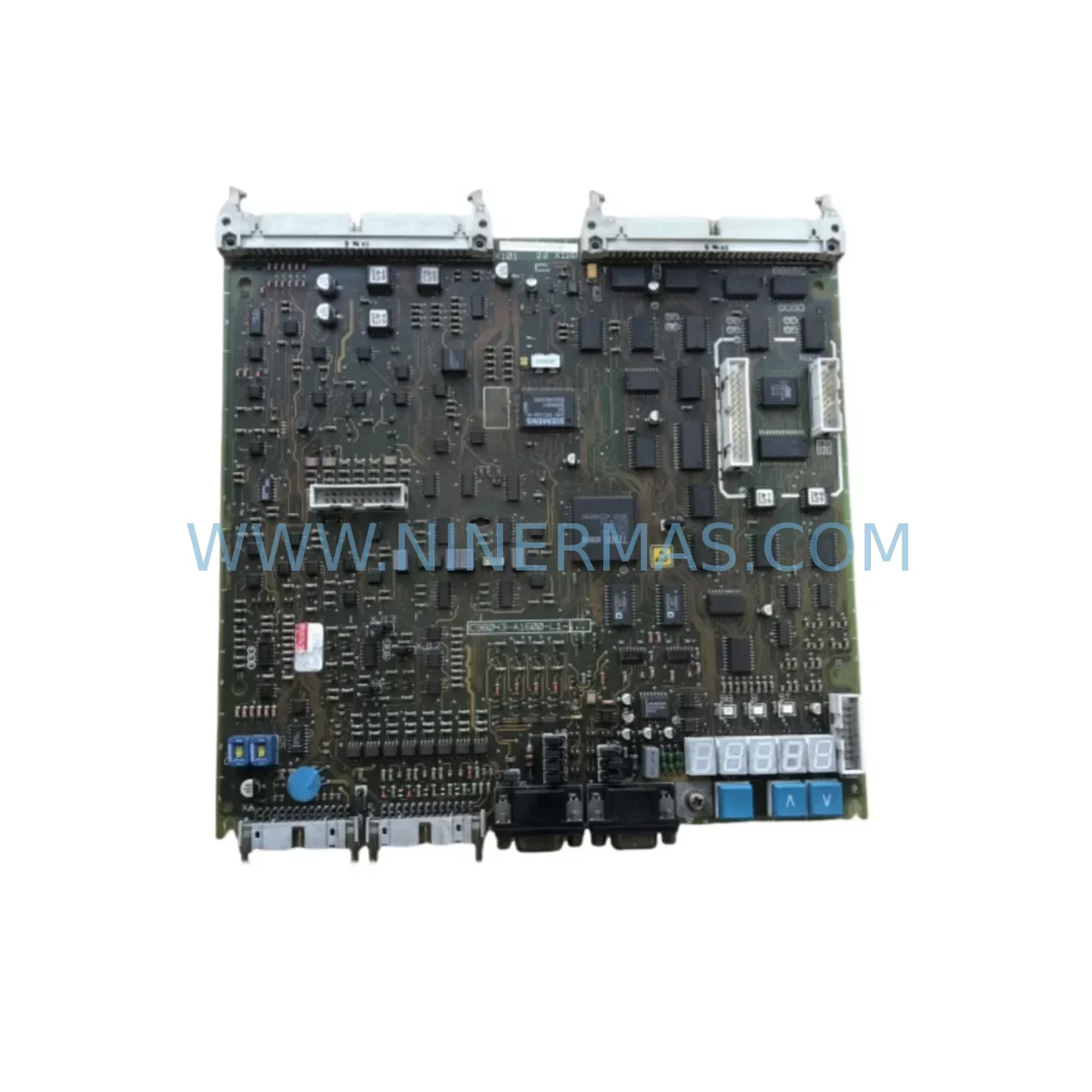

The Siemens 6RY1243-0EA00 C98043-A1603-L11 is a ruggedized drive control board designed for the SIMOREG DC-MASTER series of DC drive systems. This board serves as a critical electronics assembly within the drive converter cabinet, governing armature current regulation, field excitation control, and closed-loop speed feedback in demanding industrial DC drive applications. Maintenance engineers managing legacy DC drive infrastructure — including steel mills, paper machines, extruders, hoists, and large pump stations — rely on this board as a direct service replacement to restore full drive functionality without requiring a complete drive system overhaul.

Sourced as an original Siemens spare part and subject to pre-shipment functional verification, the 6RY1243-0EA00 board is stocked to support emergency breakdown recovery, planned annual overhauls, and long-term spare parts inventory programs. Each unit ships with a 12-month warranty, providing procurement engineers with the confidence needed to justify capital spares investment and reduce unplanned downtime exposure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a SIMOREG DC-MASTER drive trips on a board-level fault — typically indicated by fault codes F023, F025, or F060 on the 6RA70 operator panel (OP1S) — the 6RY1243-0EA00 C98043-A1603-L11 control board is among the first components to isolate and inspect. However, experienced maintenance engineers understand that a board failure rarely occurs in isolation. A thorough site replacement workflow must also address the surrounding electrical environment to prevent repeat failures after the new board is installed.

Begin by inspecting the 24 VDC auxiliary power supply feeding the electronics section of the drive cabinet. Voltage ripple or transient spikes on this rail are a common root cause of premature board failure. Check the SIMOREG power interface board (C98043-A1691) and the pulse transformer board (C98043-A1602) for signs of thermal stress or component degradation, as these boards interact directly with the control board during thyristor firing sequences.

Review the field supply module — typically a 6RA2428 or equivalent field excitation unit — to confirm field current regulation is stable. An unstable field supply can cause erratic speed control and place excessive demand on the control board’s regulation algorithms. Similarly, inspect all armature current feedback shunts and transducers for drift or open-circuit conditions, as inaccurate current feedback will cause the replacement board to operate outside its designed control envelope from the moment of commissioning.

On the signal side, verify the integrity of the tachogenerator or encoder feedback cable and its associated signal isolator or pulse shaper board. Noise ingress on the speed feedback line is a frequent cause of oscillation and nuisance tripping that can be misdiagnosed as a control board defect. Check the terminal strip wiring (X300 / X400 series terminals) for loose connections, particularly on the enable, setpoint, and current limit signal lines.

For drives integrated into a wider automation system, confirm that the PROFIBUS DP communication module (6RX1700-0AD76) or USS protocol interface is functioning correctly and that the PLC or DCS setpoint signals are within the expected voltage and frequency range. A misconfigured communication interface can prevent the replacement board from accepting remote speed references, leading to commissioning delays that extend downtime unnecessarily.

Finally, inspect the drive cabinet cooling fan assembly and heat sink thermal sensors. Overtemperature conditions are a leading cause of electronics board degradation in DC drive systems, and replacing the control board without addressing a cooling deficiency will result in a shortened service life for the new component. Stocking a spare fan unit (6SY7010-0AA20 or equivalent) alongside the control board is a recommended practice for high-criticality drive applications.

Site Replacement Workflow

Step 1 — Isolation and Documentation: De-energize the drive cabinet following site LOTO procedures. Record all parameter settings from the existing drive using the OP1S operator panel or STARTER / DriveMonitor software before removing the faulty board. Parameter data is stored on the CUD (Control Unit Drive) and may be lost if the board is replaced without a prior backup.

Step 2 — Board Removal: Disconnect all plug-in connectors from the 6RY1243-0EA00 board in sequence, labeling each connector position. Remove the board retaining screws and extract the board from the card cage. Inspect the card cage backplane connectors for bent pins or contamination before installing the replacement.

Step 3 — Replacement Installation: Install the new 6RY1243-0EA00 C98043-A1603-L11 board, reconnect all plug-in connectors, and verify that the board is fully seated in the backplane. Restore power to the electronics section only and confirm that the board initializes without fault indication.

Step 4 — Parameter Restore and Commissioning: Reload the saved parameter set using STARTER or DriveMonitor. Perform a current controller optimization run (P051 = 25) and a speed controller optimization if required. Verify armature current feedback, field current, and speed feedback signals against known-good reference values before returning the drive to production.

Step 5 — Functional Test: Run the drive at reduced speed under no-load conditions, then at rated load. Confirm that all fault codes are clear, that speed regulation is stable, and that the drive responds correctly to remote setpoint commands from the PLC or DCS. Document the replacement in the site maintenance log.

This structured replacement workflow minimizes the risk of repeat failures, reduces total downtime from fault to production restart, and ensures that the replacement board operates within its designed parameters from the first power-on.

Spare Parts Support FAQ

Q1: Is the 6RY1243-0EA00 C98043-A1603-L11 an original Siemens spare part?
Yes. This unit is sourced as an original Siemens electronics assembly. Each board undergoes pre-shipment functional verification to confirm it meets OEM performance specifications before dispatch. A 12-month warranty is provided from the date of shipment.

Q2: Which SIMOREG drive models is this board compatible with?
The 6RY1243-0EA00 is designed for use within the SIMOREG DC-MASTER platform, covering 6RA70 series converters across multiple frame sizes (6RA7013 through 6RA7095). Compatibility should be confirmed against the drive’s nameplate data and the existing board’s part number before ordering. Contact our technical team with your drive nameplate details for confirmation.

Q3: What is the recommended spare parts inventory strategy for SIMOREG DC drive systems?
For high-criticality DC drive applications, we recommend maintaining at least one control board (6RY1243-0EA00), one pulse transformer board (C98043-A1602), and one power interface board (C98043-A1691) as capital spares on-site. This three-board kit covers the majority of electronics-related drive failures and enables same-shift restoration of drive functionality without waiting for parts delivery.

Q4: Can this board be shipped internationally, and what is the typical lead time?
Yes. This spare part is available for international shipment. Standard lead time is 2–5 business days from order confirmation for in-stock units. Express shipping options are available for emergency breakdown situations. All units are shipped with appropriate export documentation and packaging to ensure safe transit to site.
