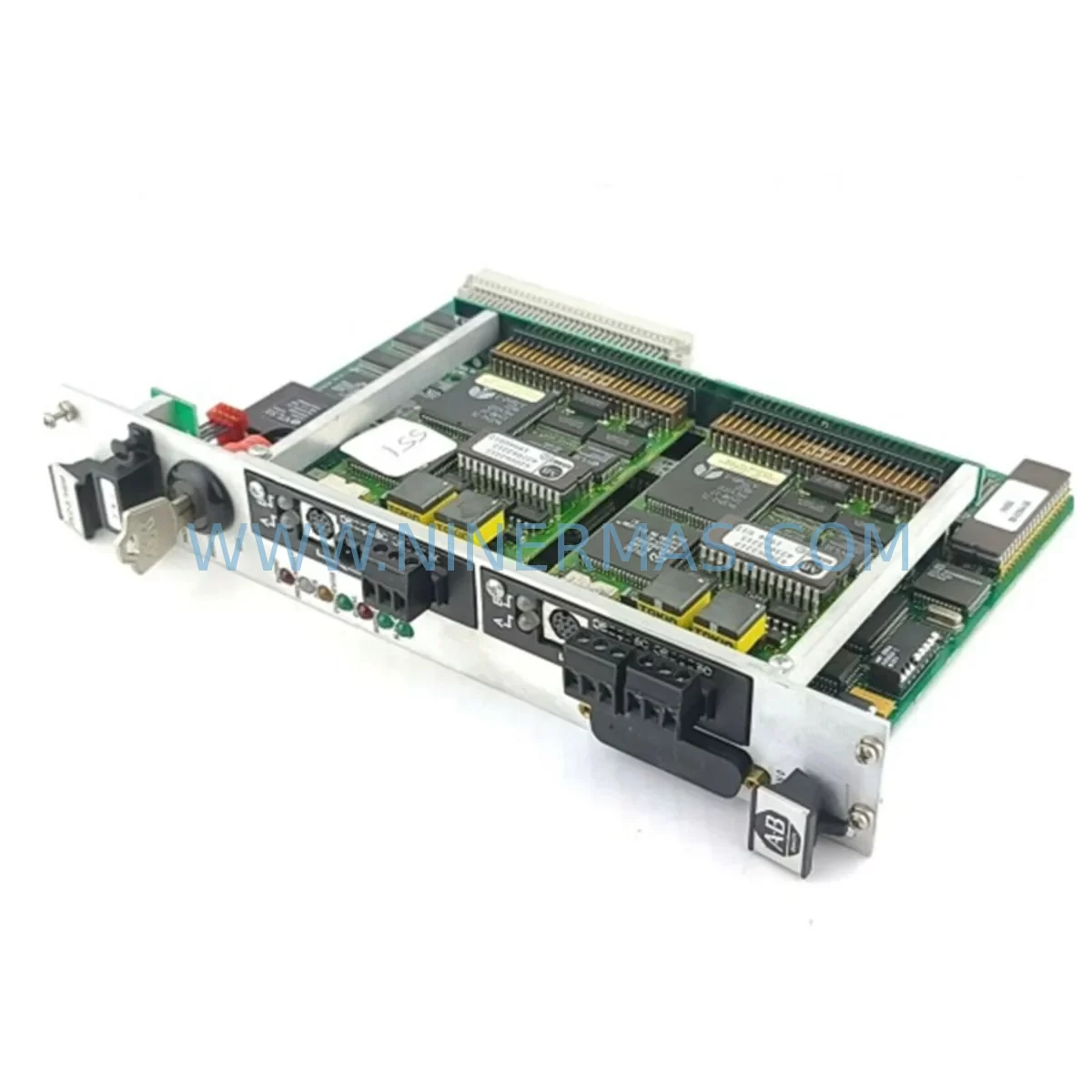

Allen-Bradley 1785-V80B Spare Part for PLC-5 Series

Allen-Bradley 1785-V80B Spare Part for PLC-5 Series: Reliable Replacement for Industrial Maintenance

Spare Maintenance Table

Maintenance Planning for Continuous Operation

For maintenance engineers managing aging PLC-5 installations, the Allen-Bradley 1785-V80B memory module is a critical spare that directly determines whether a control system can be restored quickly after an unplanned fault or scheduled overhaul. When a PLC-5 processor loses its program due to battery failure, memory corruption, or module degradation, having a pre-configured 1785-V80B on the shelf can reduce recovery time from days to hours.

However, the memory module does not operate in isolation. A comprehensive maintenance strategy for any PLC-5 control cabinet must account for the full system ecosystem. The 1785-BA1 lithium battery module, for instance, is the primary protection against program loss during power interruptions — its replacement cycle should be synchronized with any 1785-V80B swap to ensure the newly loaded program is protected from the moment the system goes live. Similarly, the 1785-L80B or 1785-L60B processor modules themselves should be inspected for capacitor aging, backplane connector wear, and firmware version compatibility before a memory module replacement is finalized.

On the power side, the 1771-P4S or 1771-P6S power supply modules feeding the PLC-5 chassis must be verified for stable DC output. Voltage sag or ripple on the backplane rail can cause memory write errors or corrupt program data even after a successful module swap. Maintenance teams should also inspect the 1771-A4B or 1771-A3B1 I/O chassis and backplane assemblies for oxidized contacts or loose card guides, as poor backplane seating is a common but overlooked cause of intermittent processor faults.

For sites using Data Highway Plus (DH+) communication, the 1784-KTX or 1784-PKTX communication interface cards used for program upload and download should be tested prior to any memory module replacement procedure. A failed communication card during a live program transfer can leave the processor in an indeterminate state. Likewise, 1771-OBD or 1771-IBD discrete I/O modules in the same rack should be checked for blown output drivers or degraded input thresholds, as these faults are often misdiagnosed as processor or memory issues.

In facilities with high electromagnetic interference — such as arc furnace plants, variable frequency drive (VFD) environments, or high-current motor control centers — signal isolation barriers and surge protection devices installed upstream of the PLC-5 chassis play a significant role in memory module longevity. Unprotected transient voltages can degrade CMOS memory cells over time. Pairing the 1785-V80B replacement with a review of the panel’s surge suppression and grounding scheme is a best practice that reduces repeat failures.

For sites running PanelView 550 or PanelView 900 HMI terminals connected to the PLC-5 via DH+ or RS-232, the HMI program tags and data file mappings should be verified after any memory module replacement, as address remapping errors can cause operator interface faults that appear unrelated to the PLC hardware change. Procurement engineers should also consider stocking the 1785-V40B as a lower-capacity companion spare for smaller PLC-5 processors in the same facility, enabling a unified spare parts strategy across multiple control cabinets.

Site Replacement Workflow

Replacing the Allen-Bradley 1785-V80B in a live industrial environment requires a structured approach to minimize downtime and avoid data loss. The recommended workflow begins with a full program backup using RSLogix 5 or an equivalent programming terminal connected via the 1784-KTX interface card. The backup should be saved to at least two independent storage locations before any hardware is touched.

Once the backup is confirmed, the PLC-5 processor should be placed in Program mode and power removed from the chassis in accordance with site lockout/tagout (LOTO) procedures. The existing memory module is extracted from the processor slot, and the replacement 1785-V80B is inserted firmly until the card guide locks engage. After power restoration, the processor should be observed for normal initialization — a solid RUN indicator and absence of fault codes on the processor status display confirm successful module seating.

The saved program is then downloaded from the programming terminal to the new memory module. Before returning the system to RUN mode, I/O forcing should be used to verify that all critical output channels respond correctly and that input signal states match field device conditions. This step is particularly important in safety-critical applications such as emergency shutdown (ESD) systems, where an incorrect output state during startup could trigger a process trip.

For facilities managing multiple PLC-5 cabinets, a standardized replacement checklist that includes battery inspection, power supply output verification, backplane cleaning, and communication cable integrity testing will significantly reduce the risk of secondary faults following a memory module replacement. NINERMAS supplies the 1785-V80B with full pre-shipment electrical testing and program compatibility verification, ensuring that the module arrives ready for immediate installation without additional bench testing.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the Allen-Bradley 1785-V80B supplied by NINERMAS?
All 1785-V80B units supplied by NINERMAS carry a 12-month warranty from the date of shipment. This covers manufacturing defects, functional failures under normal operating conditions, and compatibility issues identified during installation. Warranty claims are supported by our technical team at sale@ninermas.com.

Q2: How is the 1785-V80B tested before shipment?
Each unit undergoes electrical continuity testing, memory read/write verification, and backplane interface inspection prior to dispatch. For refurbished units, additional cleaning, contact re-tensioning, and firmware compatibility checks are performed to ensure the module meets OEM functional specifications.

Q3: Is the 1785-V80B compatible with all PLC-5 processor variants?
The 1785-V80B is designed for use with higher-capacity PLC-5 processors including the PLC-5/40, PLC-5/60, and PLC-5/80. Compatibility with specific processor firmware revisions should be confirmed against the Rockwell Automation product compatibility matrix. NINERMAS technical support can assist with compatibility verification prior to purchase.

Q4: Can NINERMAS provide long-term supply of the 1785-V80B for ongoing maintenance programs?
Yes. NINERMAS maintains inventory of the 1785-V80B and related PLC-5 series spare parts to support long-term maintenance contracts and annual overhaul programs. Blanket purchase orders and scheduled delivery arrangements are available for facilities requiring guaranteed supply continuity. Contact sale@ninermas.com or +0086 187 5021 5667 to discuss your procurement requirements.
