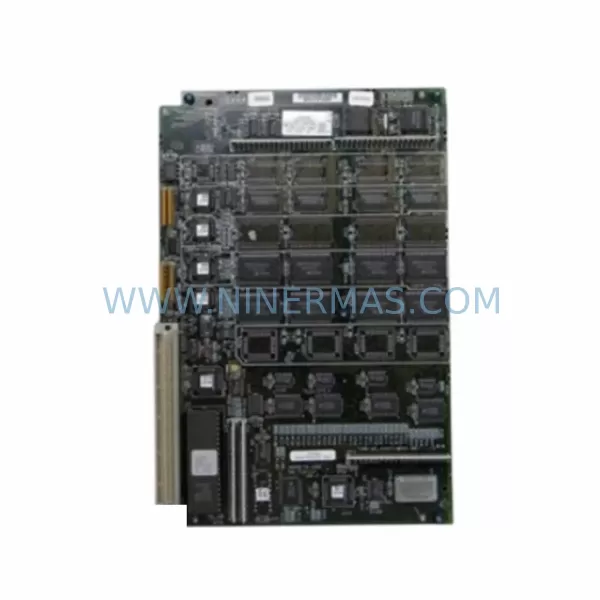

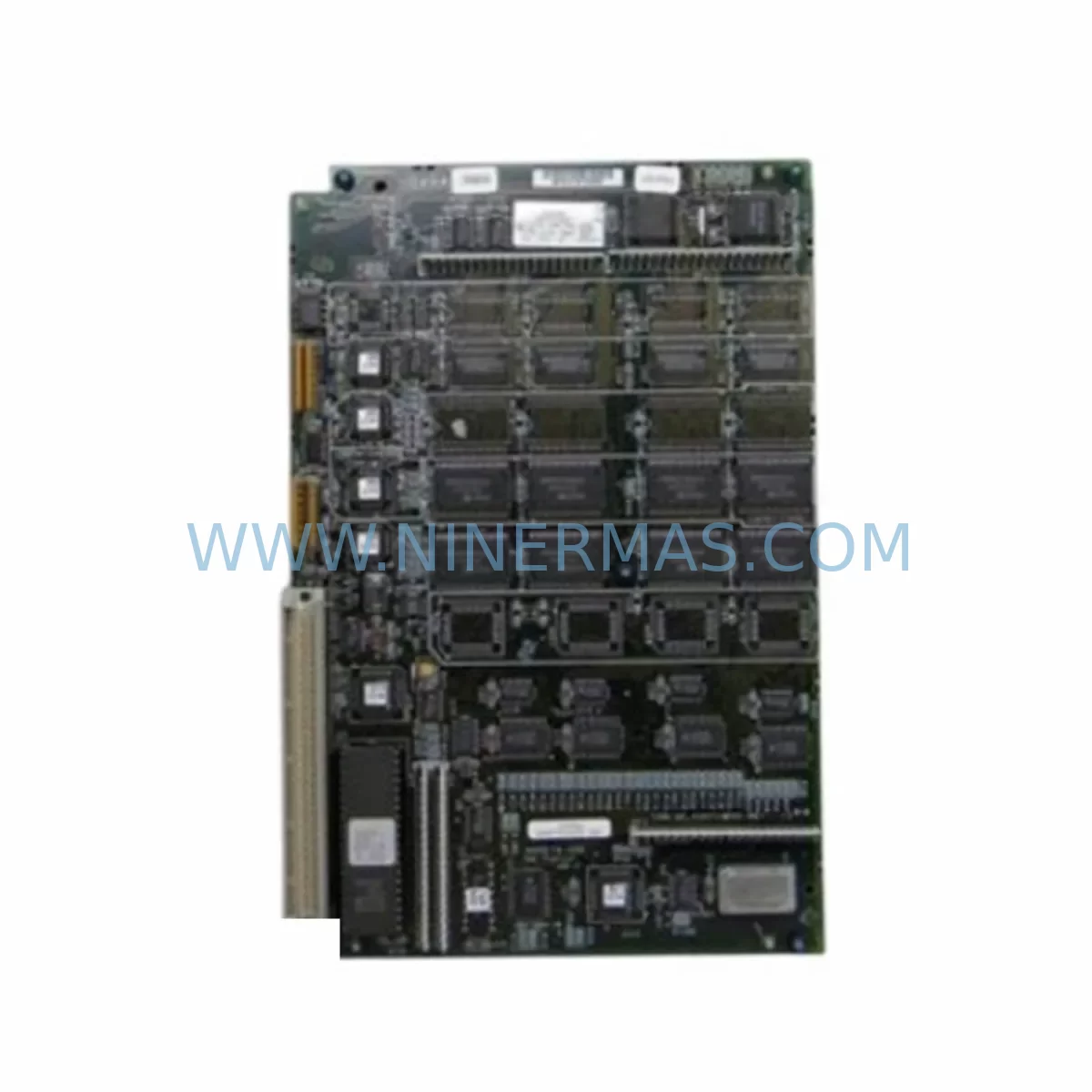

The GE Fanuc IC697MEM735B is a 35KB RAM/Flash memory module designed for the Series 90-70 programmable logic controller platform — one of the most widely deployed industrial control architectures in process manufacturing, power generation, and heavy industry. As GE Fanuc has discontinued active production of the IC697MEM735B, facilities running legacy Series 90-70 racks face increasing pressure to source verified retrofit-compatible replacements that preserve existing ladder logic, I/O mapping, and HMI configurations without triggering a full system overhaul.

NINERMAS supplies the IC697MEM735B as a retrofit-compatible spare, pre-tested against Series 90-70 backplane specifications and validated for compatibility with the IC697CPU731, IC697CPU771, and IC697CPU782 processor modules. Each unit ships with a 12-month warranty and full pre-shipment functional testing documentation, giving maintenance engineers the confidence to proceed with planned or emergency replacements on critical production lines.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the IC697MEM735B in an active production environment requires careful pre-planning across several interdependent system layers. The memory module sits at the heart of the Series 90-70 control architecture, holding the user program, data tables, and configuration blocks that govern every downstream I/O operation. Before initiating a swap, engineers should use the IC697CBL500 programmer cable or equivalent SNP-X interface to create a verified backup of the existing program to an offline workstation running Logicmaster 90-70 or Proficy Machine Edition.

The Series 90-70 rack chassis — whether a 9-slot IC697CHS750, 12-slot IC697CHS782, or 16-slot IC697CHS790 — must be inspected for available slot capacity and backplane integrity. Corroded VME connectors or bent backplane pins are a common cause of intermittent memory faults in aging installations and should be addressed before the new IC697MEM735B is seated. The IC697PWR711 or IC697PWR724 power supply rail voltage should be verified under load, as degraded capacitors in aging power supplies can cause memory corruption during write cycles.

Discrete and analog I/O modules — including the IC697MDL340 16-point DC input module, IC697MDL341 32-point DC input, IC697MDL940 relay output module, and IC697ALG230 analog input module — do not require reconfiguration following a memory module replacement, provided the program backup is restored correctly. However, engineers should confirm that module addresses in the I/O configuration table match the physical rack slot assignments before going online.

For facilities that have integrated Genius Bus I/O drops via the IC697BEM731 Bus Controller, the Genius block addresses and drop numbers stored in the CPU configuration must be verified against the restored program. Any mismatch between the stored configuration and the physical Genius network topology will prevent the CPU from entering RUN mode. Similarly, if the control system communicates upstream to a SCADA or DCS via the IC697CMM711 or IC697CMM741 communications module, the SNP or SNP-X link parameters should be confirmed after program reload to ensure uninterrupted data exchange.

Where the Series 90-70 system interfaces with a GE Cimplicity or iFIX HMI station, the tag database and screen logic remain unaffected by the memory module replacement — the HMI communicates with the CPU, not the memory module directly. However, a brief CPU restart during the swap will interrupt the OPC or SRTP communication link, so operators should be notified and the HMI placed in manual override mode during the changeover window.

Downtime Control During System Migration

Minimizing unplanned downtime during an IC697MEM735B replacement is achievable with structured pre-work. The most effective approach is to schedule the swap during a planned maintenance window, with the replacement module bench-tested and the program backup verified before the production line is taken offline. A cold-swap procedure — powering down the rack, removing the failed module, seating the replacement, and restoring power — typically takes under 15 minutes for an experienced technician familiar with the Series 90-70 platform.

To protect original program logic, the backup file should be stored in at least two locations: the programming workstation and a removable storage device kept in the control room. If the IC697CPU731 or IC697CPU771 processor supports battery-backed RAM, confirm that the backup battery in the IC697ACC701 battery module is serviceable before relying on it as a secondary program retention mechanism.

For facilities where a cold swap is not acceptable, a parallel commissioning approach can be used: a second Series 90-70 rack pre-loaded with the IC697MEM735B and the verified program is brought online in shadow mode, with I/O connections transferred sequentially to minimize the live control gap. This approach is particularly effective in multi-rack architectures where the IC697BEM731 Genius Bus Controller can be reconfigured to redirect I/O traffic to the standby rack without a full process shutdown.

Post-swap, the CPU should be cycled through STOP → CLEAR → RUN with the program reload confirmed via the programmer interface before handing control back to the operators. All analog loop controllers, PID blocks, and interlock logic should be verified against the pre-swap baseline to confirm that setpoints and permissive conditions have been correctly restored.

Retrofit Support FAQ

Q1: Is the IC697MEM735B a direct drop-in replacement for the IC697MEM713 or IC697MEM717?
Yes. The IC697MEM735B is upward-compatible with lower-capacity Series 90-70 memory modules including the IC697MEM713 and IC697MEM717. The higher memory capacity is fully supported by the IC697CPU731, IC697CPU771, and IC697CPU782 processors. A program re-download is required after installation, as the new module ships blank from the factory.

Q2: What commissioning steps are required after installing the IC697MEM735B?
After seating the module and restoring rack power, connect the programming workstation via the IC697CBL500 cable or SNP-X interface. Use Logicmaster 90-70 or Proficy Machine Edition to download the verified program backup to the new module. Confirm I/O configuration, Genius Bus drop addresses (if applicable), and communication link parameters before placing the CPU in RUN mode. A full I/O force test is recommended before returning the system to automatic control.

Q3: Does NINERMAS provide pre-shipment testing for the IC697MEM735B?
Yes. Every IC697MEM735B unit supplied by NINERMAS undergoes functional pre-shipment testing against Series 90-70 backplane specifications. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q4: What is the typical lead time and stock availability for the IC697MEM735B?
NINERMAS maintains stock of the IC697MEM735B for immediate dispatch. Standard lead time for in-stock units is 3–7 business days for international shipments. For urgent requirements, expedited shipping options are available. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock levels and arrange priority dispatch.
