Allen-Bradley 1785-L60L Retrofit-Compatible PLC for Legacy System Modernization

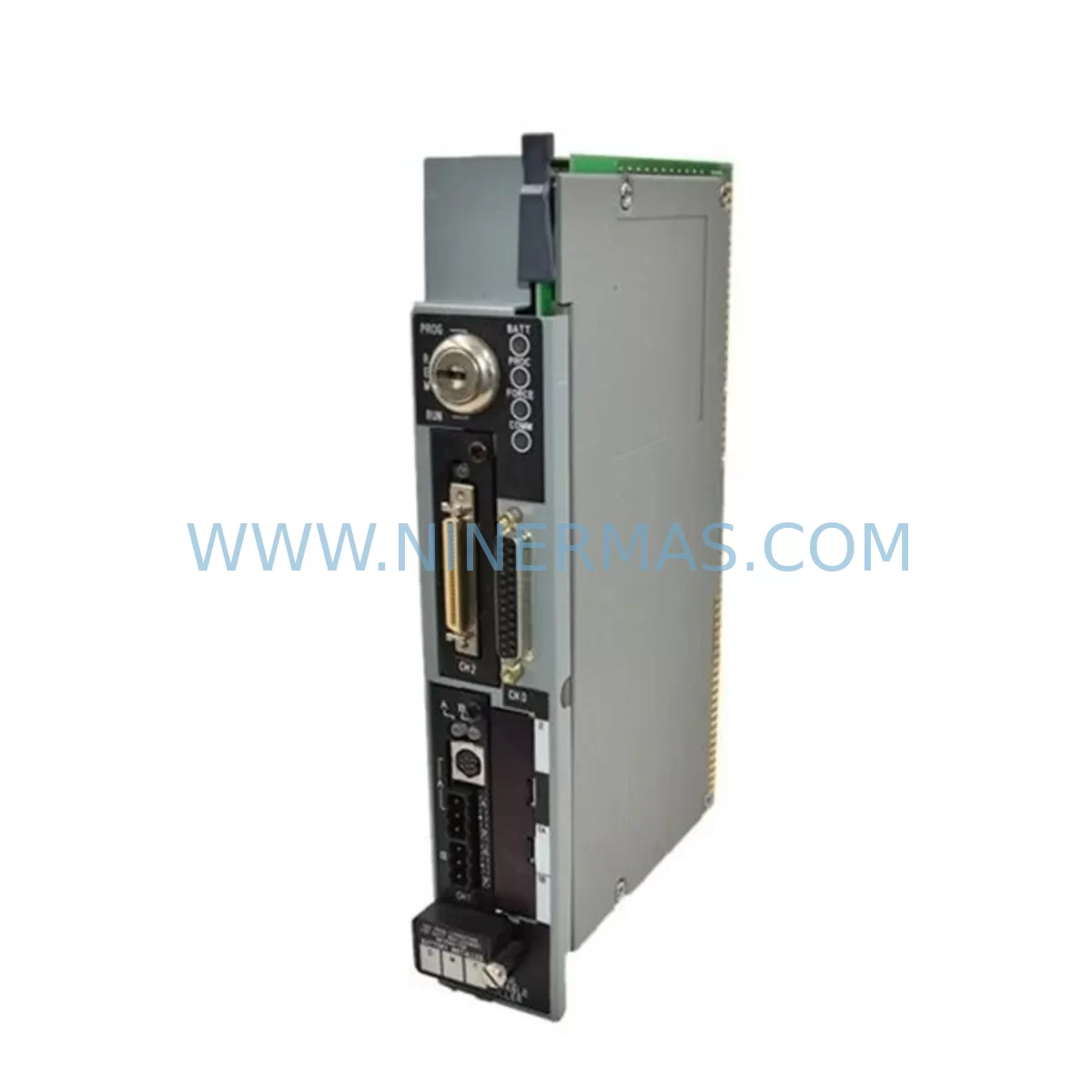

The Allen-Bradley 1785-L60L is a high-capacity PLC-5 series programmable logic controller designed for demanding industrial automation environments. As legacy control systems age and original equipment manufacturers discontinue support, the 1785-L60L remains one of the most sought-after retrofit-compatible units for engineers tasked with modernizing aging production lines without full system replacement. Whether you are managing a brownfield upgrade, replacing a failed controller in a critical process line, or extending the operational life of a PLC-5 platform, the 1785-L60L provides a reliable, drop-in-compatible solution backed by 12 months of warranty coverage.

NINERMAS COMPANY LIMITED maintains verified stock of the 1785-L60L, fully tested prior to shipment, ensuring that your retrofit project proceeds with confidence and minimal unplanned downtime.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 1785-L60L into an existing control architecture begins well before the physical swap. Engineers should start by auditing the current 1771 I/O chassis configuration, documenting every module slot assignment, rack number, and I/O group address. The 1785-L60L supports the full range of 1771-series I/O modules, including analog input modules such as the 1771-IFE and 1771-OFE output modules, discrete input/output modules, and specialty modules for thermocouple or RTD measurement. Confirming that the existing 1771-A4B chassis or equivalent backplane is in serviceable condition is a prerequisite — a degraded backplane connector can introduce intermittent faults that are difficult to diagnose after the controller swap.

Power supply capacity is a critical checkpoint. The 1771-P4S and 1771-P6S power supplies are commonly paired with PLC-5 systems, and the total current draw of all installed I/O modules must remain within the supply’s rated output. If the existing power supply is marginal or showing signs of age, replacing it concurrently with the 1785-L60L controller reduces the risk of a secondary failure shortly after commissioning.

Communication infrastructure must also be evaluated. Many legacy PLC-5 installations rely on Data Highway Plus (DH+) networks to connect multiple controllers, HMI panels, and SCADA systems. The 1785-L60L’s onboard DH+ port maintains full compatibility with this topology, allowing existing 1784-KTX or 1784-PCMK programming adapters to remain in service. Where facilities are migrating toward Ethernet/IP, a 1761-NET-ENI or equivalent serial-to-Ethernet converter can bridge the 1785-L60L’s DF1 RS-232 port to a modern network without requiring a full platform migration to ControlLogix or CompactLogix at this stage.

HMI compatibility is another area requiring pre-migration verification. PanelView terminals communicating over DH+ — such as the PanelView 550 or PanelView 900 — will continue to operate without screen redesign, provided the data table addresses referenced in the HMI application match those in the restored or migrated PLC program. If the HMI application references specific controller node addresses, confirm the 1785-L60L is assigned the same DH+ node number as the unit being replaced.

For facilities managing multiple PLC-5 controllers across a production line, the 1785-L60L retrofit can be staged to minimize disruption. Controllers governing non-critical auxiliary functions can be upgraded first, allowing the maintenance team to validate the process before tackling primary process controllers. Signal isolators and terminal block assemblies — such as those from the 1492-series wiring systems — should be inspected and replaced if insulation degradation is detected, as aging field wiring is a common source of post-retrofit nuisance faults.

Downtime Control During System Migration

Minimizing unplanned downtime during a PLC-5 controller replacement requires a structured pre-outage preparation protocol. Before the scheduled maintenance window, the existing 1785-L60L (or its predecessor) program should be fully backed up using RSLogix 5, with the .RSS file archived to at least two separate storage locations. Documenting the current processor status file, including I/O configuration, data table values, and communication settings, provides a recovery baseline if commissioning issues arise.

During the physical swap, the replacement 1785-L60L should be pre-configured offline — node address set, memory module (if applicable, such as a 1785-MJ or 1785-ME EEPROM module) loaded with the verified program, and communication parameters confirmed — so that the in-chassis installation and program download can be completed within the allocated outage window. Pre-staging the controller on a bench with a 1771 chassis simulator or a spare rack significantly reduces the time the production line remains offline.

After installation, a structured commissioning sequence should be followed: verify power supply output voltage under load, confirm all I/O module status indicators, perform a controlled program download via RSLogix 5, and execute a step-by-step I/O force test before returning the system to automatic mode. Where the process permits, a partial restart — bringing up auxiliary systems before main process drives — allows the team to validate control logic in stages rather than committing to a full-line restart simultaneously.

Maintaining a documented rollback plan, including the original program backup and a spare controller if available, ensures that any unexpected compatibility issue can be resolved without extended production loss. NINERMAS ships all 1785-L60L units with pre-shipment functional testing documentation, reducing the risk of receiving a non-functional unit during a time-critical retrofit.

Retrofit Support FAQ

Q: Is the 1785-L60L a direct drop-in replacement for the 1785-L40L or 1785-L80L?
A: The 1785-L60L occupies the same single-slot form factor in a standard 1771 chassis and uses the same backplane interface, making it mechanically compatible with other PLC-5 family members. The primary difference is memory capacity — 60K words versus 40K or 80K. If migrating from a 1785-L40L, confirm the existing program and data tables fit within 60K words. If replacing a 1785-L80L, note that program size may need to be reduced or the application restructured.

Q: What programming cable and software are required to download a program to the 1785-L60L?
A: RSLogix 5 (or the legacy 6200 Series software) is required for programming. Connection is made via the controller’s RS-232 DF1 port using a standard serial cable, or via the DH+ port using a 1784-KTX, 1784-PCMK, or 1784-U2DHP USB-to-DH+ adapter. Ensure the RSLogix 5 software version supports the 1785-L60L processor type before attempting a download.

Q: How is pre-shipment testing performed, and what does the 12-month warranty cover?
A: Every 1785-L60L unit supplied by NINERMAS undergoes functional power-on testing and communication port verification prior to dispatch. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. Units that fail during the warranty period are repaired or replaced at no charge. Warranty claims are processed through sale@ninermas.com.

Q: Can the 1785-L60L communicate with modern Ethernet/IP devices without a full platform upgrade?
A: Yes. While the 1785-L60L does not have a native Ethernet/IP port, protocol conversion modules such as the 1761-NET-ENI (serial to Ethernet) or third-party DH+-to-Ethernet gateways can bridge the controller to Ethernet/IP networks. This approach allows facilities to integrate the PLC-5 platform with modern SCADA systems, MES layers, or Ethernet-connected I/O without migrating to a ControlLogix or CompactLogix platform until operationally convenient.
