Allen-Bradley 1769-L36ERMS/A Spare Part for Industrial Maintenance

Allen-Bradley 1769-L36ERMS/A Spare Part for Industrial Maintenance

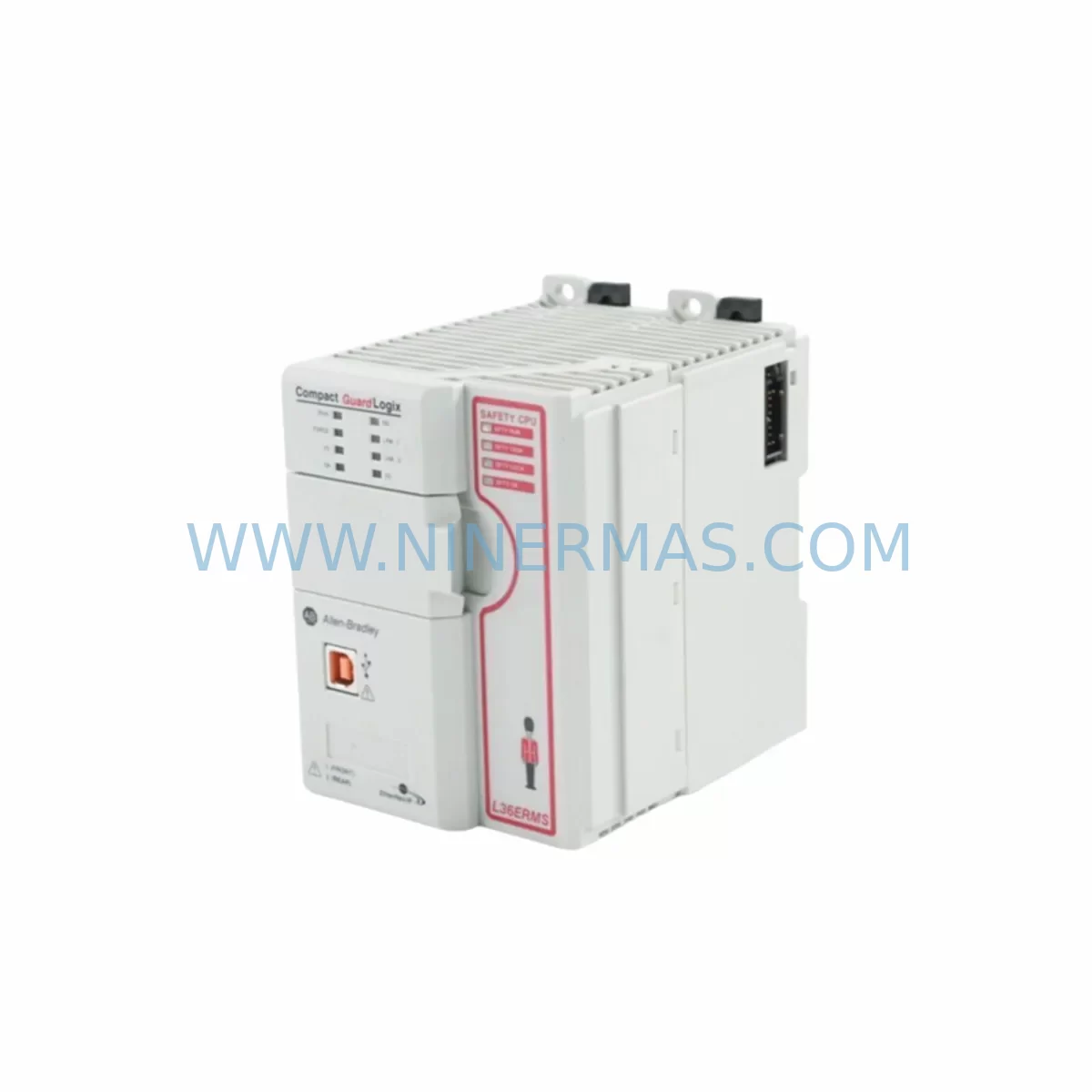

The Allen-Bradley 1769-L36ERMS/A is a CompactLogix Safety Programmable Logic Controller (Safety PLC) designed for integrated safety and standard control within a single controller platform. As a critical spare part for industrial maintenance teams, the 1769-L36ERMS/A supports CIP Safety protocol over EtherNet/IP, enabling seamless integration into existing safety-rated control architectures without requiring a separate safety controller. For maintenance engineers managing aging CompactLogix installations, stocking this controller as a verified spare is a fundamental risk-reduction strategy against unplanned downtime caused by controller failure, firmware corruption, or hardware degradation in high-cycle production environments.

The 1769-L36ERMS/A features 2 MB of user memory, 36 I/O slots via the 1769 Compact I/O bus, and dual EtherNet/IP ports for Device Level Ring (DLR) topology support — a key advantage in facilities where network redundancy is required for continuous operation. Its integrated safety functions eliminate the need for a dedicated safety relay module in many applications, reducing cabinet footprint and simplifying the safety loop architecture. For procurement engineers, sourcing a pre-tested, original spare of this controller ensures that emergency replacement can be completed within a single maintenance window rather than waiting weeks for lead-time delivery from distribution channels.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When planning a maintenance strategy around the 1769-L36ERMS/A, experienced maintenance engineers understand that the controller does not operate in isolation — it is the nerve center of a broader control cabinet ecosystem. A failure or scheduled replacement of this safety PLC should trigger a systematic inspection of all interconnected components to prevent secondary failures and ensure the restored system meets its original safety integrity level.

The 1769-PA4 or 1769-PB4 power supply modules are the first components to inspect during any 1769-L36ERMS/A replacement. These units provide regulated 24 VDC to the controller and I/O bus; a degraded power supply with output ripple or voltage sag can cause erratic controller behavior that mimics a controller fault. Alongside the power supply, the 1769-ECR end cap and bus connectors should be checked for oxidation or mechanical stress, as poor bus continuity is a common root cause of intermittent I/O faults in aging CompactLogix systems.

Digital and analog I/O modules such as the 1769-IQ16 (16-point 24 VDC digital input) and 1769-OF4 (4-channel analog output) should be verified for correct addressing and signal integrity after controller replacement, since firmware differences between controller revisions can occasionally affect I/O tree configuration. For safety-rated I/O, the 1791DS-IB8XOBV4 safety I/O module should be re-validated against the safety task configuration to confirm that all safety connections are re-established correctly after the controller swap.

Communication infrastructure also warrants attention. The 1783-ETAP EtherNet/IP tap or managed switches supporting DLR topology should be confirmed operational, as a ring break during controller replacement can isolate downstream devices. If the system uses 1769-L36ERMS/A in conjunction with a PanelView Plus 7 HMI terminal, the HMI application should be verified for correct tag binding after the controller is restored, particularly for safety-tagged objects that reference the safety task.

For facilities running legacy installations, the 1747-SN Remote I/O scanner or 1756-DNB DeviceNet bridge modules may be present in adjacent racks. These should be inspected for firmware compatibility with the replacement controller revision. Additionally, signal isolators such as the MTL5041 or equivalent Zener barrier modules in intrinsically safe loops connected to the 1769 I/O bus should be tested for correct signal pass-through after the controller is powered up, as ground faults in IS loops can trigger nuisance safety faults on the new controller.

Procurement engineers should consider maintaining a minimum of one spare 1769-L36ERMS/A unit per production line, supplemented by a documented bill of materials covering the associated power supply, end caps, and critical I/O modules. This approach reduces mean time to repair (MTTR) from days to hours and eliminates the risk of sourcing counterfeit or untested units under emergency conditions.

Site Replacement Workflow

Replacing the Allen-Bradley 1769-L36ERMS/A in a live production environment requires a structured workflow to minimize downtime and maintain safety system integrity. The following procedure reflects best practices for maintenance engineers performing a like-for-like controller swap:

Step 1 — Pre-Replacement Preparation: Export the current controller program from Studio 5000 Logix Designer and verify the backup against the last known-good revision in your document control system. Confirm the firmware revision of the replacement unit matches the installed unit, or plan for a controlled firmware upgrade as part of the maintenance window. Download the safety task signature and record the SNN (Safety Network Number) for re-validation after replacement.

Step 2 — Safe Isolation: Follow your site’s Lockout/Tagout (LOTO) procedure to de-energize the control cabinet. Verify zero energy state on all power rails before disconnecting the controller. Label all EtherNet/IP cables and USB programming connections before removal to ensure correct reconnection.

Step 3 — Physical Replacement: Remove the 1769-L36ERMS/A from the DIN rail, taking care not to disturb adjacent I/O modules on the 1769 bus. Install the replacement unit and verify the bus connector seating. Reconnect all labeled cables in sequence.

Step 4 — Program Restore and Safety Validation: Download the verified program backup to the replacement controller. Restore the safety task and re-establish the safety network number. Perform a full safety validation test per your site’s functional safety management plan before returning the system to automatic mode. Confirm all safety connections show “Running” status in the safety task monitor.

Step 5 — Commissioning Verification: Cycle all I/O points, verify HMI tag communication, and confirm EtherNet/IP DLR ring health before releasing the system to production. Document the replacement in your maintenance management system (CMMS) with the new unit’s serial number and firmware revision.

This structured approach ensures that the replacement of the 1769-L36ERMS/A does not introduce new failure modes and that the restored system meets its original safety integrity requirements from the first production cycle.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the 1769-L36ERMS/A supplied by NINERMAS?
All 1769-L36ERMS/A units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Each unit undergoes a full power-on functional test and verification procedure before shipment. Warranty claims are supported with replacement or repair, and our technical team provides remote guidance for installation and commissioning issues within the warranty period.

Q2: How do I verify compatibility between the replacement 1769-L36ERMS/A and my existing CompactLogix system?
Compatibility is primarily determined by firmware revision and the Studio 5000 Logix Designer version used to develop your application. NINERMAS provides the firmware revision of each unit prior to shipment so you can confirm compatibility before the unit arrives on site. For safety-rated applications, the safety task signature and SNN must be re-validated after replacement — our technical team can advise on this process for your specific installation.

Q3: Can NINERMAS support long-term supply of the 1769-L36ERMS/A for multi-year maintenance contracts?
Yes. NINERMAS operates a long-term spare parts supply program specifically designed for industrial facilities with extended asset lifecycles. We maintain stock commitments for critical Allen-Bradley CompactLogix components and can support blanket purchase orders, scheduled delivery programs, and priority allocation for contracted customers. Contact our sales team at sale@ninermas.com to discuss your annual consumption requirements and lead-time expectations.

Q4: What pre-shipment testing is performed on each 1769-L36ERMS/A unit?
Every unit undergoes a documented pre-shipment test protocol that includes: power-on verification, firmware revision confirmation, EtherNet/IP port communication test, and visual inspection for physical damage or connector wear. Units that do not pass all test criteria are quarantined and not dispatched. Test records are available upon request for quality assurance documentation purposes.
