Allen-Bradley 1785-L40C15/F Retrofit PLC for Legacy Systems

Allen-Bradley 1785-L40C15/F Retrofit-Compatible PLC for Legacy System Modernization

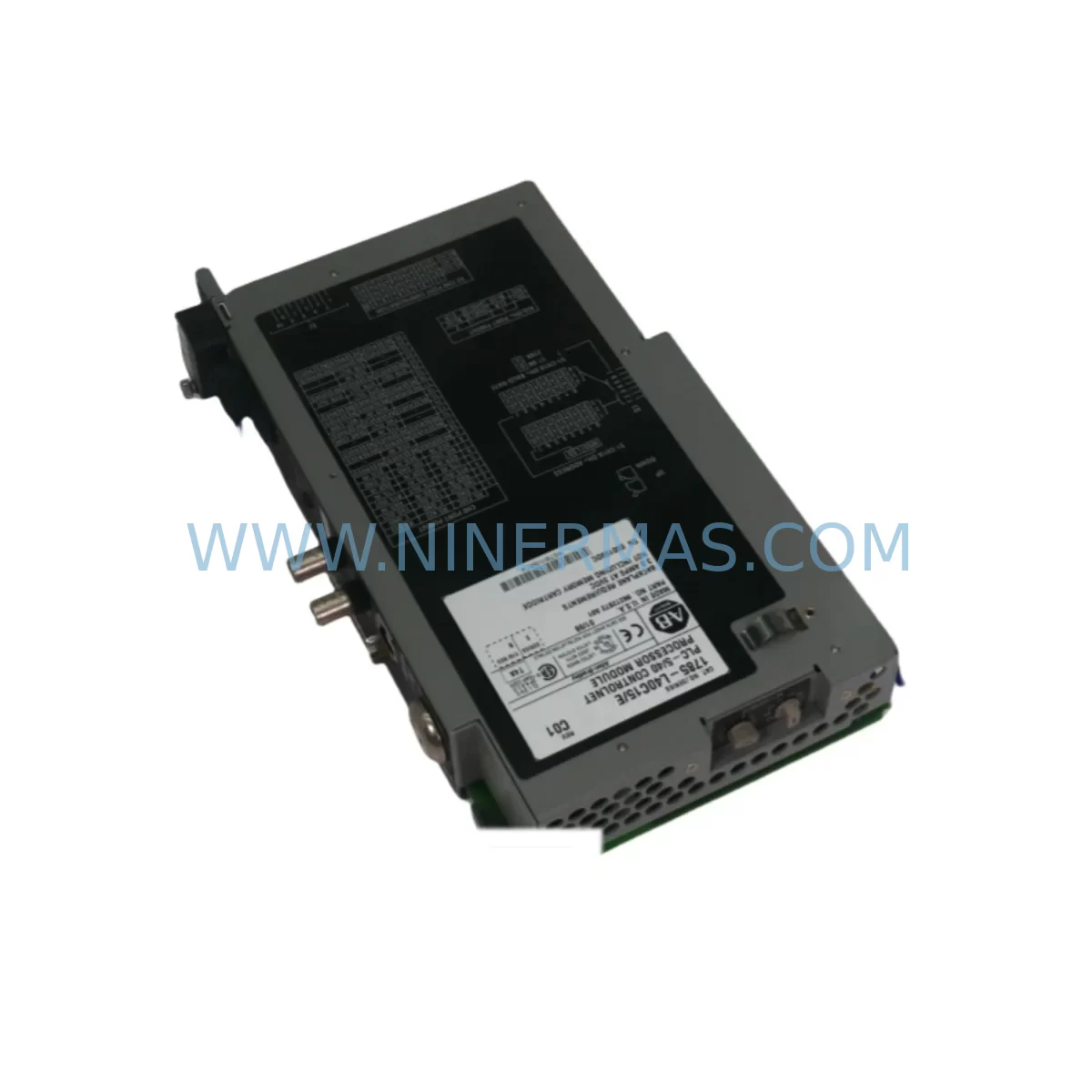

The Allen-Bradley 1785-L40C15/F is a PLC-5 series programmable logic controller designed for demanding industrial automation environments. As legacy control systems age and original spare parts become increasingly scarce, the 1785-L40C15/F remains one of the most sought-after retrofit-compatible controllers for facilities that need to maintain operational continuity without committing to a full platform migration. Whether you are managing a brownfield upgrade, replacing a discontinued module in an existing control cabinet, or extending the service life of a legacy production line, this unit provides a reliable, verified path forward.

NINERMAS maintains verified stock of the 1785-L40C15/F and subjects every unit to pre-shipment functional testing to confirm processor operation, backplane communication integrity, and I/O channel response. Each unit ships with a 12-month warranty covering hardware defects and operational failures under normal industrial use conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 1785-L40C15/F into an existing control system begins well before the physical swap. Engineers should start by auditing the current rack configuration, which typically includes a 1771-series chassis such as the 1771-A4B, a 1771-P4S power supply module, and a combination of analog and digital I/O modules such as the 1771-OAD output module or 1771-IFE analog input module. Confirming that the existing power supply can support the processor’s current draw is a critical first step that is frequently overlooked during emergency replacements.

The 1785-L40C15/F communicates natively over the Data Highway Plus (DH+) network, which means existing 1784-KTX or 1784-PCMK programming cables can be used to connect a laptop running RSLogix 5 for program upload, verification, and download. If the facility uses a PanelView 550 or PanelView 900 HMI terminal connected via DH+, the communication link should be verified after processor replacement to ensure tag addressing and screen navigation remain intact.

For systems that include Remote I/O adapters — such as the 1771-ASB adapter — the remote rack configuration must be confirmed against the processor’s I/O configuration table. Any mismatch in rack number or starting group address will cause I/O faults at startup. Similarly, if the control system includes a 1785-CHBM communication module for ControlNet or a 1785-KA5 DH+ link coupler, these modules should be inspected and their firmware versions noted before the processor is replaced.

Where the retrofit involves migrating from an older 1785-L40B or 1785-L40E processor to the /F revision, engineers should review the revision-specific release notes for any changes in instruction set behavior, particularly for PID, sequencer, and message instructions that interact with remote devices. Program logic that uses the MSG instruction to communicate with remote PLC-5 or SLC 500 processors over DH+ should be tested in a controlled environment before live commissioning.

Downtime Control During System Migration

Minimizing unplanned downtime during a processor swap requires a structured pre-outage checklist. Before taking the system offline, the existing program should be uploaded and saved in at least two separate locations — one on the engineering workstation and one on removable media or a network share. The I/O force table should be reviewed and all active forces documented, as these are not retained in the standard program file and must be re-applied manually after the replacement processor is initialized.

During the physical swap, the 1785-L40C15/F should be installed into the same slot position as the outgoing processor to preserve backplane addressing. After seating the module, the power supply should be cycled and the processor allowed to complete its self-diagnostic routine before the program is downloaded. The processor’s keyswitch should remain in the PROG position during download and initial I/O verification.

Once the program is loaded and the I/O map is confirmed, the system should be brought up in a controlled sequence — energizing remote I/O racks before enabling output modules, and verifying each control loop individually before returning the line to automatic mode. For facilities with safety-critical interlocks, a functional test of each interlock circuit should be completed and documented before the system is handed back to operations. This structured approach consistently reduces total migration downtime to under four hours for single-rack PLC-5 systems.

Retrofit Support FAQ

Q: Is the 1785-L40C15/F a direct drop-in replacement for earlier PLC-5/40 revisions?
A: In most cases, yes. The /F revision is mechanically and electrically compatible with the same 1771-series chassis used by earlier revisions. However, you should verify that your RSLogix 5 software version supports the /F revision and that any revision-specific instruction behaviors are reviewed before going live.

Q: What pre-shipment testing does NINERMAS perform on this unit?
A: Every 1785-L40C15/F unit undergoes processor power-on verification, backplane communication testing, and channel-level I/O response checks before shipment. A test report is available upon request.

Q: Can this processor communicate with SLC 500 controllers or ControlLogix systems on the same network?
A: The 1785-L40C15/F supports DH+ and Remote I/O natively. Communication with SLC 500 controllers over DH+ is supported using MSG instructions. ControlLogix integration typically requires a 1756-DHRIO bridge module on the ControlLogix side to bridge the DH+ network.

Q: What is the warranty coverage and what does it include?
A: NINERMAS provides a 12-month warranty from the date of shipment. Coverage includes hardware defects and operational failures under normal industrial operating conditions. Warranty claims are processed directly through our technical support team at sale@ninermas.com.
