Allen-Bradley 1762-L40BXB Safety-Reliable PLC for Critical Control

Allen-Bradley 1762-L40BXB Safety-Reliable PLC for Critical Control Sites

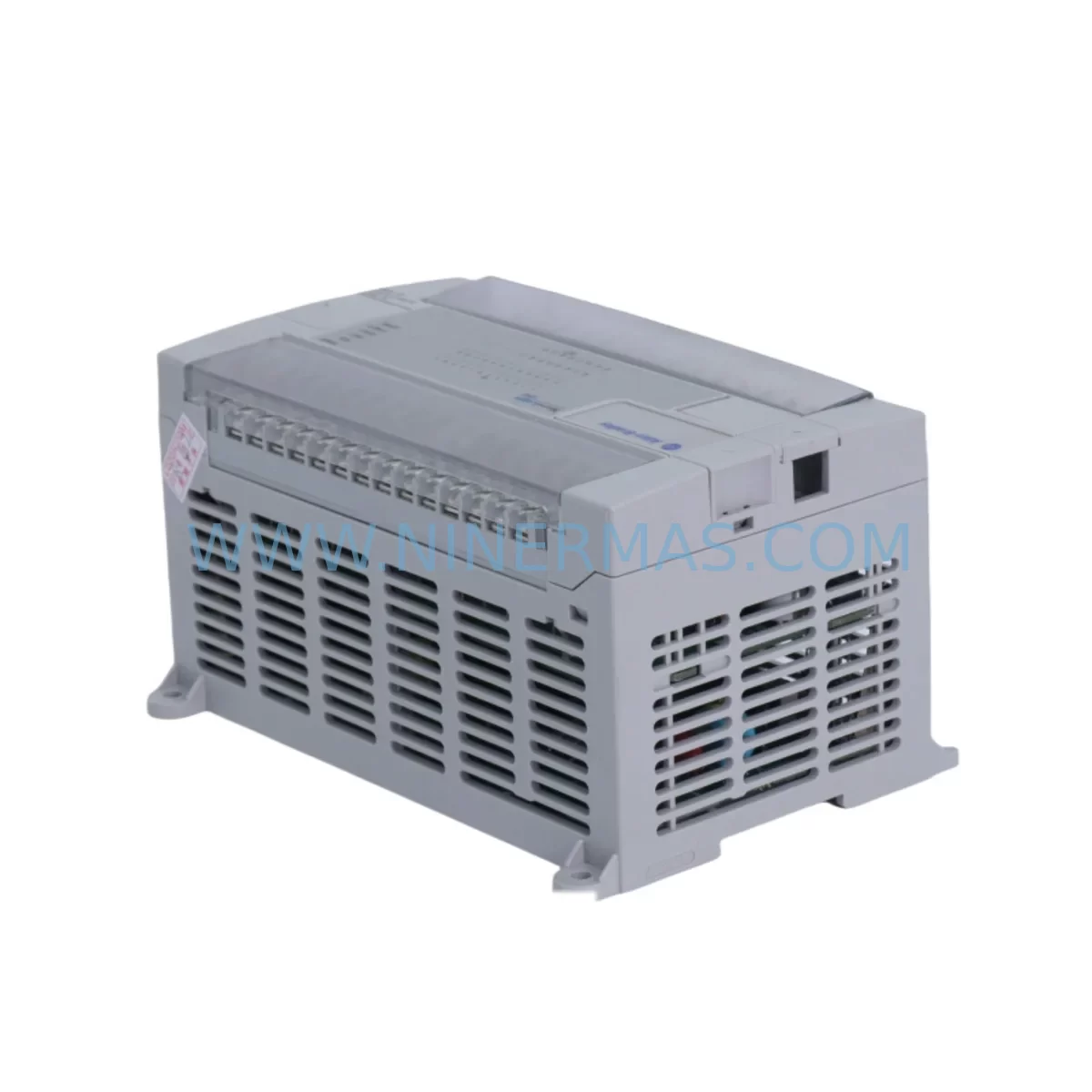

The Allen-Bradley 1762-L40BXB is a MicroLogix 1100 series programmable logic controller engineered for demanding industrial environments where control continuity, safety reliability, and uninterrupted operation are non-negotiable. With 40 discrete I/O points, onboard Ethernet/IP communication, and a ruggedized design rated for wide temperature ranges and high-vibration conditions, the 1762-L40BXB is purpose-built to anchor critical control cabinets in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical processing lines, port logistics systems, and continuous manufacturing environments.

At NINERMAS, every 1762-L40BXB unit undergoes full outgoing inspection and functional verification before shipment, backed by a 12-month warranty and long-term supply commitment — ensuring your spare parts strategy and planned maintenance schedules are never compromised.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In critical control cabinets serving continuous production lines, a single point of failure in the PLC layer can cascade into unplanned shutdowns, safety interlock failures, and costly process upsets. The 1762-L40BXB addresses this risk through a combination of robust hardware design and flexible communication architecture.

For power supply stability, the 1762-L40BXB operates on a clean 24V DC rail. Pairing it with a Phoenix Contact QUINT-PS/1AC/24DC/10 or a Siemens SITOP PSU100S power supply unit ensures regulated, surge-protected power delivery to the controller and its connected 1762-IQ16 digital input expansion modules. In environments with significant voltage transients — common in heavy motor-drive applications — adding a PHOENIX CONTACT VAL-MS 24DC/1+1 surge protection device upstream of the PLC power input dramatically reduces the risk of controller reset or memory corruption caused by power line surges.

On the output side, the relay outputs of the 1762-L40BXB are well-suited for direct control of safety relays such as the Pilz PNOZ X3 or the Schneider Electric XPSAC safety relay modules, enabling the PLC to participate in Category 3 or Category 4 safety circuits without requiring a dedicated safety PLC for lower-risk interlock applications. For higher-integrity safety loops, the 1762-L40BXB can serve as the standard control layer while a dedicated safety controller — such as the Allen-Bradley GuardLogix 5570 — handles the SIL-rated safety functions in parallel, with both systems sharing process data over Ethernet/IP.

Communication reliability is further enhanced when the 1762-L40BXB is integrated with a managed industrial Ethernet switch such as the Hirschmann RS20 or the Cisco IE-2000 series, which provide PROFINET-compatible ring redundancy and port-level diagnostics. In high-EMI environments — such as those near variable frequency drives (VFDs), arc furnaces, or large transformer banks — shielded Cat6 cabling and proper cabinet grounding practices are essential to prevent signal drift and communication timeouts on the Ethernet/IP port.

For analog signal integrity in process control applications, the 1762-L40BXB pairs naturally with the 1762-IF4 analog input module, which provides 4-channel 4–20mA or 0–10V input capability with 12-bit resolution. Proper shielding of analog wiring, combined with the use of signal isolators such as the Phoenix Contact MCR-SL-I-I series, prevents ground loop interference from corrupting pressure, temperature, or flow transmitter signals — a common cause of nuisance alarms and false trips in process plants.

In dusty, humid, or chemically aggressive environments, the control cabinet housing the 1762-L40BXB should be rated to at least IP54, with positive-pressure purging or desiccant breathers to prevent moisture ingress. Conformal coating of expansion modules such as the 1762-OW16 relay output module provides an additional layer of protection against condensation and corrosive atmospheres found in coastal, mining, or chemical processing installations.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: The 1762-L40BXB is deployed in wellhead control panels, compressor station automation, and emergency shutdown (ESD) pre-logic systems where reliable discrete I/O scanning and fast Ethernet/IP communication to SCADA systems are essential. Its wide operating temperature range and vibration tolerance make it suitable for outdoor skid-mounted control panels in upstream oil and gas applications.

Power Generation & Substation Automation: In coal-fired, gas turbine, and hydroelectric power plants, the 1762-L40BXB controls auxiliary systems including cooling water pumps, lubrication oil systems, and fuel gas conditioning skids. Its EMI immunity is critical in environments with high-voltage switching transients from circuit breakers and bus bars.

Mining & Mineral Processing: Underground and surface mining operations rely on the 1762-L40BXB for conveyor belt interlocking, crusher control, and ventilation fan management. The controller’s ability to operate in high-dust, high-vibration conditions — combined with its onboard diagnostics display — reduces the need for specialist engineers to be on-site for routine fault diagnosis.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the 1762-L40BXB to automate dosing pump control, UV disinfection systems, and lift station management. Its Ethernet/IP connectivity enables seamless integration with plant-wide SCADA platforms, supporting remote monitoring and alarm management for unmanned or lightly staffed installations.

Metallurgy & Steel Manufacturing: In rolling mills, continuous casting lines, and heat treatment furnaces, the 1762-L40BXB manages auxiliary control functions including cooling water flow, hydraulic pressure regulation, and furnace atmosphere control. Its relay outputs provide direct interface to high-current contactors and motor starters without the need for intermediate relay panels.

Port Logistics & Marine Applications: Ship-to-shore crane control systems, automated stacking cranes, and vessel loading arms benefit from the 1762-L40BXB’s compact form factor and robust communication capabilities. In marine environments, the controller is typically installed in climate-controlled, IP65-rated enclosures to protect against salt spray and humidity.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the Allen-Bradley 1762-L40BXB?
All 1762-L40BXB units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly, with replacement units dispatched from stock to minimize your downtime.

Q2: What outgoing inspection and testing is performed before shipment?
Every 1762-L40BXB undergoes a full functional test prior to dispatch, including power-on verification, I/O point continuity checks, communication port validation, and firmware version confirmation. A test report is available upon request for critical spare parts orders.

Q3: Is the 1762-L40BXB compatible with existing MicroLogix 1100 expansion modules and RSLogix 500 programming software?
Yes. The 1762-L40BXB is fully compatible with the entire 1762-series expansion I/O range — including the 1762-IQ16, 1762-OW16, 1762-IF4, and 1762-OF4 — and is programmed using Rockwell Automation’s RSLogix 500 or Studio 5000 Logix Designer (via legacy compatibility mode). Existing programs from other MicroLogix 1100 variants can be transferred with minimal modification.

Q4: Can NINERMAS support long-term supply and replacement for the 1762-L40BXB?
Yes. NINERMAS maintains dedicated stock of the 1762-L40BXB and key MicroLogix 1100 series components to support planned maintenance, emergency replacement, and capital project procurement. We provide consistent supply with stable lead times, making us a reliable partner for your spare parts management and plant lifecycle programs.
