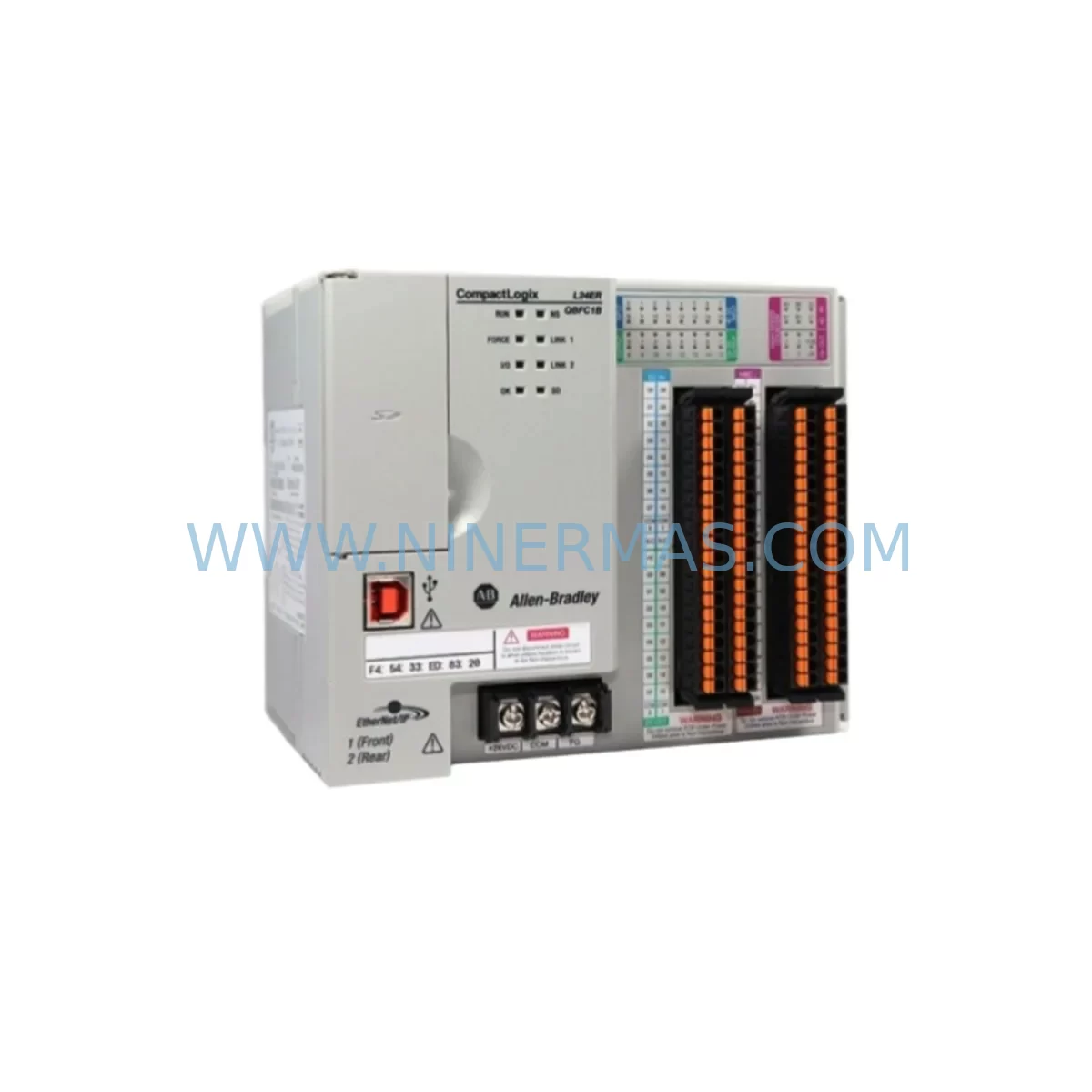

Allen-Bradley 1769-L24ER-QBFC1BK Retrofit-Compatible Controller

Allen-Bradley 1769-L24ER-QBFC1BK Retrofit-Compatible Controller for Legacy CompactLogix Systems

The Allen-Bradley 1769-L24ER-QBFC1BK is a CompactLogix 5370 L2 controller designed for seamless integration into existing 1769 Series control architectures. As a retrofit-compatible replacement for aging or discontinued CompactLogix L2x controllers, this unit supports EtherNet/IP dual-port communication, onboard I/O, and a compact form factor that fits directly into existing control cabinet layouts without requiring structural modifications. For facilities managing legacy automation infrastructure across processing, packaging, or material handling lines, the 1769-L24ER-QBFC1BK provides a validated upgrade path that preserves existing program logic, terminal wiring, and HMI screen configurations.

When planning a retrofit around the 1769-L24ER-QBFC1BK, engineers must verify power supply capacity within the existing 1769 backplane. The controller draws from the local bus, and the existing 1769-PA2 or 1769-PB2 power supply must be confirmed to support the combined load of the controller and any attached 1769 I/O modules such as the 1769-IQ16, 1769-OB16, or 1769-IF4. Terminal wiring from existing field devices typically carries over without modification, provided the I/O module types and channel assignments remain consistent with the original configuration.

Backplane interface compatibility is a critical checkpoint. The 1769-L24ER-QBFC1BK uses the standard 1769 side-mount bus connector, allowing it to interface directly with existing 1769 expansion modules. Module addressing must be re-verified in Studio 5000 Logix Designer after controller replacement, particularly if the original system was programmed under RSLogix 5000 on an earlier firmware revision. Program files exported from the legacy controller should be reviewed for any deprecated instructions or motion axis references that may require re-mapping before download.

The dual-port EtherNet/IP interface on the 1769-L24ER-QBFC1BK supports Device Level Ring (DLR) topology, which is a significant upgrade over earlier single-port L2 controllers. During migration, the existing network switch configuration and IP address scheme should be documented and preserved. If the legacy system used a 1761-NET-ENI or similar Ethernet bridge adapter, this can be removed once the new controller is online, simplifying the network architecture and reducing potential failure points.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 1769-L24ER-QBFC1BK begins with a thorough audit of the existing control panel. Engineers should document all installed 1769 I/O modules, including analog input modules such as the 1769-IF4 and 1769-IF8, digital output modules such as the 1769-OB32, and specialty modules such as the 1769-HSC high-speed counter. Each module’s slot position, address assignment, and wiring schedule must be captured before the legacy controller is removed.

The 1769-L24ER-QBFC1BK includes onboard analog and digital I/O, which may allow consolidation of some external I/O modules, reducing overall panel complexity. However, where existing field wiring is already terminated on 1769 expansion modules, it is generally more efficient to retain those modules in place and simply replace the controller, minimizing re-wiring time and reducing the risk of wiring errors during the changeover window.

Communication module planning is equally important. If the legacy system included a 1769-L23E-QB1B or similar controller with a single Ethernet port connected to a managed switch, the new dual-port configuration of the 1769-L24ER-QBFC1BK allows for a direct ring connection between devices, eliminating the need for an intermediate switch in some topologies. Any 1769-SDN DeviceNet scanner modules or 1769-ASCII serial communication modules in the existing rack should be evaluated for continued use or replacement with EtherNet/IP-native equivalents.

For systems that include a PanelView Plus 6 or PanelView Plus 7 HMI, the FactoryTalk View ME project must be updated to reflect the new controller’s IP address and communication path. Screen logic, alarm configurations, and tag bindings typically carry over without modification, provided the tag database in the Studio 5000 project is preserved from the original RSLogix 5000 export. Signal isolators and loop-powered transmitters connected to analog input channels should be verified for compatibility with the 1769-IF4 or 1769-IF8 input ranges configured in the new project.

Where the existing system includes a 1747-SLC 5/05 or 1785-PLC-5 controller being migrated to CompactLogix for the first time, a full program translation using the Logix Designer Migration Tool is recommended. In these cases, the 1769-L24ER-QBFC1BK provides sufficient memory and processing capacity to handle translated ladder logic from most mid-size SLC 500 or PLC-5 applications, including timer, counter, PID, and sequencer instructions.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern during any controller replacement on a live production line. For the 1769-L24ER-QBFC1BK retrofit, the recommended approach is to complete all pre-migration tasks offline before the scheduled maintenance window. This includes uploading and archiving the existing controller program, preparing the Studio 5000 project file with verified tag mappings, configuring the new controller’s IP address and EtherNet/IP parameters, and staging the replacement unit with a pre-tested firmware version.

During the changeover window, the sequence should follow a defined procedure: power down the panel, remove the legacy controller from the 1769 bus, install the 1769-L24ER-QBFC1BK in the same slot position, reconnect the bus terminator, restore power, download the prepared program, and verify I/O status before returning the system to automatic mode. The dual-port EtherNet/IP interface allows the controller to be connected to the plant network and the HMI network simultaneously without requiring a network switch reconfiguration.

Pre-shipment functional testing of the 1769-L24ER-QBFC1BK is performed before dispatch, covering power-on self-test, communication port verification, and onboard I/O channel checks. This reduces the risk of receiving a non-functional unit and supports a compressed maintenance window. All units are supplied with a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

For facilities with strict change management requirements, a parallel run strategy can be employed where the new controller is installed and programmed in shadow mode alongside the legacy unit, with a controlled switchover at a defined production break. This approach is particularly effective in continuous process environments where even brief interruptions carry significant cost implications.

Retrofit Support FAQ

Q: Is the 1769-L24ER-QBFC1BK a direct drop-in replacement for earlier CompactLogix L2 controllers?
A: Yes, the 1769-L24ER-QBFC1BK uses the same 1769 side-mount bus interface and DIN rail mounting as earlier CompactLogix L2x controllers. Existing 1769 I/O expansion modules remain in place. The program must be re-downloaded using Studio 5000 Logix Designer, and I/O module addresses should be verified after installation.

Q: What wiring changes are required during the retrofit?
A: In most cases, no field wiring changes are required. Terminal blocks on existing 1769 I/O modules remain connected. If onboard I/O channels on the 1769-L24ER-QBFC1BK are used to replace a separate I/O module, those channels will require direct wiring from the field device terminals to the controller’s onboard terminal block.

Q: How is compatibility with the existing HMI and SCADA system verified?
A: The FactoryTalk View ME project should be opened and the controller communication path updated to reflect the new IP address. Tag names and data types are preserved from the Studio 5000 project export. For SCADA systems using OPC DA or OPC UA, the RSLinx Classic or FactoryTalk Linx driver configuration should be updated with the new controller address before the switchover.

Q: What does the 12-month warranty cover, and is pre-shipment testing included?
A: All units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Pre-shipment testing includes power-on verification, communication port checks, and onboard I/O functional testing. A test report is available upon request.
