Allen-Bradley 1746-OX8 | SLC 500 Retrofit & Relay Output Upgrade

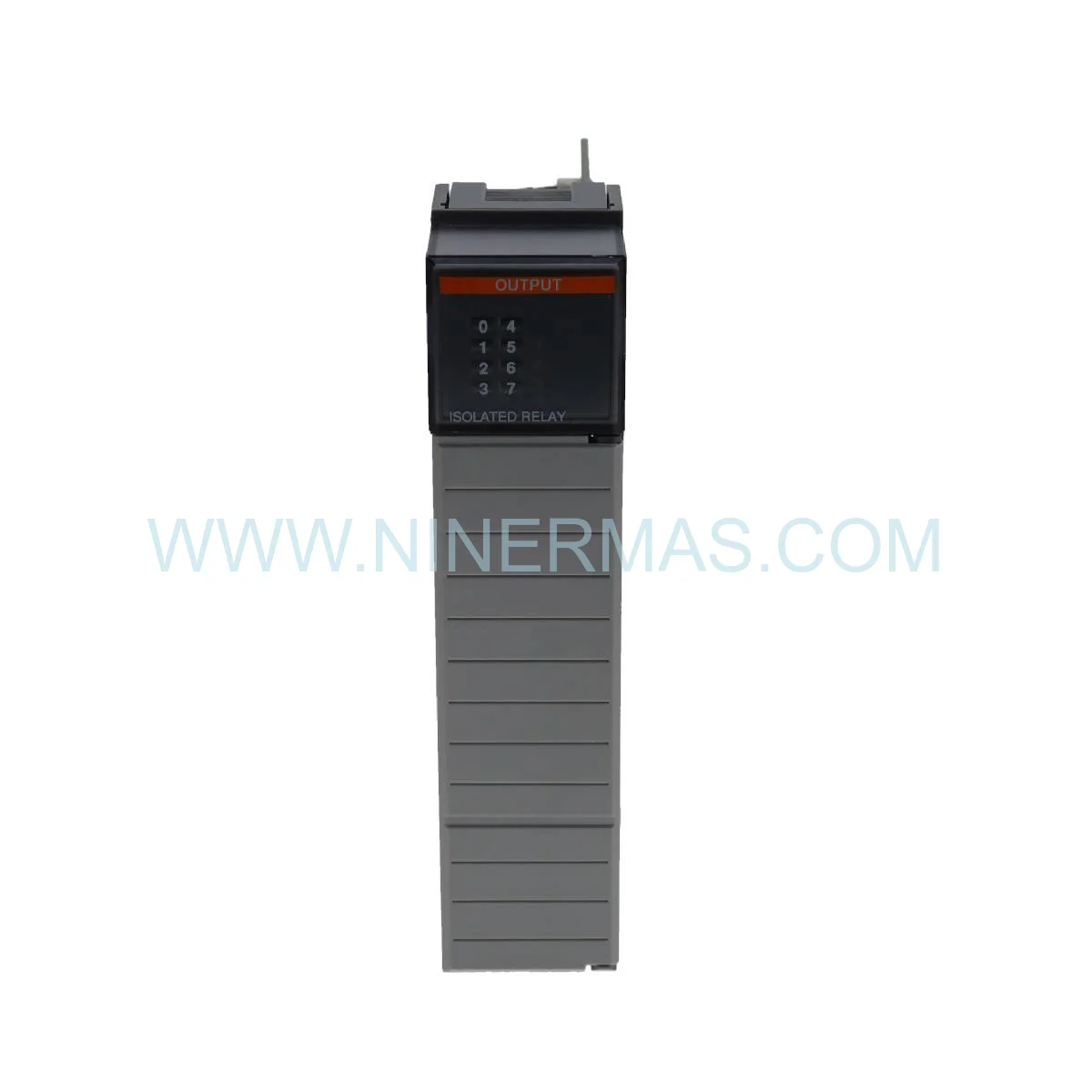

Allen-Bradley 1746-OX8 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across global manufacturing facilities, I consistently identify the Allen-Bradley 1746-OX8 as a cornerstone component in SLC 500 platform modernization initiatives. This 8-point isolated relay output module plays a decisive role in extending the operational lifespan of aging control architectures while simultaneously elevating switching performance to meet contemporary production demands. Whether the objective is to sustain mission-critical uptime or to phase in a structured migration toward modern distributed control, the Allen-Bradley 1746-OX8 delivers the reliability and flexibility that retrofit engineers depend on.

A key advantage of this module in legacy system environments is its broad voltage compatibility — spanning 5-125V DC and 5-265V AC — which ensures backward compatibility with existing field wiring, actuators, and mixed-voltage loads already installed in the plant. This eliminates the need for costly rewiring during a retrofit project, dramatically reducing both engineering hours and system downtime. As an upgrade path component, it slots directly into existing SLC 500 modular chassis without requiring chassis replacement, making it the preferred choice for phased modernization strategies.

From a migration risk management perspective, deploying the 1746-OX8 as part of a controlled upgrade plan significantly reduces the probability of integration failures. Its 1500V AC optical isolation protects new and legacy control logic alike from electrical noise and transient voltage events — a common source of unplanned downtime in aging industrial environments. The result is a lower total cost of migration, reduced commissioning risk, and a clear performance enhancement over end-of-life relay modules it replaces.

Upgrade Highlights & Compatibility

Broad Voltage Range for Legacy Compatibility: Supports 5-125V DC / 5-265V AC — compatible with virtually all existing SLC 500 field devices without rewiring.

✅ Direct Chassis Integration: Plug-and-play installation into SLC 500 modular chassis — zero hardware modification required for retrofit deployment.

1500V AC Optical Isolation: Protects both legacy and upgraded control logic from industrial electrical interference, ensuring seamless integration across mixed-generation systems.

✅ 8 Fully Isolated Relay Outputs: Each point independently configurable for AC or DC loads — ideal for mixed-voltage retrofit scenarios common in aging plant infrastructure.

100,000 Mechanical Operations per Relay: Long-cycle durability supports performance enhancement goals without frequent maintenance intervention.

✅ Future-Proofing via Modular Architecture: Supports incremental hardware upgrade strategies — replace only what’s needed, when it’s needed, without full system overhaul.

Modernization Use Cases & Success Stories

DCS Migration Support — Chemical Processing Plant: A regional chemical manufacturer operating a legacy SLC 500-based distributed control system faced increasing relay module failures due to component aging. By deploying the 1746-OX8 as a direct replacement within the existing chassis, the facility achieved a performance upgrade without halting production. The module’s isolated outputs eliminated cross-circuit interference that had plagued the aging system, resulting in a measurable reduction in unplanned shutdowns.

Turbine Supervisory Instrumentation (TSI) Retrofit — Power Generation: In a gas turbine monitoring retrofit project, the 1746-OX8 was integrated into the SLC 500 control rack to manage relay-driven alarm and trip outputs. Its fast response time (10ms ON / 8ms OFF) and robust isolation characteristics made it the preferred hardware upgrade over the original end-of-life relay modules, enabling the TSI system to meet updated safety and performance standards without a full platform migration.

Automotive Assembly Line Modernization: A Tier 1 automotive supplier undertaking a system migration from a first-generation SLC 500 installation to a hybrid control architecture retained the 1746-OX8 as the relay output interface layer. Its compatibility with both legacy pneumatic valve drivers and new servo-integrated safety circuits allowed the retrofit solution to bridge old and new technologies within a single control panel — reducing integration complexity and accelerating commissioning timelines.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed Stock: Every Allen-Bradley 1746-OX8 unit we supply is sourced as original manufacturer stock, factory sealed, and verified for authenticity. No refurbished or counterfeit components — critical for retrofit projects where component integrity directly impacts system reliability.

Expedited Global Logistics: We maintain ready inventory to support urgent retrofit and system migration timelines. Expedited shipping to manufacturing facilities across Asia, Europe, the Americas, and the Middle East ensures your upgrade project stays on schedule — even when OEM lead times are extended.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy compatibility challenges. Whether you need guidance on integrating the 1746-OX8 into an aging SLC 500 rack, identifying compatible chassis configurations, or planning a phased hardware upgrade roadmap, we provide hands-on technical assistance throughout your retrofit project lifecycle.

Retrofit FAQ (Upgrade Guide)

Q: Can the Allen-Bradley 1746-OX8 be installed in an existing SLC 500 chassis without any mechanical modifications?
A: Yes. The 1746-OX8 is designed for direct installation into any SLC 500 modular chassis slot. No mechanical modifications, adapter plates, or chassis replacement are required, making it an ideal drop-in retrofit solution for aging relay output modules.

Q: How does the 1746-OX8 handle communication between legacy field devices and newer control logic during a system migration?
A: The module operates as a transparent relay interface — it does not require protocol conversion or firmware updates to bridge legacy field wiring with updated SLC 500 processor logic. Its isolated relay contacts are electrically agnostic to the control signal source, ensuring seamless integration across mixed-generation control architectures.

Q: What are the recommended spare part substitution options if the 1746-OX8 becomes difficult to source in the future?
A: For applications requiring more output points, the 1746-OW16 (16-point relay output) offers an upward-compatible alternative within the SLC 500 platform. For facilities planning a full system migration to ControlLogix or CompactLogix, equivalent relay output modules in the 1756 or 1769 families provide a forward-compatible upgrade path while preserving relay-based field wiring infrastructure.

Q: Is the 1746-OX8 suitable for safety interlock circuits in a retrofit application?
A: The 1746-OX8 provides 1500V AC optical isolation between field and logic circuits, which supports electrical separation requirements in many safety interlock designs. However, for SIL-rated safety applications, consult your functional safety engineer to confirm compliance with applicable IEC 61508 or IEC 62061 standards before deployment.

Q: How does the removable terminal block feature benefit retrofit and maintenance operations?
A: The removable terminal block allows field wiring to remain connected to the terminal block while the module itself is extracted for replacement or testing. This significantly reduces retrofit commissioning time and minimizes the risk of wiring errors during module swap-out — a critical advantage in live production environments where downtime must be minimized.

Q: What is the expected performance improvement when replacing an end-of-life relay output module with the 1746-OX8?
A: Replacing degraded or end-of-life relay modules with a factory-new 1746-OX8 restores full relay mechanical life (100,000 operations per contact), eliminates intermittent switching failures caused by contact wear, and re-establishes full optical isolation integrity — directly contributing to improved system uptime and reduced unplanned maintenance events.
