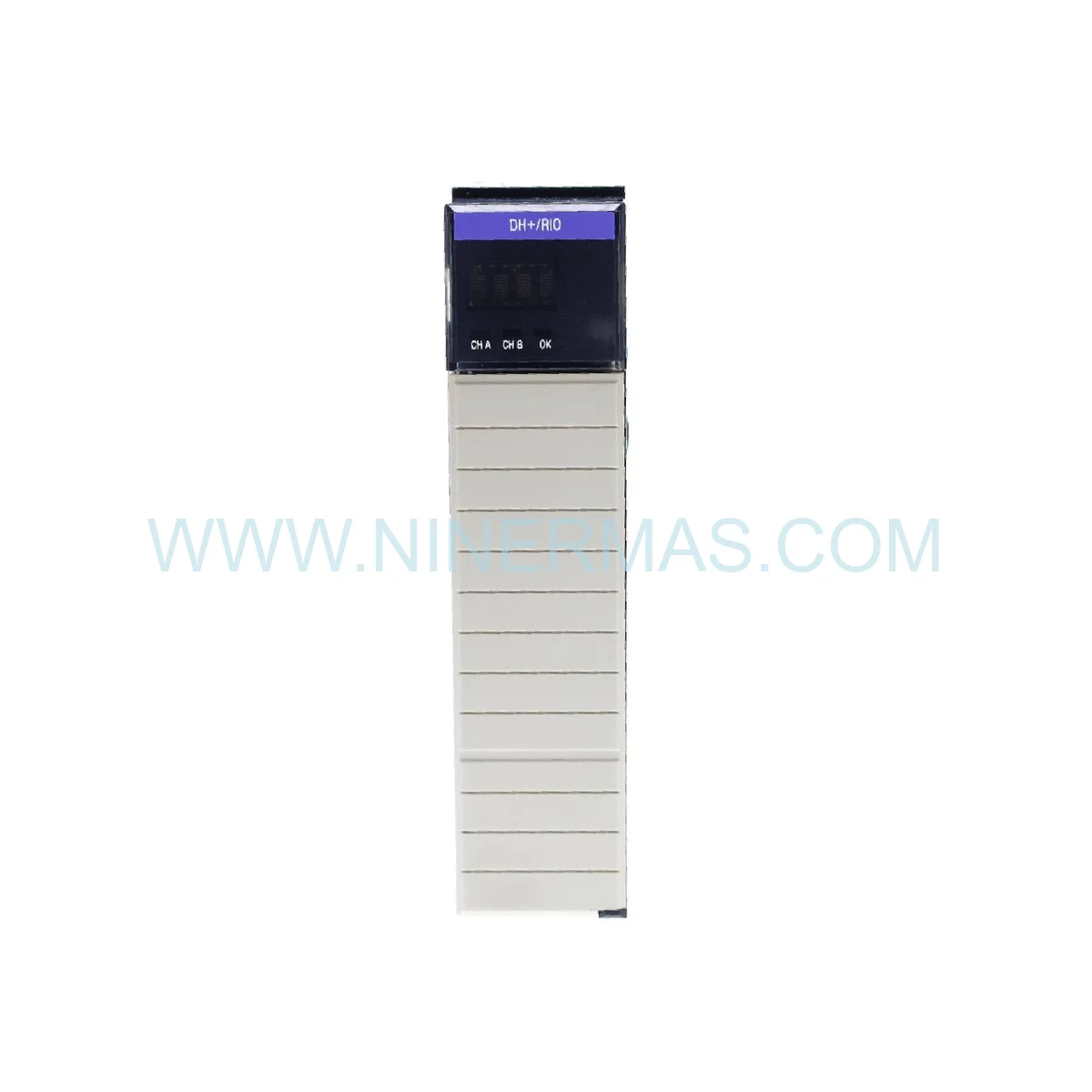

Allen-Bradley 1756-DHRIO DH+/RIO Module

Allen-Bradley 1756-DHRIO | Reliable Automation Component for Mission-Critical Networks

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing continuous-process facilities, the Allen-Bradley 1756-DHRIO stands as a cornerstone of system availability. This dual-protocol communication module integrates Data Highway Plus (DH+) and Remote I/O (RIO) networks into a single ControlLogix chassis slot, directly reducing unplanned downtime by eliminating the need for separate legacy bridge hardware. Its role in Process Optimization and System Integration is well-established across refining, power generation, and discrete manufacturing sectors.

Deployed in environments ranging from dusty automotive stamping floors to chemically aggressive water treatment plants, the 1756-DHRIO is engineered to sustain Operational Excellence under thermal cycling, vibration, and EMI stress. Installation demands attention to cable impedance matching (78-ohm twin-axial, Belden 9463 or equivalent) and proper termination resistors at both network ends — details that separate reliable long-term operation from intermittent faults. Conformal coating variants are available for corrosive atmospheres.

As production lines age and OEM support windows close, maintaining a certified spare of this Automation Component in your critical parts inventory is not optional — it is a risk mitigation imperative. Lead times for legacy I/O Modules can stretch weeks; having a verified original unit on the shelf converts a potential multi-day outage into a sub-hour swap.

Key Operational Features

Dual-Protocol Architecture: Simultaneous DH+ and RIO operation in a single chassis slot — maximizes density, minimizes footprint.
High-Speed Data Transfer: Up to 230.4 Kbps on DH+; 57.6 Kbps on RIO — supports time-sensitive discrete and analog I/O polling.
Redundancy Ready: Compatible with ControlLogix redundant processor pairs; supports hot-swap with automatic failover for High Availability architectures.
Seamless Integration: Manages up to 32 DH+ nodes and 8 RIO adapter connections through unified Studio 5000 / RSLogix 5000 logic — no additional gateway hardware required.
Isolated Communication Channels: Dual isolated ports prevent ground loop interference between network segments, protecting signal integrity in noisy industrial environments.
Real-Time Diagnostics: Onboard LED indicators for channel status, network activity, and fault conditions — accelerates commissioning and root-cause analysis during maintenance windows.

Maintenance & Performance Benchmarks

The 1756-DHRIO adapts to industrial network architectures of varying scale. In small standalone cells, it functions as a direct DH+ peer-to-peer messaging bridge between ControlLogix and legacy PLC-5 or SLC 500 processors — preserving existing MSG instruction logic without reprogramming. In large distributed architectures spanning multiple plant areas, it operates as an RIO scanner managing remote adapter racks across distances up to 10,000 feet (3,048 m) at 57.6 Kbps.

For Mission-Critical applications, the module’s backplane draw of 800 mA @ 5V DC is well within standard 1756 power supply budgets, allowing co-location with processor and I/O modules without derating. Mean Time Between Failures (MTBF) data from field deployments consistently exceeds 10 years under rated operating conditions (0°C to 60°C), making it a dependable long-cycle asset in both greenfield and brownfield installations.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every unit of the 1756-DHRIO dispatched from our facility ships in Original Factory Packaging with full documentation, including the factory test report and firmware revision label. For in-stock units, same-day dispatch is available on orders confirmed before the daily cut-off — a critical advantage when production continuity is at stake.

As an End-of-Life (EOL) and legacy module specialist, we maintain global supply channels for the 1756-DHRIO and comparable I/O Modules that have been discontinued or are subject to extended lead times through standard distribution. Our sourcing network spans authorized surplus channels across North America, Europe, and Asia-Pacific, ensuring verified authenticity and traceability for every unit. All modules undergo incoming inspection and functional verification before shipment.

Engineering Support & FAQ

Q1: What is the correct installation sequence for the 1756-DHRIO in a live ControlLogix chassis?
A: Power down the chassis before inserting the module into the target slot. After seating, power up and verify the OK LED illuminates solid green. In RSLogix 5000 / Studio 5000, add the 1756-DHRIO to the I/O tree under the local chassis, configure channel parameters (baud rate, node address), and download the updated project. Hot-insertion is not recommended for initial commissioning.

Q2: Which firmware versions are compatible with the 1756-DHRIO?
A: The module is compatible with ControlLogix L6x and L7x processors running firmware series 16.x through 33.x. For L8x processors (5580 series), verify compatibility via the Rockwell Automation Product Compatibility and Download Center (PCDC) before deployment. We can supply units pre-loaded with specific firmware revisions upon request.

Q3: Can the 1756-DHRIO replace a 1771-KGM or 1771-KG module in an existing RIO network?
A: Yes. The 1756-DHRIO provides functional equivalence for RIO scanner duties previously handled by 1771-series modules. Existing I/O addressing and rack/group assignments are preserved. The migration requires updating the controller project in RSLogix 5000 to reference the new module, but no rewiring of field devices is necessary.

Q4: What cable and termination specifications apply to DH+ wiring?
A: Use Belden 9463 (or equivalent) twin-axial cable with 78-ohm characteristic impedance. Terminate both physical ends of the DH+ trunk with 150-ohm resistors. Maximum segment length is 10,000 ft (3,048 m) at 57.6 Kbps, 5,000 ft (1,524 m) at 115.2 Kbps, and 3,000 ft (914 m) at 230.4 Kbps.

Q5: How is the warranty claim process handled?
A: Units exhibiting manufacturing defects or performance failures within the 12-month warranty period are eligible for replacement or repair at no charge. Contact our technical support team with the unit serial number, purchase order reference, and a description of the fault. Return Merchandise Authorization (RMA) is issued within one business day, and replacement units are dispatched upon receipt of the defective module.

Q6: Is the 1756-DHRIO suitable for use in Class I Division 2 hazardous locations?
A: Yes, the 1756-DHRIO carries FM certification for Class I Division 2 Groups A, B, C, D hazardous locations when installed in a suitably rated enclosure. Verify the specific certification label on the unit and consult the installation instructions document (publication 1756-IN009) for compliance requirements.
