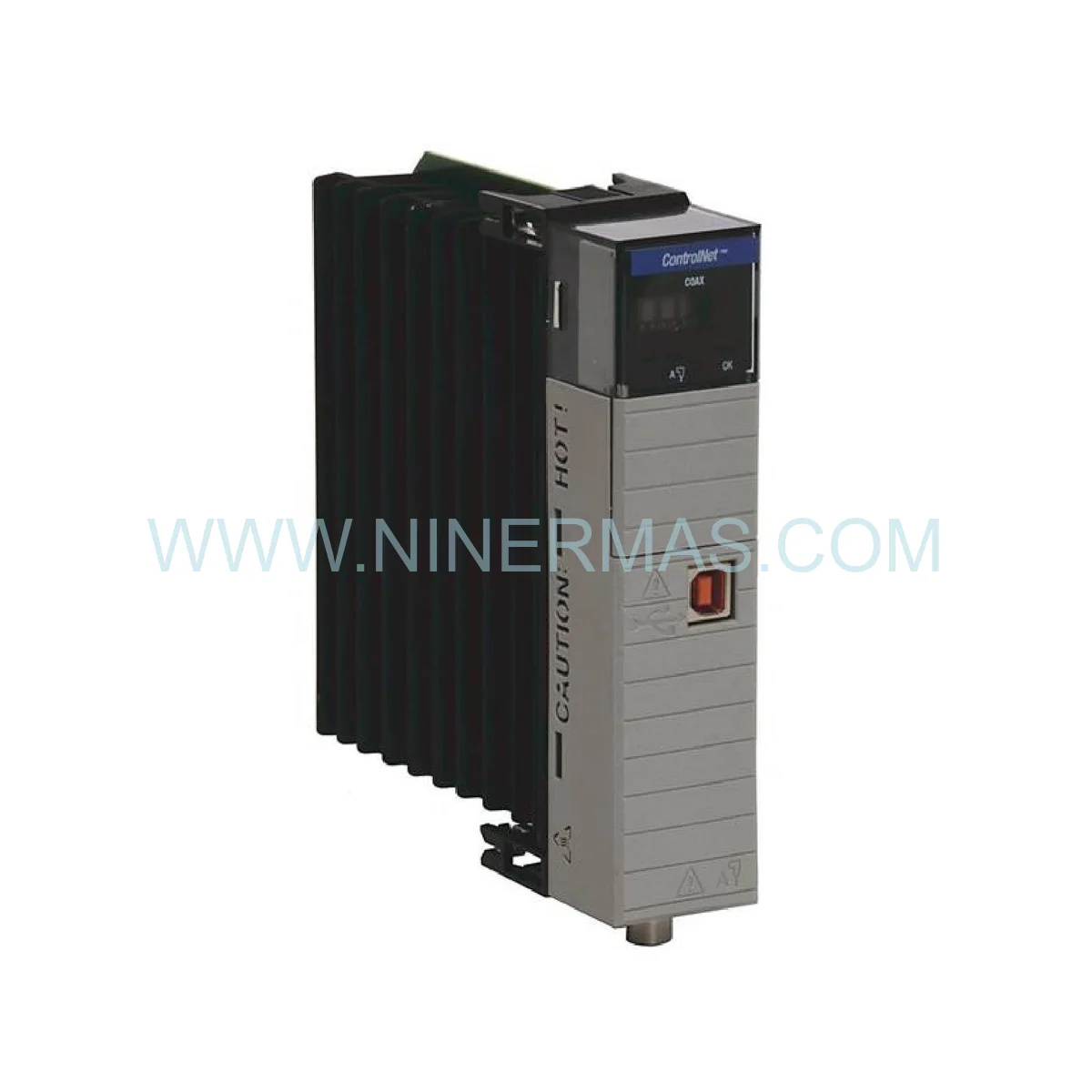

Allen-Bradley 1756-CN2 ControlNet Module

Allen-Bradley 1756-CN2 ControlNet Communication Module – Industrial Process Solution

Technical Overview & First Impression

As a Global Sourcing Manager with over a decade of experience in distributed control system procurement, I can state with confidence that the Allen-Bradley 1756-CN2 occupies a mission-critical position in modern industrial automation architectures. This ControlNet communication module serves as the backbone of deterministic data exchange within ControlLogix chassis environments — bridging PLCs, remote I/O racks, and HMI systems across complex Fieldbus topologies. Where milliseconds define the boundary between safe operation and catastrophic failure, the 1756-CN2 delivers scheduled, time-deterministic communication at 5 Mbps that legacy components simply cannot replicate.

From a technical compatibility standpoint, the 1756-CN2 integrates natively with the full ControlLogix ecosystem, supporting both coaxial and fiber-optic media for flexible network design. Its Producer-Consumer messaging model enables efficient multicast data distribution — a decisive advantage over point-to-point legacy architectures. For facilities managing DCS Hardware migrations or phased upgrades from PLC-5 or SLC 500 platforms, this module provides a validated bridge that preserves existing network investments while enabling modern Process Control capabilities.

Original stock of the 1756-CN2 is increasingly scarce on the global market. As Rockwell Automation continues to evolve its product portfolio, procurement windows for Factory Sealed, unmodified units are narrowing. Our inventory is sourced directly from authorized distribution channels, ensuring every unit arrives in original manufacturer packaging with full traceability documentation — a critical requirement for regulated industries operating under IEC 61511 or ISA-84 safety standards.

Key Technical Highlights

Deterministic 5 Mbps ControlNet Communication — Scheduled NUT (Network Update Time) from 2 ms to 100 ms ensures time-critical Process Control loops receive data with zero jitter, supporting high-speed motion and safety interlock applications.

Dual-Port Redundancy Architecture — Built-in dual coaxial ports enable linear, star, and redundant ring topologies without external taps, providing Redundancy at the physical layer for continuous operation during cable faults.

Hot-Swap Capability — Install or replace the module without powering down the ControlLogix chassis, eliminating planned downtime windows during maintenance cycles in 24/7 production environments.

Up to 99 Nodes Per Segment — Supports large-scale Distributed Control System deployments with extensive I/O and controller nodes on a single network segment, reducing infrastructure complexity.

Fieldbus & CIP Protocol Support — Full Common Industrial Protocol (CIP) compliance ensures seamless interoperability with third-party ControlNet-compatible devices, drives, and safety controllers across multi-vendor plant environments.

Integrated Diagnostics — Onboard web server delivers real-time network statistics, node health monitoring, and fault diagnostics accessible via standard browser — no specialized software required for initial troubleshooting.

Vertical Industry Applications

Petrochemical & Refining: In hydrocarbon processing facilities, the 1756-CN2 networks distributed control nodes across reactor units, heat exchangers, and flare systems. Its deterministic communication eliminates the timing uncertainty that can trigger spurious Safety Instrumented System (SIS) shutdowns, directly reducing unplanned downtime costs that routinely exceed $500,000 per incident.

Mining & Mineral Processing: Conveyor networks, crusher controls, and flotation cell automation demand robust communication under extreme vibration and dust conditions. The 1756-CN2’s industrial-grade design and conformal coating option maintain signal integrity in environments where standard networking hardware fails within months.

Marine & Offshore Platforms: Offshore drilling rigs and FPSO vessels rely on ControlNet for coordinating ballast control, dynamic positioning, and emergency shutdown systems. The module’s redundant architecture ensures that a single cable fault does not compromise platform safety — a non-negotiable requirement under DNV and ABS classification rules.

Power Generation & Utilities: Combined-cycle power plants use the 1756-CN2 to synchronize turbine controllers, generator protection relays, and SCADA interfaces. Deterministic data exchange is essential for maintaining grid frequency stability and coordinating automatic generation control (AGC) responses within regulatory tolerances.

Automotive Manufacturing: Body-in-white welding lines and paint shop conveyors require microsecond-level synchronization between robot controllers and PLC-managed transfer systems. The 1756-CN2’s high-speed scheduled messaging eliminates the communication latency that causes weld quality defects and cycle time losses in high-volume production.

Data Sheet & Specifications

Quality Assurance & Supply Chain

100% Original Components: Every 1756-CN2 unit in our inventory is sourced from verified, authorized distribution channels. We do not stock refurbished, remanufactured, or counterfeit parts. Each module is inspected against Rockwell Automation’s published specifications before shipment, with full lot traceability available upon request for regulated industry customers.

Factory Sealed Condition: Units are stored in climate-controlled warehouses and shipped in original manufacturer packaging with intact tamper-evident seals. This is a non-negotiable standard for customers operating under FDA 21 CFR Part 11, NERC CIP, or IEC 62443 cybersecurity compliance frameworks.

12-Month Comprehensive Warranty: Our warranty covers all manufacturing defects, component failures, and functional non-conformances for a full 12 months from the date of delivery. Warranty claims are processed within 48 hours, with advance replacement units dispatched before the defective module is returned — minimizing your system downtime exposure.

Emergency Delivery via DHL / FedEx / UPS: For Emergency Repair scenarios, we offer same-day dispatch with next-flight-out courier options to any global destination. Our logistics team operates 24/7 to coordinate customs documentation, dangerous goods declarations, and priority clearance for time-critical shipments. Average delivery time to major industrial hubs: 24-72 hours.

Buyer’s FAQ — Selection Guide

Q: How can I verify that a 1756-CN2 unit is 100% original and not counterfeit?
A: Authentic Allen-Bradley 1756-CN2 modules carry a holographic Rockwell Automation authenticity label on the module body, a unique serial number traceable in Rockwell’s product verification portal, and original catalog labeling with correct revision suffix. We provide the full serial number and lot documentation with every shipment so your receiving team can independently verify authenticity before installation.

Q: Where can I obtain the official datasheet and installation manual for the 1756-CN2?
A: The official publication is Rockwell Automation document 1756-UM054 (ControlNet Modules in Logix5000 Control Systems User Manual). Contact our technical team at sale@ninermas.com and we will provide the current revision PDF along with any applicable product notices or field change notices (FCNs) relevant to your firmware version.

Q: Which ControlLogix controller firmware versions are compatible with the 1756-CN2?
A: The 1756-CN2 is compatible with all ControlLogix controllers running firmware version 13.x and above. For systems running older firmware (v11 or v12), a firmware upgrade is recommended before integrating this module. Our engineers can advise on compatibility matrices for specific controller catalog numbers and chassis configurations.

Q: Can the 1756-CN2 replace a 1756-CN2R in a non-redundant application?
A: Yes. The 1756-CN2 (single-port variant) can be used in place of the 1756-CN2R (redundant variant) in non-redundant ControlNet topologies. The reverse is also true — the 1756-CN2R can substitute for the 1756-CN2 with only one port connected. This interchangeability simplifies spare parts inventory management for maintenance teams.

Q: What is the typical lead time for emergency orders of the 1756-CN2?
A: For in-stock units, same-day dispatch is available for orders confirmed before 14:00 CST. International express delivery via DHL or FedEx Priority typically achieves 24-48 hour delivery to North America and Europe, and 48-72 hours to Southeast Asia, the Middle East, and South America. Contact us directly for time-critical Emergency Repair requirements.

Q: Is the 1756-CN2 still in production, or is it an End-of-Life (EOL) component?
A: Rockwell Automation has transitioned the 1756-CN2 toward end-of-life status as the industry shifts toward EtherNet/IP-based architectures. However, the module remains essential for Legacy Components maintenance in existing ControlNet installations — many of which have 10-20 year operational lifespans. We maintain strategic stock specifically to support customers who cannot justify a full network migration and require reliable Maintenance Stock for ongoing operations.
