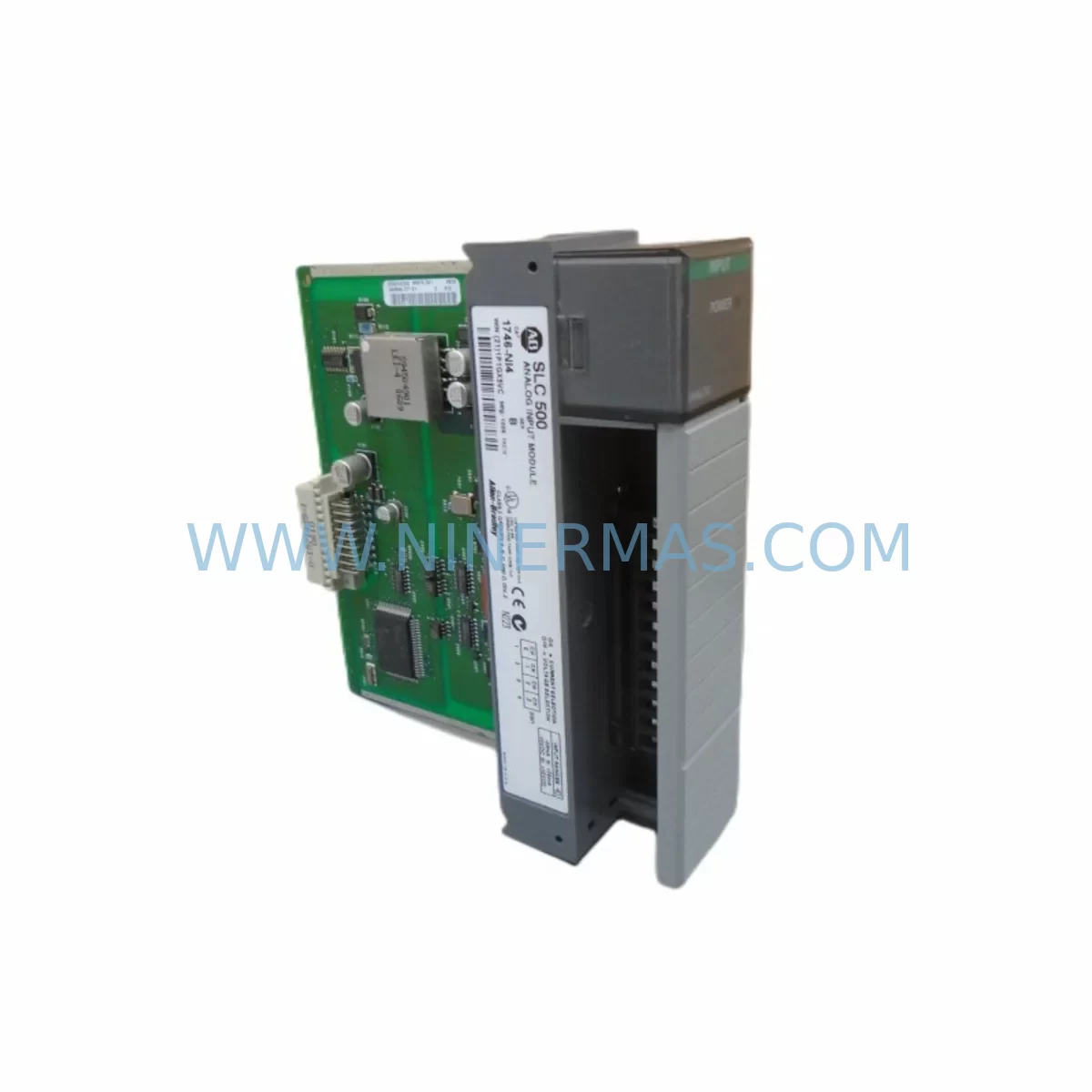

The Allen-Bradley 1746-NI4/B is a 4-channel analog input module designed for the SLC 500 modular I/O platform. As legacy SLC 500 systems continue to operate well beyond their original design life, the 1746-NI4/B has become one of the most sought-after retrofit and replacement components for engineers managing aging control infrastructure. Whether you are restoring a discontinued production line, upgrading a control cabinet, or extending the service life of an existing automation system, the 1746-NI4/B provides a reliable, drop-in compatible solution that minimises engineering rework and reduces unplanned downtime.

This module supports voltage and current input signal types, making it suitable for a wide range of field instrumentation including pressure transmitters, temperature sensors, flow meters, and level transducers. Its compatibility with the SLC 500 backplane means it can be installed directly into existing 1746 series racks without modification to the chassis or power supply wiring. Engineers replacing a failed or end-of-life analog input card will find that the 1746-NI4/B retains the same slot addressing and I/O image table mapping as earlier revisions, significantly reducing the time required for program verification and HMI screen updates.

Each unit supplied by NINERMAS is tested prior to shipment and backed by a 12-month warranty, giving maintenance teams confidence when sourcing critical spare parts for systems that are no longer supported by the original manufacturer’s active supply chain.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 1746-NI4/B into a legacy control system requires a structured approach that addresses hardware, software, and field wiring simultaneously. Before removing the failed module, engineers should document the existing slot address assignment within the SLC 500 processor’s I/O configuration file in RSLogix 500. The 1746-NI4/B occupies one slot in any standard 1746 series rack, including the 1746-A4, 1746-A7, 1746-A10, and 1746-A13 chassis variants. Confirm that the 1746-P series power supply — commonly the 1746-P2 or 1746-P4 — has sufficient remaining backplane current capacity to support the replacement module without overloading the chassis.

Field wiring termination is a critical step. The 1746-NI4/B uses a removable screw-type terminal block, which simplifies re-termination when replacing a module in a live control cabinet. Verify that the existing field cable gauge is compatible with the terminal block specifications and that shielding is correctly grounded at the cabinet end to prevent signal noise on sensitive analog channels. For systems using 4–20mA transmitters, confirm loop power supply availability — in many legacy installations, the 1746-NI4/B channels are wired to externally powered transmitters, and the loop supply voltage must be verified before re-energising the circuit.

Where the control system includes a 1747-L553 or 1747-L553B SLC 5/05 processor communicating over EtherNet/IP, or a 1747-L542 SLC 5/04 processor on a DH+ network, the analog input data from the 1746-NI4/B is mapped directly into the processor’s input image table. No additional communication module is required for the analog I/O itself, but engineers should verify that any upstream SCADA or DCS system reading these values — often via a 1761-NET-ENI or a 1747-AENTR EtherNet/IP adapter — continues to receive correctly scaled engineering unit values after the module swap.

In control cabinets where I/O expansion is also being considered alongside the analog input replacement, the 1746-NI4/B can coexist in the same rack with discrete I/O modules such as the 1746-IB16 (16-point 24VDC input) or 1746-OB16 (16-point 24VDC output), as well as specialty modules including the 1746-NIO4I combination analog I/O module for applications requiring both input and output channels in a single slot. For systems requiring thermocouple or RTD measurement, the 1746-NT4 or 1746-NR4 modules serve as companion analog input options within the same SLC 500 platform.

HMI screens connected to the SLC 500 system — typically running on a PanelView 550, PanelView 600, or PanelView Plus terminal via DH-485 or EtherNet/IP — reference analog values by their input image table addresses. After replacing the 1746-NI4/B, verify that all HMI tag addresses remain consistent with the restored I/O configuration. If the original module revision differed in its data file structure, a brief RSLogix 500 program upload and comparison is recommended before returning the system to automatic operation.

For sites undertaking a broader migration from SLC 500 to a CompactLogix or MicroLogix 1400 platform, the 1746-NI4/B can serve as a bridge component — maintaining analog input functionality on the legacy rack while the migration project is planned and staged, thereby avoiding a full cutover shutdown and allowing a phased transition that protects production continuity.

Downtime Control During System Migration

Minimising unplanned downtime is the primary concern for any maintenance team replacing a failed analog input module in a running production environment. The 1746-NI4/B’s slot-compatible design means that — provided the replacement unit is pre-configured with the correct input type jumper settings before installation — the physical swap can typically be completed within a single planned maintenance window of less than two hours.

Prior to the maintenance window, engineers should prepare a backup of the SLC 500 processor program using RSLogix 500 or RSLinx Classic, saving the .RSS project file to a secure location. This ensures that if any unexpected program corruption occurs during the module swap, the original logic can be restored immediately without requiring a full re-engineering effort. The existing I/O configuration within the program file will already reference the correct slot address for the 1746-NI4/B, so no program modifications should be necessary for a like-for-like replacement.

During the swap, field wiring should be transferred channel by channel using the removable terminal block, with each wire labelled before removal to prevent mis-termination. After re-energising the rack, the SLC 500 processor should be placed in Program mode briefly to allow the I/O configuration to re-establish communication with the new module before returning to Run mode. Analog channel scaling and engineering unit conversion — typically configured in the SLC 500 program’s SCP or SCL instructions — will remain intact as these are stored in the processor’s data file, not in the module itself.

For critical processes where even a brief interruption is unacceptable, a hot-standby or redundant I/O strategy using a secondary SLC 500 rack with a pre-installed 1746-NI4/B can be considered. NINERMAS maintains stock of the 1746-NI4/B to support emergency same-day dispatch requirements, reducing the risk of extended production loss due to parts availability delays.

Retrofit Support FAQ

Q1: Is the 1746-NI4/B a direct replacement for the 1746-NI4 and 1746-NI4/A?
Yes. The /B revision is backward compatible with earlier revisions of the 1746-NI4. It occupies the same single backplane slot, uses the same I/O image table mapping, and supports the same input signal types. No program changes are required for a like-for-like slot replacement in an existing SLC 500 rack.

Q2: What commissioning steps are required after installing the 1746-NI4/B?
After physical installation and field wiring re-termination, place the SLC 500 processor in Program mode and perform an I/O configuration verification in RSLogix 500 to confirm the module is recognised at the correct slot address. Verify input type jumper settings on the module match the field wiring (voltage or current). Return the processor to Run mode and confirm analog channel values are within expected engineering unit ranges at the SCADA or HMI level.

Q3: Does NINERMAS test the 1746-NI4/B before shipment, and what warranty is provided?
Yes. Every 1746-NI4/B unit supplied by NINERMAS COMPANY LIMITED undergoes functional testing prior to dispatch. All units are covered by a 12-month warranty from the date of shipment. In the event of a warranty claim, NINERMAS provides replacement or repair support to minimise impact on your production operations.

Q4: Can the 1746-NI4/B be used in a mixed-revision SLC 500 rack alongside other 1746 series modules?
Yes. The 1746-NI4/B is fully compatible with mixed-module SLC 500 racks and can be installed alongside discrete I/O modules such as the 1746-IB16 or 1746-OB16, specialty analog modules such as the 1746-NT4 or 1746-NR4, and communication modules. Ensure the total backplane current draw of all installed modules does not exceed the rated output of the installed 1746-P series power supply.
