Allen-Bradley 1746-IB16 Retrofit-Compatible Digital Input Module

Allen-Bradley 1746-IB16 Retrofit-Compatible Digital Input Module for Legacy SLC 500 Systems

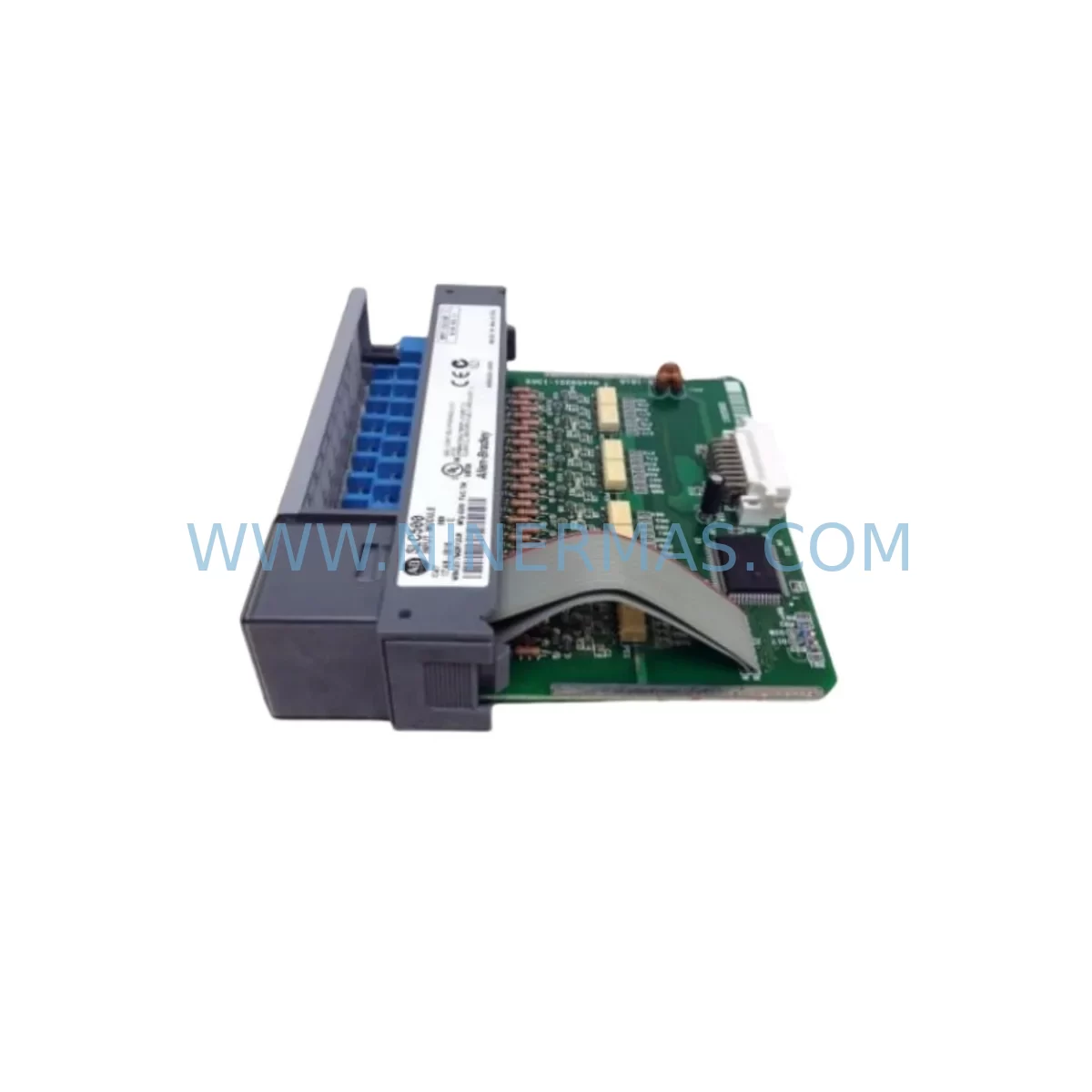

The Allen-Bradley 1746-IB16 is a 16-point, 24VDC sinking digital input module designed for the SLC 500 modular I/O platform. As Rockwell Automation has progressively phased out the SLC 500 product family in favour of the ControlLogix and CompactLogix platforms, the 1746-IB16 has become one of the most sought-after spare parts for facilities that continue to operate legacy SLC 5/03, SLC 5/04, and SLC 5/05 processors. NINERMAS maintains verified stock of the 1746-IB16 to support planned and emergency retrofit projects worldwide, backed by a 12-month warranty on every unit shipped.

Whether your facility is executing a phased migration to a 1769-IQ16 CompactLogix I/O module or simply extending the operational life of an existing SLC 500 rack, the 1746-IB16 provides a direct, slot-compatible replacement that eliminates the need for immediate re-engineering of field wiring, terminal blocks, or PLC program logic. Each unit is pre-tested against Rockwell Automation factory specifications before dispatch, ensuring that installation downtime is kept to an absolute minimum.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit centred on the 1746-IB16 begins well before the module arrives on site. Engineers should first audit the existing 1746-A7 or 1746-A10 chassis to confirm available slot positions and verify that the 1746-P2 or 1746-P4 power supply has sufficient current budget to support the additional I/O load. The 1746-IB16 draws 75 mA from the 5VDC backplane bus; this figure must be summed against all other installed modules — including any 1746-OB16 output modules, 1746-NO4I analogue output modules, and 1746-NI4 analogue input modules — to ensure the power supply is not overloaded.

Field wiring connects to the module’s removable screw terminal block, which accepts 14–22 AWG conductors. Before disconnecting the existing terminal block, technicians should photograph or document every wire position, referencing the original panel drawings stored in the control cabinet. If the cabinet also houses a 1747-SN Scanner Module for remote I/O expansion, confirm that the module address settings on the replacement 1746-IB16 match those of the outgoing unit to avoid address conflicts on the DH-485 network.

For facilities planning a longer-term migration to the CompactLogix platform, the 1746-IB16 can serve as a bridge solution while the new 1769-IQ16 I/O modules and 1769-L33ER processor are being commissioned in parallel. During this transition period, the 1747-L553 SLC 5/05 processor can maintain Ethernet connectivity to the SCADA system via its built-in 10/100 Ethernet port, preserving HMI screen data and alarm histories on the PanelView Plus 6 terminal without interruption. Once the CompactLogix rack is fully validated, the I/O map can be exported from RSLogix 500 and used as a reference for rebuilding the tag database in Studio 5000 Logix Designer.

Signal isolation is another critical consideration during the changeover. If the existing system uses 1492-IFM20F interface modules or similar wiring system components between the field devices and the 1746-IB16, these can typically be retained without modification, significantly reducing re-wiring time and the risk of introducing wiring errors during the retrofit. Where signal conditioning is required — for example, when integrating NAMUR proximity sensors or two-wire 24VDC devices — a dedicated signal isolator or repeater should be inserted upstream of the input module to protect the backplane from transient voltages.

Downtime Control During System Migration

Minimising production downtime is the primary concern for any SLC 500 retrofit. The recommended approach is a hot-swap preparation strategy: before the scheduled maintenance window, the replacement 1746-IB16 should be bench-tested using a portable 1746-A4 mini-chassis and a 1747-L532 SLC 5/03 processor running a simplified I/O diagnostic routine. This confirms that the module responds correctly to 24VDC input signals across all 16 channels before it is installed in the live panel.

During the maintenance window itself, the SLC 500 processor should be placed in Program mode via RSLogix 500 before the faulty or end-of-life module is removed. This prevents the processor from generating a Major Fault on I/O loss and protects the integrity of the ladder logic program stored in battery-backed RAM. Once the 1746-IB16 is seated and the terminal block is reconnected, the processor can be returned to Run mode and the I/O status bits verified in the RSLogix 500 data monitor before the machine is released to production.

Where a full chassis replacement is being performed simultaneously — for example, upgrading from a 1746-A7 to a larger 1746-A13 chassis to accommodate additional I/O expansion — it is advisable to pre-configure the new chassis offline, including all module placements and address assignments, so that the physical swap can be completed within a single shift. Retaining the original 1746-P4 power supply where possible avoids the need to re-verify power budgets from scratch and reduces the number of variables introduced during the changeover. All retrofit work should be documented in the panel’s revision history log, and a post-commissioning functional test should be witnessed by the responsible engineer before the system is handed back to operations.

Retrofit Support FAQ

Q1: Is the 1746-IB16 a direct drop-in replacement for a failed unit in my existing SLC 500 rack?
Yes. The 1746-IB16 is slot-compatible with all standard 1746-series chassis, including the 1746-A4, 1746-A7, 1746-A10, and 1746-A13. No hardware modification is required. Simply remove the terminal block from the failed module, seat the replacement in the same slot, reattach the terminal block, and cycle the processor from Program to Run mode. The I/O address (I:x.0) is determined by slot position and requires no reconfiguration in RSLogix 500.

Q2: Does NINERMAS test the 1746-IB16 before shipment?
Yes. Every 1746-IB16 unit is functionally tested against Rockwell Automation factory specifications prior to dispatch. Testing covers all 16 input channels, backplane communication integrity, and terminal block continuity. Units that do not pass are quarantined and not shipped. All shipped units are covered by a 12-month warranty from the date of delivery.

Q3: What should I verify regarding wiring compatibility before installing the replacement module?
Confirm that the field-side wiring uses 24VDC sinking (NPN) devices, as the 1746-IB16 is a sinking input module and is not compatible with sourcing (PNP) field devices without an intermediate relay or signal converter. Verify wire gauge (14–22 AWG), terminal torque settings (0.56–0.79 N·m), and that the removable terminal block from the original module is transferred intact to avoid re-termination errors. If the cabinet uses 1492-IFM interface modules, these can be reused without modification.

Q4: Can NINERMAS supply additional SLC 500 components to support a broader retrofit project?
Yes. NINERMAS maintains stock of a wide range of SLC 500 and 1746-series components to support complete retrofit and spare-parts programmes. Lead times and availability can be confirmed by contacting our sales team directly. Long-term supply agreements and scheduled delivery programmes are available for facilities with ongoing maintenance requirements.
