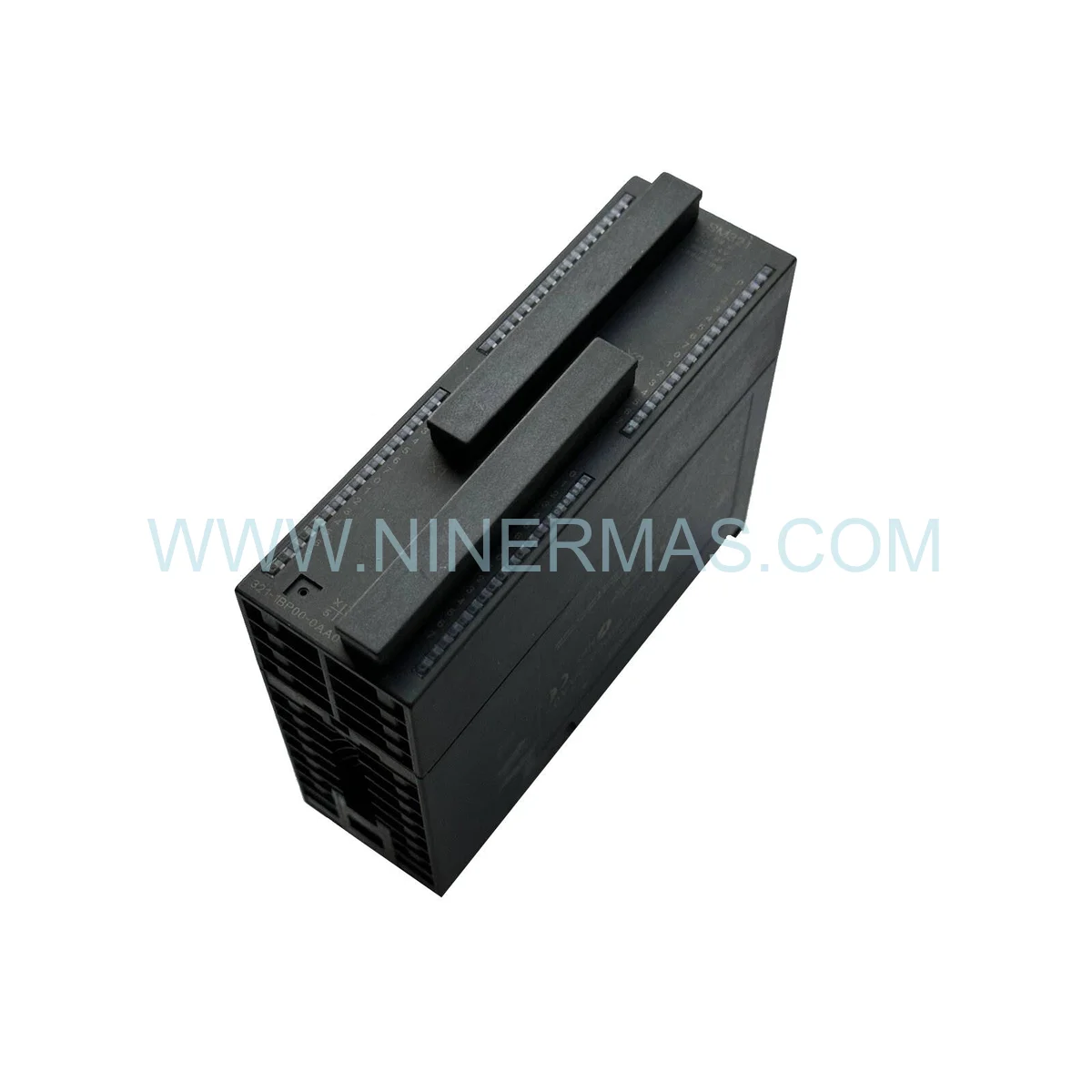

Siemens SM 321 6ES7321-1BP00-0AA0 Digital Input Module — New & Original

Siemens SM 321 6ES7321-1BP00-0AA0 | Reliable Automation Component

Field Application & Operational Analysis

As a Site Reliability Engineer with extensive field experience, the 6ES7321-1BP00-0AA0 stands out as a cornerstone I/O module for mission-critical automation architectures. This 64-channel digital input module integrates seamlessly into SIMATIC S7-300 backplane systems, delivering deterministic signal acquisition that directly elevates system availability in high-density process environments. Its role in Process Optimization is undeniable — by consolidating 64 isolated 24 V DC inputs into a single compact footprint, it reduces panel wiring complexity and accelerates fault isolation during unplanned downtime events.

Engineered for Operational Excellence in demanding industrial settings, the 6ES7321-1BP00-0AA0 maintains stable performance across an operating temperature range of 0°C to 60°C, with storage tolerance down to -40°C. Installation teams should note that proper DIN rail torque specifications and group isolation wiring (inputs isolated in groups of 16) are critical to preserving signal integrity in high-EMI environments such as motor drive cabinets and switchgear rooms. Shielded cable runs up to 1,000 m are supported, enabling flexible field topology design.

For maintenance planners and procurement engineers, stocking the 6ES7321-1BP00-0AA0 as a certified spare part is a proven strategy to eliminate extended lead times during emergency replacements. Given the S7-300 platform’s widespread deployment across global manufacturing, energy, and water treatment facilities, this module remains a high-priority item for any Automation Components inventory program targeting zero unplanned production loss.

Key Operational Features

64 Isolated Digital Inputs — Grouped in sets of 16 for superior channel-level fault containment and Redundancy support
24 V DC Sink/Source Compatibility — IEC Type 1 compliant; supports both NPN and PNP field devices for flexible System Integration
3 ms Input Response Time — Ensures deterministic signal capture for time-sensitive process interlocks and safety loops
High Availability Design — Compatible with ET 200M distributed I/O configurations for hot-standby and redundant CPU architectures
Seamless Integration — Plug-and-play with all S7-300 CPUs; no additional configuration hardware required
EMC Certified — Compliant with EN 61000-6-2 (immunity) and EN 61000-6-4 (emissions) for noise-immune operation in heavy industrial zones

Maintenance & Performance Benchmarks

The 6ES7321-1BP00-0AA0 is engineered to adapt across diverse industrial network architectures — from compact standalone S7-300 stations to large-scale distributed ET 200M racks spanning multiple production zones. In centralized control room deployments, the module interfaces directly with S7-300 CPUs via the backplane bus, achieving sub-millisecond data refresh cycles that support real-time SCADA visibility.

In distributed topologies, the SM 321 operates within ET 200M remote I/O stations connected via PROFIBUS DP, enabling field-level signal acquisition up to several hundred meters from the central PLC rack. This architecture is particularly effective in petrochemical plants and power generation facilities where control panels are physically separated from process equipment.

Preventive maintenance benchmarks recommend module-level diagnostics every 12-18 months, including input channel continuity verification, terminal block torque re-check (0.5-0.6 Nm), and firmware compatibility audit against the active CPU version. Mean Time Between Failures (MTBF) data for the SM 321 family consistently exceeds 500,000 hours under rated conditions, underscoring its suitability for Mission-Critical applications where Operational Excellence is non-negotiable.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every unit of the 6ES7321-1BP00-0AA0 dispatched by NINERMAS COMPANY LIMITED is sourced directly from authorized distribution channels and ships in Original Factory Packaging with intact tamper-evident seals. Batch traceability documentation is available upon request for quality-controlled procurement environments.

For in-stock orders, same-day dispatch is available on confirmed payment received before the daily cut-off. Global express logistics via DHL, FedEx, and UPS ensure delivery to North America, Europe, Southeast Asia, and the Middle East within 3-7 business days. We specialize in sourcing End-of-Life (EOL) and Legacy Modules — if your facility operates aging S7-300 infrastructure, our global supply network can locate certified units that are no longer available through standard distribution channels.

Engineering Support & FAQ

Q1: How do I install the 6ES7321-1BP00-0AA0 into an existing S7-300 rack?
A: Power down the rack completely before insertion. Align the module with the backplane bus connector and slide it onto the DIN rail until the locking tab clicks. No tools are required. After power-up, the CPU will automatically detect the new module slot address. Verify the slot assignment in STEP 7 or TIA Portal hardware configuration.

Q2: Which firmware versions are compatible with this module?
A: The SM 321 (6ES7321-1BP00-0AA0) is hardware-revision independent and does not carry its own firmware. Compatibility is governed by the S7-300 CPU firmware version. It is supported by all S7-300 CPUs from firmware V1.x onward and is fully configurable in STEP 7 V5.x and TIA Portal V13 and above.

Q3: Can this module be used in a redundant CPU configuration?
A: Yes. When deployed in an ET 200M station connected via PROFIBUS DP, the 6ES7321-1BP00-0AA0 supports High Availability architectures with redundant IM 153-2 interface modules, enabling bumpless switchover during CPU failover events.

Q4: What is the warranty process if a module fails within the warranty period?
A: Contact our technical support team at sale@ninermas.com with your order number, module serial number, and a brief fault description. We will issue a Return Merchandise Authorization (RMA) within 24 hours and dispatch a replacement unit upon receipt of the defective module. Warranty coverage is 12 months from the date of shipment.

Q5: How do I verify the module is genuine and not counterfeit?
A: All units supplied by NINERMAS include original Siemens holographic labels, factory batch codes, and CE/UL certification markings. We provide a Certificate of Conformity and, upon request, third-party inspection reports. Cross-reference the date code on the module housing with the documentation provided.

Q6: Is the 6ES7321-1BP00-0AA0 suitable for use in safety-instrumented systems (SIS)?
A: The SM 321 is a standard I/O module and is not SIL-rated for use as a primary safety function device. For Safety System applications requiring IEC 61508 compliance, Siemens recommends the dedicated F-series fail-safe I/O modules within the S7-300F or S7-400F platforms.
