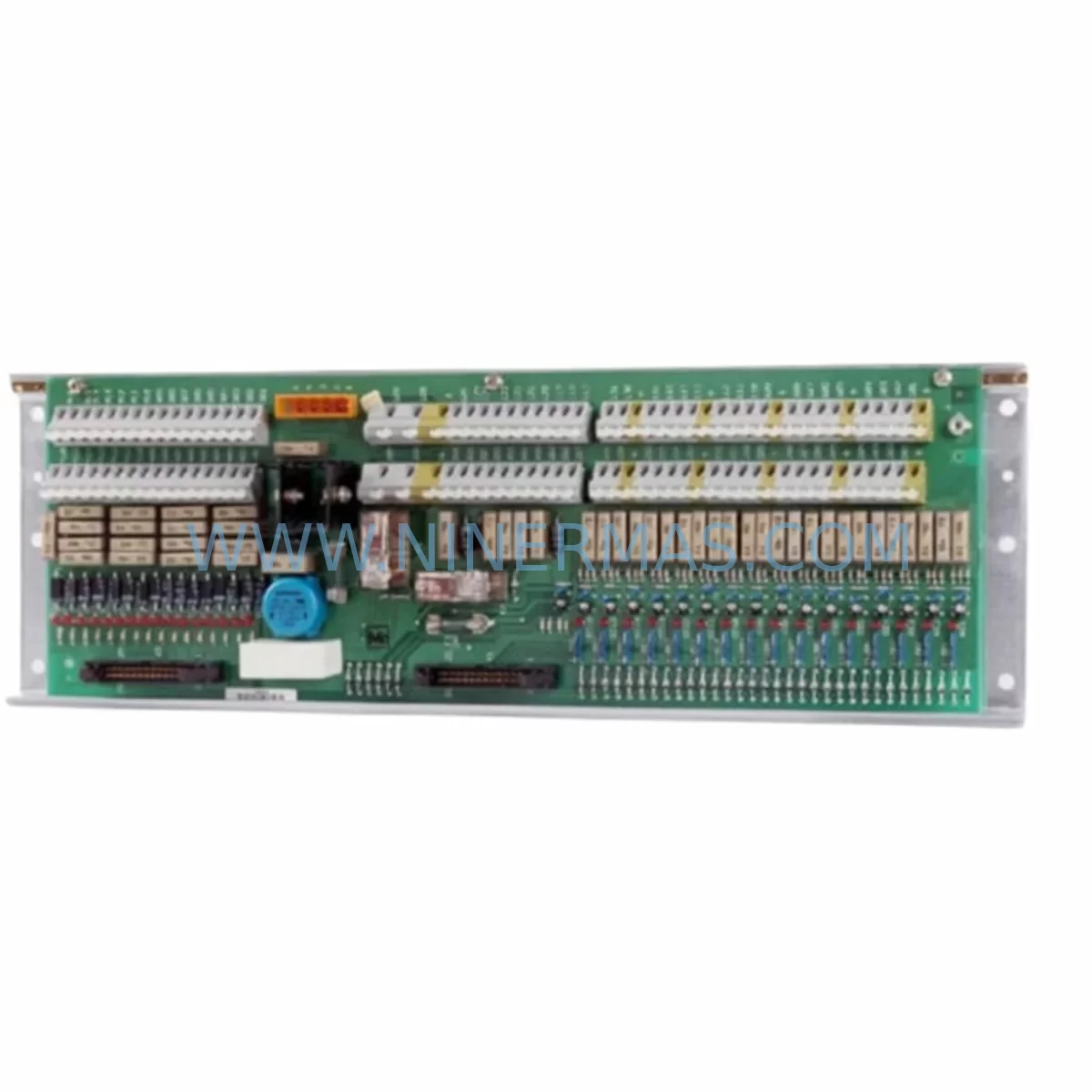

The ABB UNC4674B is a critical excitation control module within the ABB UNITROL series, widely deployed in power generation, industrial drive systems, and utility-grade synchronous machine control. As original equipment manufacturers phase out legacy excitation platforms, the UNC4674B has become one of the most sought-after retrofit and replacement components for engineers tasked with modernizing aging control infrastructure without full system overhauls. NINERMAS maintains verified stock of the UNC4674B to support planned maintenance cycles, emergency replacements, and long-term spare parts programs across global installations.

Retrofitting an existing UNITROL-based excitation system requires careful pre-engineering. Before committing to a replacement, engineers must audit the existing power supply rail — typically a 24 VDC or 48 VDC bus — to confirm the UNC4674B’s input voltage tolerance matches the site’s available supply. Terminal wiring must be cross-referenced against the original HIEE305089R0001 wiring diagram; while the UNC4674B is designed as a functional replacement, terminal labeling conventions may differ between firmware revisions, and incorrect wiring can result in field excitation faults or AVR loop instability. Backplane interface compatibility should also be verified: the UNITROL 5000 and UNITROL 6080 racks use different backplane connector pinouts, and the UNC4674B must be confirmed against the specific rack generation in use at the site.

Module addressing is another key consideration. In multi-channel excitation systems, each UNC4674B is assigned a hardware address via DIP switch or rotary selector. Replicating the original address configuration is essential to avoid conflicts with the UNITROL master controller or redundancy supervisor modules. Program compatibility should be validated against the existing excitation software version — particularly if the site runs ABB’s UNITROL-P or UNITROL-D control philosophy — since parameter sets and function block libraries may require re-commissioning after module swap. HMI screen mappings tied to the original module’s I/O tags should be reviewed in the SCADA or DCS layer to ensure alarm and status signals remain correctly mapped post-replacement.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful UNC4674B retrofit begins well before the module arrives on site. The engineering team should compile a full bill of materials for the excitation cabinet, including the UNITROL power supply module (typically a HIEE300024R0001 or equivalent 24 VDC regulated supply), the AVR interface board, and any signal isolation modules used between the excitation output and the generator field terminals. In systems where the UNC4674B interfaces with a broader DCS architecture, the communication link — whether PROFIBUS-DP or Modbus RTU — must be tested end-to-end before the old module is removed.

For sites running redundant excitation configurations, the standby channel’s UNITROL supervisor module must be placed in manual hold mode before the active UNC4674B is extracted. This prevents automatic switchover events during the replacement window. I/O expansion modules connected to the same rack — including digital input cards for protection relay interlocks and analog output cards for reactive power setpoint signals — should be documented and their wiring verified against the as-built drawings. In older installations, field wiring may have been modified without drawing updates, making physical verification essential.

Where the site uses an ABB AC800M or AC500 PLC as the supervisory controller, the excitation control function blocks within the PLC program should be reviewed to confirm that the UNC4674B’s register map aligns with the existing polling logic. If the site has migrated from an older UNITROL 3000 platform to a UNITROL 5000 architecture, additional attention is needed on the AVR setpoint scaling — the UNC4674B may use a different engineering unit range than the predecessor module. Programming cables and configuration tools (such as the ABB UNITROL configuration software) should be prepared in advance to allow rapid parameter upload during the commissioning window.

Signal isolators between the UNC4674B’s analog outputs and the field excitation thyristor bridge are often overlooked during retrofit planning. These isolators protect the control module from high-voltage transients and must be rated for the site’s field voltage level. Similarly, the installation space within the control cabinet should be measured — while the UNC4674B conforms to the standard UNITROL module form factor, cable management and adjacent module clearances can constrain physical installation in older cabinets that have been field-modified over decades of operation.

Downtime Control During System Migration

Minimizing downtime during a UNC4674B replacement requires a structured pre-outage preparation protocol. All parameter data from the existing module should be extracted and saved prior to shutdown — this includes AVR gain settings, reactive power droop coefficients, field current limits, and protection thresholds. Where the UNITROL system supports online parameter export, this should be performed during normal operation rather than during the outage window.

The replacement sequence should be rehearsed with the site’s electrical team, with clear role assignments for module extraction, installation, address configuration, and initial energization. A parallel verification checklist — covering terminal torque values, DIP switch positions, backplane seating confirmation, and communication link status — should be signed off before the excitation system is re-energized. Where possible, a cold commissioning test (excitation system energized without generator on-line) should be performed to verify AVR response and protection relay coordination before the unit is returned to service.

For critical generation assets where extended downtime is unacceptable, NINERMAS recommends maintaining a pre-configured spare UNC4674B with site-specific parameters pre-loaded. This reduces the on-site commissioning window to a physical swap and communication link verification, typically achievable within a planned maintenance outage of two to four hours. All units supplied by NINERMAS are pre-tested under load conditions and shipped with a 12-month warranty, providing confidence in module reliability from first energization.

Retrofit Support FAQ

Q: Is the UNC4674B a direct drop-in replacement for the HIEE305089R0001?
A: The UNC4674B is the functional replacement for the HIEE305089R0001 within the ABB UNITROL series. Physical form factor and backplane interface are compatible, but terminal wiring and DIP switch address configuration must be verified against the site’s existing drawings before installation. NINERMAS provides pre-shipment testing on all units.

Q: What commissioning steps are required after installing the UNC4674B?
A: After physical installation, the module address must be set to match the original configuration. AVR parameters — including voltage setpoint, gain, droop, and protection limits — must be re-entered or uploaded from a saved parameter file. Communication link integrity (PROFIBUS-DP or Modbus RTU) should be verified from the supervisory controller before the excitation system is energized.

Q: Can NINERMAS supply the UNC4674B for emergency or urgent replacement orders?
A: Yes. NINERMAS maintains in-stock inventory of the UNC4674B to support both planned maintenance and emergency replacement scenarios. Units are pre-tested before shipment and can be dispatched with expedited freight options. All units carry a 12-month warranty covering manufacturing defects and functional performance.

Q: What is covered under the 12-month warranty?
A: The 12-month warranty covers manufacturing defects, component failures under normal operating conditions, and functional non-conformance identified during installation and commissioning. Warranty claims are supported by NINERMAS’s technical team, and replacement units can be dispatched to minimize site downtime. Warranty does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification.
