ABB PDB-02 3HNA023093-001 Service-Ready Spare Part

ABB PDB-02 3HNA023093-001 Service-Ready Spare Part: Spare Replacement & Downtime Risk Control

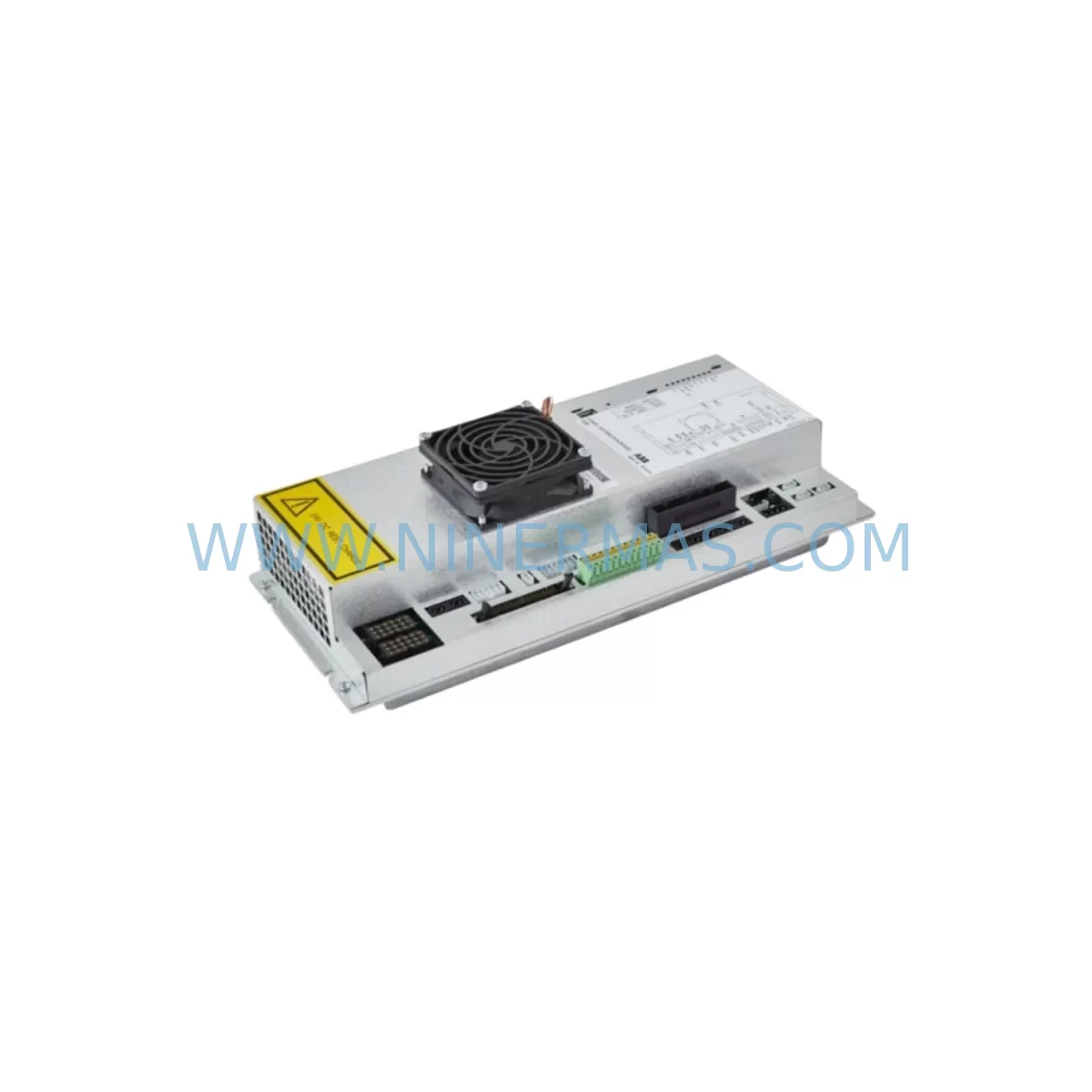

The ABB PDB-02 3HNA023093-001 is a critical power distribution board designed for ABB IRC5 and S4C+ robot controller cabinets. As a service-ready spare part, it plays a central role in maintaining uninterrupted robot operation across automotive assembly lines, metal fabrication cells, and general industrial automation environments. When this board fails or degrades, the entire robot axis control system can be compromised, leading to unplanned downtime that disrupts production schedules and increases maintenance costs. Stocking a verified replacement unit of the 3HNA023093-001 is a fundamental step in any proactive maintenance strategy for ABB robot fleets.

Maintenance engineers working with ABB IRC5 and S4C+ systems understand that the PDB-02 board sits at the intersection of power distribution, drive communication, and cabinet protection. A fault on this board can manifest as axis errors, drive fault codes, or complete controller shutdown. Rapid identification and replacement with a pre-tested ABB PDB-02 3HNA023093-001 spare unit is the most reliable path to restoring production within the shortest possible window.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the ABB PDB-02 3HNA023093-001 during scheduled or emergency maintenance, a thorough inspection of the surrounding electrical circuit is essential to prevent repeat failures and ensure full system restoration. Maintenance engineers should treat this replacement as an opportunity to audit the entire controller cabinet.

Begin by inspecting the ABB DSQC661 or DSQC662 drive units connected downstream of the PDB-02, as power distribution faults often stress or damage adjacent drive modules. Check the ABB DSQC604 or DSQC605 I/O modules for any residual fault flags that may have been triggered by the power anomaly. The ABB DSQC679 FlexPendant interface and its communication cable should be tested for continuity, as voltage spikes on the distribution board can corrupt HMI communication lines.

Inspect all terminal blocks and wiring harnesses within the IRC5 cabinet, paying particular attention to the 24VDC logic supply rails and the 48VDC drive bus connections. Fuse holders and miniature circuit breakers protecting the drive power circuits should be tested and replaced if any signs of thermal stress are visible. The ABB DSQC508 serial measurement board and DSQC532 axis computer board should be reseated and verified, as loose backplane connections can mimic PDB-02 faults.

For systems with external safety circuits, verify that the ABB DSQC400 safety board and associated relay modules are functioning correctly after the power distribution board swap. Signal isolators on analog I/O channels should be checked for drift, particularly in high-vibration environments. If the robot is part of a multi-robot cell, the DeviceNet or PROFIBUS communication module should be tested to confirm network integrity was not disrupted during the fault event.

Procurement engineers should consider maintaining a minimum stock of one 3HNA023093-001 PDB-02 board per robot cell, alongside critical consumables such as drive fuses, 24VDC power supply modules, and I/O terminal blocks. This inventory posture significantly reduces mean time to repair (MTTR) and supports annual maintenance budget planning.

Site Replacement Workflow

Replacing the ABB PDB-02 3HNA023093-001 on-site follows a structured procedure to minimize downtime and ensure system compatibility:

Step 1 — Safety Isolation: Engage the main isolator on the IRC5 or S4C+ controller cabinet and verify zero-energy state using a calibrated voltage tester. Lock out and tag out per site safety procedures.

Step 2 — Compatibility Verification: Before installation, cross-reference the replacement board’s revision level against the controller’s serial number plate and the existing cabinet wiring diagram. The 3HNA023093-001 revision must match the cabinet’s hardware generation to ensure correct connector pinout and firmware compatibility.

Step 3 — Board Removal: Photograph the existing wiring harness connections before disconnecting. Label all connectors. Remove the faulty PDB-02 board from the backplane mounting, taking care to avoid ESD damage to adjacent modules.

Step 4 — Installation: Seat the replacement ABB PDB-02 3HNA023093-001 firmly onto the backplane. Reconnect all wiring harnesses in the documented sequence. Verify that all terminal screws are torqued to specification.

Step 5 — Power-Up and Verification: Restore power and observe the controller boot sequence. Clear any residual fault codes using the FlexPendant or RobotStudio. Run a full axis calibration check and verify I/O signal integrity before returning the robot to production.

This workflow supports legacy system life extension, reduces dependency on OEM service contracts, and enables in-house maintenance teams to manage IRC5 and S4C+ fleets with greater autonomy and cost efficiency.

Spare Parts Support FAQ

Q1: Is the ABB PDB-02 3HNA023093-001 compatible with both IRC5 and S4C+ controllers?
Yes. The 3HNA023093-001 PDB-02 board is designed for use in ABB IRC5 single and dual cabinet configurations as well as S4C+ controller variants. Always verify the cabinet revision and hardware generation against the part number before installation to confirm exact compatibility for your specific robot model and software version.

Q2: What pre-shipment testing is performed on this spare part?
Every ABB PDB-02 3HNA023093-001 unit is functionally tested before dispatch to verify power distribution integrity, connector condition, and board-level operation. A test report is available upon request. All units are shipped with ESD-protective packaging to prevent transit damage.

Q3: What is the warranty coverage and what does it include?
This spare part is covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are supported with direct technical assistance from our engineering team.

Q4: Can you support long-term supply for fleet maintenance programs?
Yes. NINERMAS maintains stock of critical ABB IRC5 and S4C+ spare parts including the 3HNA023093-001 PDB-02 board to support ongoing fleet maintenance, annual shutdown planning, and emergency procurement. We offer volume pricing for maintenance contracts and can provide lead time commitments for scheduled overhaul programs. Contact our team to discuss a tailored spare parts supply agreement.
