ABB BMIO-01 3AXD50000021262 Retrofit-Compatible I/O Module for Legacy ACS880 Drive Systems

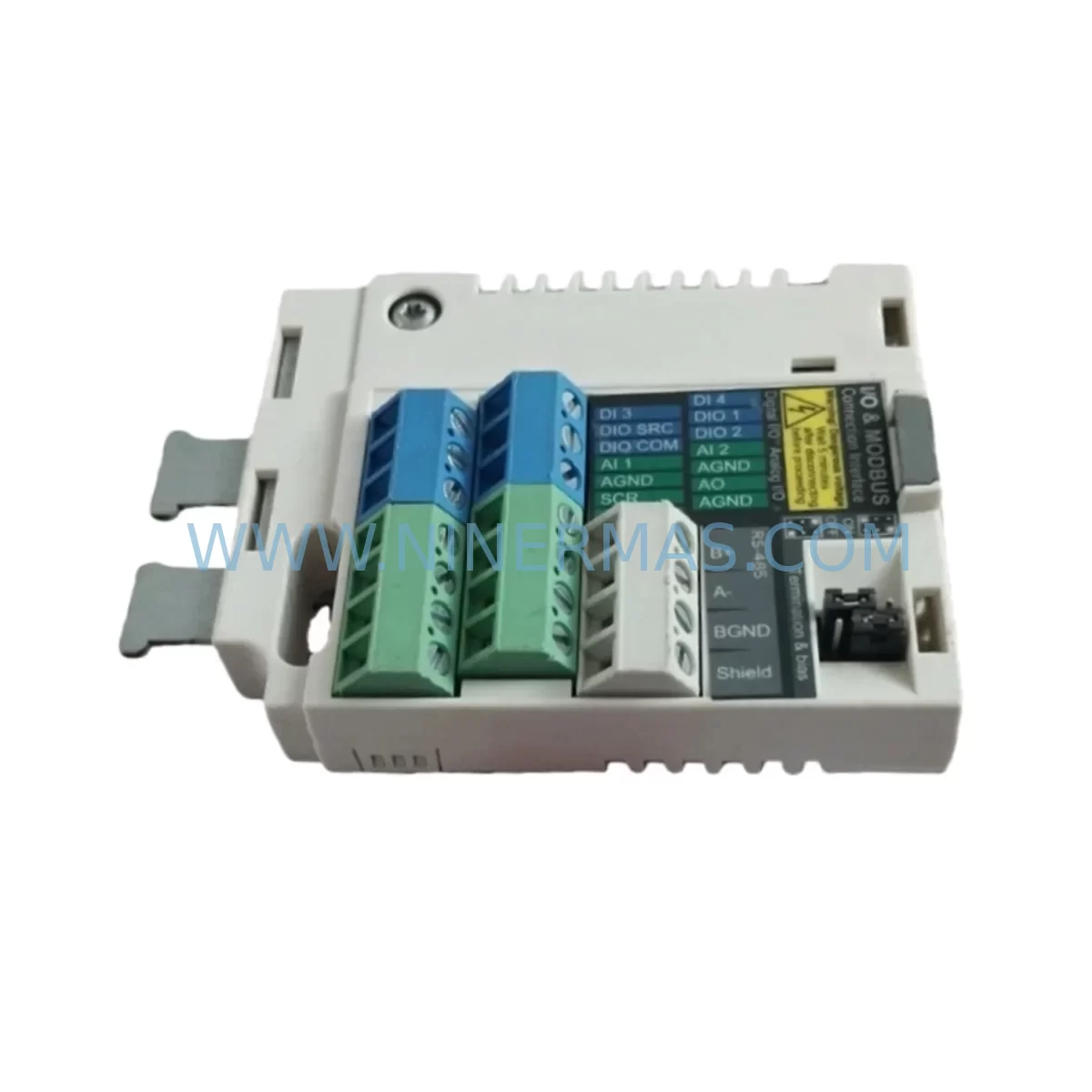

The ABB BMIO-01 (Part No. 3AXD50000021262) is a multi-purpose I/O extension module engineered for the ACS880 drive platform. As industrial facilities face the growing challenge of maintaining aging automation infrastructure, the BMIO-01 has become a critical component in retrofit projects, discontinued spare part replacement programs, and control cabinet modernization initiatives. Whether you are restoring a failed drive system, migrating from an older ACS600 or ACS800 platform, or extending the operational life of an existing ACS880 installation, the BMIO-01 provides the I/O expansion capacity and signal compatibility required to maintain production continuity without a full system overhaul.

This module supports digital and analog I/O channels that integrate directly with the ACS880 drive’s control board architecture. Its compact form factor is designed to fit within existing control cabinet layouts, minimizing the need for panel modifications during retrofit. Engineers and maintenance teams working on legacy line upgrades will find that the BMIO-01 preserves existing wiring terminal assignments where possible, reducing re-termination labor and the risk of wiring errors during changeover.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the BMIO-01 into a legacy automation environment requires a structured pre-retrofit assessment. Before removing the existing I/O module or drive option card, maintenance engineers should document all active parameter settings using ABB Drive Composer Pro or the ACS880 Assistant Control Panel (ACS-AP-I / ACS-AP-W). A full parameter backup ensures that drive logic, speed references, torque limits, and fault response configurations can be restored accurately after the module swap.

Terminal wiring is one of the most time-sensitive steps in any retrofit. The BMIO-01 uses a plug-in terminal block design, which allows pre-wiring of the replacement module before the actual cutover window begins. This approach is strongly recommended when working within tight planned maintenance windows. Cross-reference the existing wiring diagram against the BMIO-01 terminal layout to identify any signal re-mapping requirements, particularly for analog input scaling (0–10V vs. 4–20mA) and digital input logic polarity.

For installations where the ACS880 drive communicates with a PLC or DCS via a fieldbus adapter — such as the RPBA-01 PROFIBUS-DP adapter, RPNA-01 PROFINET adapter, or RENA-01 EtherNet/IP adapter — the fieldbus node address and GSD/EDS file configuration should be verified before and after the I/O module replacement. In most cases, the fieldbus adapter retains its configuration independently of the I/O module, but process data mapping (PPO type, telegram structure) should be confirmed at the PLC side after commissioning.

Control cabinet space planning is equally important. The BMIO-01 occupies one option slot on the ACS880 drive. If the target drive unit already has option slots occupied by a BCON-11 control unit, BFBA-01 fieldbus adapter base, or an FSO-12 functional safety module, slot availability must be confirmed before procurement. In multi-drive cabinet configurations using an ACS880-07 cabinet-built drive or ACS880-17 regenerative drive, the option slot architecture may differ from single drive units — always consult the hardware manual for the specific frame size.

For systems that include an ACS880 primary control program (PCP) with application-specific logic blocks, the I/O channel assignments within the application program must be updated to reflect the BMIO-01’s slot position and channel numbering. This is typically managed through the Drive Application Builder or Automation Builder environment. HMI screens connected via CP600 or CP400 series panel PCs that display I/O status should also be reviewed to ensure signal tags remain correctly mapped after the module change.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any live production environment retrofit. For BMIO-01 replacement projects, the recommended approach is a staged cutover strategy: complete all pre-wiring, parameter backup, and spare part verification during normal production hours, then execute the physical module swap and recommissioning during a planned maintenance window.

Before powering down the ACS880 drive, confirm that the process controlled by the drive (pump, fan, conveyor, compressor, or other load) can be safely isolated. Engage mechanical interlocks or bypass valves as required by your site safety procedures. The drive’s Safe Torque Off (STO) function, often wired through an FSO-12 or FSO-21 safety module, should be tested after the BMIO-01 installation to confirm that safety circuit integrity has not been affected by the module change.

After physical installation, power up the drive and use Drive Composer or the ACS-AP-I panel to restore the parameter backup. Navigate to parameter groups 10 and 15 to verify digital and analog I/O assignments. Run a dry-cycle test with the motor decoupled from the load if possible, confirming that all I/O signals respond correctly before returning the drive to automatic control. Document the as-commissioned parameter set and update the site’s maintenance records accordingly.

For multi-axis or coordinated motion systems where the ACS880 drive operates alongside other drives on a shared DDCS fiber optic ring or D2D link, confirm that the master-follower communication is re-established after the module swap. The BMIO-01 does not affect the D2D link directly, but a drive restart may temporarily interrupt the communication ring — coordinate with the control room operator before initiating the restart sequence.

Retrofit Support FAQ

Q1: Is the BMIO-01 (3AXD50000021262) a direct drop-in replacement for older ACS880 I/O option modules?
A: In most cases, yes. The BMIO-01 is designed for the ACS880 option slot architecture and is compatible with all standard ACS880 frame sizes. However, you should verify the option slot type (slot 1, 2, or 3) on your specific drive unit, as some frame sizes have slot restrictions. Parameter reconfiguration is required after installation — the module does not auto-detect previous settings.

Q2: Can the BMIO-01 be used to replace I/O modules from the older ACS800 or ACS600 drive series?
A: The BMIO-01 is not physically interchangeable with ACS800 or ACS600 option modules due to differences in the option slot connector and backplane interface. However, it is the correct replacement module when upgrading the drive itself from ACS800 to ACS880. In a full drive platform migration, the BMIO-01 provides equivalent or expanded I/O functionality compared to legacy RAIO-01 or RDIO-01 modules used in ACS800 systems.

Q3: What commissioning tools are required to configure the BMIO-01 after installation?
A: ABB Drive Composer Pro (PC-based) or the ACS-AP-I / ACS-AP-W assistant control panel can be used for commissioning. Drive Composer is recommended for complex parameter configurations and for saving a digital parameter backup file. Ensure you are using a firmware-compatible version of Drive Composer for your ACS880 drive’s installed firmware version.

Q4: What warranty and pre-shipment testing does NINERMAS provide for the BMIO-01?
A: All BMIO-01 units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional verification to confirm module integrity before dispatch. We maintain stock inventory to support urgent replacement requirements and can provide documentation including test records upon request. Contact our technical team at sale@ninermas.com for lead time and availability confirmation.
