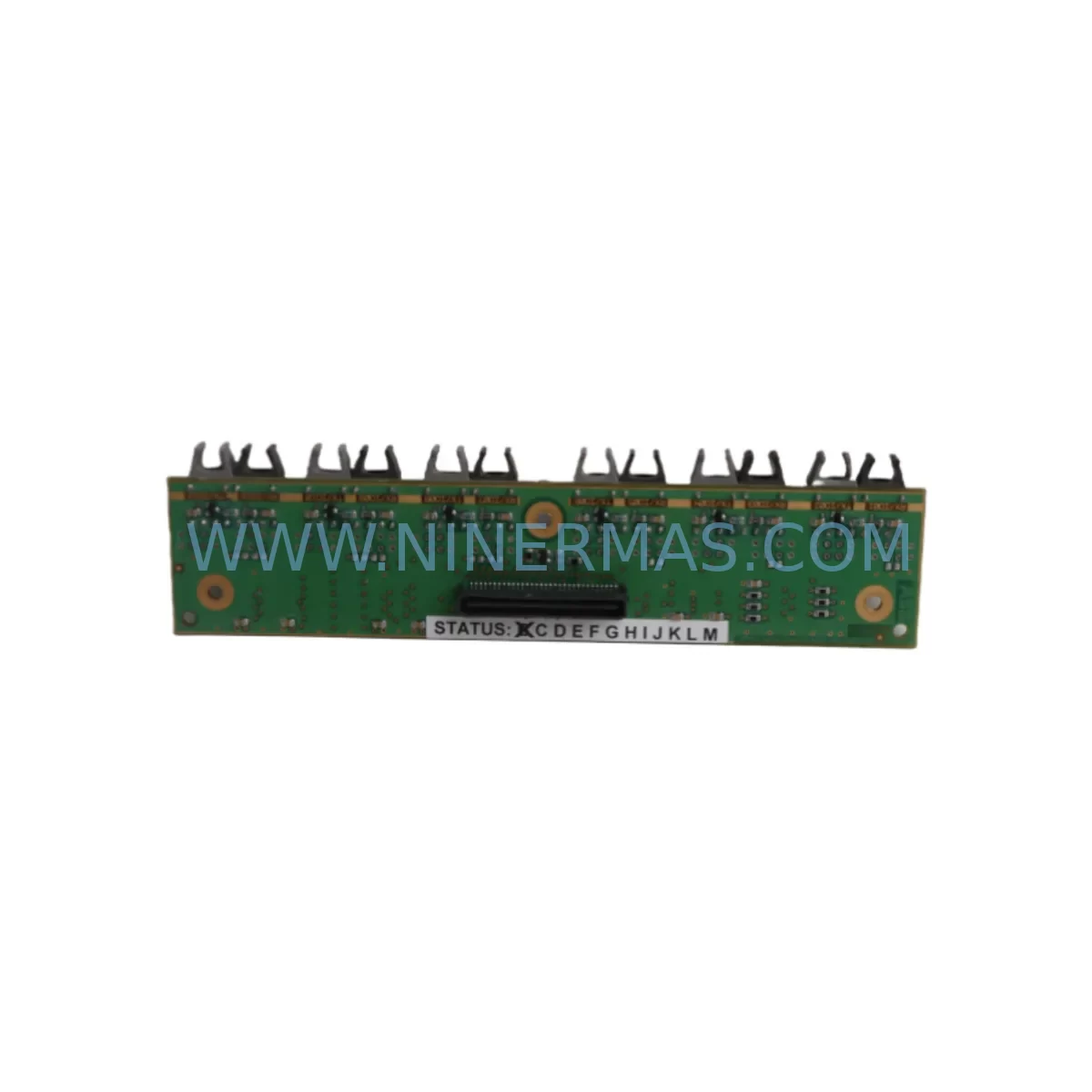

The ABB 3BHE012049R0101 (UFD128A101) is a ruggedized fiber optic communication module engineered for demanding industrial environments. Designed for use within ABB’s Symphony Plus and Advant OCS distributed control system platforms, this module provides high-integrity optical signal transmission between controller backplanes, I/O racks, and remote communication nodes. For maintenance engineers managing aging DCS infrastructure, securing a verified service-ready spare of the 3BHE012049R0101 is a critical step in preventing unplanned downtime and protecting production continuity.

As industrial automation systems age beyond their original support lifecycle, the availability of original spare parts becomes a strategic procurement priority. The UFD128A101 optical module is no longer in active production, making pre-tested, warehouse-stocked units from specialist suppliers the most reliable path to rapid field replacement. NINERMAS maintains long-term inventory of the 3BHE012049R0101 with pre-shipment electrical testing and a 12-month warranty on every unit shipped.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 3BHE012049R0101 in a live DCS environment, a disciplined maintenance approach requires more than a one-for-one module swap. Maintenance engineers should treat this replacement as an opportunity to audit the surrounding control cabinet and associated signal chain for latent faults that could trigger a secondary failure shortly after restart.

Begin by inspecting the PM860 processor module or equivalent controller board seated in the same rack. Optical communication faults are frequently misdiagnosed as processor errors; confirming the PM860’s firmware version and communication health before and after the UFD128A101 swap prevents unnecessary escalation. Similarly, the CI830 communication interface module — which bridges the optical bus to the PROFIBUS or Ethernet backbone — should be checked for connector integrity and firmware compatibility with the replacement unit.

On the I/O side, verify that AI810 analog input modules and AO810 analog output modules connected downstream of the optical link are receiving clean signal references. A degraded optical path can introduce latency or data corruption that manifests as erratic process values rather than a hard fault. Inspect the associated TU830V1 terminal units for loose wiring, oxidized terminals, and correct grounding — these are common failure contributors in high-humidity or high-vibration environments.

Power supply integrity is equally critical. The SD821 or SD822 power supply modules feeding the controller rack should be load-tested and their output ripple measured. An under-voltage condition during peak I/O scan cycles can cause optical modules to drop communication intermittently, producing faults that are difficult to reproduce during maintenance windows. If the rack includes a DP840 communication module for redundant data paths, confirm that failover switching is functioning correctly before returning the system to automatic control.

For systems with HMI integration, verify that the Panel 800 or CP600 operator panel is receiving updated process data after the optical module replacement. Communication timeouts at the HMI level are a reliable indicator of residual optical path issues. Finally, inspect any signal isolators or surge protection barriers installed on field wiring entering the cabinet — these components absorb transient energy and degrade silently over time, becoming a source of signal noise that optical modules are particularly sensitive to.

Site Replacement Workflow

Replacing the ABB 3BHE012049R0101 in the field follows a structured sequence designed to minimize system downtime and ensure compatibility verification before the unit is placed into service.

Step 1 — Pre-Replacement Verification: Confirm the replacement unit’s part number (3BHE012049R0101) and model designation (UFD128A101) match the installed unit exactly. Cross-reference the rack slot assignment and backplane connector type. Do not substitute with UFD128A100 or other revision suffixes without confirming backward compatibility with your system’s firmware baseline.

Step 2 — System State Documentation: Before powering down the affected rack segment, capture a full diagnostic snapshot from the DCS engineering workstation. Record active alarms, communication status for all nodes on the optical bus, and the current firmware version of the module being replaced. This baseline is essential for post-replacement validation.

Step 3 — Safe Removal: Follow ABB’s lockout/tagout procedure for the controller rack. Remove the fiber optic cables from the UFD128A101 connectors carefully — optical connectors are susceptible to contamination. Cap all fiber ends immediately with dust caps. Extract the module from the backplane using the ejector levers; avoid flexing the board.

Step 4 — Installation and Initialization: Insert the replacement 3BHE012049R0101 into the designated slot. Reconnect fiber cables, ensuring correct TX/RX polarity. Power up the rack segment and observe the module’s LED status indicators. A solid green link LED confirms optical path establishment. Allow the DCS to complete its node discovery cycle before declaring the replacement successful.

Step 5 — Post-Replacement Validation: Verify all downstream I/O nodes are communicating correctly. Clear any latched alarms generated during the replacement window. Run a 15-minute observation period under normal process load before returning the loop to automatic control. Document the replacement in the site maintenance log with the new unit’s serial number and the date of installation.

Spare Parts Support FAQ

Q1: Is the ABB 3BHE012049R0101 still in production, and how do I ensure long-term supply?
The UFD128A101 module has reached end-of-life status with ABB and is no longer available through standard distribution channels. NINERMAS maintains a dedicated inventory of original, tested units sourced from decommissioned systems and authorized surplus channels. We recommend procurement engineers establish a reserved stock agreement for critical optical modules to avoid single-point-of-failure exposure in aging DCS installations.

Q2: How is the 3BHE012049R0101 tested before shipment?
Every unit shipped by NINERMAS undergoes pre-shipment electrical and functional testing. This includes power-on verification, optical port continuity checks, and communication handshake testing where applicable. Units that fail any test parameter are quarantined and not offered for sale. A test report is available upon request for quality-critical procurement processes.

Q3: What is the compatibility scope of the UFD128A101 with different ABB DCS generations?
The 3BHE012049R0101 is primarily designed for ABB Symphony Plus and Advant OCS platforms. Compatibility with specific rack generations and firmware baselines should be confirmed against your system’s engineering documentation before ordering. NINERMAS technical support can assist with compatibility verification based on your system’s controller type and software version.

Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, NINERMAS will arrange return shipping and provide a replacement unit or full refund within an agreed service window. All warranty claims are handled directly through our sales team.
