ABB ACS880-01-032A-3 Service-Ready Spare Part for Industrial Maintenance

ABB ACS880-01-032A-3 Service-Ready Spare Part for Industrial Maintenance

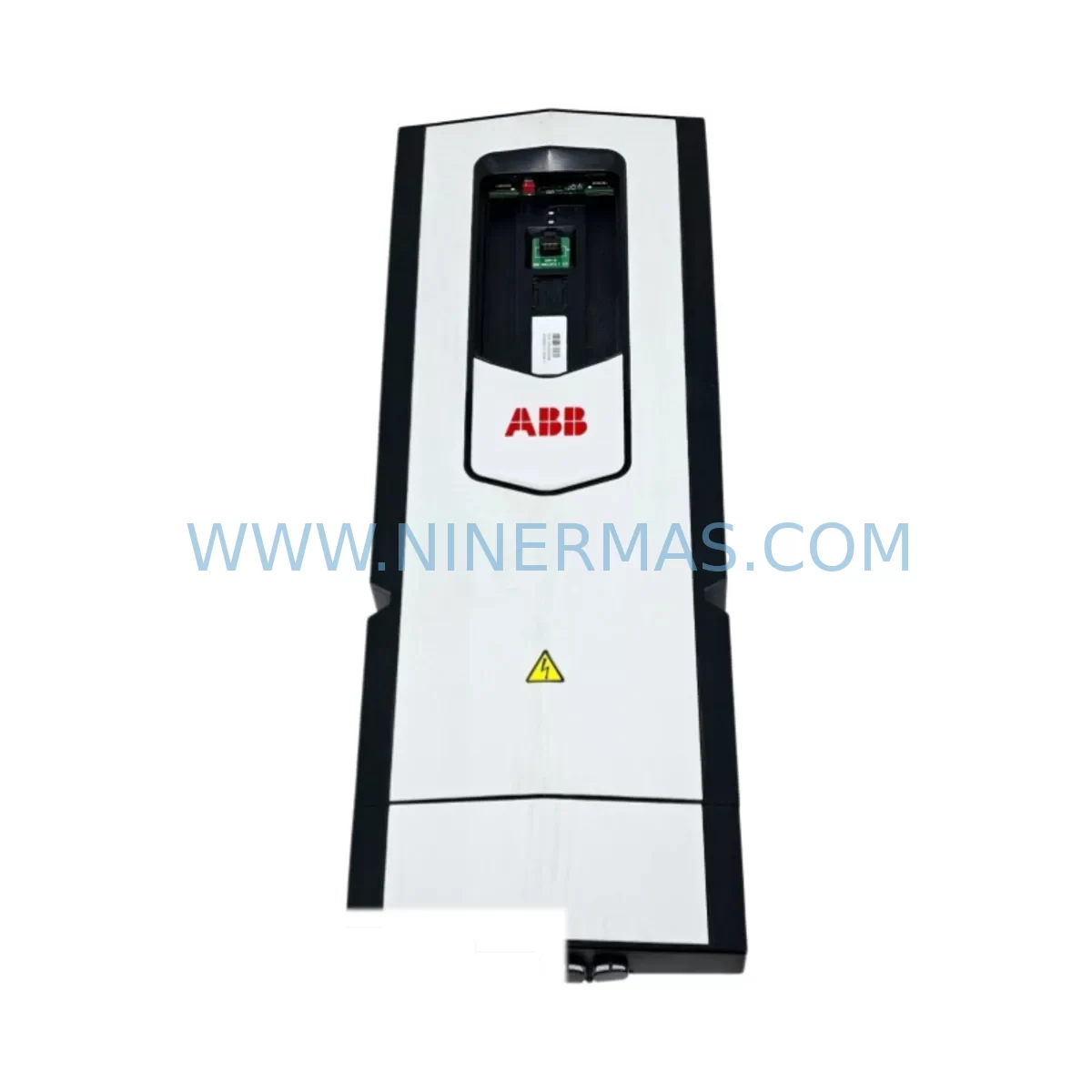

The ABB ACS880-01-032A-3 is a single-drive AC variable frequency drive from ABB’s industry-leading ACS880 series, rated at 32A output current for 380–480V three-phase applications. As a service-ready spare part stocked and tested by NINERMAS, this unit is engineered to support rapid field replacement, minimize unplanned downtime, and sustain continuous production in demanding industrial environments including manufacturing lines, process automation, HVAC systems, water treatment, and heavy-duty motor control applications.

Whether you are a maintenance engineer managing a scheduled annual overhaul, responding to an emergency drive fault, or a procurement engineer building a strategic spare parts inventory, the ACS880-01-032A-3 delivers the compatibility, reliability, and long-term supply assurance your operation demands. Every unit shipped by NINERMAS undergoes pre-shipment functional verification and is backed by a 12-month warranty.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the ACS880-01-032A-3 in the field, a thorough maintenance inspection of the surrounding electrical system is essential to prevent repeat failures and ensure long-term drive reliability. Maintenance engineers should treat a drive replacement as an opportunity to audit the entire motor control circuit.

Begin by inspecting the input power supply module feeding the drive — voltage fluctuations or harmonic distortion from upstream sources are a leading cause of premature drive failure. Verify that the input line reactor or EMC filter (such as ABB’s NOCH0100-60 or equivalent) is intact and correctly rated for the ACS880-01-032A-3’s input current. A degraded line reactor will expose the drive’s rectifier bridge to damaging voltage spikes.

Check all control wiring and I/O terminal connections on the drive’s X1 and X2 terminal blocks. Loose or corroded terminals on analog input (AI1/AI2), digital input (DI1–DI6), and relay output (RO1–RO3) circuits are a frequent source of intermittent faults that are often misdiagnosed as drive failures. Inspect the 24VDC auxiliary power supply that powers the drive’s control board — an unstable auxiliary supply can cause erratic parameter behavior and communication dropouts.

If the ACS880-01-032A-3 is integrated into a PROFIBUS DP or EtherNet/IP network, verify the fieldbus adapter module (RPBA-01 for PROFIBUS or RETA-01 for EtherNet/IP) is firmly seated and that the network termination resistors are correctly configured. Communication module faults are a common secondary issue discovered during drive replacement. Similarly, inspect the ACS880 control panel (ACS-AP-I or ACS-AP-W) or HMI interface — a cracked panel connector or corrupted parameter backup can delay commissioning of the replacement drive.

For cabinet-mounted installations, inspect the cabinet door interlocks, thermal overload relays, and any contactor assemblies (such as ABB AF series contactors) in the motor starter circuit. A welded contactor or a tripped thermal relay upstream of the drive is often overlooked during emergency replacements. Also verify the integrity of the motor cable shielding and grounding — improper grounding of the motor cable shield is a primary cause of bearing current damage and EMC interference in ACS880 installations.

For facilities running multiple ACS880 drives in a common DC bus configuration, inspect the DC bus fuses and the common DC bus connection bars when replacing any single drive unit. A failed drive in a shared DC bus system can stress adjacent units. Procurement engineers building a spare parts kit around the ACS880-01-032A-3 should also consider stocking the ACS880-01-025A-3 and ACS880-01-038A-3 as adjacent current-rating spares to cover a broader range of motor sizes on the same production line.

Site Replacement Workflow

Step 1 — Isolation & Safety: De-energize the drive using the main isolator and verify zero voltage on the DC bus using a calibrated multimeter. The ACS880 DC bus retains charge for up to 5 minutes after power-off — always wait for the charge indicator LED to extinguish before opening the drive enclosure.

Step 2 — Parameter Backup: If the existing drive is still partially functional, use the ACS-AP-I control panel or Drive Composer PC tool to export the full parameter set. This backup eliminates manual re-commissioning and reduces restart time from hours to minutes.

Step 3 — Mechanical Removal: Disconnect the input power cables (U1/V1/W1), motor output cables (U2/V2/W2), control wiring, and any fieldbus adapter. Label all connections before removal. Unbolt the drive from the mounting rail or cabinet backplate.

Step 4 — Install ACS880-01-032A-3: Mount the replacement unit, reconnect all cables in reverse order, and verify torque specifications on power terminals (refer to ABB installation manual 3AXD50000018561). Confirm that the motor cable length does not exceed the drive’s maximum cable length specification to avoid output dV/dt stress.

Step 5 — Parameter Restore & Commissioning: Restore the parameter backup via the control panel or Drive Composer. Verify motor nameplate data in parameter group 99 (Motor Data). Run the motor identification routine (ID Run) if the motor has been replaced or if the cable length has changed significantly.

Step 6 — Functional Test: Perform a no-load test run, verify speed reference tracking, check all digital and analog I/O signals, and confirm fieldbus communication status before returning the drive to production. Document the replacement in the site maintenance log.

This structured workflow minimizes restart time, reduces the risk of commissioning errors, and ensures the replacement ACS880-01-032A-3 operates within its design parameters from the first power-on.

Spare Parts Support FAQ

Q1: Is the ACS880-01-032A-3 a direct drop-in replacement for older ACS800 series drives?
The ACS880-01-032A-3 is not a direct pin-for-pin replacement for ACS800 units due to differences in control terminal layout and parameter structure. However, with appropriate wiring adaptation and parameter configuration, the ACS880 series can replace ACS800 drives in most applications. NINERMAS technical support can advise on specific compatibility scenarios before purchase.

Q2: How does NINERMAS verify the condition of each ACS880-01-032A-3 unit before shipment?
Every unit undergoes a pre-shipment inspection that includes visual inspection for physical damage, DC bus capacitor integrity check, power-on functional test, and firmware version verification. Units that do not pass all checks are not shipped. A test report is available upon request for critical procurement orders.

Q3: What is covered under the 12-month warranty, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or unauthorized modifications. To initiate a warranty claim, contact NINERMAS at sale@ninermas.com with the order number, fault description, and any available fault log data from the drive. Replacement or repair is typically arranged within 5–7 business days of claim approval.

Q4: Can NINERMAS support long-term or blanket purchase orders for the ACS880-01-032A-3?
Yes. NINERMAS supports long-term supply agreements, blanket purchase orders, and scheduled delivery programs for the ACS880-01-032A-3 and related ACS880 series components. This is particularly valuable for facilities managing aging ACS880 fleets where OEM availability may become constrained. Contact our sales team to discuss volume pricing, lead time commitments, and inventory reservation options.
