ABB 3BHE034863R0001 UDC920BE Service-Ready Spare Part: Minimizing Downtime in Critical Excitation Control Systems

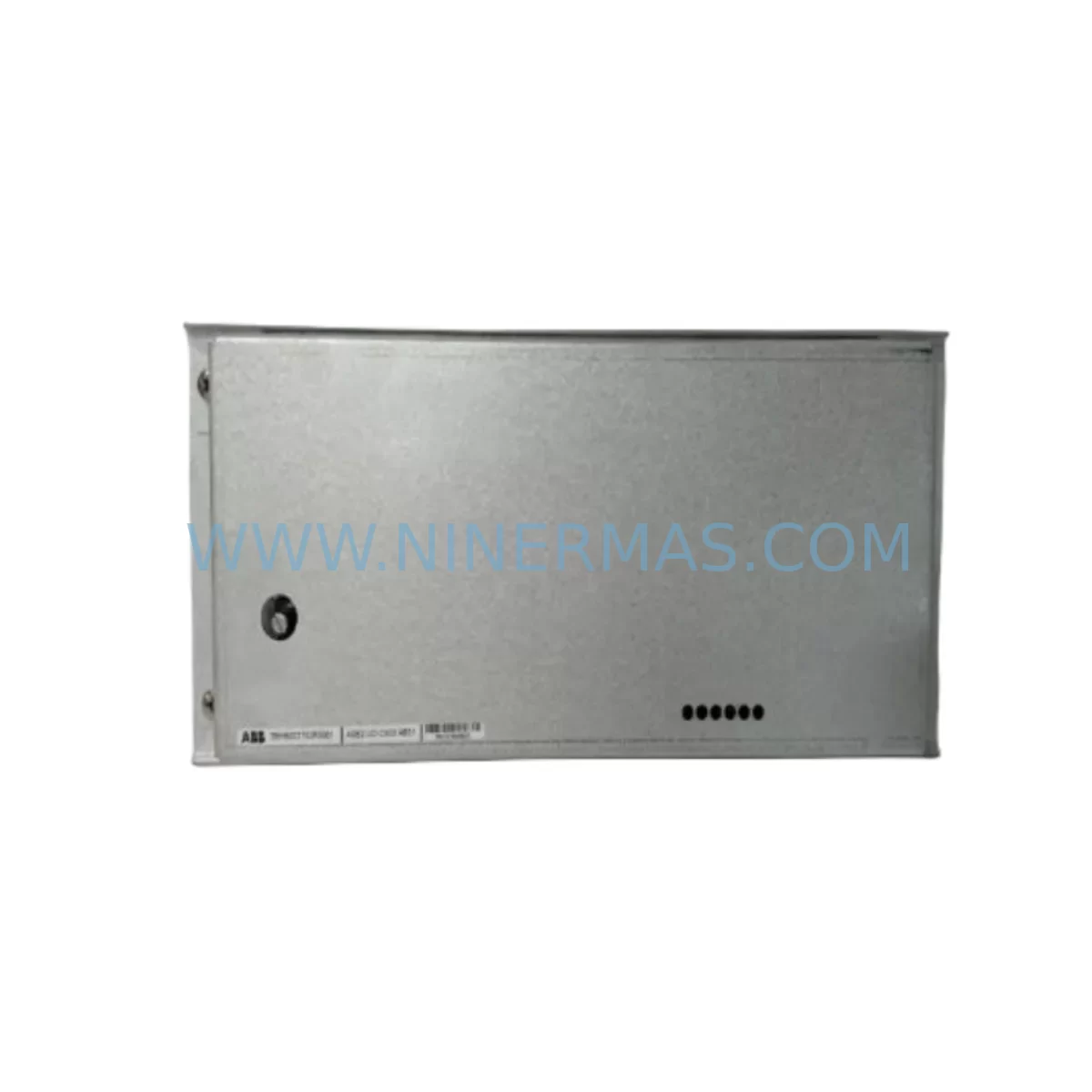

The ABB 3BHE034863R0001 UDC920BE is a high-reliability excitation control module designed for deployment within ABB’s AC800PEC high-performance controller platform, widely used in power generation, large-scale drive systems, and process-critical industrial automation environments. As a service-ready original spare part, this module is sourced, pre-tested, and stocked to support maintenance engineers and procurement teams who cannot afford unplanned downtime caused by excitation system failures.

Excitation control failures are among the most disruptive events in rotating machinery operations. When the UDC920BE module degrades or fails, the entire excitation chain — from AVR setpoint tracking to field current regulation — can be compromised, leading to generator trips, motor instability, or full production line shutdowns. Having a verified, tested replacement unit on the shelf is the single most effective risk mitigation strategy for facilities operating ABB AC800PEC-based excitation systems.

At NINERMAS, every 3BHE034863R0001 UDC920BE unit undergoes pre-shipment functional verification to confirm signal integrity, communication bus response, and module identification. Units are shipped with full documentation support and backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a replacement or inspection of the 3BHE034863R0001 UDC920BE, maintenance engineers should treat the intervention as an opportunity to audit the full excitation control cabinet and associated electrical circuits. Excitation system failures rarely occur in isolation — adjacent components are often subject to the same thermal cycling, voltage stress, and aging factors that degrade the primary module.

Begin with the AC800PEC backplane and verify that all module slots are free of corrosion, bent pins, or loose seating. The backplane itself — such as the TB820V2 or equivalent AC800PEC I/O bus termination unit — should be inspected for continuity and mechanical integrity before the new UDC920BE is installed. A faulty backplane connection is a common root cause of repeated module failures that are misdiagnosed as module defects.

Next, inspect the power supply modules feeding the AC800PEC rack. Units such as the ABB SD802F or equivalent 24VDC redundant power supply modules should be checked for output voltage stability, ripple, and load regulation. An unstable power supply is one of the leading causes of premature excitation controller failure and should be replaced proactively if it shows any signs of degradation.

The field current measurement circuit should also be reviewed. Current transducers, shunt resistors, and signal conditioning boards connected to the UDC920BE’s analog input channels — including any signal isolators or galvanic separation modules — must be verified for calibration accuracy and insulation integrity. Drift in these measurement circuits can cause the replacement module to operate incorrectly even when the module itself is fully functional.

For systems using fiber optic communication links between the AC800PEC controller and the excitation power bridge (such as IGBT or thyristor firing boards), inspect the fiber connectors and transceivers for contamination or mechanical damage. Communication modules such as the RDCO-03 or equivalent optical interface boards are frequently overlooked during excitation maintenance but are critical to pulse pattern transmission integrity.

Terminal blocks, wiring harnesses, and grounding connections within the excitation panel should be torqued to specification and inspected for insulation breakdown. Loose or corroded terminals on the field winding connection, AVR reference input, or PSS (Power System Stabilizer) interface can introduce noise that degrades closed-loop excitation performance. Fuse holders and miniature circuit breakers protecting the auxiliary supply circuits should also be tested for proper trip characteristics.

If the facility operates a redundant excitation system, the changeover relay logic — including the automatic voltage regulator transfer relay and manual/auto transfer switches — should be exercised during the maintenance window to confirm that the standby channel is fully operational. HMI panels and operator workstations connected to the excitation system via Modbus, PROFIBUS, or IEC 61850 should be verified for correct parameter display and alarm annunciation after the module swap.

Procurement engineers should consider establishing a minimum stock level of one UDC920BE unit per excitation system, with a review cycle aligned to the facility’s annual maintenance shutdown. For multi-unit power plants or facilities with multiple AC800PEC-based excitation systems, a centralized spare parts pool with documented allocation rules reduces both carrying cost and emergency procurement risk.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the failed module’s part number (3BHE034863R0001) and firmware revision from the existing system documentation or nameplate. Verify that the replacement UDC920BE unit matches the required hardware revision for your AC800PEC platform version. Mismatched hardware revisions between the controller CPU and excitation control module can cause initialization failures.

Step 2 — System Isolation: Follow the facility’s lockout/tagout (LOTO) procedure for the excitation system. De-energize the AC800PEC rack power supply and allow capacitors in the power bridge to discharge fully before opening the control cabinet. Confirm zero voltage on the field winding terminals using a calibrated insulation tester.

Step 3 — Module Extraction: Release the module locking lever and extract the UDC920BE from its backplane slot using even, straight-line force. Avoid rocking the module, as this can damage backplane connector pins. Place the removed module in an ESD-protective bag immediately.

Step 4 — Replacement Installation: Insert the new 3BHE034863R0001 UDC920BE into the correct backplane slot, ensuring full engagement of the connector. Secure the locking lever. Reconnect any external wiring harnesses or fiber optic cables that were disconnected during extraction.

Step 5 — System Restart and Commissioning: Re-energize the AC800PEC rack and allow the controller to complete its boot sequence. Verify that the UDC920BE module is recognized by the controller CPU and that all excitation parameters (AVR setpoints, field current limits, PSS gains) are correctly loaded from the non-volatile memory or re-entered from the commissioning record. Perform a no-load excitation test before returning the machine to service.

Step 6 — Documentation: Record the replacement date, new module serial number, and post-replacement test results in the facility’s maintenance management system (CMMS). Update the spare parts inventory to reflect the consumed unit and initiate a replenishment order to maintain minimum stock levels.

Spare Parts Support FAQ

Q1: Is the 3BHE034863R0001 UDC920BE compatible with all AC800PEC controller versions?
The UDC920BE is designed for the ABB AC800PEC platform, but hardware revision compatibility must be confirmed against your specific controller CPU version. NINERMAS technical support can assist with revision matching based on your system’s existing configuration data or nameplate information. Contact us before ordering if you are uncertain about revision compatibility.

Q2: What testing is performed before shipment?
Every 3BHE034863R0001 UDC920BE unit shipped by NINERMAS undergoes pre-shipment functional verification, including power-on self-test, communication bus response check, and module identification confirmation. Test records are available upon request. Units that do not pass verification are not shipped.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or operation outside the module’s rated environmental specifications. Warranty claims are processed with return material authorization (RMA) and replacement dispatch within agreed lead times.

Q4: Can NINERMAS support long-term supply commitments for this module?
Yes. NINERMAS offers blanket order and stock-commitment programs for facilities that require guaranteed availability of the 3BHE034863R0001 UDC920BE over multi-year maintenance cycles. These programs include reserved inventory allocation, fixed pricing, and priority dispatch to support annual shutdown planning and emergency replacement requirements. Contact our sales team to discuss program terms.
