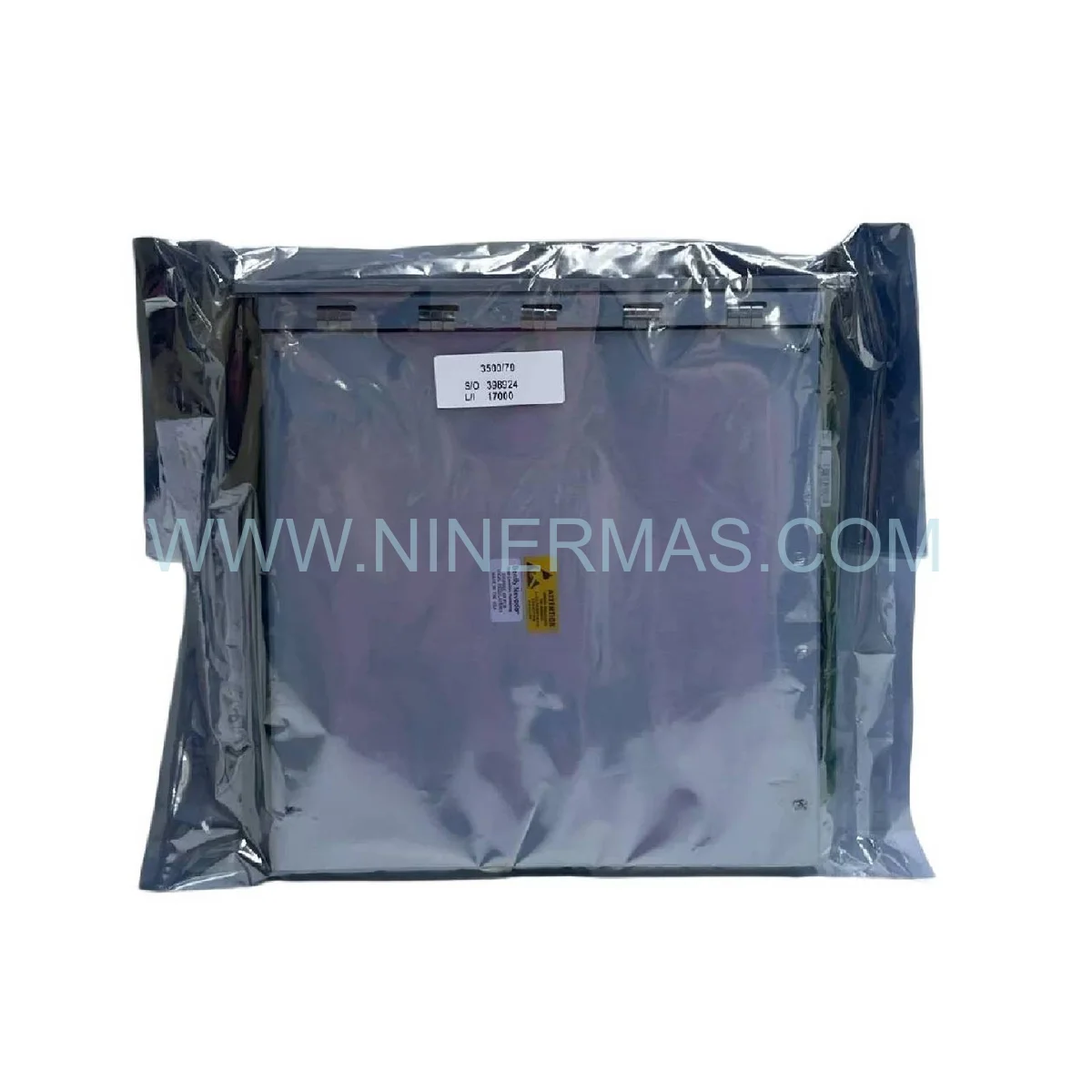

Industrial-Grade Recip Impulse Velocity Monitor (3500/70M 176449-09)

The Bently Nevada 3500/70M 176449-09 represents a critical advancement in reciprocating machinery protection technology. Engineered for continuous vibration surveillance, this four-channel velocity monitor transforms raw impulse data from proximity probes and velocity transducers into actionable intelligence—enabling maintenance teams to detect mechanical anomalies weeks before catastrophic failure occurs.

Designed for oil & gas, petrochemical, and power generation facilities, the 3500/70M integrates seamlessly into existing 3500 Series rack infrastructures while meeting stringent API 670 machinery protection standards. Whether monitoring natural gas compressors operating at 1,200 RPM or high-pressure reciprocating pumps in refinery service, this monitor delivers the precision and reliability demanded by mission-critical applications.

With dual-level alarm architecture, buffered analog outputs, and proven compatibility across diverse industrial environments, the 176449-09 configuration provides a future-proof foundation for predictive maintenance programs targeting 99.5%+ equipment availability.

Core Capabilities & Technical Advantages

→ Multi-Channel Flexibility: Accepts 1 to 4 independent sensor inputs (proximity probes or velocity transducers), allowing comprehensive monitoring of complex reciprocating assemblies with a single module. Reduces hardware costs by 30% compared to single-channel alternatives.

→ API 670 Certified Protection: Fully compliant with American Petroleum Institute standards for machinery protection systems, ensuring regulatory acceptance in upstream, midstream, and downstream operations. Meets ISO 20816 vibration severity classifications for rotating and reciprocating equipment.

→ Real-Time Fault Detection: Advanced signal processing algorithms identify bearing degradation, mechanical looseness, misalignment, and lubrication failures at incipient stages—typically 15-30 days before visible damage occurs. Enables condition-based maintenance scheduling that cuts unplanned downtime by 40%.

✓ Seamless System Integration: Buffered outputs interface directly with DCS, PLC, and SCADA platforms via 4-20mA analog signals. Compatible with Modbus RTU/TCP protocols when paired with 3500/92 Communication Gateway, enabling remote diagnostics and alarm management.

✓ Extreme Environment Durability: Operates reliably across -30°C to +65°C temperature ranges with conformal-coated circuitry resistant to humidity, vibration, and electromagnetic interference. Proven performance in offshore platforms, desert installations, and arctic processing facilities.

✓ Dual-Setpoint Alarm Logic: Configurable Alert and Danger thresholds with independent time delays and latching options. Prevents nuisance trips while ensuring immediate shutdown protection when velocity limits exceed safe operating envelopes.

Industrial Application Scenarios

Natural Gas Compression Stations: Monitor reciprocating compressors handling 50-500 MMSCFD throughput in pipeline booster service. The 3500/70M detects valve impact signatures and crosshead wear patterns unique to high-cycle gas compression, preventing $2M+ repair costs from catastrophic rod failures.

Petrochemical Process Units: Protect ethylene cracker reciprocating compressors and ammonia synthesis gas machines operating under extreme pressure differentials (up to 3,000 PSI). Velocity trending identifies piston ring degradation before process contamination occurs, maintaining product purity specifications.

Power Generation Facilities: Safeguard reciprocating engine-driven generators in peaking plants and combined-cycle configurations. Early detection of connecting rod bearing wear extends overhaul intervals from 8,000 to 12,000 operating hours, reducing lifecycle maintenance costs by 25%.

Offshore Production Platforms: Provide unmanned platform protection for reciprocating mud pumps, seawater injection pumps, and gas lift compressors. Remote alarm notification via satellite links enables predictive part ordering before scheduled crew rotations, minimizing production deferrals.

Refinery Hydrogen Services: Monitor high-pressure hydrogen recycle compressors in hydrotreating and hydrocracking units. The 3500/70M's sensitivity to impulse events detects valve leakage and packing failures that compromise process safety management (PSM) compliance.

Technical Parameters & Selection Criteria

Selection Guidance: Choose the 3500/70M when monitoring reciprocating equipment requires impulse velocity measurement rather than peak-to-peak displacement. For rotating machinery (turbines, centrifugal compressors), consider the 3500/40M Proximitor Monitor. When rod position tracking is critical, pair with the 3500/72M Recip Rod Position Monitor for comprehensive reciprocating compressor protection.

Advanced Integration & Customization

IoT-Enabled Diagnostics: When networked with the 3500/92 Communication Gateway and System 1 software, the 3500/70M enables cloud-based vibration trending, automated alarm notifications via email/SMS, and machine learning-assisted fault diagnosis. Historical data retention supports root cause analysis and reliability engineering initiatives.

Redundant Architecture Options: Deploy dual 3500/70M monitors in voting logic configurations to achieve SIL-2 safety integrity levels for critical shutdown systems. Redundant power supplies and communication paths eliminate single points of failure in high-consequence applications.

Custom Calibration Services: Factory-specific calibration certificates available for applications requiring traceability to NIST standards. Custom alarm setpoint programming based on OEM machinery specifications or site-specific operating envelopes can be pre-configured prior to shipment.

Delivery Timeline & Service Commitments

Standard Delivery: In-stock 3500/70M 176449-09 units ship within 1-3 business days via DHL/FedEx International Priority. Typical transit time to major industrial hubs: North America (3-5 days), Europe (4-6 days), Middle East (5-7 days), Asia-Pacific (2-4 days).

Custom Configurations: Units requiring non-standard I/O modules, specialized firmware, or factory acceptance testing (FAT) ship within 2-4 weeks. Expedited production available for critical path projects with premium freight options.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Warranty includes firmware updates, technical support, and no-cost replacement for confirmed manufacturing defects. Extended 24/36-month warranty plans available.

Technical Support: Lifetime access to application engineering team for installation guidance, configuration assistance, and troubleshooting. Support includes wiring diagrams, startup checklists, and alarm setpoint recommendations based on machinery type and operating conditions.

Documentation Package: Each unit ships with installation manual, configuration software (3500 Rack Configuration), calibration certificates, and compliance declarations (CE, RoHS). Digital copies available for download prior to shipment.

Frequently Asked Questions

What sensor types are compatible with the 3500/70M velocity monitor?
The monitor accepts both proximity probes (8mm and 11mm Bently Nevada eddy current sensors) and velocity transducers with standard 100 mV/g sensitivity. Each channel can be independently configured for different sensor types, allowing mixed-sensor installations on multi-cylinder reciprocating equipment.

How does the 3500/70M improve reciprocating compressor reliability?
By continuously measuring impulse velocity signatures, the monitor detects early-stage mechanical faults—bearing wear, valve impact changes, crosshead misalignment—typically 15-30 days before failure. This early warning enables planned maintenance during scheduled outages rather than emergency shutdowns, reducing downtime costs by 40-60%.

Can alarm setpoints be adjusted remotely after installation?
Yes, when integrated with a 3500/92 Communication Gateway, all configuration parameters including Alert/Danger setpoints, time delays, and alarm logic can be modified remotely via Modbus TCP/RTU or proprietary protocols. Changes are password-protected and logged for audit trail compliance.

Is the 3500/70M suitable for hazardous area installations?
The monitor itself is designed for control room rack mounting in non-hazardous areas. Sensors installed in Division 1/Zone 1 hazardous locations connect via intrinsically safe barriers (Bently Nevada 330180 series) or explosion-proof junction boxes, maintaining compliance with IECEx and ATEX directives.

What is the typical lead time for replacement units during emergency outages?
In-stock units ship same-day for orders placed before 2:00 PM CST with expedited air freight options (24-48 hour delivery to most global destinations). For critical applications, consider maintaining a spare module on-site or enrolling in our rapid-response exchange program with 4-hour shipping guarantees.

Does the monitor support integration with legacy DCS systems?
Yes, the 3500/70M provides industry-standard 4-20 mA analog outputs compatible with virtually all DCS/PLC platforms (Honeywell, Emerson DeltaV, Siemens PCS7, Yokogawa Centum). Digital integration via Modbus requires the addition of a 3500/92 gateway module but enables advanced diagnostics beyond simple alarm status.

Take the Next Step in Machinery Protection

Protect your critical reciprocating assets with proven Bently Nevada technology trusted by Fortune 500 energy companies worldwide. Our application engineers are ready to discuss your specific monitoring requirements, recommend optimal sensor configurations, and provide budget quotations within 24 hours.

Request a technical consultation: Contact our team at sale@ninermas.com or call +0086 187 5021 5667 to speak with a vibration monitoring specialist. Volume pricing and multi-unit project discounts available.
