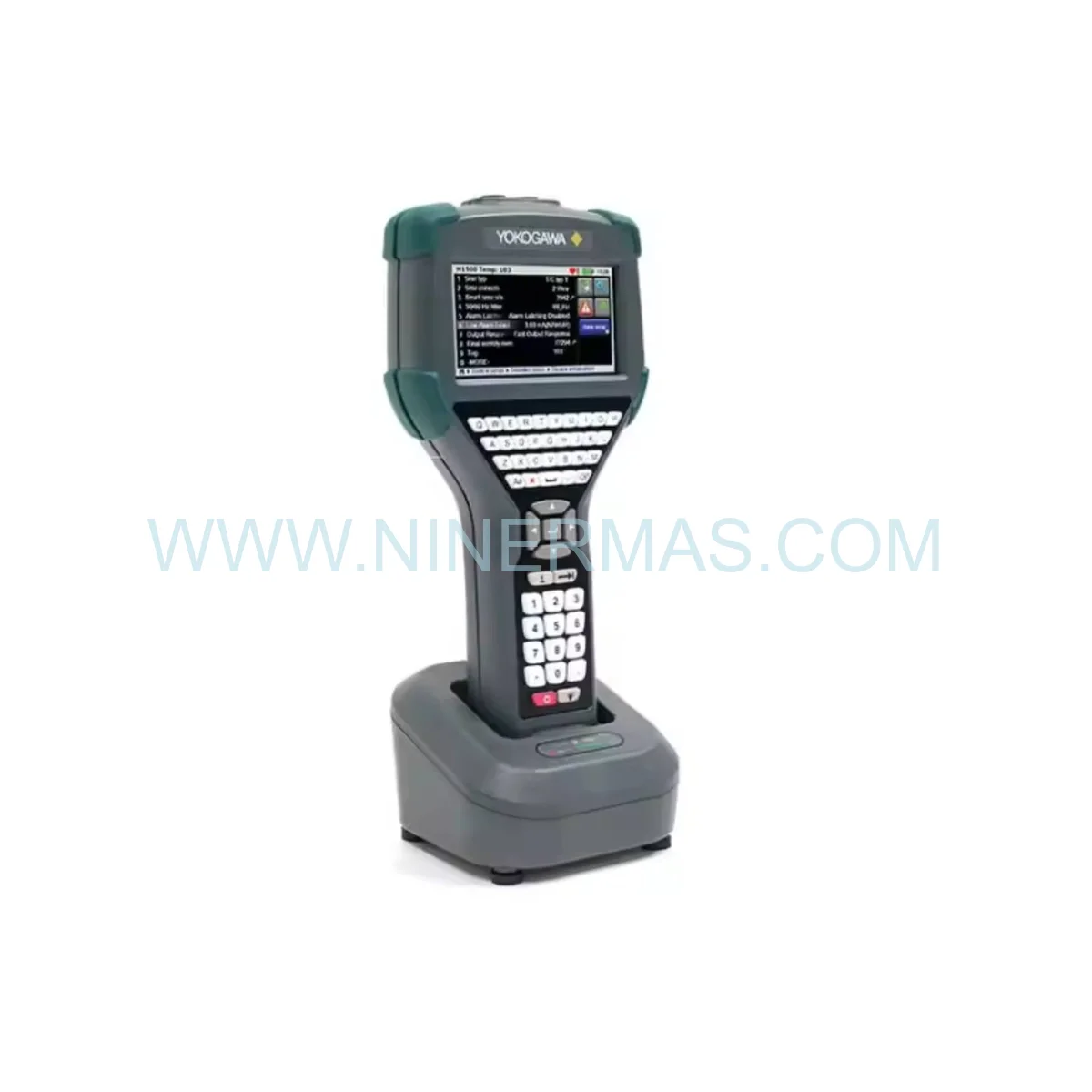

Yokogawa YHC5150X – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a System Migration Architect overseeing industrial control infrastructure transitions, the Yokogawa YHC5150X stands out as a mission-critical enabler in any field instrumentation modernization program. Whether you are upgrading aging DCS platforms or extending the operational lifespan of legacy HART-based sensor networks, the Yokogawa YHC5150X delivers the processing power, protocol depth, and diagnostic intelligence required to bridge the gap between yesterday’s infrastructure and tomorrow’s performance benchmarks. Its 1 GHz processor and 4.3-inch QVGA color touchscreen represent a generational leap over first-generation handheld communicators, dramatically reducing configuration cycle times during system cutover phases.

From a Legacy Compatibility standpoint, the YHC5150X is engineered to communicate with virtually the entire installed base of HART and BRAIN protocol devices — including instruments deployed over two decades ago. This backward compatibility is the cornerstone of any low-risk retrofit strategy: field teams can reconfigure, recalibrate, and re-commission existing transmitters and valve positioners without replacing the underlying sensor infrastructure, preserving capital investment while achieving measurable Performance Enhancement across the plant.

The migration risk reduction value of this device cannot be overstated. By enabling in-situ diagnostics and configuration validation before, during, and after system cutover, the YHC5150X compresses commissioning timelines, minimizes unplanned downtime, and provides a fully auditable change record — all of which translate directly into lower total migration cost and faster return to full production capacity.

Upgrade Highlights & Compatibility

• ✅ Universal HART & BRAIN Protocol Support: Seamless Integration with 3,000+ field devices from multiple vendors — no proprietary lock-in, maximum retrofit flexibility.
• 1 GHz High-Speed Processor: Accelerates device polling, configuration writes, and diagnostic data retrieval — critical during time-sensitive system migration windows.
• ✅ FDT/DTM Architecture: Hardware Upgrade path for legacy communicator fleets; DTM libraries provide manufacturer-specific interfaces without additional hardware investment.
• Intrinsic Safety (ATEX / IECEx / FM / CSA): Zone 0 / Division 1 certified — deploy in the most hazardous retrofit environments without hot-work permits or production shutdowns.
• ✅ IP67 & 2m Drop Rating: Future-proofing for harsh field conditions; ruggedized construction survives the demanding environments typical of brownfield upgrade projects.
• 20-Hour Battery Life: Supports full-shift retrofit operations without recharging interruptions — essential for large-scale loop-by-loop migration campaigns.
• ✅ 2 GB Internal Storage + USB 2.0: Stores complete device configuration snapshots for rollback capability — a critical safety net during any Retrofit Solution deployment.

Modernization Use Cases & Success Stories

DCS Platform Migration — Refinery Upgrade: A major Asia-Pacific refinery undertaking a full DCS replacement from a legacy Honeywell TDC 3000 to a modern Yokogawa CENTUM VP platform deployed the YHC5150X across 1,200 HART field loops. The device’s ability to read, store, and re-write transmitter configurations in bulk reduced per-loop commissioning time from 45 minutes to under 12 minutes — a 73% efficiency gain that compressed the overall migration schedule by six weeks.

Turbine Supervisory Instrumentation (TSI) Retrofit — Power Plant: A combined-cycle power station in Southeast Asia required a Performance Enhancement of its aging turbine monitoring infrastructure without replacing primary sensors. Using the YHC5150X, field engineers reconfigured Bently Nevada-compatible HART transmitters in-situ, validated signal integrity against the new control system, and generated IEC 61511-compliant audit trails — all without a single forced outage. The Retrofit Solution delivered a 40% reduction in MTTR for instrumentation faults post-commissioning.

Pharmaceutical Batch System Modernization: A European pharmaceutical manufacturer migrating from a legacy batch control system to a modern MES-integrated DCS used the YHC5150X to re-range and recalibrate 340 critical process transmitters. The device’s guided calibration workflows and automatic audit trail generation ensured full FDA 21 CFR Part 11 compliance throughout the System Migration, eliminating the need for a separate validation tool and saving an estimated 85,000 in project costs.

Water Treatment Infrastructure Upgrade: A municipal water authority modernizing its SCADA-connected instrumentation network leveraged the YHC5150X for a phased Hardware Upgrade of 600+ flow, level, and analytical devices. The communicator’s multi-language interface (15 languages) enabled a mixed international field crew to execute the retrofit consistently, achieving a 98% first-time-right commissioning rate.

Migration Technical Data Sheet

| Feature / Property | Upgrade Value | |—|—| | **Full Model Number** | **Yokogawa YHC5150X** | | Protocol Support | HART (rev. 5/6/7) + BRAIN — full Legacy Compatibility | | Processor | 1 GHz — enables rapid multi-device retrofit sessions | | Display | 4.3″ QVGA Color Touchscreen (480-272 px) | | Hazardous Area Certification | ATEX / IECEx / FM / CSA — Zone 0 / Div. 1 | | Operating Temperature | -20°C to +60°C — brownfield & outdoor retrofit ready | | Battery Life | Up to 20 hours continuous — full-shift migration support | | Internal Storage | 2 GB — configuration snapshot & rollback capability | | PC Connectivity | USB 2.0 — direct integration with asset management systems | | DTM / FDT Support | 3,000+ device types — universal Retrofit Solution coverage | | Enclosure Rating | IP67 — dust-tight & waterproof for harsh field environments | | Drop Resistance | 2 m onto concrete — ruggedized for brownfield deployment | | Weight | 0.91 kg — ergonomic for extended retrofit field campaigns | | Audit Trail | Automatic timestamp + user ID logging — IEC 61511 / FDA 21 CFR Part 11 | | Language Support | 15 languages — global System Migration team deployment | | Warranty | 24 months — manufacturer-backed Performance Enhancement assurance |

Supply Chain & Deployment Support

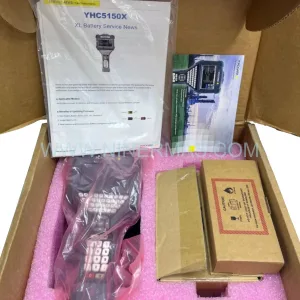

Original & Factory Sealed: Every Yokogawa YHC5150X unit is sourced directly from authorized distribution channels and supplied in original manufacturer packaging with full factory seals intact. Calibration certificates traceable to national metrology standards are included, ensuring immediate deployment readiness upon receipt — no incoming inspection delays for your retrofit project schedule.

Expedited Global Logistics: We maintain strategic inventory positions to support time-critical retrofit and emergency replacement scenarios. Express air freight to major industrial hubs across Asia-Pacific, Europe, the Middle East, and the Americas is available with typical lead times of 3-7 business days. Priority handling for shutdown-window deliveries can be arranged upon request.

Technical Support for Obsolete & Legacy Hardware: Our application engineering team specializes in legacy instrumentation ecosystems. Whether you need guidance on DTM library configuration for end-of-life field devices, assistance mapping BRAIN protocol instruments into a modern HART-based architecture, or support developing a phased Retrofit Solution roadmap, our engineers are available for pre-project consultation and on-site commissioning support. We bridge the knowledge gap that often stalls System Migration programs.

Retrofit FAQ — Upgrade Guide

Q1: Can the Yokogawa YHC5150X communicate with field devices installed 15-20 years ago that use early HART revisions?
Yes. The YHC5150X supports HART revisions 5, 6, and 7, providing full Legacy Compatibility with the vast majority of HART-enabled instruments deployed since the mid-1990s. For BRAIN protocol devices — a proprietary Yokogawa standard common in older EJA-series transmitters — the communicator provides native support without any adapter hardware, making it an ideal Retrofit Solution for plants with mixed legacy fleets.

Q2: How does the YHC5150X fit into a DCS replacement project where the new system uses a different asset management platform?
The YHC5150X functions as a standalone configuration and diagnostic tool independent of the host DCS. During System Migration, field teams use it to read and store all existing device configurations before cutover, then re-apply or adjust parameters to match the new system’s requirements after cutover. Configuration files are transferred via USB to the new asset management platform (e.g., Yokogawa PRM, Emerson AMS, ABB Asset Vision), ensuring zero configuration data loss during the transition.

Q3: What is the installation space requirement, and can the YHC5150X be used in confined spaces typical of brownfield retrofit sites?
The YHC5150X is a handheld device weighing 0.91 kg with a compact ergonomic form factor designed for single-hand operation. It requires no panel mounting or fixed installation space — technicians connect directly to the 4-20 mA loop terminals of the target instrument using the supplied test leads. This makes it fully compatible with the confined junction boxes, instrument stands, and cable trays common in brownfield retrofit environments.

Q4: How does the communicator handle communication between old BRAIN protocol devices and a new HART-based control architecture?
The YHC5150X can read, display, and modify parameters on BRAIN protocol devices natively. While BRAIN and HART are distinct protocols, the communicator allows engineers to document all existing BRAIN device configurations, assess parameter equivalency with HART replacements, and develop a structured Hardware Upgrade plan. For sites choosing to retain BRAIN devices within a HART-dominant new architecture, the YHC5150X serves as the essential diagnostic bridge during the transition period.

Q5: Are there alternative spare part or replacement options if the YHC5150X is on extended lead time?
For urgent retrofit timelines, we can advise on compatible handheld communicator alternatives that support HART Rev. 7 and FDT/DTM architectures. However, for plants with significant Yokogawa installed base — particularly those using BRAIN protocol instruments or Yokogawa PRM integration — the YHC5150X remains the preferred solution due to its native protocol support and seamless Seamless Integration with Yokogawa’s ecosystem. Contact our team for a rapid availability assessment and alternative sourcing options.

Q6: What documentation is provided to support IEC 61511 or FDA 21 CFR Part 11 compliance during a retrofit project?
The YHC5150X automatically generates a comprehensive audit trail for every configuration change, capturing the timestamp, user identifier, parameter name, and before/after values. This log can be exported via USB in standard formats compatible with most plant document management systems. Combined with the included factory calibration certificate, this documentation package satisfies the traceability and change control requirements of IEC 61511 (functional safety), FDA 21 CFR Part 11 (electronic records), and ISO 9001 quality management systems — reducing the compliance documentation burden on your retrofit project team.
