Yokogawa SPW482-E3 S1 Retrofit-Compatible Power Supply for Legacy CENTUM VP Systems

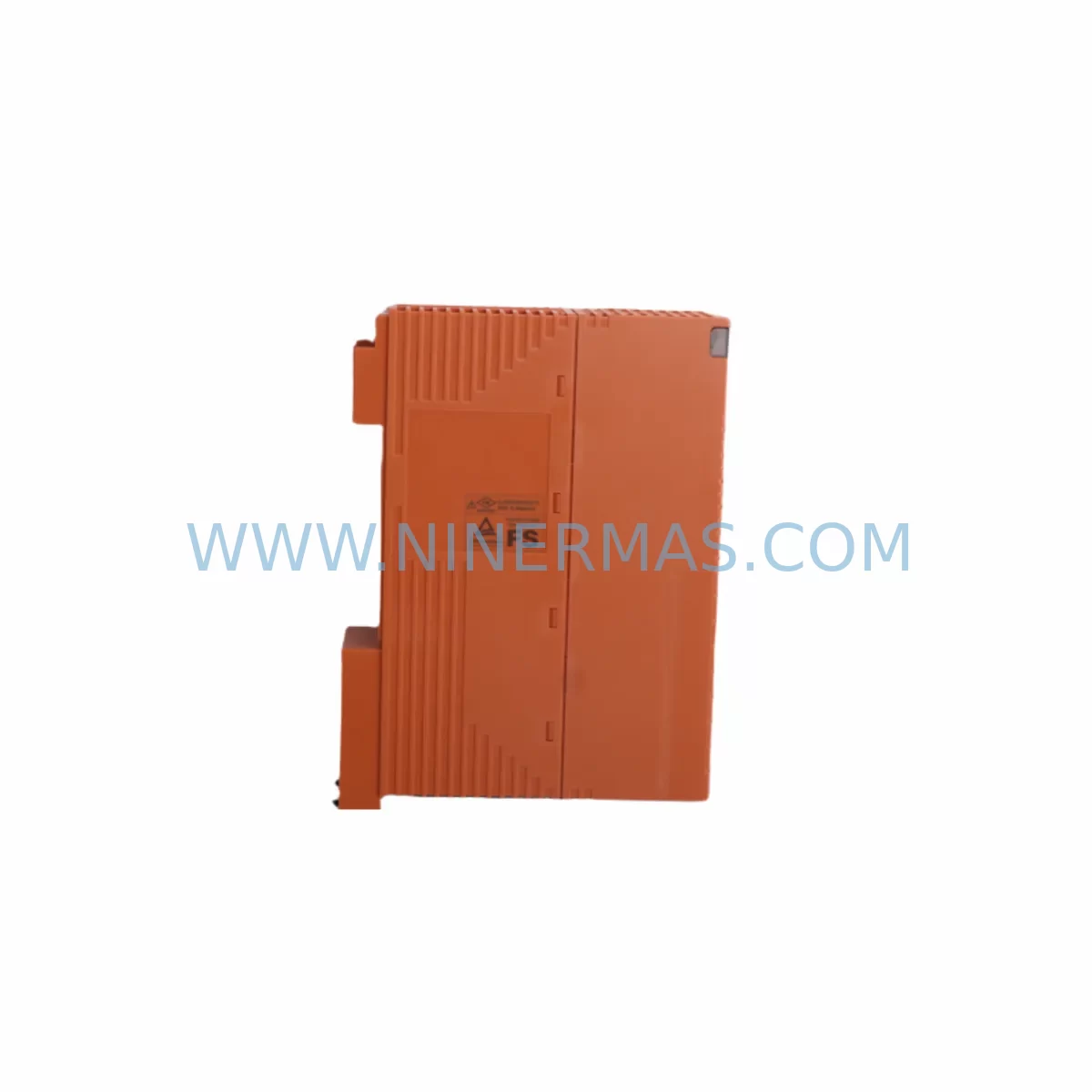

The Yokogawa SPW482-E3 S1 is a field-proven power supply module engineered for the CENTUM VP distributed control system platform. As legacy DCS installations age and original spare parts become increasingly scarce, the SPW482-E3 S1 serves as a critical retrofit component for engineers tasked with extending the operational life of existing control infrastructure. Whether you are managing a planned upgrade, responding to an unplanned failure, or executing a phased migration strategy, this module provides the electrical stability and form-factor compatibility required to maintain continuous process control without forcing a full system replacement.

Designed to fit directly into the CENTUM VP cabinet architecture, the SPW482-E3 S1 delivers regulated DC power to field I/O modules, communication cards, and controller nodes within the same rack assembly. Its compatibility with the standard Yokogawa backplane bus means that engineers can swap the unit without modifying existing wiring harnesses, terminal block assignments, or cabinet layouts — a significant advantage when minimizing downtime is the primary objective.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the SPW482-E3 S1 into a running plant begins well before the module arrives on site. The retrofit planning phase must account for the full power budget of the target cabinet. Engineers should audit the total load drawn by all installed modules — including the AFV10D field control station, ACF11 analog I/O modules, AAI141 multi-point analog input cards, and any AAT141 temperature input modules sharing the same power rail. If the existing power supply has been operating near its rated capacity, the replacement unit must be confirmed to meet or exceed that load margin before the cutover window is scheduled.

Terminal block wiring should be documented and photographed prior to removal of the legacy unit. The SPW482-E3 S1 uses the same connector pinout as its predecessors in the CENTUM VP family, but field wiring should always be verified against the as-built drawings rather than assumed. Pay particular attention to the AC input terminals, the DC output sense lines, and any chassis ground bonding points that may have been added during previous maintenance cycles.

For sites running Vnet/IP as the primary control network, the power supply swap has no direct impact on network topology. However, if the cabinet also houses an ALR111 Vnet/IP router card or an ACP71 controller module, those units should be confirmed as operational before and after the power transition. Similarly, any ESB bus connections linking the cabinet to remote I/O nodes should be monitored during the commissioning phase to confirm that bus voltage levels remain within specification after the new power supply reaches steady state.

Sites that have integrated HART-enabled field instruments through AAI543 or AAI841 multi-point I/O modules should verify that the 24 VDC loop power supplied through those cards remains stable after the SPW482-E3 S1 is energized. HART communication is sensitive to power rail noise, and a brief load test under representative field conditions is recommended before returning the loop to automatic control.

Where the control cabinet also contains an HMI interface node or an engineering workstation connected via the Vnet/IP segment, operators should confirm that the HMI display screens — particularly any CENTUM VP HIS (Human Interface Station) panels — continue to reflect accurate process values immediately after the power supply is restored. Any discrepancy in tag values or alarm states should be investigated before the unit is declared ready for normal operation.

Downtime Control During System Migration

Minimizing process interruption during a power supply replacement requires a structured approach to cutover planning. The preferred method for most continuous process plants is a hot-standby swap using the redundant power supply slot. If the cabinet is already equipped with a second SPW482 or equivalent unit in the redundant position, the failed or aging primary supply can be removed and replaced while the redundant unit carries the full cabinet load. This approach eliminates the need for a planned shutdown and keeps all field control loops in automatic mode throughout the procedure.

Where redundancy is not available, the cutover window should be scheduled during a planned maintenance period. Prior to de-energizing the cabinet, the control engineer should export a full backup of the CENTUM VP project database from the engineering workstation. This backup preserves all function block configurations, loop tuning parameters, alarm setpoints, and interlock logic. If the replacement procedure requires any rack reconfiguration — such as moving the AFV10D field control station to a different slot — the project database must be updated to reflect the new hardware address assignments before the system is restarted.

During the physical swap, all field I/O signals connected to the cabinet should be placed in manual mode or held at their last known good values using the CENTUM VP manual loading function. This prevents spurious output changes from reaching final control elements — such as control valves, motor starters, or variable frequency drives — during the brief period when the power supply is disconnected. Once the SPW482-E3 S1 is installed and energized, the system should be allowed to complete its self-diagnostic cycle before any loops are returned to automatic control.

Post-installation verification should include a check of all module status LEDs, a review of the system alarm log for any power-related fault messages, and a confirmation that all communication links — including any Modbus RTU or FOUNDATION Fieldbus segments interfaced through dedicated communication modules — have re-established their connections without error. Only after all subsystems have been confirmed healthy should the plant be returned to normal operating mode.

Retrofit Support FAQ

Q1: Is the SPW482-E3 S1 a direct drop-in replacement for the original CENTUM VP power supply?
Yes. The SPW482-E3 S1 is designed to the same mechanical and electrical specification as the original CENTUM VP power supply modules. It uses the same backplane connector, occupies the same single-slot form factor, and delivers the same regulated 24 VDC output. No wiring modifications or software configuration changes are required for a like-for-like replacement in a standard CENTUM VP cabinet.

Q2: What pre-shipment testing is performed on the SPW482-E3 S1?
Every unit undergoes a full functional test prior to shipment. Testing includes input voltage range verification across the full 100–240 VAC operating band, output voltage regulation under load, ripple and noise measurement, and a thermal soak cycle to confirm stable operation under sustained load conditions. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can the SPW482-E3 S1 be used in a redundant power configuration?
Yes. The CENTUM VP platform supports N+1 redundant power supply configurations, and the SPW482-E3 S1 is fully compatible with this arrangement. When installed alongside a second power supply unit in the redundant slot, the two modules share the cabinet load and provide automatic failover in the event that either unit develops a fault. This configuration is strongly recommended for critical process applications where unplanned downtime carries significant operational or safety consequences.

Q4: What is the lead time and inventory availability?
The SPW482-E3 S1 is maintained in stock as part of our long-term spare parts program for CENTUM VP and CENTUM CS 3000 systems. Standard orders are processed and shipped within 3–5 business days. For urgent requirements, expedited shipping options are available. Customers with ongoing maintenance programs are encouraged to contact our team to discuss committed stock arrangements and volume pricing for multi-unit orders.
