Yokogawa SNT501-13 S1 Service-Ready Spare Part for Industrial Maintenance

Yokogawa SNT501-13 S1 Service-Ready Spare Part for Industrial Maintenance

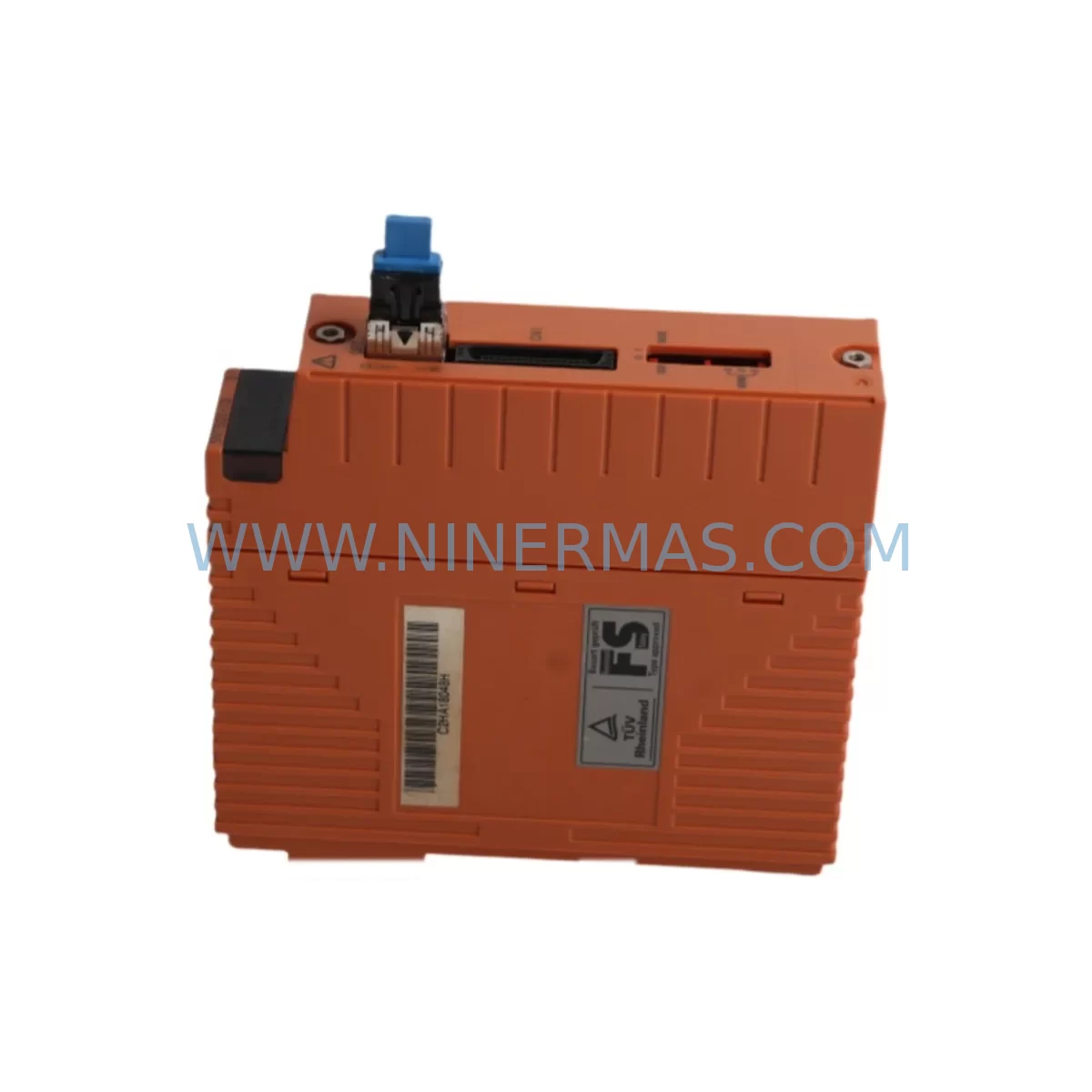

The Yokogawa SNT501-13 S1 is a ruggedized digital output module engineered for demanding industrial environments where signal integrity, thermal resilience, and long-term reliability are non-negotiable. As a critical component within the Yokogawa STARDOM FCN/FCJ autonomous controller platform, this module plays a central role in discrete output control across process automation, utilities, oil & gas, chemical, and power generation facilities. When this module fails or degrades, the downstream impact on production continuity can be severe — making a verified, service-ready spare unit an essential part of any proactive maintenance strategy.

At NINERMAS, we supply the SNT501-13 S1 as a tested, original-specification spare part backed by a 12-month warranty, with fast global shipping and long-term supply commitment. Whether you are responding to an unplanned shutdown, executing a scheduled annual overhaul, or building out your critical spare inventory, this module is available for immediate dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the SNT501-13 S1 in a live STARDOM FCN/FCJ system is rarely an isolated task. Experienced maintenance engineers understand that a digital output module failure is often symptomatic of broader stress within the control cabinet — and a thorough replacement procedure should include inspection of adjacent components to prevent repeat failures and reduce future downtime risk.

Before or during replacement of the SNT501-13 S1, maintenance teams should verify the condition and performance of the SNT501-11 digital input module installed in the same chassis, as input/output modules in the same I/O rack are subject to identical environmental stresses and often age in parallel. Similarly, the SNT501-21 analog input module and SNT501-22 analog output module should be checked for signal drift or calibration deviation, particularly in high-vibration or high-humidity environments.

The STARDOM FCN backplane itself warrants inspection — connector pins, slot retention clips, and bus integrity should be confirmed before seating the replacement module. A damaged backplane slot can cause premature failure of a new module within weeks of installation. Alongside the backplane, the FCN power supply module (such as the SNT001 or equivalent 24VDC rail supply) should be load-tested to confirm it can sustain the full I/O complement without voltage sag under peak switching conditions.

Field wiring connected to the digital output terminals should be inspected for insulation degradation, loose ferrules, and terminal block corrosion — particularly on Phoenix Contact or Weidmüller terminal strips commonly used in STARDOM panel builds. Fuse holders and miniature circuit breakers (MCBs) protecting the 24VDC output circuits should be tested for proper trip characteristics, as nuisance tripping or slow-blow fuse degradation can mask underlying wiring faults.

If the STARDOM system interfaces with a Yokogawa CENTUM VP DCS or a third-party SCADA via Modbus TCP, PROFIBUS, or OPC-UA, the communication module (such as the SNT101 Ethernet communication module) should be verified for firmware version compatibility following any hardware replacement. HMI screens connected to the FCN node — whether a Yokogawa Exaopc OPC server or a standalone panel HMI — should be tested post-replacement to confirm tag mapping and alarm setpoint integrity.

For facilities running legacy STARDOM installations beyond their original design life, this replacement is also an opportunity to audit the full spare parts inventory. Proactive stocking of the SNT501-13 S1 alongside companion modules, power supplies, and communication cards significantly reduces mean time to repair (MTTR) and supports a credible business continuity plan for aging automation infrastructure.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the failed module’s SKU and hardware revision (S1 suffix) against the system’s as-built documentation. Verify that the replacement SNT501-13 S1 unit matches the installed firmware baseline. If the system is running STARDOM R10.04 or later, check the FCN project file for any module-specific parameter assignments that must be re-applied after hot-swap or cold-swap replacement.

Step 2 — Safe Isolation: Follow site LOTO (Lockout/Tagout) procedures. De-energize the 24VDC field output circuits via the MCB or fuse panel before removing the module. Do not rely solely on software inhibit — physically isolate field power to prevent unintended actuator movement during module extraction.

Step 3 — Module Extraction and Inspection: Remove the SNT501-13 S1 from its backplane slot. Inspect the ejected module’s connector for bent pins or burn marks. Inspect the backplane slot for debris or corrosion. Document findings for the maintenance record.

Step 4 — Replacement Installation: Seat the new SNT501-13 S1 firmly into the backplane slot until the retention latch engages. Re-connect field wiring terminals, verifying torque on all screw terminals per the Yokogawa installation specification (typically 0.5–0.6 N·m for M3 terminals).

Step 5 — Commissioning and Functional Test: Re-energize the 24VDC field circuits. From the FCN engineering tool or CENTUM VP, perform a forced output test on each of the 16 digital output channels. Confirm actuator response at the field device level. Clear any latched alarms in the HMI and verify that all output tags return to normal scan status.

Step 6 — Documentation: Update the maintenance management system (CMMS) with the replacement date, new module serial number, and any observations from the inspection. Schedule the next preventive maintenance inspection interval per site policy.

Spare Parts Support FAQ

Q1: Is the SNT501-13 S1 compatible with all STARDOM FCN chassis variants?
The SNT501-13 S1 is designed for the Yokogawa STARDOM FCN autonomous controller platform. Compatibility depends on the specific FCN chassis model and firmware revision in use at your site. We recommend confirming the chassis model number and STARDOM software version before ordering. Our technical team at sale@ninermas.com can assist with compatibility verification based on your system’s as-built documentation.

Q2: What pre-shipment testing does NINERMAS perform on the SNT501-13 S1?
Every SNT501-13 S1 unit supplied by NINERMAS undergoes functional verification prior to dispatch, including output channel continuity checks and visual inspection for connector and PCB integrity. Units are packed in anti-static ESD-safe packaging with desiccant to protect against moisture ingress during international transit. A 12-month warranty is provided from the date of shipment.

Q3: Can NINERMAS support long-term or blanket purchase orders for the SNT501-13 S1?
Yes. NINERMAS supports long-term supply agreements and blanket PO arrangements for critical spare parts including the SNT501-13 S1. This is particularly valuable for facilities managing aging STARDOM installations where OEM availability may be limited or lead times unpredictable. Contact our procurement team to discuss volume pricing, reserved stock arrangements, and scheduled delivery programs.

Q4: What is the recommended spare holding quantity for the SNT501-13 S1 in a typical process plant?
For facilities with multiple STARDOM FCN nodes, industry best practice recommends holding a minimum of one SNT501-13 S1 per four installed units as a critical spare, with additional units recommended for plants operating in harsh environments (high humidity, high vibration, or wide temperature cycling). Annual consumption history and MTBF data from your CMMS should be used to refine the reorder point and safety stock level for this module.
