Yokogawa SDV531-S33 S3 Service-Ready Spare Part

Yokogawa SDV531-S33 S3 Service-Ready Spare Part for Industrial Maintenance

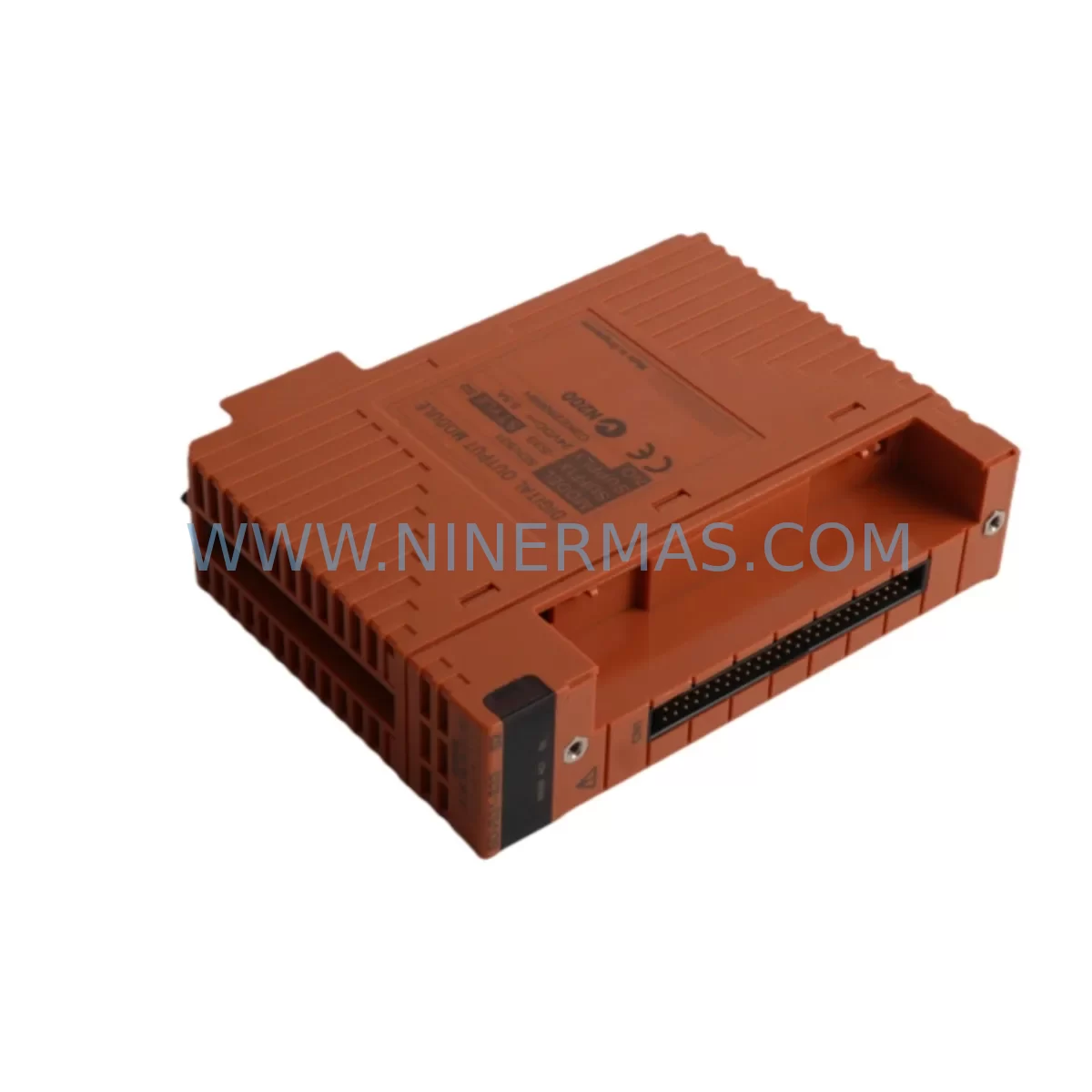

The Yokogawa SDV531-S33 S3 is a ruggedized digital output module engineered for demanding industrial environments, including offshore platforms, chemical processing plants, and heavy manufacturing facilities where vibration, humidity, and temperature extremes are constant operational realities. As a critical field device within the Yokogawa CENTUM VP and CENTUM CS 3000 distributed control systems, this module governs discrete output signals to actuators, solenoid valves, motor starters, and safety interlock circuits. When this module fails or degrades, the downstream impact on process continuity is immediate — making a verified, service-ready replacement unit an essential item in any serious spare parts inventory.

NINERMAS maintains stock of the SDV531-S33 S3 specifically to support maintenance engineers and procurement teams who cannot afford extended lead times from OEM channels. Every unit is inspected, function-tested, and shipped with full documentation to ensure drop-in compatibility with existing CENTUM VP field control stations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the SDV531-S33 S3 in a live CENTUM VP system is rarely an isolated task. Experienced maintenance engineers understand that a digital output module failure is often a symptom of broader electrical stress within the field control station. Before or during replacement, a thorough site inspection should cover the following associated components and subsystems:

Begin with the Yokogawa PW481 or PW482 power supply modules that feed the FCS node — voltage ripple or under-voltage conditions are a leading cause of premature output module failure. Verify that the EB401 or EB501 field control station node units show no backplane communication errors, as a degraded backplane can cause intermittent DO channel faults that mimic module failure. Inspect the SDV531’s terminal block wiring and field cable insulation for moisture ingress, particularly in offshore or high-humidity environments where the S33 ruggedized rating is most relevant.

Check adjacent Yokogawa SAI143 or SAI533 analog input modules in the same FCS slot group — shared power rails mean that a failing analog module can introduce noise that disrupts digital output timing. If the plant uses Yokogawa SCP451 or SCP461 sequence control processors, confirm that the DO channel assignments in the control logic match the physical slot configuration after module swap. For safety-instrumented systems, coordinate with the SIS team to verify that any Yokogawa ProSafe-RS logic solver outputs interfacing with the replaced module are re-validated per IEC 61511 procedures.

Terminal blocks, particularly Yokogawa TB series field terminal assemblies, should be inspected for corrosion and re-torqued to specification. Fuse holders protecting individual DO channels — often 3A or 5A ceramic cartridge fuses — should be replaced as a matter of course during any DO module swap. If the FCS communicates over Vnet/IP Ethernet, verify switch port status and cable integrity to the Yokogawa LFCS2 or PFCS processor nodes. Finally, review the HIS (Human Interface Station) alarm history for any prior DO channel fault codes that may indicate a systemic wiring or load issue rather than a module defect.

For procurement engineers building annual MRO budgets, the SDV531-S33 S3 should be paired with at least one spare SDV531 standard variant and one SDV541 (digital input module) to cover the most common FCS I/O failures in a single purchase order. NINERMAS offers consolidated spare parts packages for CENTUM VP systems, reducing per-unit freight costs and simplifying customs documentation for international sites.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the failed module’s slot address in the CENTUM VP System View. Document all active DO channel assignments and their current output states. Place the associated control loops in manual mode via the HIS before proceeding.

Step 2 — Safe Isolation: De-energize the field wiring connected to the SDV531-S33 S3 terminal block using the appropriate field isolation switches. Do not rely solely on software inhibit — physically verify zero voltage at the terminal block with a calibrated multimeter.

Step 3 — Module Removal: Release the module locking lever and slide the SDV531-S33 S3 out of the FCS backplane slot. Inspect the backplane connector pins for damage or contamination before inserting the replacement unit.

Step 4 — Replacement Installation: Insert the new SDV531-S33 S3 service-ready unit into the same slot. The CENTUM VP FCS will automatically recognize the module and restore the channel configuration from the control database — no manual re-parameterization is required for a like-for-like replacement.

Step 5 — Functional Test: Re-energize field wiring and perform a channel-by-channel output test from the HIS engineering console. Confirm actuator response for each active DO channel before returning loops to automatic control.

Step 6 — Documentation: Update the plant CMMS (e.g., SAP PM or Maximo) with the replacement date, new module serial number, and any observations from the inspection. Schedule the next preventive inspection interval per the plant’s reliability program.

This workflow minimizes unplanned downtime and ensures that the replacement is fully traceable — a requirement for ISO 55001 asset management compliance and insurance audits in process industries.

Spare Parts Support FAQ

Q1: Is the SDV531-S33 S3 a direct replacement for the standard SDV531 without the S33 suffix?
The S33 suffix designates the ruggedized hardware variant with enhanced conformal coating and extended temperature tolerance. It is physically and electrically compatible with standard SDV531 slots in CENTUM VP and CS 3000 FCS nodes. Using the S33 variant as a replacement for a standard unit is acceptable and provides improved environmental resilience — it is not a downgrade.

Q2: How does NINERMAS verify the condition of SDV531-S33 S3 units before shipment?
Each unit undergoes visual inspection, connector integrity check, and functional output channel testing on a compatible CENTUM VP test bench. Units that fail any test criterion are quarantined and not offered for sale. A test report is available upon request for critical plant applications.

Q3: What is the recommended spare parts holding strategy for CENTUM VP digital output modules?
Industry best practice for process plants with more than 10 FCS nodes is to hold a minimum of 2–3 SDV531-series modules per site, covering both standard and ruggedized variants. For aging CENTUM CS 3000 systems approaching end-of-support, increasing the holding to 5+ units is advisable given OEM discontinuation risk. NINERMAS can support long-term supply agreements with fixed pricing to protect against market volatility.

Q4: What is the warranty coverage and what does it include?
NINERMAS provides a 12-month warranty from the date of shipment on all SDV531-S33 S3 units. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed within 5 business days, with advance replacement available for critical plant applications upon request.
