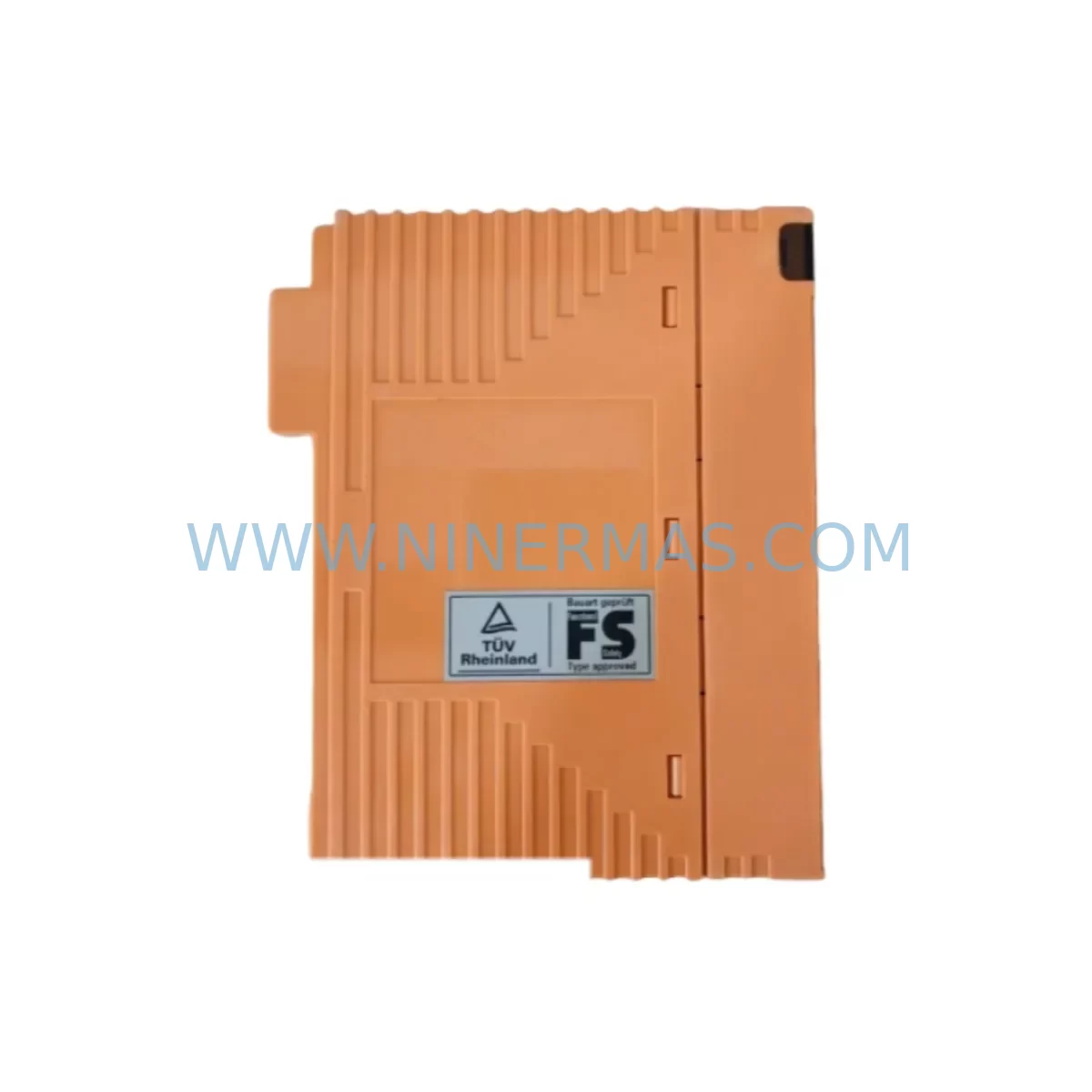

YOKOGAWA SDV531-S33 Retrofit-Compatible Valve Positioner

YOKOGAWA SDV531-S33 Retrofit-Compatible Valve Positioner for Legacy Control Systems

The YOKOGAWA SDV531-S33 is a ruggedized valve positioner module engineered for demanding process environments where precision valve control and long-term system reliability are non-negotiable. As a retrofit-compatible replacement, the SDV531-S33 is widely deployed in legacy CENTUM CS 3000 and CENTUM VP distributed control system (DCS) architectures, providing a direct upgrade path for aging automation infrastructure without requiring full system replacement.

For maintenance engineers and procurement teams managing aging control systems in oil & gas, petrochemical, power generation, and chemical processing facilities, the SDV531-S33 addresses a critical challenge: maintaining operational continuity when original equipment manufacturers discontinue support for legacy valve positioner hardware. NINERMAS supplies the SDV531-S33 with full pre-shipment functional testing, verified compatibility documentation, and a 12-month warranty, ensuring your retrofit project proceeds with confidence.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a valve positioner module in an active production environment requires careful coordination across multiple system layers. When integrating the SDV531-S33 into an existing control cabinet, engineers must first audit the available power capacity on the local 24 VDC bus. Overloaded power supply modules — such as the YOKOGAWA PW481 or equivalent DCS power supply units — are a common source of post-retrofit instability and must be assessed before the new positioner is energized.

Terminal block compatibility is the next critical checkpoint. The SDV531-S33 uses a standard SDV531-series terminal interface, but field wiring from legacy installations may include non-standard shielding practices or mixed signal types. Reviewing the original I&O drawings and confirming that existing YOKOGAWA TB series terminal blocks are correctly mapped to the new module’s I/O assignments will prevent signal cross-wiring during commissioning.

Backplane slot addressing must also be verified. In CENTUM CS 3000 and CENTUM VP architectures, each I/O module occupies a defined slot address within the YOKOGAWA AFV10D or AFV30D field control station. Replacing the SDV531-S33 in the same physical slot preserves the original address mapping, minimizing changes required in the control database. If the slot position changes, the corresponding CENTUM VP Engineering Environment (CAMS for HIS) configuration must be updated to reflect the new address before the system is brought back online.

For facilities running mixed I/O architectures, the SDV531-S33 retrofit often occurs alongside replacement of adjacent modules such as YOKOGAWA AAI141 analog input modules or AAI543 analog output modules, which share the same field control station backplane. Coordinating these replacements in a single maintenance window reduces total downtime and avoids repeated partial shutdowns.

Communication protocol continuity is equally important. Sites using FOUNDATION Fieldbus segments connected through YOKOGAWA ALF111 fieldbus communication modules must confirm that the SDV531-S33 device descriptor (DD) file is correctly loaded in the host DCS. For HART-enabled configurations, the HART pass-through settings in the associated I/O module must be verified to ensure that handheld communicators — such as the Emerson 475 Field Communicator — can access the positioner for calibration and diagnostics without interrupting the control loop.

HMI faceplate integrity should be validated after the retrofit. Operators relying on YOKOGAWA HIS (Human Interface Station) displays for valve position feedback and alarm management need to confirm that all graphic elements, trend tags, and alarm setpoints remain correctly linked to the replaced module. A brief simulation test using the DCS’s built-in loop test function is recommended before returning the valve to automatic control.

Finally, installation space must be confirmed. The SDV531-S33’s physical dimensions are consistent with the SDV531 series form factor, but aging control cabinets may have accumulated additional cable management hardware, terminal extensions, or supplementary signal isolators — such as YOKOGAWA MTL series signal conditioners — that reduce available clearance. A physical site survey before ordering ensures the replacement module can be installed without structural modifications to the cabinet.

Downtime Control During System Migration

Minimizing production downtime during a valve positioner replacement is a primary concern for any process facility operating on tight maintenance windows. The SDV531-S33 retrofit strategy should begin with a complete backup of the existing DCS control database, including all function block parameters, loop tuning values, and alarm configurations stored in the CENTUM VP or CENTUM CS 3000 engineering station. This backup protects the original program logic and ensures rapid restoration if any configuration discrepancy is identified during commissioning.

Where process conditions permit, placing the affected control loop in manual mode before module removal allows the field valve to hold its last position, maintaining process stability during the hardware swap. For critical loops where manual hold is not acceptable, coordinating with the operations team to temporarily route control through a redundant path — or to adjust upstream process conditions — can extend the available maintenance window without triggering a full process shutdown.

The physical replacement of the SDV531-S33 is typically completed within 30 to 60 minutes by a qualified instrument technician, provided all pre-work — including wiring verification, spare module staging, and DCS configuration review — has been completed in advance. Post-installation, the auto-calibration routine should be executed with the valve in a safe, controllable state, and the control loop should be returned to automatic only after a stable output signal and correct valve travel response have been confirmed.

NINERMAS supports downtime reduction by supplying the SDV531-S33 with full pre-shipment functional testing and detailed compatibility documentation, reducing the risk of receiving a non-conforming unit that would require a second maintenance window to resolve. All units are dispatched with a 12-month warranty and traceable test records.

Retrofit Support FAQ

Q1: Is the YOKOGAWA SDV531-S33 a direct replacement for the original discontinued SDV531-series positioner modules?
A: Yes. The SDV531-S33 is designed as a retrofit-compatible replacement for legacy SDV531-series valve positioner modules used in CENTUM CS 3000 and CENTUM VP systems. Customers should confirm the firmware revision and terminal wiring configuration against their site documentation before installation to ensure full compatibility.

Q2: What commissioning steps are required after installing the SDV531-S33?
A: After physical installation and wiring verification, the recommended commissioning sequence includes: (1) confirming DCS slot address mapping, (2) loading or verifying the device descriptor (DD) file for fieldbus configurations, (3) executing the auto-calibration routine to set valve travel limits, and (4) performing a loop test in manual mode before returning the loop to automatic control. HMI faceplate tags and alarm setpoints should also be validated.

Q3: Does NINERMAS provide pre-shipment testing for the SDV531-S33?
A: Yes. Every SDV531-S33 unit supplied by NINERMAS undergoes full functional testing before dispatch. Test records are available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q4: What is the typical lead time and stock availability for the SDV531-S33?
A: NINERMAS maintains inventory of the SDV531-S33 to support urgent maintenance and planned retrofit projects. Lead times vary based on current stock levels. Contact our team at sale@ninermas.com or +0086 187 5021 5667 for real-time availability and delivery confirmation.
