Yokogawa SDV531-S23 S2 Retrofit-Compatible I/O Module for Legacy Systems

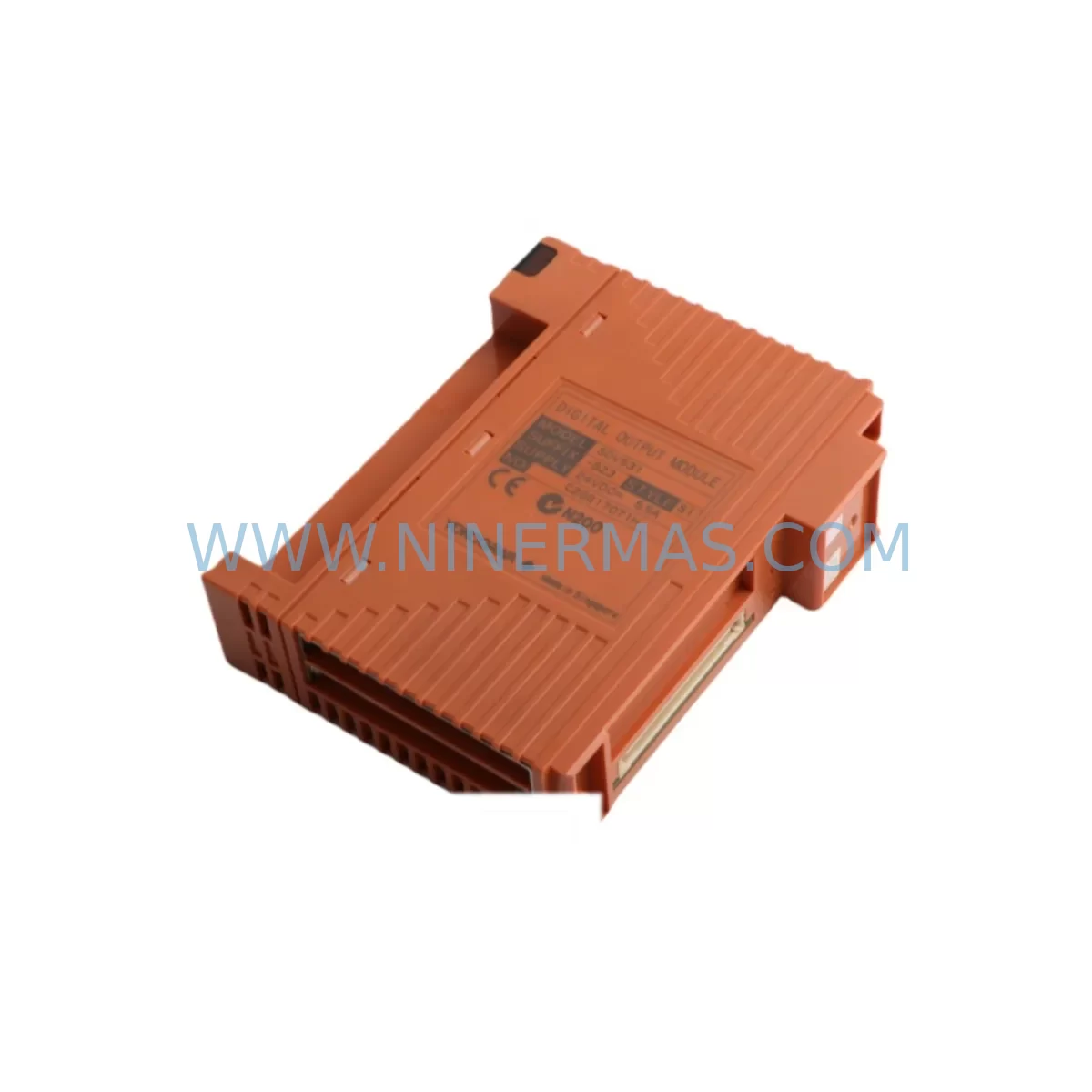

The Yokogawa SDV531-S23 S2 is a digital input module engineered for seamless integration into existing CENTUM VP and ProSafe-RS distributed control system architectures. As aging automation infrastructure reaches end-of-life, plant engineers and maintenance teams increasingly rely on verified retrofit-compatible replacements to extend operational continuity without committing to full-platform migrations. The SDV531-S23 S2 addresses this need directly — offering a drop-in compatible solution that preserves existing wiring configurations, backplane slot assignments, and I/O addressing schemes while delivering the reliability demanded by safety-critical and process-critical environments.

Whether you are replacing a failed module in an active production line, building a spare parts inventory for a legacy CENTUM CS 3000 or CENTUM VP system, or executing a phased control cabinet upgrade, the SDV531-S23 S2 provides the compatibility assurance and supply chain reliability your project requires. Each unit is sourced, inspected, and dispatched with a 12-month warranty covering manufacturing defects and functional performance.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the SDV531-S23 S2 into a legacy control system begins well before the module arrives on site. A structured retrofit plan reduces risk, shortens commissioning time, and protects the integrity of the existing control logic.

Power Budget Verification: Before installing any additional or replacement I/O module, confirm that the nest’s power supply module — commonly a PW481 or PW482 in CENTUM VP installations — has sufficient headroom to support the SDV531-S23 S2 alongside existing modules. Overloaded power supplies are a leading cause of intermittent faults in aging control cabinets. If the power budget is marginal, a power supply upgrade should be scheduled concurrently.

Backplane and Rack Confirmation: The SDV531-S23 S2 is designed for installation in standard Yokogawa I/O nests such as the ANB10D or ANB11D. Confirm the nest model and available slot positions before ordering. In systems where the original nest has been partially populated with modules such as the SDV531, SAI143, or SAI533, slot mapping documentation from the original system design should be consulted to avoid address conflicts.

Terminal Block and Field Wiring: One of the key advantages of a same-series replacement is the ability to retain existing field wiring. The SDV531-S23 S2 uses a compatible screw-terminal field wiring block, meaning field cables connected to the original module can typically be transferred without re-termination. Document terminal assignments from the existing wiring schedule before disconnecting any cables, and verify signal polarity for each DI channel during pre-commissioning checks.

Program and Tag Compatibility: Because the SDV531-S23 S2 occupies the same slot and carries the same module type designation as its predecessor, the FCS (Field Control Station) program logic — including function blocks, tag names, and I/O assignments built in CENTUM VP Builder — does not require modification. Load the most recent FCS backup prior to the swap to ensure the restored configuration reflects the latest approved revision. If the system includes a ProSafe-RS Safety Controller (SCS), verify that the safety logic referencing this I/O node remains consistent and that the SCS does not require a safety validation download after the hardware change.

Communication Link Integrity: In CENTUM VP architectures, the V-net communication bus connects FCS units, HIS operator stations, and engineering workstations. After installing the SDV531-S23 S2, confirm that the V-net link status is healthy from the HIS and that no communication error alarms are present. In systems where Vnet/IP has been introduced as part of a partial modernization, verify that the new module’s node address does not conflict with any Vnet/IP node assignments. If the control system also incorporates FOUNDATION Fieldbus or HART-enabled analog modules such as the AAI141 or AAI543, confirm that the fieldbus segment configuration is unaffected by the I/O module replacement.

HMI and Alarm Configuration: Existing CENTUM VP HIS faceplates, trend displays, and alarm summary pages reference tag names rather than physical module addresses. As long as the tag structure is preserved in the FCS download, HMI screens will continue to function correctly after the module swap. No HMI screen rebuild is required for a like-for-like replacement. If the site uses a third-party SCADA system connected via OPC DA or OPC UA, verify that the OPC server tag list remains valid after the FCS is restarted.

Downtime Control During System Migration

Minimizing production downtime during a module replacement or system upgrade is a primary concern for plant operations teams. The SDV531-S23 S2 supports a controlled, low-risk swap procedure when the following practices are observed.

Pre-Swap Preparation: Before taking the affected FCS or I/O nest offline, create a full FCS backup using CENTUM VP Builder and store it on a secure engineering workstation. If the system supports online module replacement (hot-swap capability in certain nest configurations), confirm this with the system documentation before proceeding. For systems that require a controlled shutdown, coordinate with operations to identify the minimum safe shutdown window — typically 30 to 90 minutes for a single-module swap in a well-documented system.

Protecting Existing Control Logic: The FCS program should not be modified during a hardware replacement unless a specific engineering change order has been approved. Restoring the existing FCS download after the module swap ensures that all function block connections, interlock logic, and sequence programs remain intact. If the system includes redundant FCS units, the standby FCS can maintain control continuity while the primary FCS is taken offline for the module replacement, effectively reducing process impact to zero during the swap.

Field Control Continuity: For non-redundant systems, field devices connected to the SDV531-S23 S2 will lose their digital input signals during the swap window. Coordinate with the process control team to place affected control loops in manual mode before disconnecting the module. After reinstallation and FCS restart, verify each DI channel individually before returning loops to automatic control. Use the CENTUM VP diagnostic tools or a handheld signal tester to confirm channel-by-channel signal integrity.

Post-Installation Verification: Each SDV531-S23 S2 unit supplied by NINERMAS undergoes functional testing prior to shipment. On-site, confirm module recognition in the FCS I/O map, check for any hardware fault LEDs on the module front panel, and verify that all DI channels report the correct field signal states in the HIS. Document the installation date and module serial number for maintenance records and warranty tracking.

Retrofit Support FAQ

Q1: Is the SDV531-S23 S2 a direct replacement for the original SDV531 installed in my CENTUM VP system?
Yes. The SDV531-S23 S2 is designed as a retrofit-compatible replacement for the SDV531 series digital input modules used in CENTUM VP and CENTUM CS 3000 systems. It occupies the same backplane slot, uses the same terminal block interface, and is recognized by the FCS without requiring changes to the existing I/O configuration or program download.

Q2: What commissioning steps are required after installing the SDV531-S23 S2?
After physical installation, restore the FCS backup to the Field Control Station using CENTUM VP Builder. Confirm module recognition in the I/O map, check the V-net communication status from the HIS, and verify each DI channel against the field wiring schedule. If the system includes a ProSafe-RS SCS referencing this I/O node, perform a safety function test per the site’s validation procedure before returning the system to automatic operation.

Q3: Does NINERMAS provide pre-shipment testing and a warranty for the SDV531-S23 S2?
Yes. Every SDV531-S23 S2 unit is functionally tested before dispatch. All units are supplied with a 12-month warranty covering manufacturing defects and operational performance from the date of shipment. In-stock units are available for immediate dispatch, supporting urgent replacement requirements and planned maintenance schedules alike.
