Yokogawa SDV521-S63 S3 Retrofit-Compatible DO Module for Legacy Systems

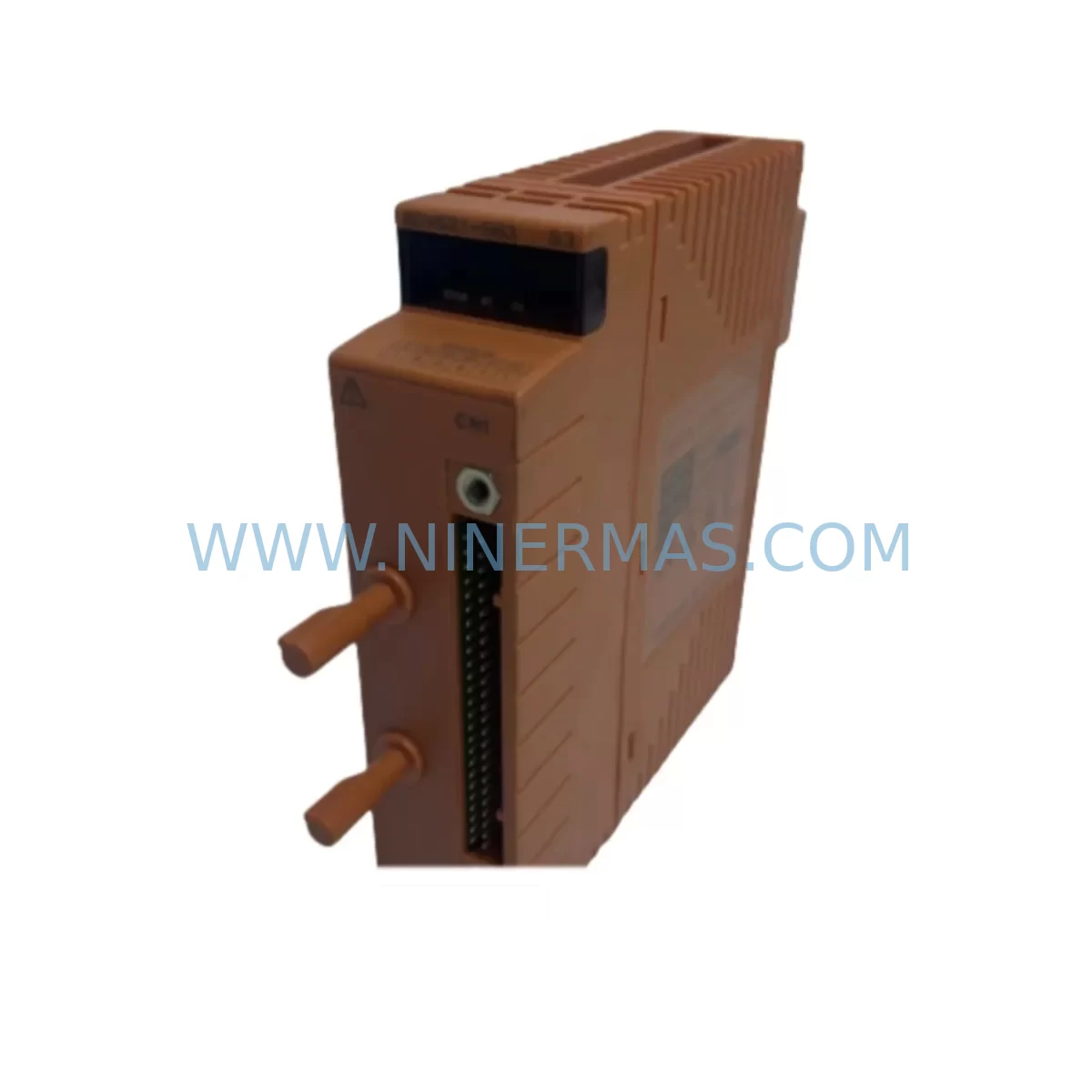

The Yokogawa SDV521-S63 S3 is a digital output (DO) module engineered for the SDV500 series field control station platform, widely deployed across oil & gas, petrochemical, power generation, and continuous process industries. As legacy CENTUM CS 3000 and early CENTUM VP installations approach end-of-life, the SDV521-S63 S3 has become a critical retrofit component — enabling engineers to extend system service life, replace discontinued modules, and maintain full I/O integrity without forcing a full DCS migration.

At NINERMAS, we maintain verified stock of the SDV521-S63 S3 to support planned turnarounds, emergency replacements, and phased upgrade programs. Every unit is inspected, function-tested, and shipped with a 12-month warranty, giving procurement and maintenance teams the confidence to source with minimal risk.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the SDV521-S63 S3 in a live or recently shut-down control system requires a structured approach that goes well beyond swapping the module itself. Maintenance and automation engineers must treat this as a mini-migration event, verifying every layer of the control loop before restoring output signals to field devices.

Begin with a full audit of the SDV500 node unit rack and its associated backplane. Confirm that the backplane bus connectors show no signs of oxidation, mechanical damage, or intermittent contact — a degraded backplane is frequently the root cause of repeated DO module failures and will destroy a replacement unit if not addressed. While the rack is de-energized, inspect the SDV501 power supply module (or SDV502 redundant pair) that feeds the node unit; verify output voltage stability and ripple under load before reinserting any I/O modules.

On the field wiring side, review the terminal block assignments mapped to the SDV521-S63 S3’s 32 output channels. In many aging installations, terminal markings have faded or wiring documentation has drifted from as-built drawings. Use the CENTUM CS 3000 or CENTUM VP I/O builder to cross-reference channel addresses against the physical terminal module — typically an SDV541 or SDV542 terminal unit — before powering up. Confirm that all field-side loads (solenoid valves, motor starters, indicator lamps) are within the module’s rated current per channel and total output current budget.

Communication continuity is equally important. The SDV521-S63 S3 communicates over the internal node bus managed by the field control station (FCS) — whether that is an LFCS2, KFCS, or standard FCS unit. After module insertion, the FCS must recognize the new module at the correct slot address. If the system uses an ESB bus coupler (ESB-BUS) or ER bus for remote I/O expansion, verify that the bus cycle time and node address settings are unchanged. Any address conflict will cause the FCS to flag the module as a hardware fault and suppress all 32 outputs.

For sites running CENTUM VP R6 or later, confirm that the SDV521-S63 S3 suffix revision (S3) is listed in the hardware compatibility matrix within the CENTUM VP engineering environment. Earlier suffix revisions (S1, S2) may require a firmware acknowledgment step in the FCS builder before the module is accepted. If the site is still on CENTUM CS 3000 R3, no additional firmware action is typically required, but the I/O module database should be refreshed after replacement.

Procurement teams sourcing the SDV521-S63 S3 as a long-term inventory item should also consider stocking complementary modules that share the same failure modes and replacement cycle: the SDV511-S63 digital input (DI) module, the SDV531 analog input (AI) module, and the SDV561 analog output (AO) module are all housed in the same SDV500 node rack and are subject to the same environmental aging. Maintaining a balanced spare parts kit — including at least one spare SDV501 power supply, a set of SDV541 terminal units, and a spare FCS communication module — dramatically reduces mean time to repair (MTTR) during unplanned outages.

Downtime Control During System Migration

The most effective way to minimize downtime when replacing the SDV521-S63 S3 is to complete all pre-work during a planned maintenance window rather than under emergency conditions. This means having the replacement module on-site and pre-verified before the outage begins — not ordered after the failure occurs.

Before the cutover, export a full backup of the CENTUM VP or CS 3000 project database, including the I/O assignment file, alarm setpoints, and interlock logic. This backup protects against accidental configuration loss during the module swap and provides a recovery baseline if the FCS requires a cold restart. If the affected DO channels drive critical safety functions — emergency shutdown valves, fire suppression actuators, or interlock-driven motor contactors — coordinate with the safety instrumented system (SIS) team to confirm that the SIS is in bypass or manual override mode for the duration of the replacement.

During the physical swap, power down only the affected node unit, not the entire FCS or control network. The SDV500 architecture supports node-level isolation, meaning adjacent node units and their I/O channels remain active while the target node is de-energized. This is a significant advantage over older distributed I/O architectures that require full rack power-down for any single module replacement.

After reinsertion, bring the node unit back online and monitor the FCS status display for module recognition. Perform a channel-by-channel output test using the CENTUM VP test function or a portable loop calibrator before releasing the system to automatic control. Document the replacement in the site maintenance management system (CMMS) and update the as-built spare parts inventory to reflect the consumed unit.

NINERMAS supports this workflow by providing pre-shipment functional testing on every SDV521-S63 S3 unit, a detailed inspection report on request, and same-day dispatch for in-stock orders. Our supply chain is structured for long-term availability of discontinued and hard-to-source Yokogawa SDV500 series modules, ensuring that your retrofit program is not blocked by procurement lead times.

Retrofit Support FAQ

Q1: Is the SDV521-S63 S3 a direct drop-in replacement for the SDV521-S63 S2?
In most cases, yes. The S3 suffix denotes a hardware revision that maintains full backward compatibility with the SDV500 node rack backplane and the CENTUM CS 3000 / CENTUM VP I/O builder. However, sites running very early CS 3000 releases should verify module recognition in the engineering environment before committing to a large inventory purchase. NINERMAS can provide a sample unit for on-site verification prior to bulk order.

Q2: What pre-shipment testing does NINERMAS perform on the SDV521-S63 S3?
Each unit undergoes visual inspection, connector integrity check, and functional output testing before dispatch. Units that fail any test criterion are quarantined and not shipped. A test report is available on request. All shipped units are covered by a 12-month warranty from the date of delivery.

Q3: Can the SDV521-S63 S3 be used in a CENTUM VP R6 system that originally used an SDV521-S63 S1?
Yes, with a configuration acknowledgment step. In CENTUM VP R6, the engineering environment may flag a suffix revision mismatch as an informational warning. The maintenance engineer must acknowledge the hardware change in the FCS builder and perform a download to the FCS before the module is fully recognized. This process typically takes less than 30 minutes and does not require a full system restart.

Q4: Does NINERMAS maintain long-term stock of SDV500 series modules beyond the SDV521-S63 S3?
Yes. NINERMAS maintains ongoing inventory of the broader SDV500 series, including DI, AI, AO, and power supply modules, to support multi-year retrofit and maintenance programs. We offer blanket order arrangements for customers with recurring demand, ensuring price stability and guaranteed allocation. Contact our team at sale@ninermas.com to discuss long-term supply agreements.
