Yokogawa SAI143-H63 | DCS Retrofit & System Modernization Module

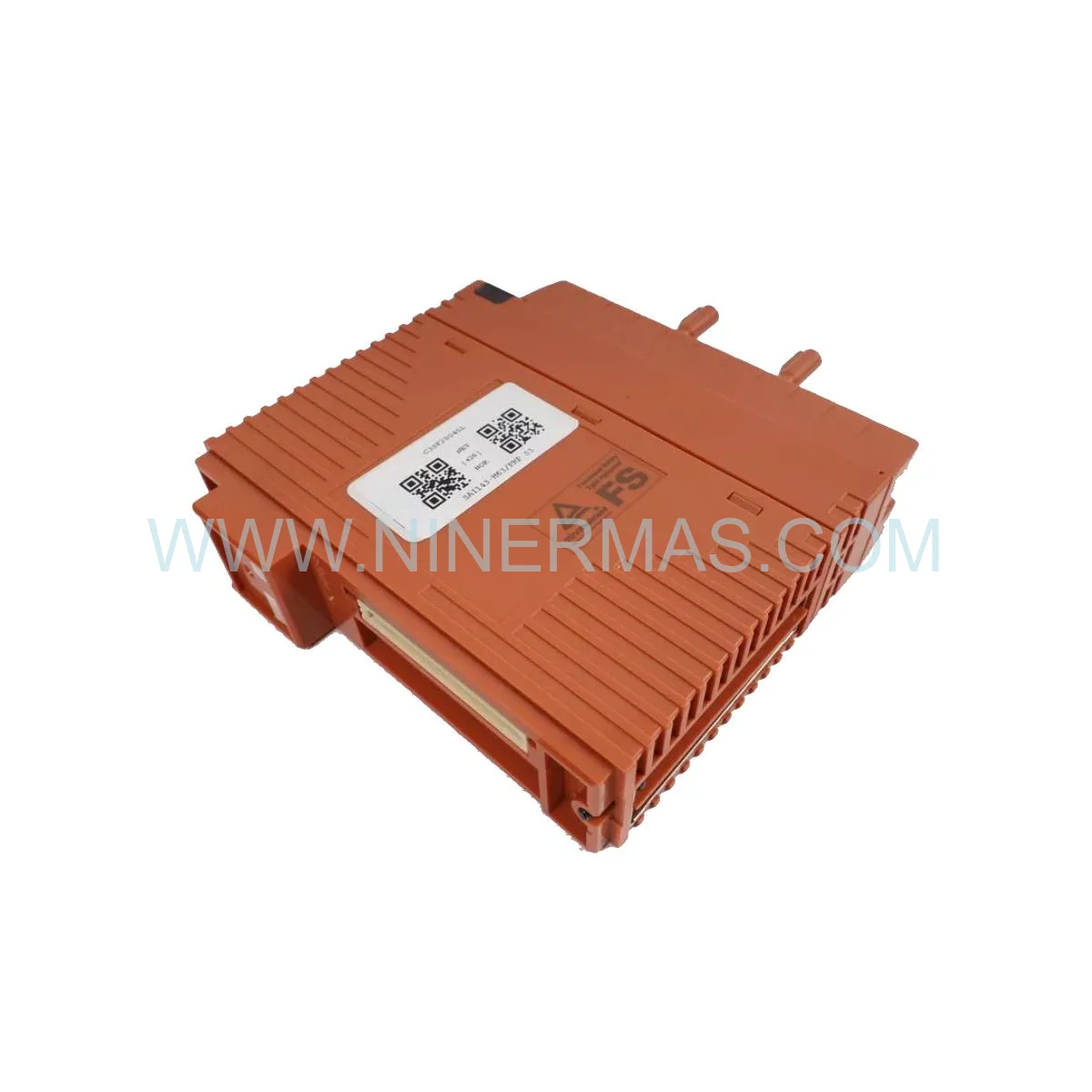

Yokogawa SAI143-H63 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing distributed control system upgrades across global manufacturing and power generation facilities, the Yokogawa SAI143-H63 stands out as a cornerstone hardware component in any phased modernization strategy. Its 16-channel 4-20mA analog input architecture delivers the measurement precision and signal integrity required to elevate aging process control infrastructure to contemporary performance standards — without the disruption of a full system replacement. The Yokogawa SAI143-H63 directly addresses the operational gap between legacy field instrumentation and modern DCS data acquisition requirements, making it an indispensable asset in performance enhancement initiatives.

One of the most compelling advantages of this module in a retrofit context is its backward compatibility with established Yokogawa CENTUM VP, CENTUM CS 3000, and ProSafe-RS platforms. Existing I/O racks, backplane wiring, and controller configurations can be preserved while the SAI143-H63 replaces end-of-life or degraded analog input cards — dramatically reducing migration risk and engineering rework. This seamless integration capability means retrofit projects can be executed in stages, maintaining continuous process operation throughout the upgrade cycle.

From a total cost of ownership perspective, deploying the SAI143-H63 as part of a hardware upgrade program eliminates the capital expenditure associated with full DCS replacement. Facilities gain 16-bit resolution accuracy (±0.1% full scale), module-level 1500V isolation, and built-in open-circuit diagnostics — all within the existing control architecture. The result is a measurable reduction in migration risk, commissioning time, and lifecycle cost, while delivering the performance gains that modern process optimization demands.

Upgrade Highlights & Compatibility

✅ Drop-in Legacy Compatibility: Installs directly into existing Yokogawa I/O racks — no backplane modifications required, preserving your current wiring investment.
16-Bit Resolution Upgrade: 65,536-count A/D conversion replaces lower-resolution legacy cards, delivering measurably tighter process control and data fidelity.
? Module-Level Isolation (1500V AC): Eliminates ground loop interference between field devices — a critical performance enhancement in mixed-potential sensor environments.
Per-Channel Software Configuration: Switch between 0-20mA and 4-20mA per channel without hardware changes — future-proofing your I/O architecture for evolving transmitter standards.
? Integrated Diagnostics: Open-circuit detection, over-range alarms, and module health monitoring reduce unplanned downtime and support predictive maintenance strategies.
Hot-Swap Deployment: Replace degraded modules during live operations — zero-downtime hardware upgrade execution for continuous process facilities.
? Multi-Standard Compliance: CE, UL508, FM Class I Div 2, ATEX Zone 2 — supports global retrofit deployments across regulated industries.

Modernization Use Cases & Success Stories

DCS Performance Leap — Chemical Plant Retrofit: A multi-reactor batch facility operating on aging CENTUM CS 3000 hardware faced chronic measurement drift on temperature and pressure loops. By replacing end-of-life analog input cards with the SAI143-H63, the retrofit team achieved ±0.1% measurement accuracy across all 16 channels, eliminating false batch deviation alarms and reducing quality hold events by over 30%. The module’s seamless integration into the existing backplane meant zero controller reconfiguration — a textbook system migration with minimal operational disruption.

TSI Modernization — Power Generation Turbine Monitoring: A combined-cycle power plant undertaking a turbine supervisory instrumentation (TSI) upgrade required analog input modules capable of interfacing with new vibration transmitters while maintaining compatibility with the legacy Vnet/IP backplane. The SAI143-H63’s 16-channel architecture consolidated multiple transmitter inputs — bearing temperature, lube oil pressure, and shaft vibration — into a single retrofit-ready module. The result was a 40% reduction in I/O rack footprint and a significant performance enhancement in real-time condition monitoring data quality.

Water Treatment SCADA Upgrade: A municipal water authority modernizing its distributed control nodes deployed the SAI143-H63 to replace obsolete analog input cards across six remote pump stations. The module’s 1500V isolation barrier resolved persistent ground loop issues between geographically separated sensor locations — a legacy compatibility challenge that had caused chronic measurement noise for years. Post-retrofit, false alarm rates dropped to near zero, and the authority achieved full compliance with updated SCADA data integrity standards.

Migration Technical Data Sheet

| Feature / Property | Upgrade Value | |—|—| | **Full Part Number** | Yokogawa SAI143-H63 | | **Module Function** | 16-Channel Analog Current Input | | **Signal Range** | 4-20mA / 0-20mA (per-channel configurable) | | **A/D Resolution** | 16-bit (65,536 counts) | | **Measurement Accuracy** | ±0.1% of full scale @ 25°C | | **Isolation Rating** | 1500V AC (module-to-bus, 1 min) | | **Input Impedance** | ~250Ω (4-20mA loop typical) | | **Scan Cycle** | 100ms per channel (typical) | | **Temperature Drift** | ±0.02%/°C maximum | | **Operating Temperature** | 0°C to +55°C | | **Power Draw** | 2.5W max (DCS backplane) | | **Diagnostic Features** | Open-circuit detection, over-range alarm, health monitoring | | **Compatible Platforms** | CENTUM VP, CENTUM CS 3000, ProSafe-RS | | **Backplane Interface** | Vnet/IP / Vnet | | **Certifications** | CE, UL508, FM Class I Div 2, ATEX Zone 2 | | **Lifecycle Status** | Active — Available for Retrofit & New Installations | | **Weight** | 0.39 kg | | **Country of Origin** | Japan |

Supply Chain & Deployment Support

Original & Factory Sealed Stock: All SAI143-H63 units are sourced as genuine Yokogawa components — factory sealed, fully tested, and supplied with original documentation. No refurbished or third-party remanufactured units. Authenticity is verified prior to dispatch.

Expedited Global Logistics: Recognizing that retrofit and emergency replacement projects operate on compressed timelines, we maintain ready stock with expedited international shipping to Asia-Pacific, Europe, the Middle East, and the Americas. DDP and DAP Incoterms available to simplify customs clearance for cross-border deployments.

Technical Support for Legacy & Obsolete Hardware: Our engineering team provides pre-sales compatibility verification, installation guidance, and post-delivery technical support specifically tailored to retrofit and system migration scenarios. Whether you are replacing a single failed module or executing a phased hardware upgrade across multiple control nodes, we provide the application expertise to ensure successful deployment.

Retrofit FAQ (Upgrade Guide)

Q1: Is the SAI143-H63 physically compatible with older Yokogawa I/O rack slots designed for previous-generation analog input modules?
A: The SAI143-H63 is designed for installation in standard Yokogawa I/O racks used across CENTUM VP and CENTUM CS 3000 platforms. In most retrofit scenarios, the module slots directly into existing rack positions without mechanical modification. We recommend confirming rack generation and slot type with your system documentation or contacting our technical team for a pre-installation compatibility check specific to your facility’s hardware revision.

Q2: Can the SAI143-H63 communicate with both legacy Vnet and modern Vnet/IP backplane architectures during a phased migration?
A: The SAI143-H63 interfaces with the Yokogawa backplane network as defined by the host DCS platform. In phased migration projects where legacy Vnet and Vnet/IP nodes coexist, the module operates within its assigned controller domain. Full cross-network communication is managed at the DCS controller and engineering station level. Our team can advise on migration sequencing to maintain data continuity across both network generations during the transition period.

Q3: What spare part or alternative options exist if the SAI143-H63 reaches end-of-availability in the future?
A: Yokogawa’s modular I/O architecture provides a structured upgrade path. The SAI143-H63 is currently active and available. For long-term planning, Yokogawa’s CENTUM VP platform supports next-generation analog input modules that maintain backward compatibility with existing field wiring and transmitter loops — enabling a future hardware upgrade without rewiring. We can provide lifecycle advisory and long-lead procurement planning to protect your retrofit investment.

Q4: How does the module’s 1500V isolation benefit legacy systems with known ground loop issues?
A: Many aging DCS installations suffer from ground potential differences between field devices installed at different elevations or in separate process areas. The SAI143-H63’s module-level 1500V AC isolation barrier breaks these ground loops at the I/O module, eliminating the measurement noise and signal offset errors that degrade legacy system accuracy. This is a direct performance enhancement that resolves a chronic legacy compatibility challenge without requiring field rewiring or external signal conditioners.

Q5: Is hot-swap replacement supported during live process operations, and what is the reconfiguration procedure?
A: Yes. The SAI143-H63 supports hot-swap replacement in compatible Yokogawa I/O racks. Upon insertion, the module automatically uploads its channel configuration from the DCS controller, eliminating manual re-entry of scaling, range, and alarm parameters. This capability is critical for retrofit deployments in continuous process facilities — such as refineries or power plants — where scheduled downtime windows are limited or unavailable.

Q6: What documentation is provided to support the retrofit installation and commissioning process?
A: Each unit is supplied with original Yokogawa technical documentation including installation manual, wiring diagrams, and specification sheets. Our team additionally provides retrofit-specific application notes covering rack installation, DCS configuration steps, and channel verification procedures. Post-installation technical support is available to assist commissioning engineers throughout the system migration process.
