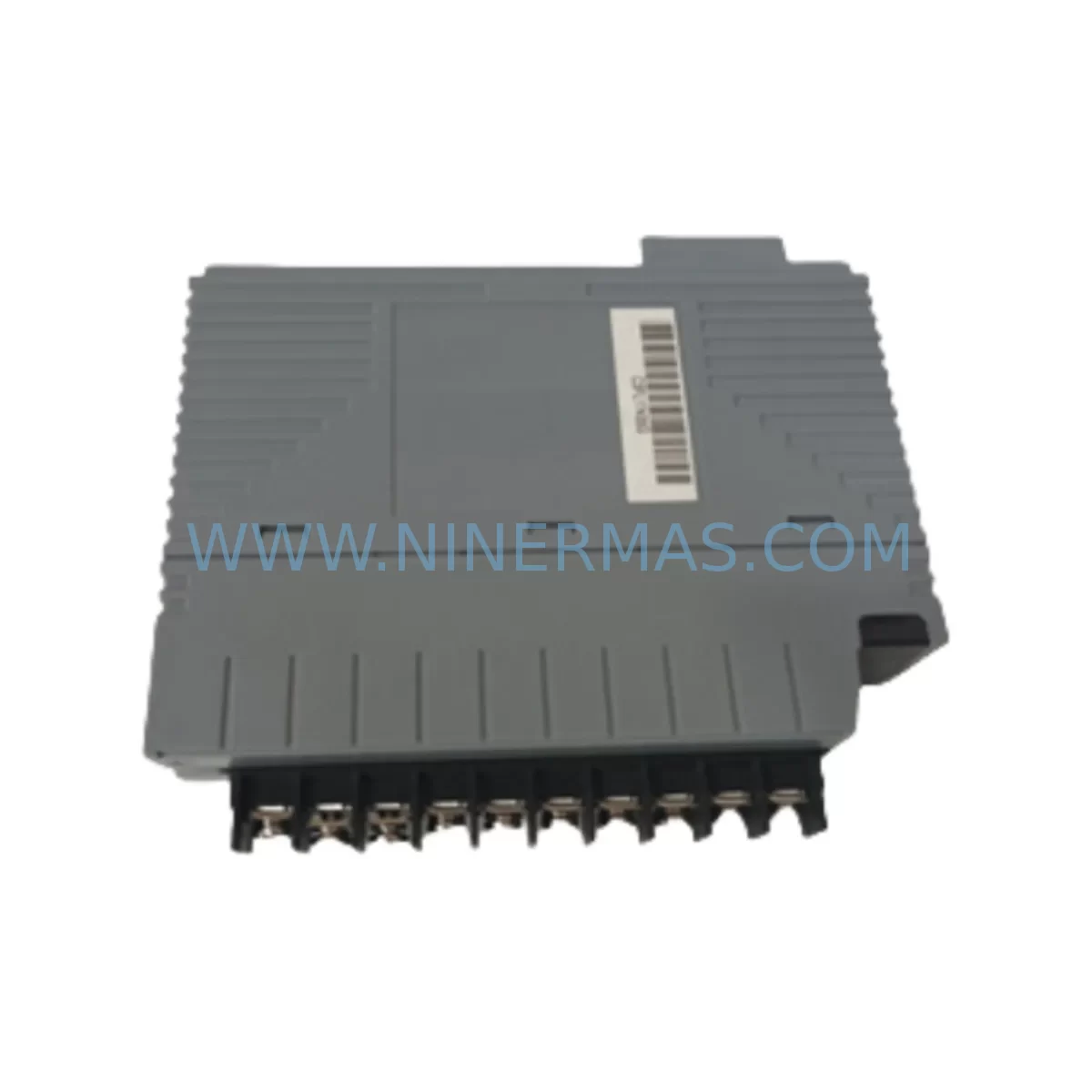

YOKOGAWA NFLC121-S00 Fieldbus Link Module Spare Part

YOKOGAWA NFLC121-S00 Fieldbus Link Module – Service-Ready Spare Part for Industrial Maintenance

The YOKOGAWA NFLC121-S00 is a Fieldbus Link Module designed for the CENTUM VP Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in the petrochemical, power generation, water treatment, and continuous manufacturing industries. For maintenance engineers managing aging DCS infrastructure, the NFLC121-S00 represents a critical node in the fieldbus communication chain. When this module fails or degrades, the consequences can range from intermittent signal loss to complete segment communication failure, triggering unplanned shutdowns and costly production interruptions.

At NINERMAS, we stock the NFLC121-S00 as a verified original spare part, fully tested prior to shipment and backed by a 12-month warranty. Whether you are responding to an emergency breakdown, executing a planned annual overhaul, or building a strategic spare parts inventory for long-term system reliability, this module is available for immediate dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the NFLC121-S00 in a live CENTUM VP system is rarely an isolated task. Experienced maintenance engineers understand that fieldbus communication failures are often symptomatic of broader issues within the control node. When sourcing the NFLC121-S00, it is prudent to simultaneously inspect and, where necessary, stock replacement units for the surrounding components that share the same communication and power infrastructure.

The YOKOGAWA NFLC111-S00, an earlier-generation Fieldbus Link Module in the same CENTUM VP family, is frequently found alongside the NFLC121-S00 in mixed-generation node configurations. Maintenance teams managing multi-vintage DCS installations should ensure both variants are represented in their spare parts inventory. Similarly, the YOKOGAWA NFBU100-S00 Field Control Unit backplane provides the physical and electrical backbone for the NFLC121-S00; any signs of backplane connector wear, corrosion, or mechanical damage should be addressed during the same maintenance window.

Power integrity is equally critical. The YOKOGAWA NFPS100-S00 Node Unit Power Supply Module feeds the entire node assembly, including the fieldbus link module. A degraded power supply can cause intermittent communication resets that are easily misdiagnosed as fieldbus module failures. Replacing the NFLC121-S00 without verifying power supply output voltage and ripple is a common maintenance oversight that leads to repeat failures.

On the field device side, the NFLC121-S00 interfaces directly with Foundation Fieldbus H1 segment wiring and connected field instruments. Maintenance engineers should verify the condition of fieldbus segment terminators, FF H1 power conditioners, and intrinsic safety barriers — such as the YOKOGAWA MTL or P+F series isolators — before commissioning a replacement module. A faulty terminator or an overloaded segment can immediately stress the new module and shorten its service life.

For I/O integrity, the YOKOGAWA NFAI143-S00 Analog Input Module and NFAO141-S00 Analog Output Module installed in adjacent slots of the same node unit should be inspected for signal drift, connector oxidation, and firmware version compatibility. Communication anomalies at the fieldbus link layer can sometimes mask underlying I/O module degradation that only becomes apparent after the link module is restored to normal operation.

Finally, maintenance teams should not overlook the YOKOGAWA NFCP100-S00 Communication Processor and the associated Vnet/IP network switches that carry supervisory traffic between the field control station and the HIS (Human Interface Station). A healthy NFLC121-S00 operating within a degraded Vnet/IP network will still produce unreliable control performance. Ensuring that network switches, fiber patch cables, and communication processor firmware are all current is an essential part of any comprehensive CENTUM VP maintenance strategy.

Site Replacement Workflow

Replacing the NFLC121-S00 on-site follows a structured procedure designed to minimize control interruption and ensure seamless recommissioning. Before beginning, the maintenance engineer should confirm the exact hardware revision of the installed module by reading the label on the existing unit and cross-referencing with the CENTUM VP system configuration database. The NFLC121-S00 suffix -S00 denotes the standard hardware variant; ensure the replacement unit matches this designation to avoid compatibility issues with the node unit backplane and the CENTUM VP engineering software.

Where the process permits, the affected fieldbus segment should be placed in manual control mode at the HIS before the module is removed. This prevents spurious control actions from propagating to final control elements during the hot-swap procedure. CENTUM VP supports online module replacement in most node configurations, but the specific procedure depends on the system version and the redundancy configuration of the affected node. Engineers should consult the applicable CENTUM VP hardware manual (IM 33J01B10-01EN or equivalent) before proceeding.

After installing the NFLC121-S00 replacement, the system will automatically detect the new module and initiate a self-diagnostic sequence. The engineer should monitor the module status LEDs and the CENTUM VP alarm console for any initialization errors. Once the module reports a healthy status, the fieldbus segment devices should be polled individually to confirm that all field instruments have re-established communication. Only after all devices are confirmed online should the control loops be returned to automatic mode.

For sites operating legacy CENTUM CS 3000 infrastructure that is being migrated to CENTUM VP, the NFLC121-S00 plays a key role in the fieldbus migration path. NINERMAS can advise on compatibility between legacy fieldbus wiring infrastructure and the NFLC121-S00 to support phased migration projects that minimize capital expenditure while extending the operational life of existing field instrumentation.

Spare Parts Support FAQ

Q1: What warranty does the NFLC121-S00 carry?
All NFLC121-S00 units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional testing prior to dispatch, and a test report is available upon request.

Q2: How do I verify compatibility between the NFLC121-S00 and my existing CENTUM VP system?
Compatibility depends on your CENTUM VP system version (R4.x, R5.x, or R6.x) and the specific node unit type. Please provide your system version, node unit model number, and existing module hardware revision when placing your enquiry. Our technical team will confirm compatibility before shipment to eliminate the risk of receiving an incompatible unit.

Q3: Can NINERMAS supply the NFLC121-S00 for emergency breakdown situations?
Yes. NINERMAS maintains stock of critical CENTUM VP spare parts including the NFLC121-S00 to support emergency breakdown scenarios. We offer expedited shipping options and can provide documentation packages — including datasheets, test reports, and certificates of conformity — to support your site’s incoming inspection process. Contact our team at sale@ninermas.com or +0086 187 5021 5667 for urgent requirements.

Q4: What is NINERMAS’s long-term supply commitment for the NFLC121-S00?
NINERMAS specializes in the long-term supply of industrial automation spare parts, including modules that have reached end-of-production status with the original manufacturer. We actively source and stock the NFLC121-S00 to support customers with extended plant lifecycles. Our procurement team monitors global supply channels to ensure continued availability, and we can arrange scheduled supply agreements for customers with recurring maintenance requirements.
